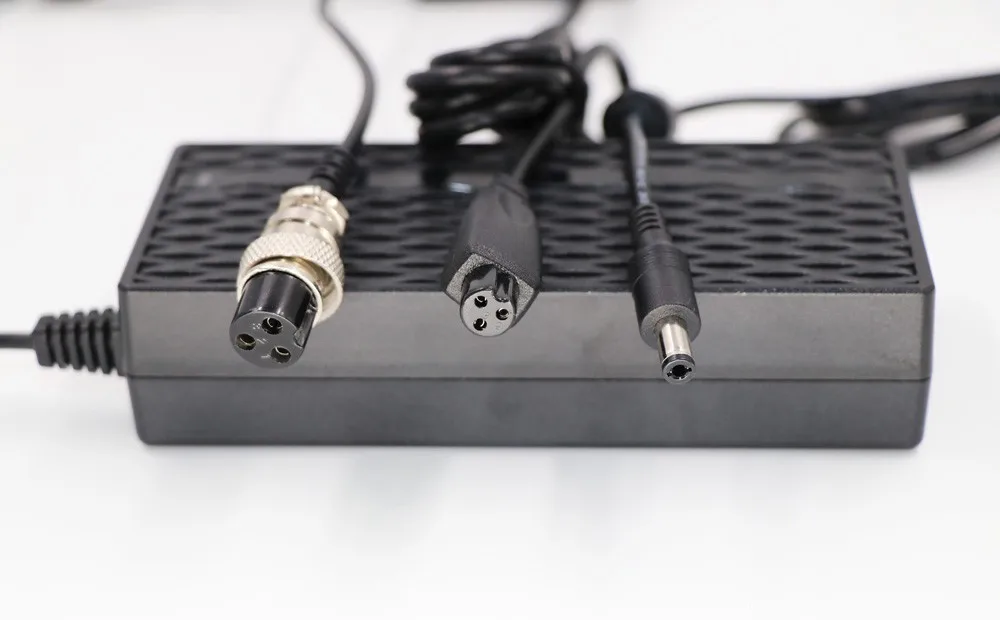

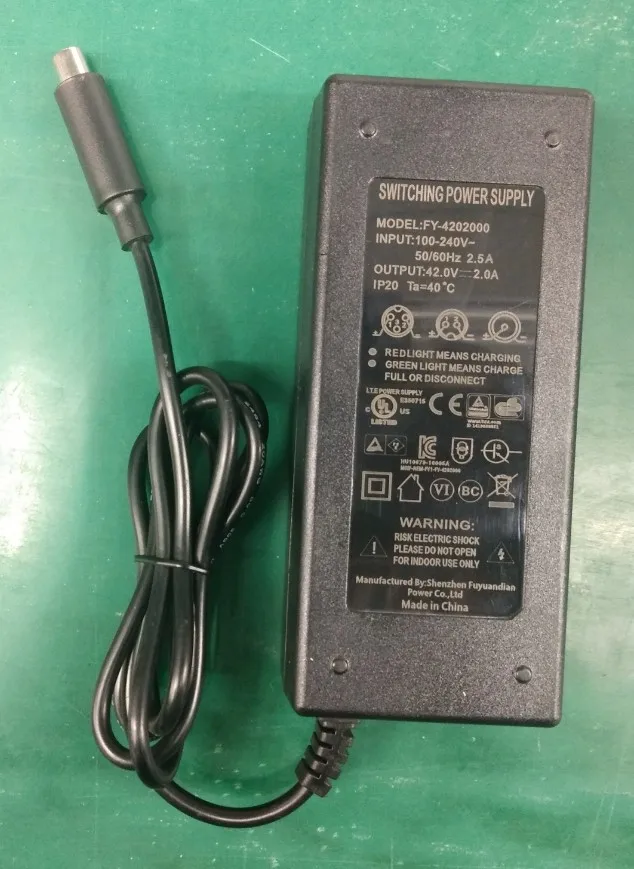

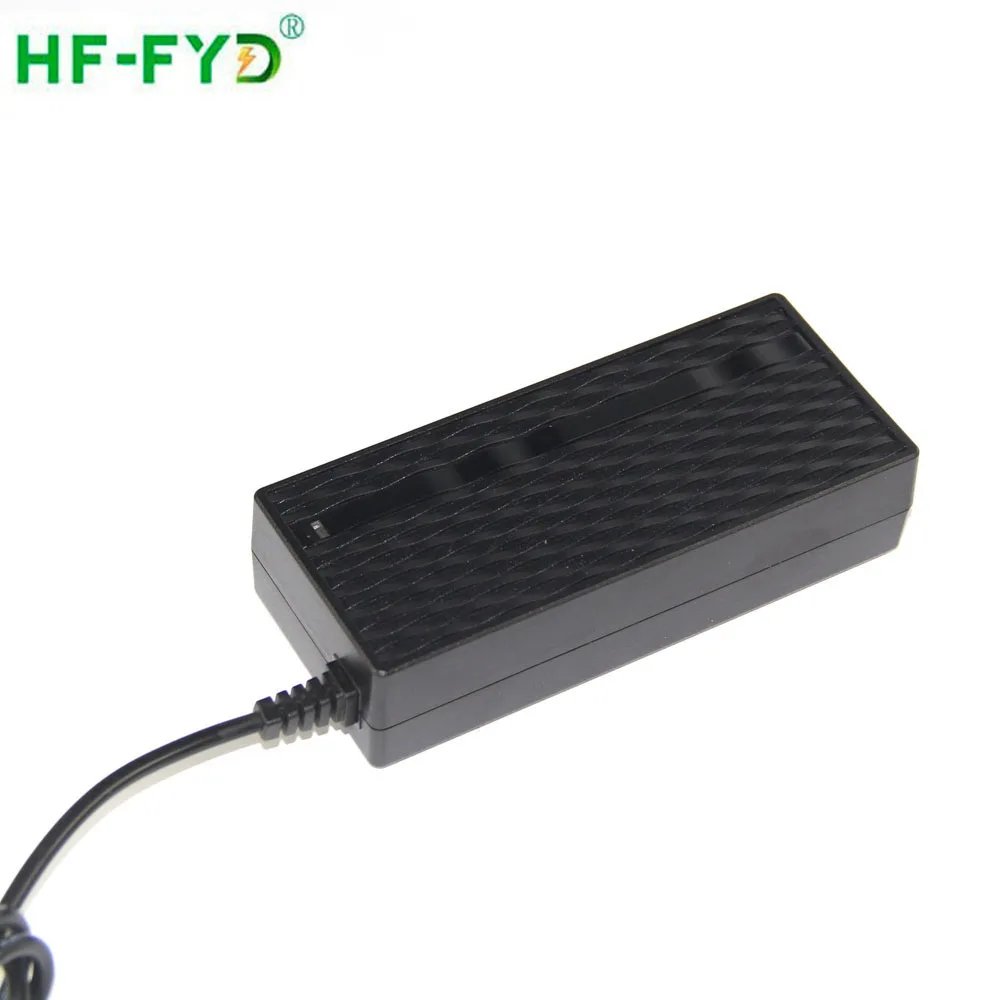

FY 4202000 42V Electric Scooter Charger 42V 2A Hoverboard Battery Charger

Product Overview

Description

Input Voltage





Table 1: AC Input Voltage Limitations



Minimum	Nominal	Maximum
100Vac	110Vac/220Vac	240Vac



Input Frequency





Table 2: AC Input Frequency Limitations



Minimum	Nominal	Maximum
47Hz	50Hz/60Hz	63Hz



Efficiency

The power supply efficiency shall be greater than 85% under rated input voltage. It will be measured at the typical load and maximum load.



Output Specification



DC Voltage Regulation



Rating Output Voltage	No load Voltage Range	Load Output Voltage Range
42.0V	41.80V~42.2V	26V~28V
Output Invariable Current	Output Invariable Current Range	Turn Lamp Current
2.0A	1.8A~2.2V	200mA~400mA







DC Output Current

Output	Load Condition	Line Regulation Load	Regulation	Remark
Rate	Min. Load	Max. Load	± 3%	±5%±5%
+42.0V	0.0A	2.0A



Dielectric Strength Testing



item	specification		Remark
Primary to secondary	3K Vac	<5mA/60S	No arcing No broken
Primary to P.G	N/A	N/A







Protection



² Over-voltage protection: 120%min

² Over-current protection: 120%min

² Short-circuit protection: automatic recovery

² over protection

² Load regulation: ±5%



Environmental requirement



1)operating temperature: 0-40°C
2)storage temperature: -20-85°C
3)opera ting relative humidity:595%RH
4)Withstanding voltage: AC 3,000V (minimum), 5mA (maximum)
5)Insulation resistance: DC 500V 100MΩ (minimum)
