drum wood chipper YF318E with 12 18MT/H capacity
- Category: Wood Chip Machines >>>
- Supplier: Hebi Yidafeng Industrial Co. Ltd.
Share on (60604582580):
Product Overview
Description
Product Description
wood shredder chipper YF318E+ with 12-18MT/H capacity

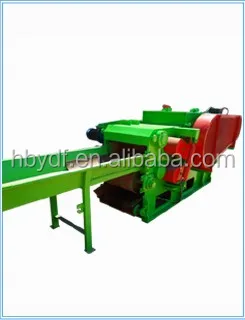

Drum Wood Chipper
Turn wood logs, trunks, timbers, tree branches and such forest wastes into wood chip in one step.
It’s also used for crushing biomass raw materials like oil palm EFB, dry palm EFB, coconut husk, etc..
Horizontal feeding.
Flying knife 2-5pcs according to user’s requirements of output wood chips size.
The structure of this series machine(drum chipper) is reasonable. Through our years of experience, it’s more and more durable and reliable, low spare parts cost, low electricity consumption, heavy duty, slight vibration and high efficiency. It’s deeply welcomed by users and hot-selling.
It’s also used for crushing biomass raw materials like oil palm EFB, dry palm EFB, coconut husk, etc..
Horizontal feeding.
Flying knife 2-5pcs according to user’s requirements of output wood chips size.
The structure of this series machine(drum chipper) is reasonable. Through our years of experience, it’s more and more durable and reliable, low spare parts cost, low electricity consumption, heavy duty, slight vibration and high efficiency. It’s deeply welcomed by users and hot-selling.
Technical Parameter
| Name | Wood chipper |
| Model No. | YF318E+ |
| Capacity | 12-18T/h |
| Main Motor | 132kw |
| Input Window | 750*300mm |
| Knife Roller | D=850mm/780rpm |
| Fuction | Turn wood logs, trunks, timbers, tree branches and such forest wastes into wood chip in one step, output wood chips will be used for boiler fuel or MDF industry. |
| Other type | YF318E、YF316E、YF315E |

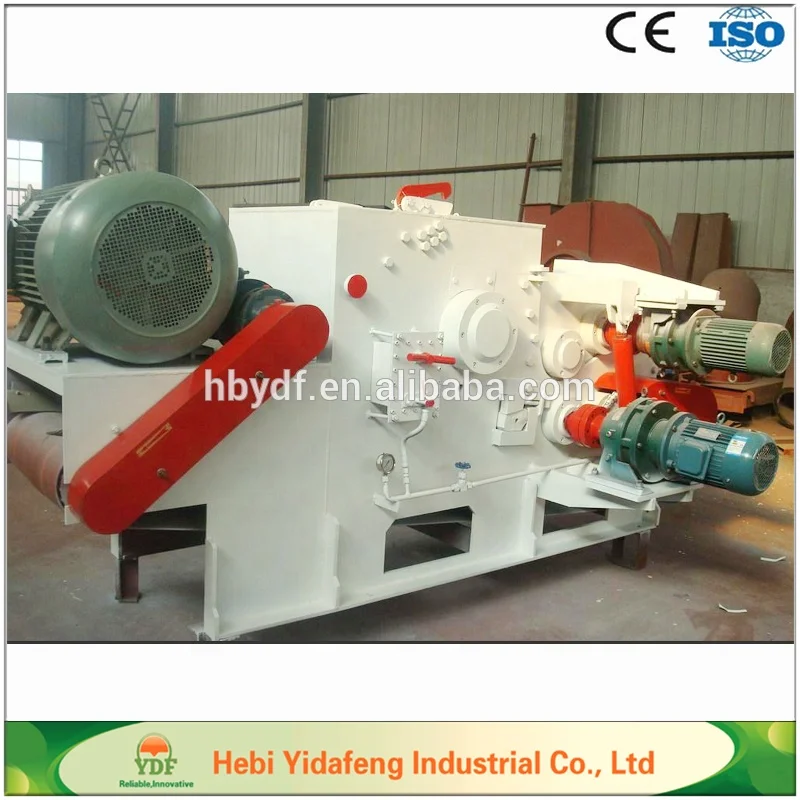

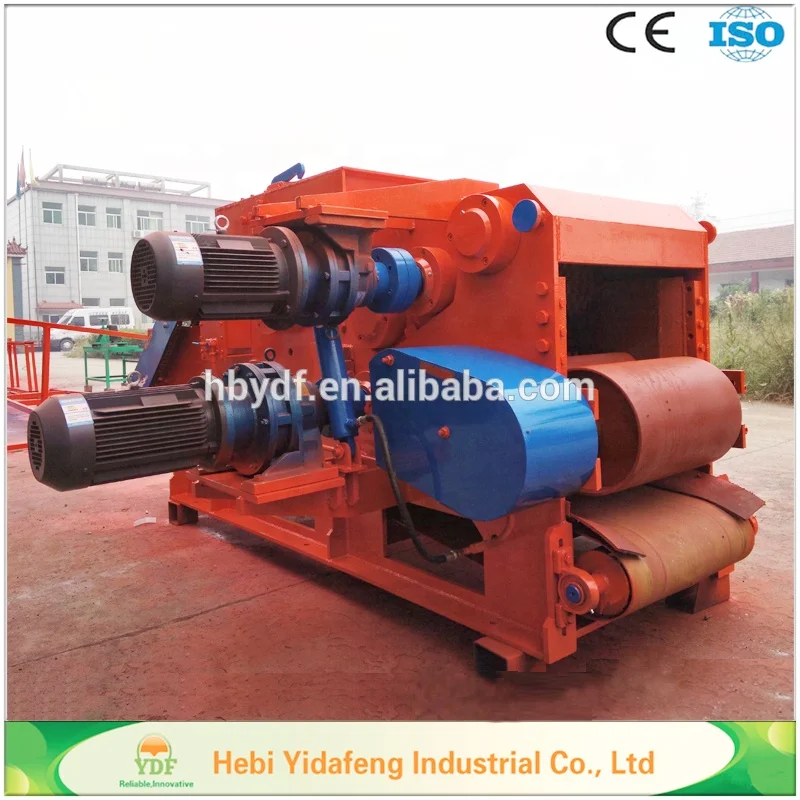

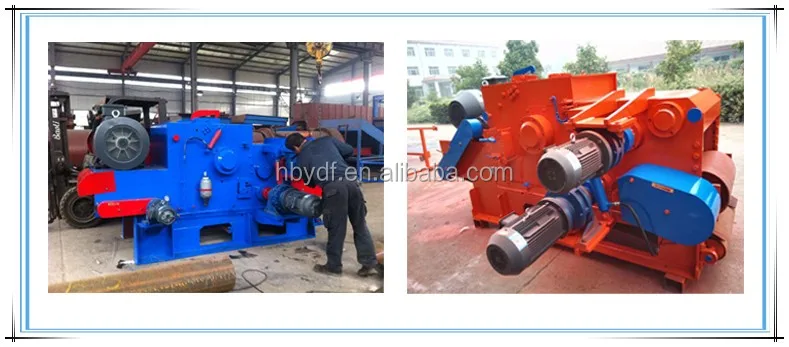

Detailed Images

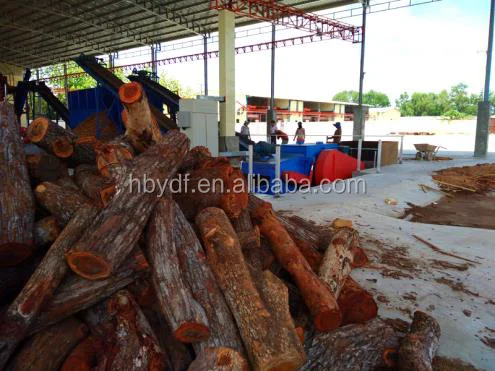

Drum wood chipper works in user's work site (Cambodia)

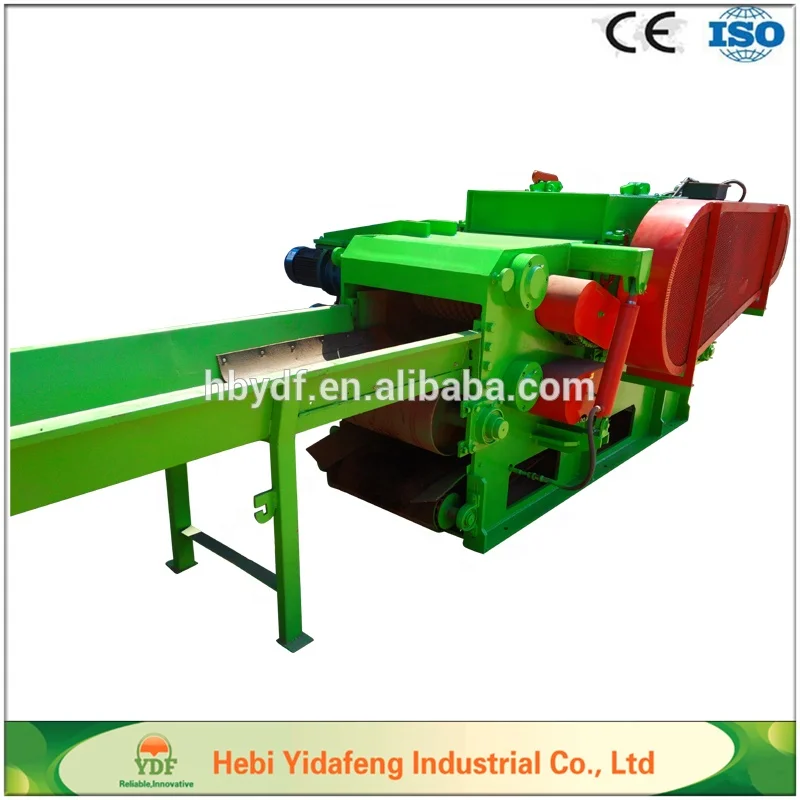

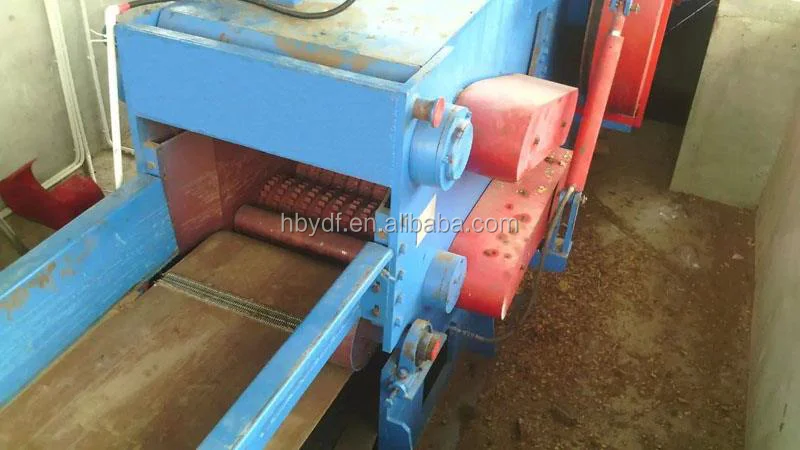

Widened input window for large wood logs.

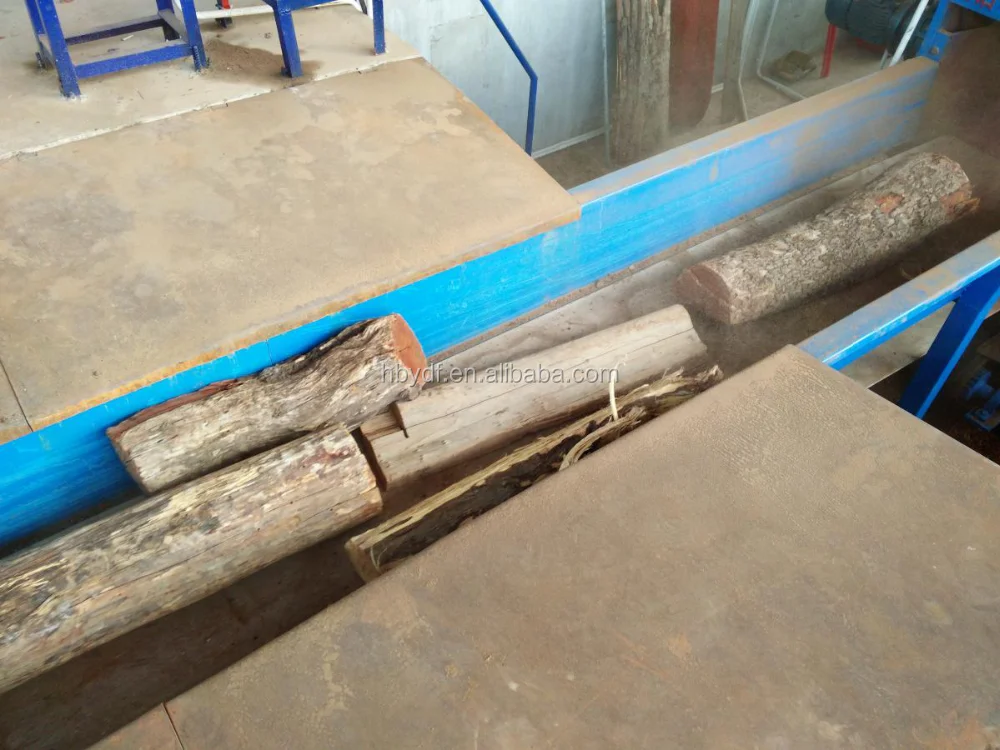

Feeding evenly.

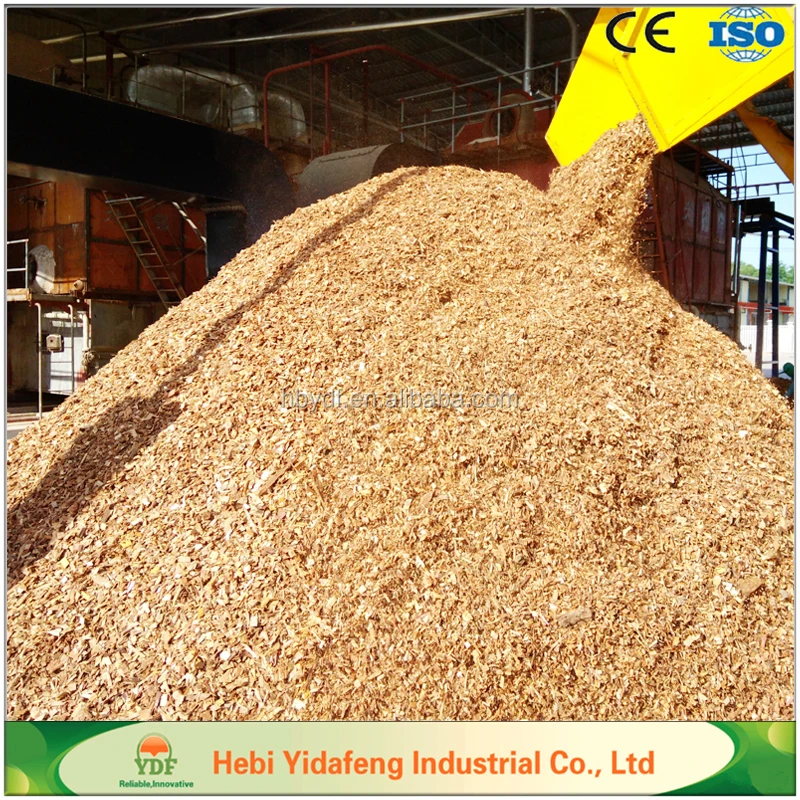

Finished product - wood chips.
Feeding Roll
Transmit raw material quickly and directly to flying knife and bottom knife.
Knife Roller
With flying knife 2-5pcs according to user’s requirements of output wood chips size
Sieve
To ensure the target size, chips lager than target size will be rejected by sieve. Lifespan: one year
The whole unit includes feeding conveyor, discharging conveyor and electrical cabinet.
Spare parts
Lifespan: 4~6 months
Flying knife, made from 6CrW2Si, have 9 holes
Lifespan: 4~6 months
Bottom knife, made from 6CrW2Si, have 9 holes
Lifespan: 4~6 months
Pressing board of flying knife and pressing board of bottom knife, made from manganese steel, have 9 holes
Lifespan: 2~3 months
Using rage

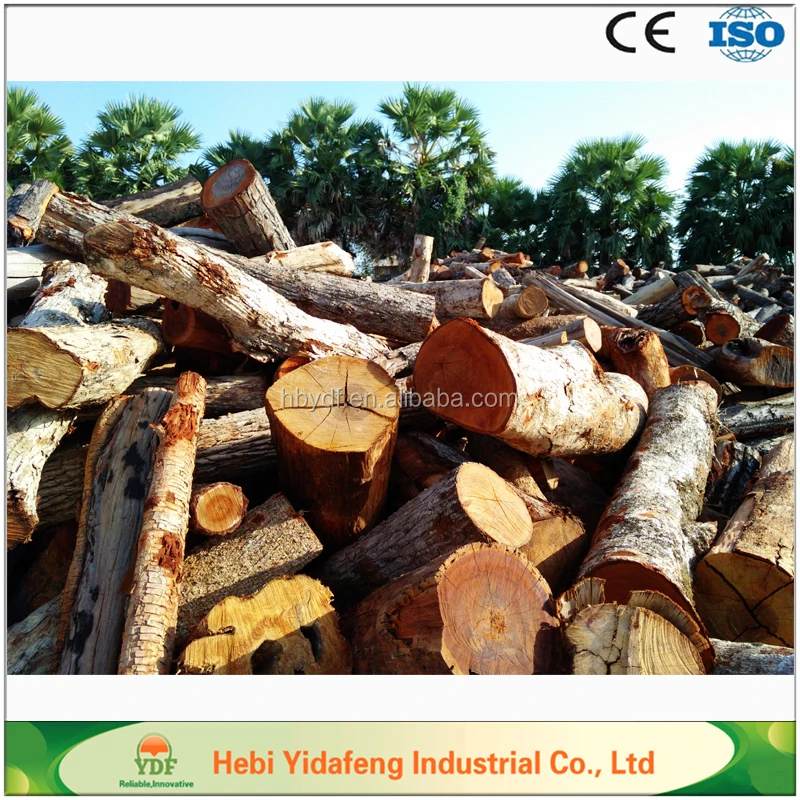

Input material of drum wood chipper: wood logs, bamboos, trunks, tree branches, pallets, and such forest wastes.
Output wood chips
Finished products in short size as 35-45mm for boiler fuel or other uses.
Finished products in short size as 35-45mm for boiler fuel or other uses.
Packing & Delivery
Plywood case Or Iron case
FCL loading, container will be loaded in our factory, taken cared by our workers.
