best quality CH horizontal dough mixer for dry powder

Product Overview

Description

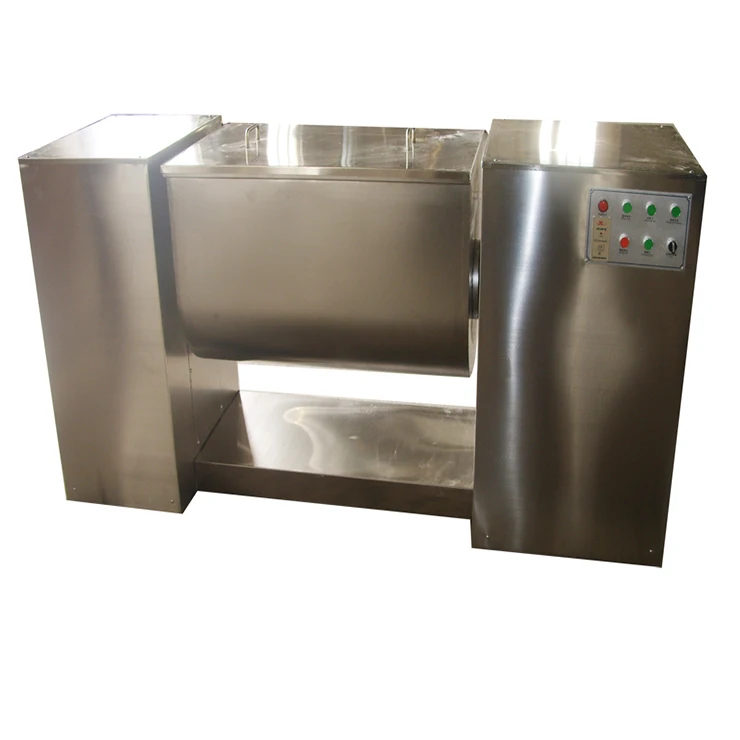

CH horizontal dough mixer for dry powder

  CH Series Trough-type Mixer for pharmaceutical dry powder

This machine is horizontal Groove tyupe mixer that made of stainless steel, it is suitable for mixing  powderly or paste material and  foodstuff.

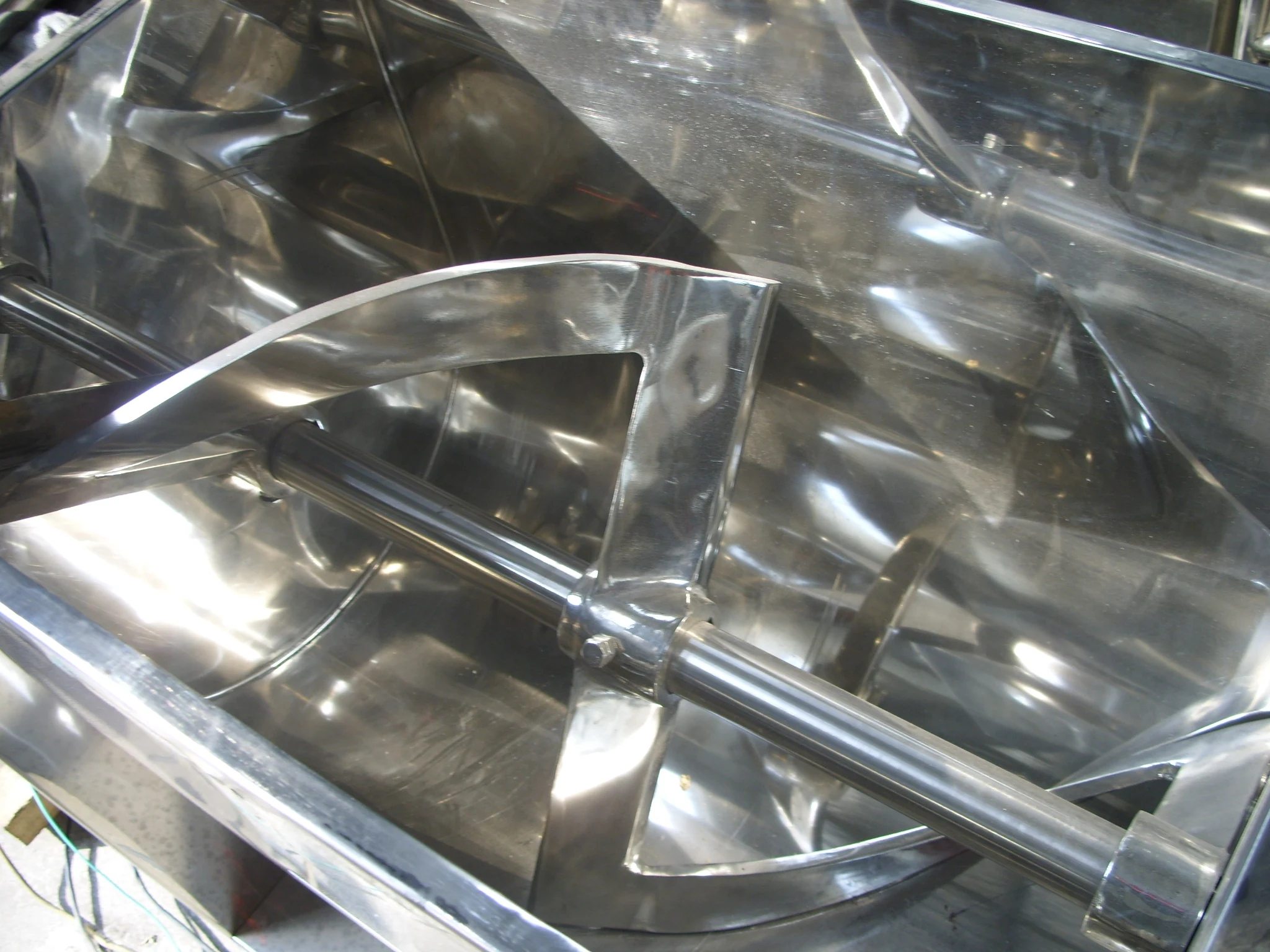

S type agitating blade roated, through mechanical driving , which make the material turn repeatedly and mix uniformly. it adopts electrical control, it can set mixing time to realize automatic stop, which imporving the mixing Qaulity of each batch of material and high homogenous mixing.



Working priciple

by S agitating blade rotated:



Suitable for drying powder example:

Medical powder

Foodstuff powder

Other powder

Technical Specification:

Model	Working Capacity(L)	Rotary speed of pulp shaft(rpm)	Main Motor power(Kw)	Material Feeding Power(KW)	Overall Dimension(mm)	Weight(Kg)
CH50	50	24	1.1	0.75	980*45*820	220
CH100	100	24	1.5	1.1	1280*440*900	250
CH150	150	24	3	1.5	1590*660*1075	550
CH200	200	24	4	1.5	190*660*1125	600
CH300	300	24	7.5	1.5	2050*700*1235	920
CH400	400	24	7.5	1.5	2205*705*1265	1040
