MZH Automatic Shampoo oil hair gel mixer and liquid shop production line equipment Mixer

Share on (60604677553):


Price:

Quantity:


Product Overview

Description


MZH-Automatic Shampoo oil hair gel mixer and liquid shop production line


equipment Mixer






Product Description


Product Description

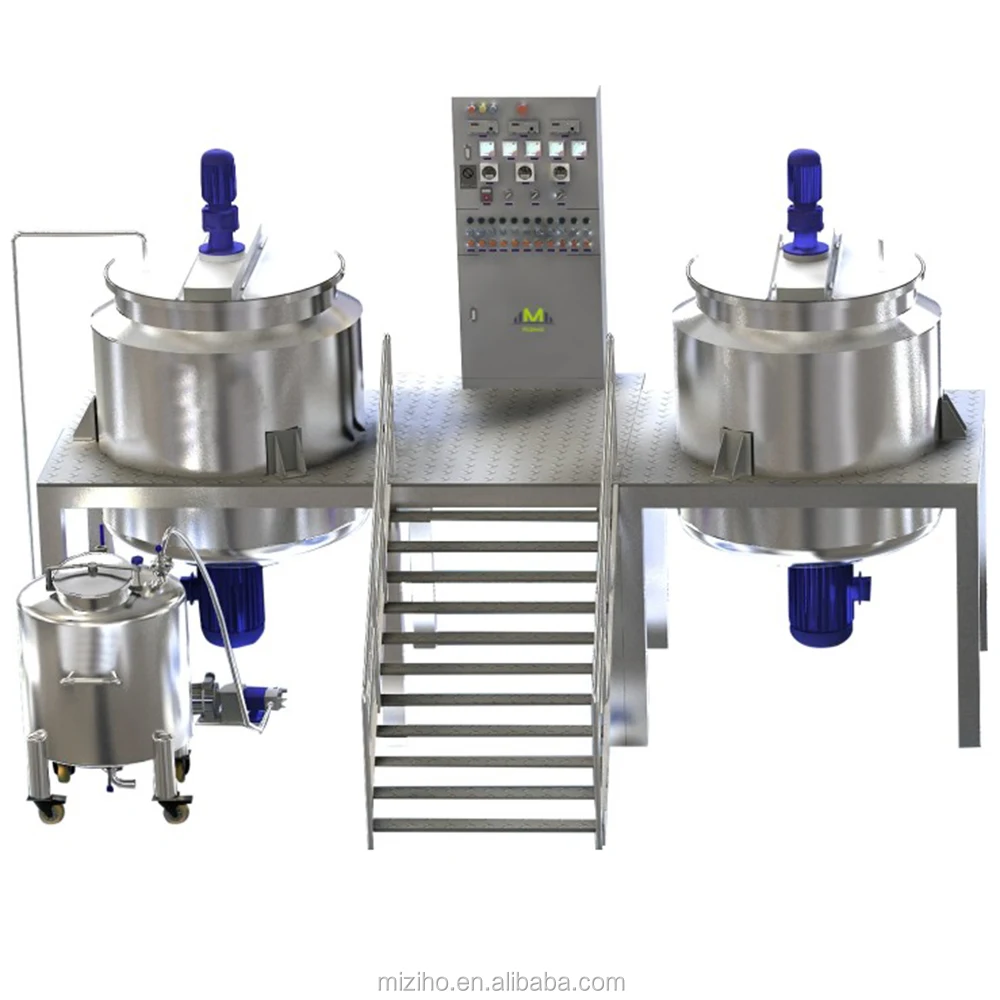

Mixer machine (1)









Product Application




UNIVERSAL PERFORMANCE
Guangzhou factory MZH-V100L top homogenizer mixing vacuum emulsifying mixer cosmetic is designed specially by "MIZIHO MACHINERY COMPANY for cosmetic and pharmaceutical industries to produce and deal big batches of different varieties of products.

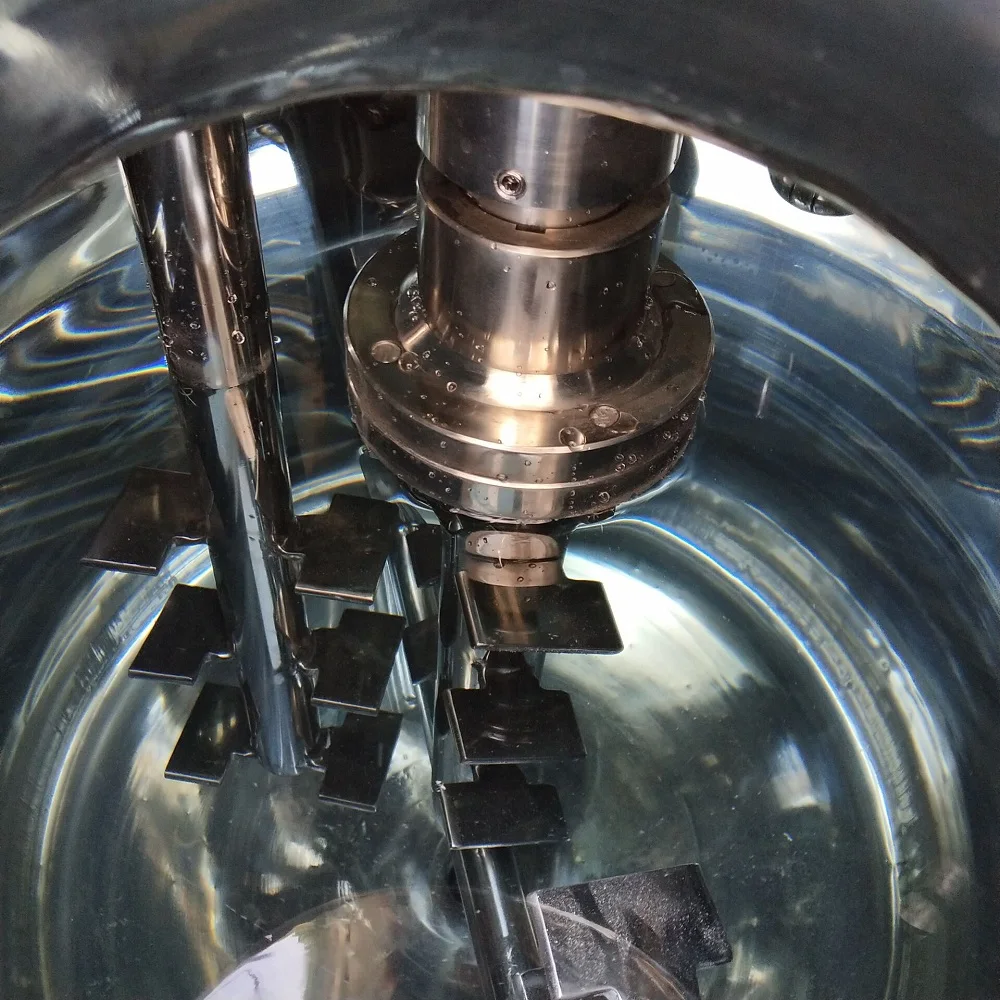

1. Mixing use triple blender, which is the design that have positive and negative turn of matching a high speed Sharing head and a slow stirring vane.

2. Advanced disperser with unique structure and reliable sealing (the mechanical seal adopt Germany Bergman product), and the Disperser rotation speed of 0-3600 rpm (Panasonic frequency conversion).

3. Made of imported SUS304 or SUS316L stainless steel. The tank body and pipe are carried out mirror polishing, which is in complete accordance with GMP standard.

4. The vacuum defoaming can make the materials meet the requirement of being sanitary and aseptic. The vacuum sucking material adopted can avoid dust, especially for the powder products.

5. According to technological requirements, the tank can heat and cool the material. The heating method can be chose to steam or electric heating according to customer requirements






STANDARD CONFIGURATION


1. Toothpaste Vacuum Disperser Mixer Main boiler

2. Synchronous solenoid valve

3. Change homogenizer head to High sharing disperser head.

4. Oil pressure lifting system and blending system

5. Stainless steel operation platform



6. Three layers of jacket

7. Electrical heating

8. CIP system

9. Variable-frequency conversion and electric control box

10. Button and PLC contorl





 TECHNICAL SPECIFICATIONS





































































Model




Guangzhou factory MZH-V100L top homogenizer mixing vacuum emulsifying mixer




Main Boiler




100L (Design volume:125L)




Main Boiler Jacket Material & Thickness




Inside:316L(4mm) Mid:304(4mm) Outside:304(3mm)




Blender Material & Thickness




SUS316L(thickness : 6mm)




Platform Material & Thickness




304(thickness : 4mm)




Safety Guardrail Material & Thickness




304(thickness: 1.5mm round pipe)




Speed of Scraping Plate Blender




0-63r/min




Speed of Disperser




0-3600 r/min




Temperature of Emulsifying Pot




≤180 ℃




Bidirectional Blender Motor




Scraper driven 1.5KW




Homogenizer Power




3KW




Operating way




Button control




Heating Pipe Power




30KW




Vacuum of sharing Pot




-0.09Mpa




Pressure of Jacket




normal pressures
