This smoke oven mainly consist the furnace, heatingsystem, circulating air system, smoked system and control system.
1. Furnace:All the components and the outer wall of the furnace internal made of stainless steel, corrosion-resistant.
The products will be hanging in the trailer into the furnace body, close the door, cooking and other processing can be carried out by setting process parameters.
2. Heating system:
A. Steam heating: have function of cooking, smoking and drying, needsteam source, the highest temperature can be achieved 120°C.
B. Electric heating: have function of baking, smoking and drying,use electric heating tube; the highest temperature can be achieved 140°C.
C. Steam and electric heating:
have function of cooking, baking, smoking and drying.
3. Circulating air system: at the top of furnace have two-speed electric fan,high pressure windsensure uniform furnace heating and temperature throughout, sothe quality of products is stable and reliable.
4. Smoked system:
A. Inner smoke: Inner of furnace have a fuming plate, can put sawdust or sugar on it before close the door, control the panel button fuming button, and adjust the time the smoke in uniform furnace smoked cooked products with smoke switch button time adjustment. (This is suitable for 30L, 50L, 100L and 150L)
B. Outer smoke: Outer of furnace have a smoke box, there have a fuming plate, you can put sawdust or sugar on itwhenever you need. (suitable
for all models)
5. Control system:
Fully automatic electric/computer control part of the fumigation box using the advanced man-machine interface with a programmable controller, fully automatic control and monitoring of the various processes. Reliable operation and easy to operate, waterproof performance is good.

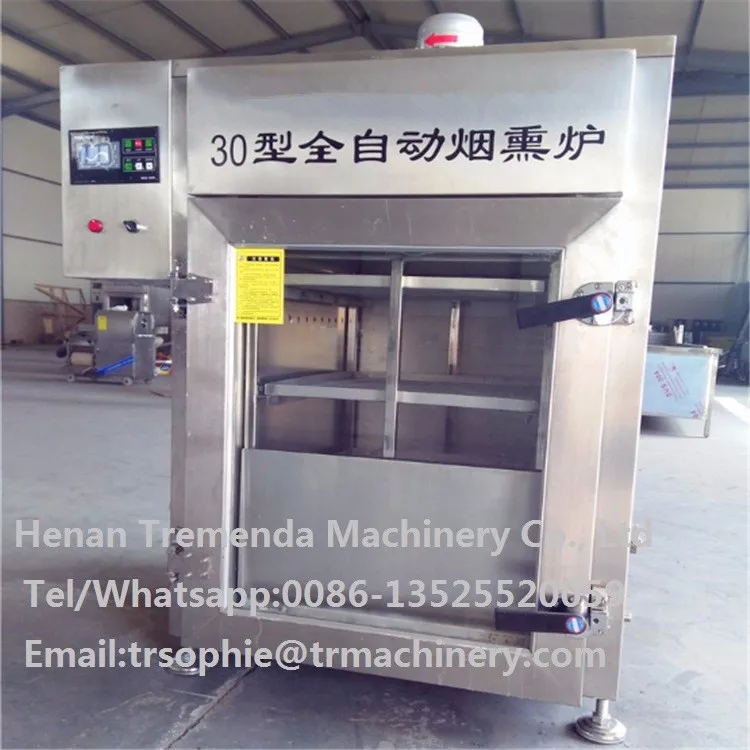

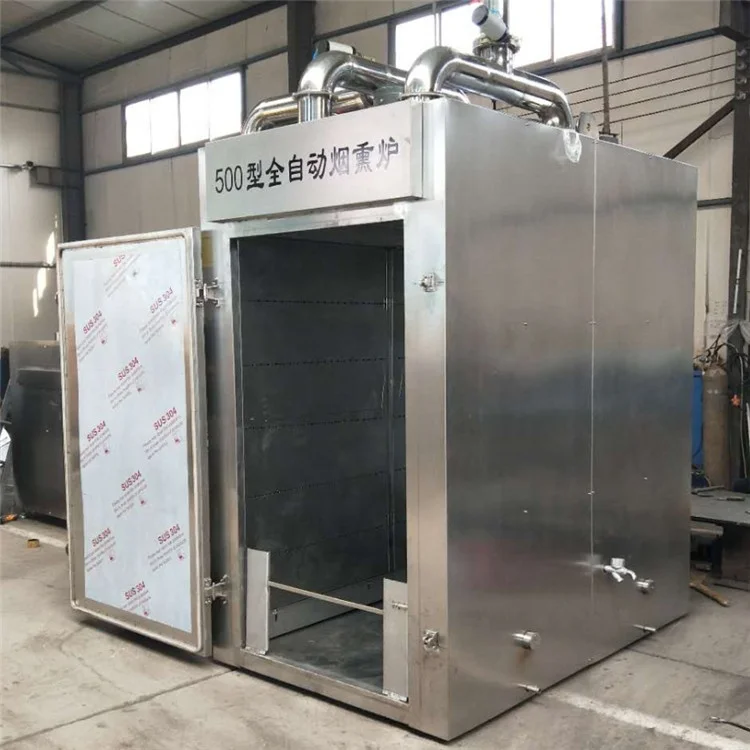

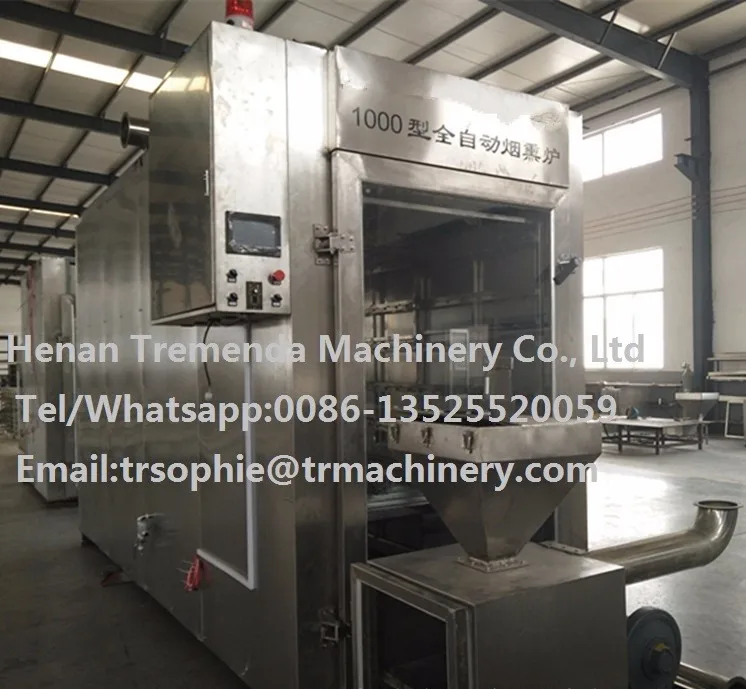

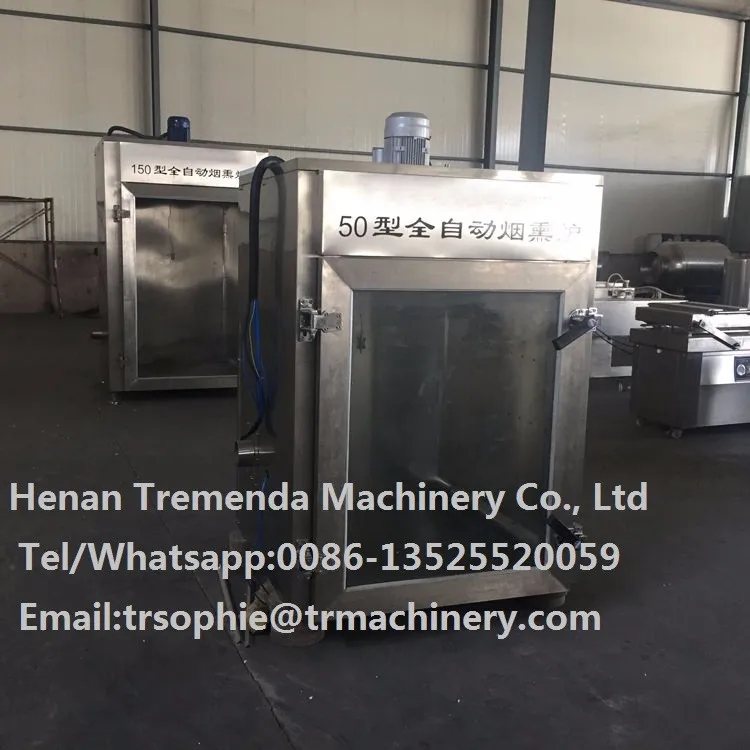

Ⅱ. Pictures of sausage smoke machine:

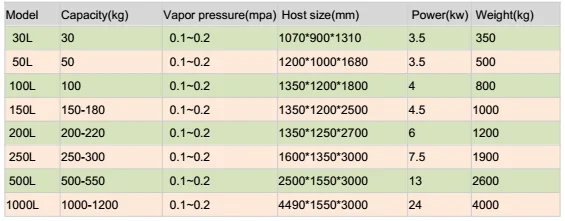

Ⅲ. Parameters of sausage smoke machine:
Packaging & Shipping
1.Packaging Specification: Outside Package:Wooden Packing as Exported Standard.
2.About Shipping: We can be responsible for the shipping according to the customers's requirments,for example,shipping the machine by sea,express or air.of course,we can also accept and cooperate with your agent if you have shipping forwarder in China.
Our Services
Training plan: We will provide training for those who operate and maintain the machines. We also sent for engineers to install the machine if customers need.
Warranty
1.We guarantee that the commodity hereof is made of the best materials and new brand with top
workmanship, and in accordance with quality specification stipulated in product Contract and Appendix.
2. Guarantee period shall be within 12 months from the date of acceptance. During this period, if there are quality problems, we will provide solution by verbal or written communication. If the problem is unsolved, our engineers will repair for you on site as soon as possible. The maintenance is free when there are non-operation errors; otherwise it is for the buyer’s account.
Company Information
Henan Tremenda Machinery Co.,LTD located in Zhengzhou, capital of Henan Province in China.and experienced in designing,research, development and selling food and agriculture machinery.
With excellent quality and technical experts, as well as advanced management, we are one of the leading firms of the same line, we have established a strong quality guarantee system. Sincerely in the hope of developing good long-term business relationship with your esteemed company.
Contact Us
For any question, please feel free to contact us. Machine working vedio can be offered.
