Complete Set of Polyester Staple Fiber Production Line/ PSF Production Line

Product Overview

Description



Complete Set of Polyester Fiber Production Line

Company Profile:

HTHI is the largest supplier to manufacture complete set of chemical fiber equipment for most of the chemical fiber production such as polyester, acrylon, nylon, polypropylene, viscose fiber etc. in mainland China.

HTHI is the largest supplier of viscose staple fiber equipment among the world. As for polyester staple fiber equipment, HTHI is one of the three largest suppliers in the world.

HTHI has also developed more advanced equipment for carbon fiber, high intensity polyethylene fiber, high intensity & water soluble vinylon and Lyocell fiber manufacturing in recent years.

PSF After-Treatment Line Flow Chart:













Introduction:

     A two-step process which is fore spinning and then after-treatment process is normally applied to polyester staple fiber production line. HTHI supplies complete set of polyester staple fiber equipment which can produce cotton-type, colored fiber, profile staple fiber, fine denier fiber and high strength & low stretch fiber etc.



Product Feature:

1.     Applicable for direct spinning, large capacity and high efficiency.

2.     Spinning machine has various cooling types, such as out-in quench, in-out quench and cross quench etc.

3.     Advanced network aspirator device, easy to be operated.

4.     Sunflower wheel feeding type or aero-feeding type can be chosen by customer.

5.     Drawing process adopts various types, such as one-water-one-steam stage, one-dry-one-steam stage and so on.

6.     Drawing stand has five-roller type and seven-roller type with single layer or jacket.

7.     Annealer adopts module design, which can be combined with different processes.

8.     Roller adopts single layer type and jacket type.

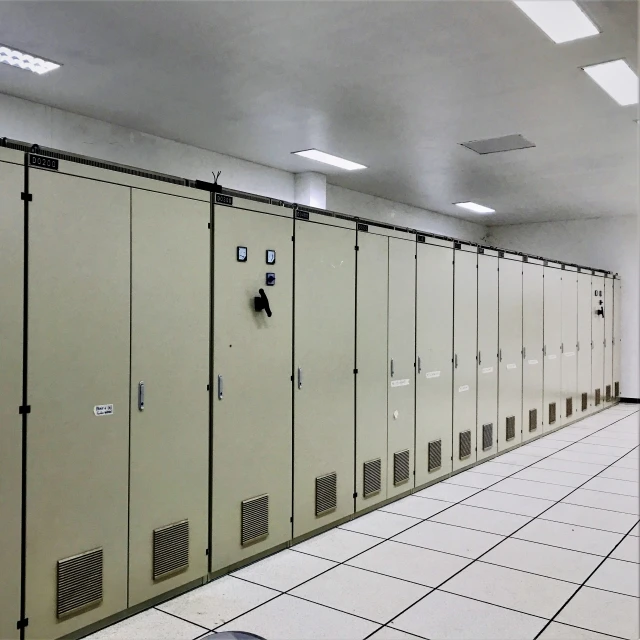

9.     High-performance electrical instrument control system has reached advanced level in the world.



Specification:

25/50/70/100 TPD capacity of differentiation polyester staple fiber production line.

25/50/70/100 TPD capacity of PET polyester staple fiber production line

100/150/200/250 TPD high capacity polyester staple fiber production line

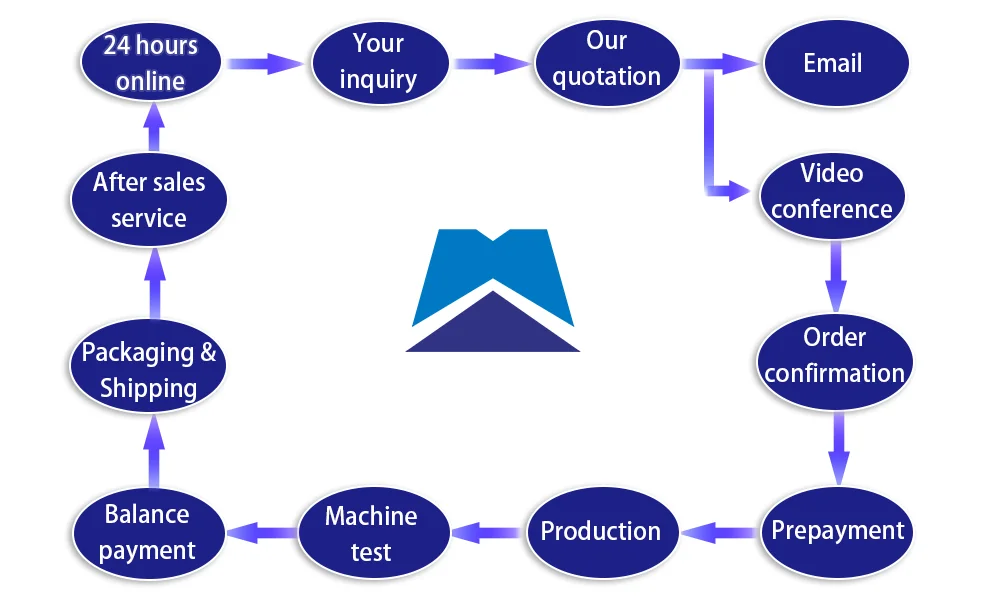

 Service:







After-sale Service:

1. Provide valid technical training

2. Erection team owns abundant experience and the first-rate service to ensure the erection quality of equipment and the long-term running of the equipment.

3. Perfect after-sale service. We can promptly provide service to you within 24 hours.

4. We can supply you complete spare parts at any time.



Suitable Fiber Types:

Cotton fiber with high strength and low stretch

Middle and long fiber

Wool type staple fiber

Fine denier fiber

Functional fiber

Profile fiber

Sea-island fiber

Colored fiber

Modified fiber

Three-dimensional crimp and hollow staple fiber

Sewing thread with high strength and low stretch

Low melting point fiber

Composite fiber

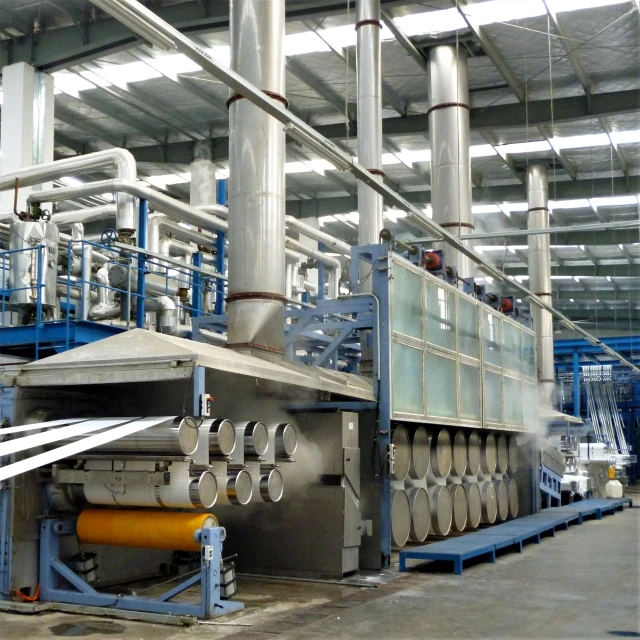

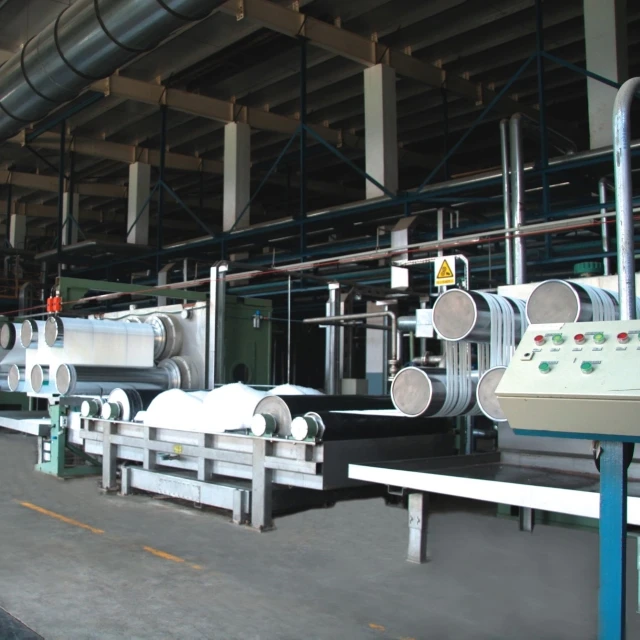

PSF AFTER-TREATMENT LINE LHV902 SERIES APPLICATION AND FEATURES

This series is used for the drawing, setting, crimpling, cutting and packing of polyester staple fiber to turn the raw fiber into practical fiber with certain strength and tension. The processes adopted in the series include two stages of high speed drawing through one water and one steam in sequences, crimping at high temperature, rotating wheel cutting, auto-weighing, double and lifting boxes hydraulic baler. It has such advantages as large capacity, short flow, a little equipment, high automation, low consumption of steam and oil, advanced process, which can produce various high-quality polyester staple fiber, and is fit for large-scale production, such as melt spinning, chips spinning and bottle flakes spinning.
