top quality Plastic material welding machine

Product Overview

Description

Top quality Plastic material welding machinery









Features:



1.The new steel structure, patented mechanical synchronous drive technology, through the proportional valve, in the weld area to achieve uniform pressure.



2.suitable for all types of thermo plastic sheet (PP-R, PP-H, PP-B, PP-S, HD-PE, PVC-U, PVC-RL, PVDF…)



3.Control system Siemens PLC, 7-inch color touch screen.



4.Data parameters are automatically selected according to the material a particular welding pressure, temperature and time.



5.3mm-40mm welding capabilities, special welding thickness of up to 60mm.

Range of Application



Technical Data:

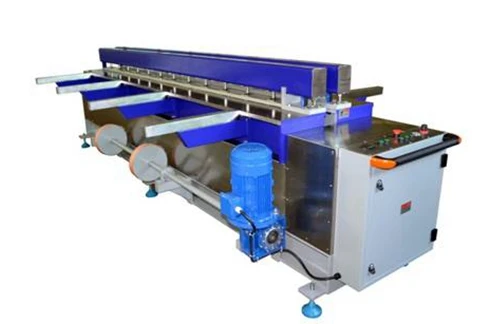

Model	S-PH3000	S-PH4000	S-PH6000
Machine Length( mm)	4300	5300	7500
Machine Width (mm)	1900	1900	1900
Machine Height (mm)	1100	1150	1200
Total Weight approx. (kg)	2800	3600	5950
Welding material thickness(mm)	3-40	3-40	3-40
Length of welding materials(mm)	3025	4025	6025
Minimum diameter welded pipe(mm)	360	480	480
Air pressure	8,0 bar	8,0 bar	8,0 bar
Power supply(V)	380	380	380
Heating element power(KW)	3.5	4.5	3.5X2(Stepwise heating)
Reel motor power(KW)	2.2	2.2	3
Heating element (Teflon coated T max = 260° C)	3200mmX20mmX50mm	3400mmX20mmX50mm	6200mmX20mmX50mm
Welding materials	PP PE PVDF...	PP PE PVDF...	PP PE PVDF...
Welding area lighting	LED	LED	LED







 Our Certificates:

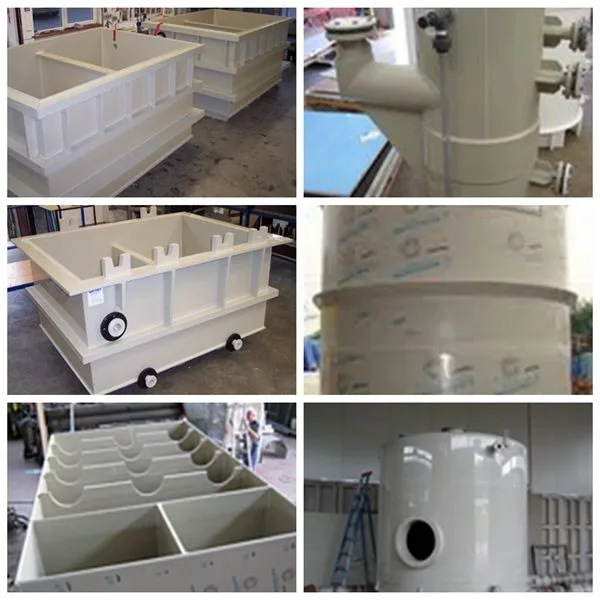

 The products our machine can manufactures:

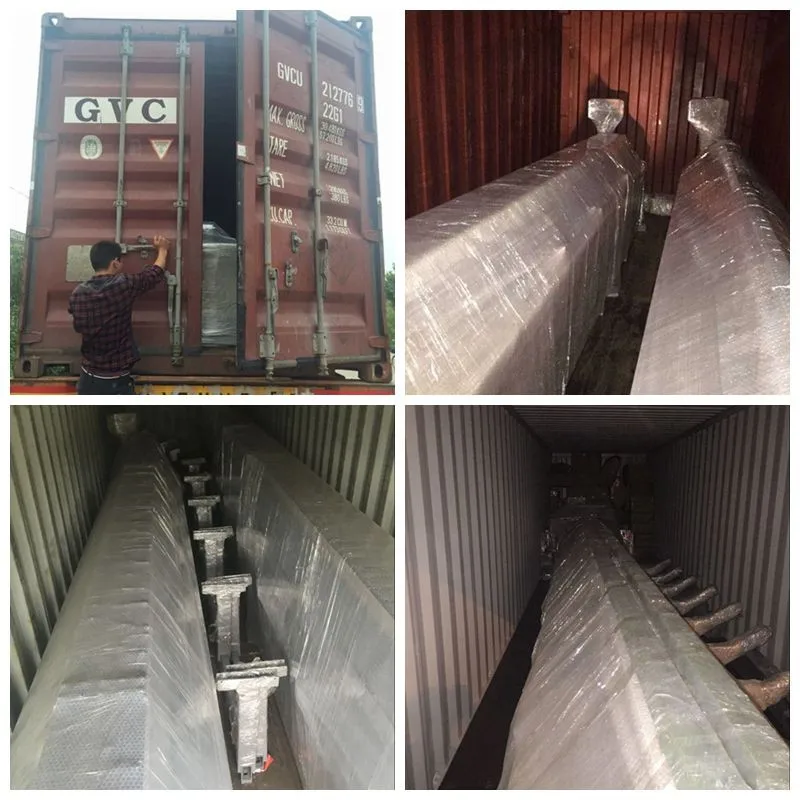

Our shipping:



Our service:

1. Warranty for 12 months.
2. We accept OEM & ODM.
3. In some foreign countries, we have the distributor or agent to sell and warranty the machines, they will supply  service



Why choose us?



1.Our equipment has strong competitiveness, our equipment already ahead, our device has the following characteristics:



The only use of advanced technology from Germany

The only electrical integration automated system

The only design

The only practical new technology



2. Our factory is the first one to manufacture the automatic plastic butt welding machine in China and service this line More than  decade . And our factory have many skilful peration of workers and the stability of the scale of production. And we also have many outstanding engineers,they can help you design the machines you want.

3.Genuine products with excellent quality and competitive price.



4.Cooperating with the customers all over the world and knowing the markets very well.



5.After-Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
