Product Overview
Description

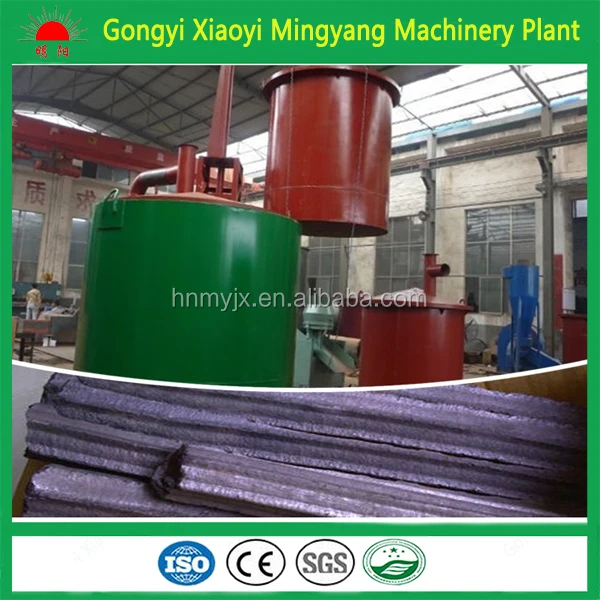

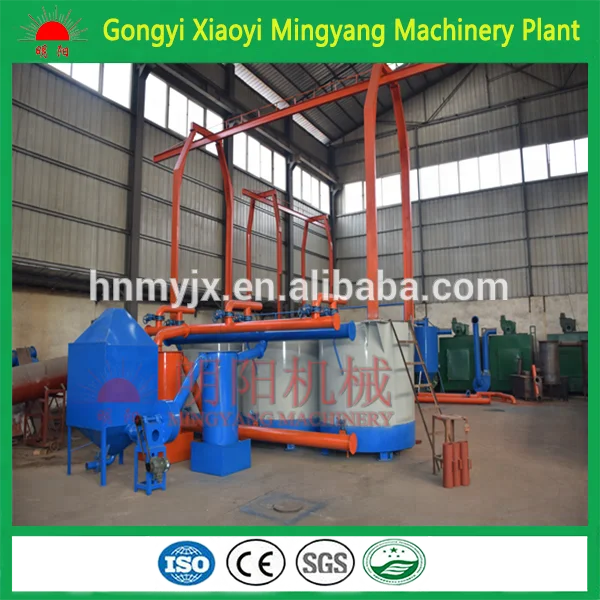

Smokeless airflow carbonization furnace/no smoke biomass charcoal making stove

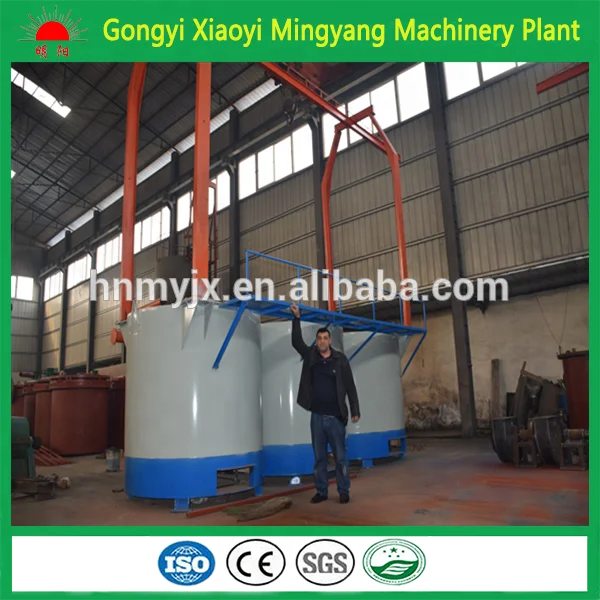

customer in our factory:
Product Description
Main introduction about the carbonization stove:
Carbonization stove adopt superior purifying technology, and is made from special high temperature resistant material, and show the features of stable and wear well, superior insulating property, easy operation, safety and reliable, finished products ratio more than 95%, labour and time saving, and one person can operate several carbonization stove simultaneously.
Carbonization stove can change the raw materila such as wood log,manmade wood briquette,coconut shell,bamboo etc.into charcoal directly with his superior property above.
Raw materials and finally products | wood logs, coconut shell, Macadamia shell, bamboo, sawdust briquette and so on
|

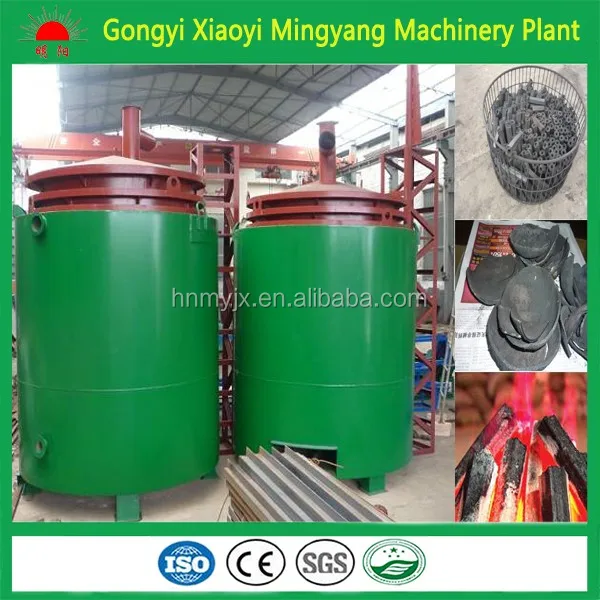

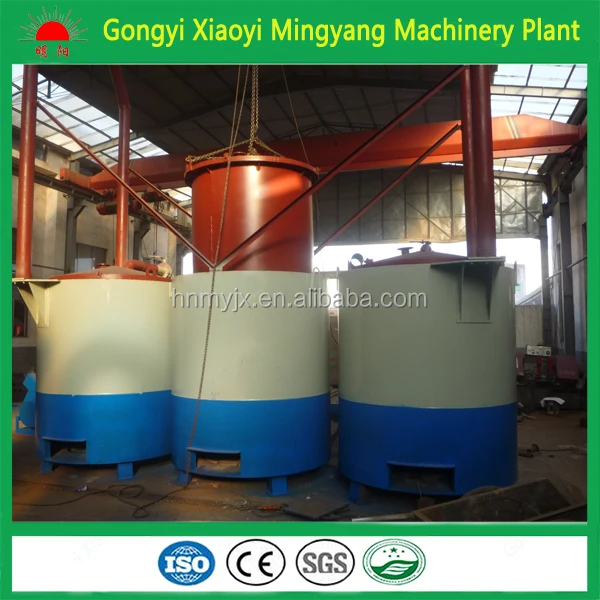

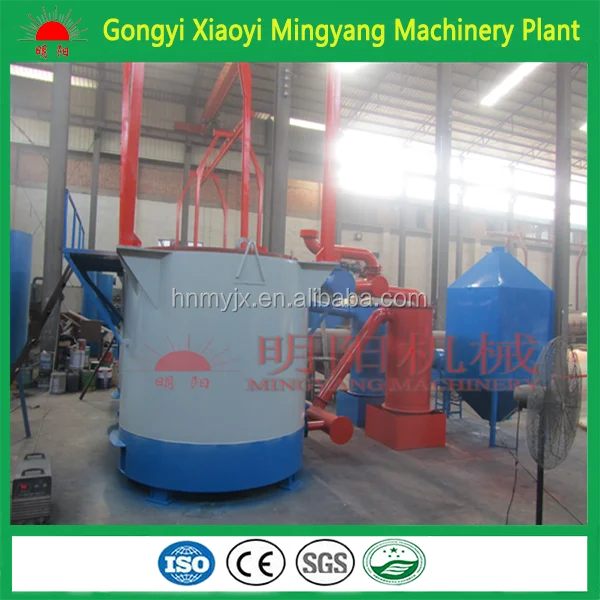

The whole machine include: | carbonization furnace is the cylinder shape. And this model stove consists of main furnace (outer stove), carbon basket (inner stove), and fume extraction tube, smoking purification system and hoisting equipment.
|
Operation | When one carbon basket have been finished carbonization, use the hoisting tools hoist the carbon basket from the main furnace, then let the carbon basket natural cooling, at the same time, put another carbon basket into the main furnace, which will save a lot of cooling time, so the productivity effect increase a lot.
|

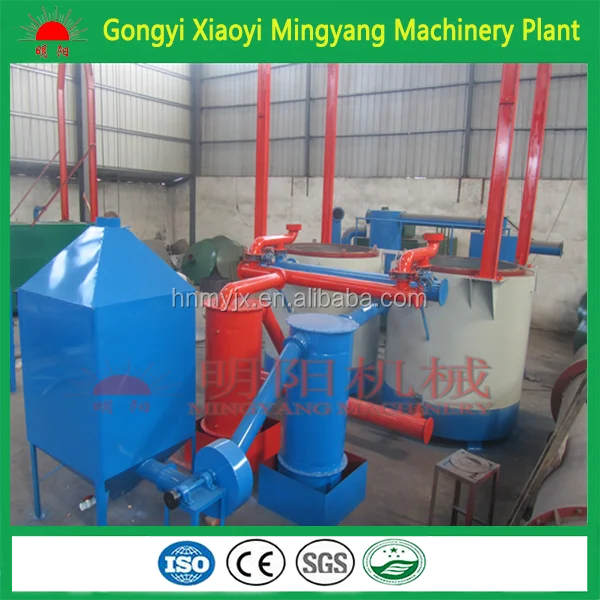

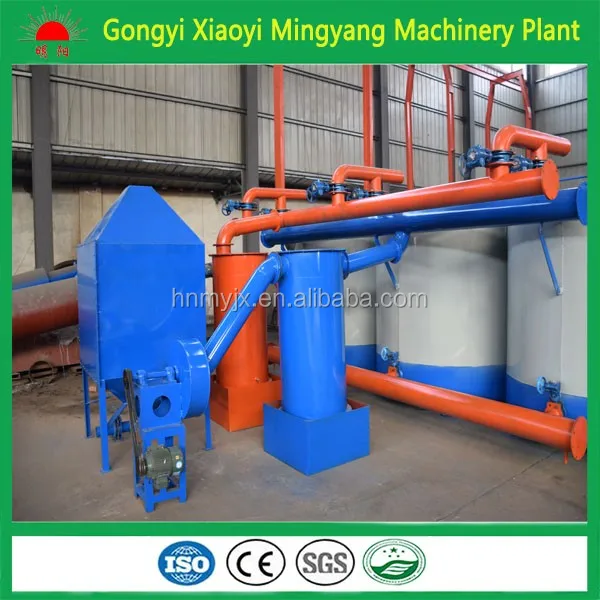

Environment | Totally No pollution there are two reasons : 1.the frog and the gas flow will be recycle from the smoke recycle device and use for heating the kiln again) 2. We install a special device that can use the liquid gas as the energy to heating the carbonization kiln, and it will not produce any smoke.
|
Transport | The three inner stove can be stack in the outer stove together, save a lot of space, |
Technology Parameter
We have two types of carbonizaiton stove,one is traditional type and the other one is air flow type.
The data of the air flow ones:
We will supply you the right type accroding to your capacity requirement.

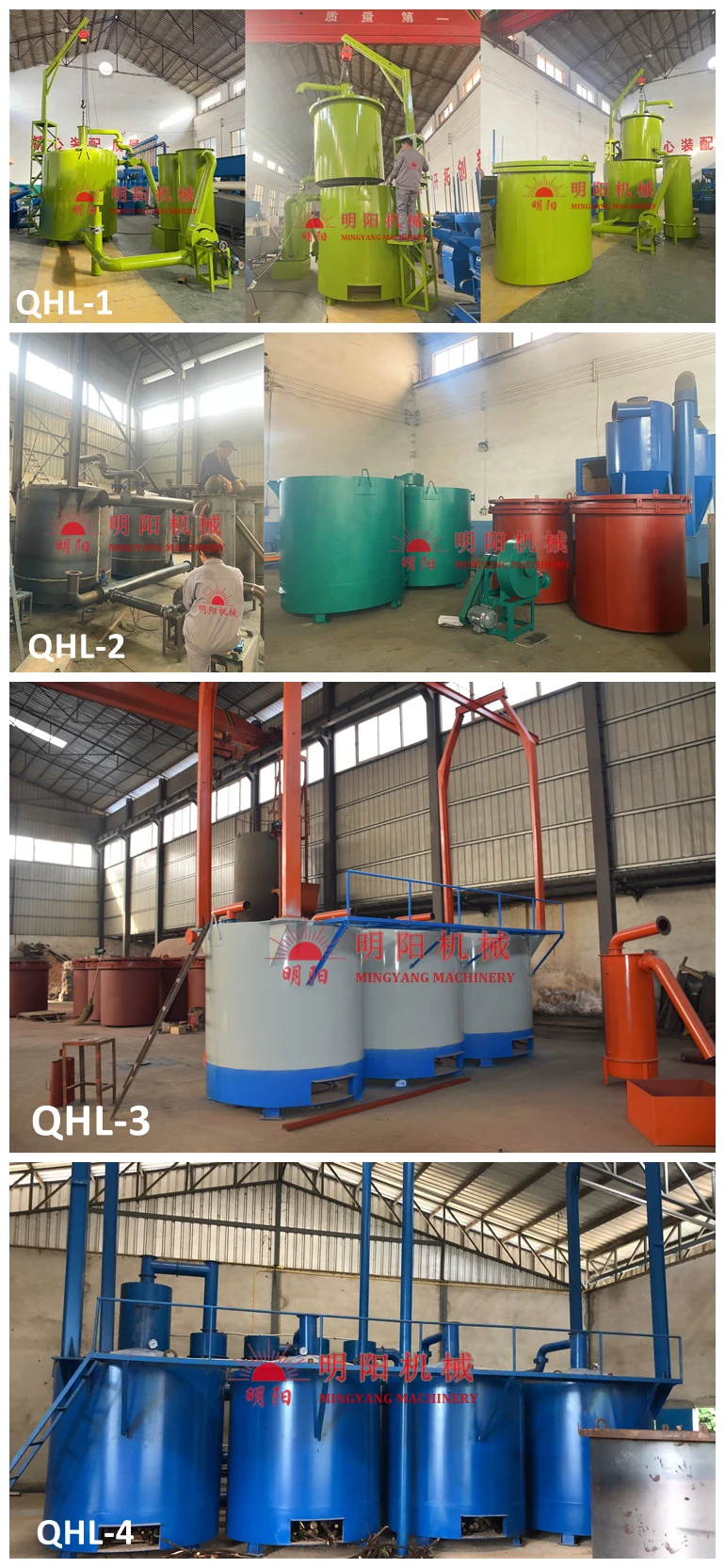

| model | capacity | inner volume | temperature | machine include |
| QHL-1 | 1.5-2t/24h | 2.75*3 | 400-600degree | 1outer stove, 3inner stoves with3 caps , one 3ton lifting device, 1smoking tank |
| QHL-2 | 3-4t/24h | 2.75*6 | 400-600 degree | 2 outer stove, 6 inner stoves with 6 caps, one 5-ton hoistingequipment withe-motor, 1smoking tank |
| QHL-3 | 4.5-6t/24h | 2.75*9 | 400-600 degree | 3 outer stove, 9 inner stoves with 9caps, one 5-ton hoisting equipment with e-motor, 1smoking tank |
| QHL-4 | 6-8t/24h | 2.75*12 | 400-600 degree | 4 outer stove, 12 inner stoves with 12caps, one 5-ton hoisting equipment with e-motor, 4smoking tank |
Production Flow

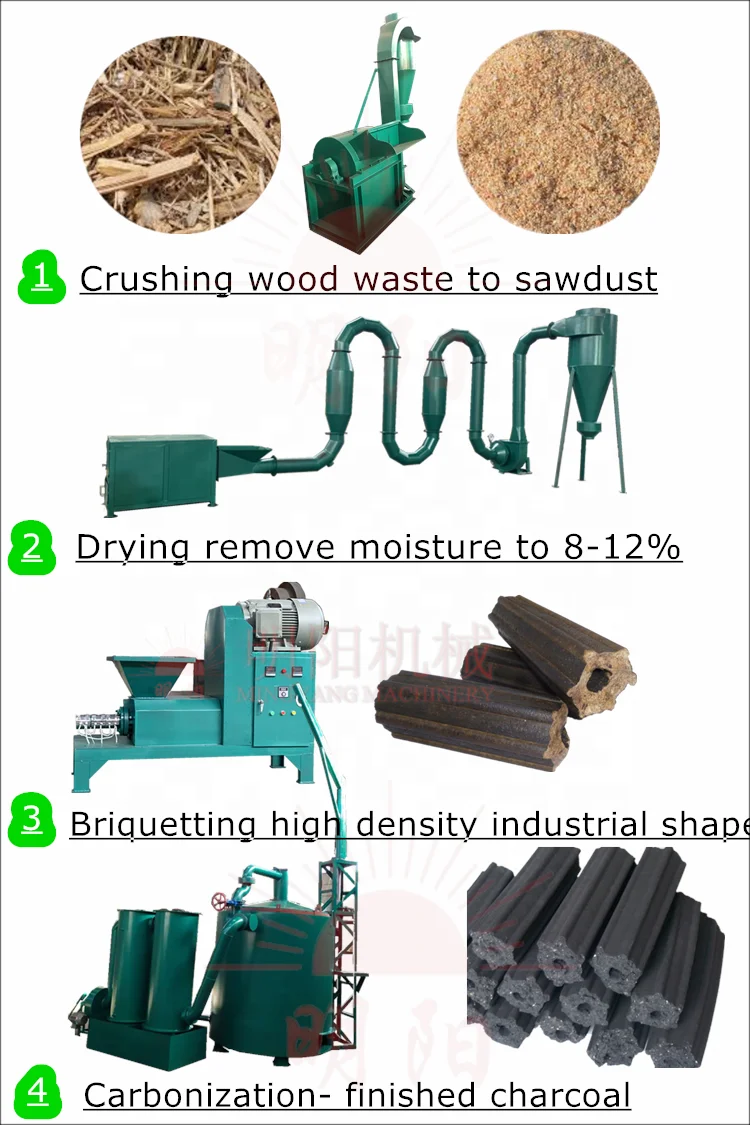

The whole line of making wood briquette charcoal
1.Crush the raw material into small pieces (diameter is about 3-5mm).
2.Dry the material by machine or dried it in the sun , till the moisture is less than 12%.
3.Put the material into feed let of briquette machine.
4.Produce the briquette stick from biomass material without any additive.
5.Carbonized the briquette stick.
dryer machine

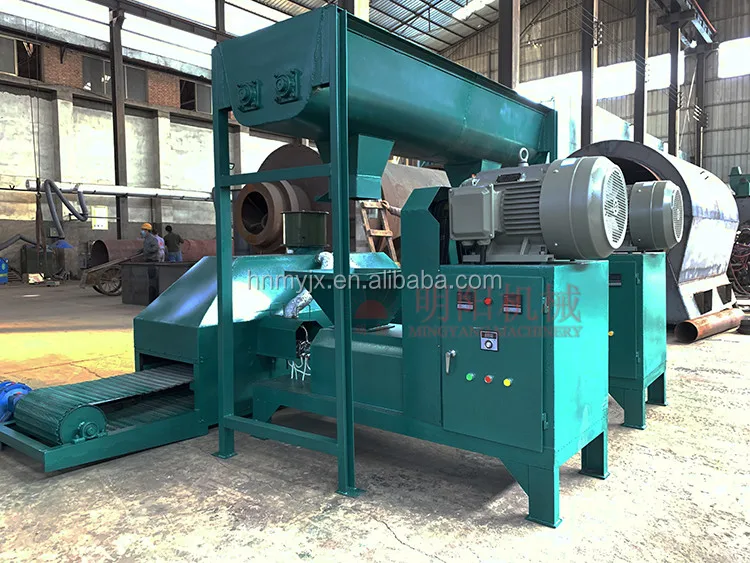

wood biquette machine
Packaging & Shipping
If you order single machine,it can be packed in one wooden case.
If you order more machine or a production line, a 20 feet container or 40 feet container needed.
It like the following show:
Company Information
Gongyi Xiaoyi Mingyang Machinery plant is located in Zhengzhou.Henan province. Our machineryplant is specialize in WOOD BRIQUETTE MACHINE 26 years.
There have production line of makingwood charcoal briquette(including crusher , dryer , wood briquette machine, carbonization stove) ,
production line of making wood pellet (including crusher, dryer , wood pellets machine , dust separation plant and packaging machine)
production line of making coal ball briquette(includingvertical crusher, mixing machine, coal briquette pressing machine and dryer machine for coal briquette)
and other equipment such as screw conveyor, belt conveyor, scrap conveyor , sawdust carbonization stove, floating fish feed machine and so on.
Our machines have the best quality and we have got many certification such as CE, ISO, BV.
ave got many certification such as CE, ISO, BV.
