No Tariff Comfortable High Seat Safe Wind Shield 4 Wheel City Electric Recumbent Quad, Easy Handle Recumbent Quadricycle

Share on (60604930823):


Price:$5,699.00 - $7,299.00

Quantity:


Product Overview

Description


Try a Recumbent Quad

We know regular recumbents are available in two-wheel and three-wheel designs, while do you imagine having one recumebnt quad and what feeling it will give you?\t

Once you own a recumbent quad, you will feel like haveing one true pedal car, you can do more thing and go farthe with carring ample equipment.
It is ideal for older folks who still want to get around under their own power, or those with balance issues or other special needs.

There is no extra import duty for America and little duty for EU.  Please contact us for more information.

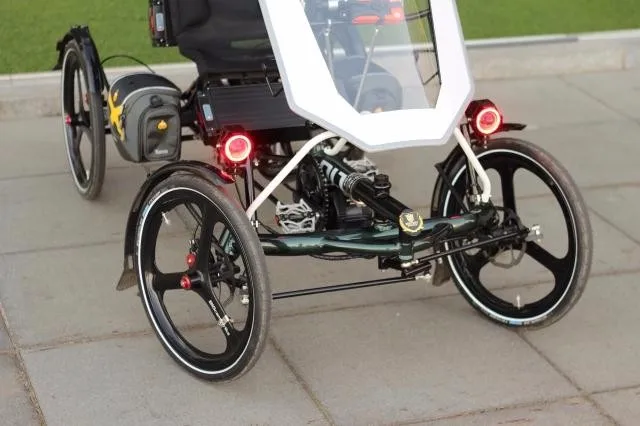

Our Quadricycle
Warranty service
We offer a 5-year warranty on the frame, a 1-year warranty for parts excluding normal wear and tear items. Please click here for policy details.


We presently display nearly ten different models of recumbent trikes and quads. Each has its own purpose, such as riding off road or on paved trails. We have a number of excellent recumbent quad. You are sure to find one that suits you at Trikexplor.

Our frame is an open design, various components can be used to configure many different models from recumbent bicycles to recumbent quads. Please contact us for details.

Why model H420E

H420E provides solution for those who seek ultimate comfort as well as for people with special needs, offering a versatile and adaptable vehicle with a host of practical functions.

With A TrikExplor H420E, you are having one new transportation tool between bicycle and car for commuting.

High seat height\t
The high seat height help you get on and off the quad easily and provides riders with a fabulous unobstructed view for city traveling.\t

Security features
The silver strong PC reflective strip, highly visible orange hard shell bag, melodic horn increase visibility in traffic, which allow you to get a safe trip in crowded cities.
We offer a complete lighting system, including headlight, rear light with brake light, turn indicator with clicking sound. You can easily set their marks in the traffic. It makes you ride more safe.

Side pods\t
Specially made side pods are ideal for storing your items and keeping them to hand without getting off your quad.\t

Bafang Electric Drive System\t
The Bafang electric drive system includes a powerful motor with a smooth output. Providing a seamless and easy ride from a standing start, simply pedal as normal and the motor will assist at your preferred level.
Large, glare-free, waterproof 3.5 inch color display
The color display has a clear and intuitive interface, loaded with functionality.
It can also works excellently even in direct sunlight and raining day.

Riding all year round\t
Wind fairing, UV resistant roof, mudguards extend the quad season to all year round.

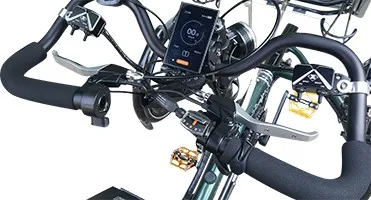

Multifunctional butterfly handlebar

The butterfly handlebar with a wide variety of hand positions will increase your overall comfort by allowing you to change your hand position often. This is the key to a good touring.

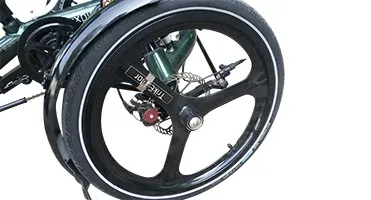

Integrated alloy wheels

High rigid and light alloy wheels provide better stability at higher speed and help you to decelerate the bike in a convenient way.

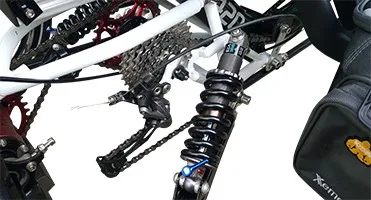

Exa Form 388RL Shock

Two rear suspensions can be optimized by simply adjusting, which delivers ultimate stability and predictable handing.

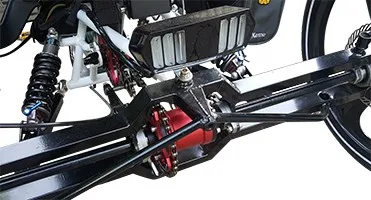

TrikExplor Designed Divider

The power diver is designed to drive a pair of wheels while allowing them to rotate at different speeds when turning a corner, increasing performance significantly.

Accessories Option

Foldable alloy frame trailer is very convenient to carry!

Two wheels trailer has high duty!

\t
Frame
\t
Aluminum alloy 6061 T6 main frame + steel rear fork
\t
Seat
\t
TrikExplor Ergo-mesh seat
\t
Tires
\t
Schwalbe 20x1.5"
\t
Brakes system
\t
Avid BB7 mountain mechanical disc brake, parking brake
\t
Brake levers
\t
Avid FR-5
\t
Chain
\t
Shimano CN-HG73 9-speed
\t
Speed
\t
Shimano 9 gears
\t
Shifter
\t
Shimano Alivio SL-M4000 9-speed
\t
Crankset
\t
BAFANG 48T with cadence sensor pedal assist
\t
Cassette
\t
Shimano CS-HG400-9 9-speed 11-32T
\t
Turing circle
\t
4.0m
\t
Net weight
\t
50kgs
\t
Max. load
\t
MAX 150kgs
\t
Rider height
\t
165-200 cm
\t
Electrical Feature
\t
Motor
\t
BAFANG 48v 500w mid drive motor
\t
Battery
\t
48v 20Ah lithium battery
\t
Display
\t
BAFANG LCD color display
\t
Max Speed
\t
45km/h, can be limited to 25km/h
\t
Estimated Driving Distance
\t
70km with pedal assist; 40km with full throttle
Quad comes with pedal assist (pedelec) mode. The throttle moel is optional if you need.
\t
Charging time
\t
5-6 hours

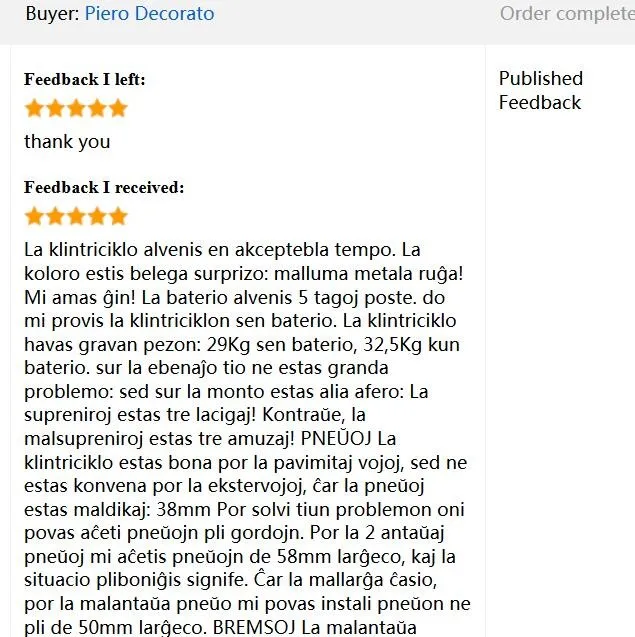

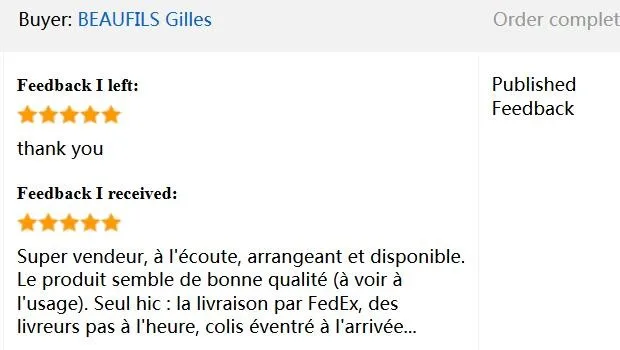

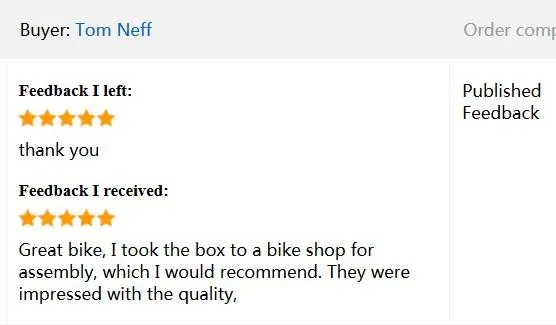

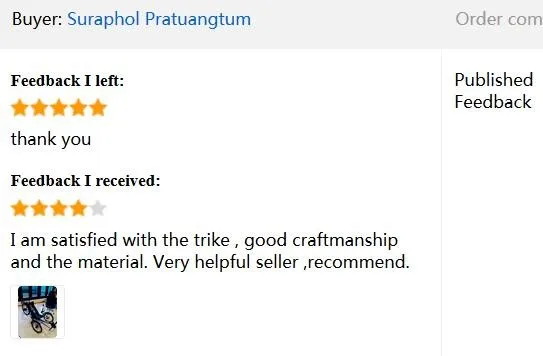

Customer Reviews
Packing & Delivery

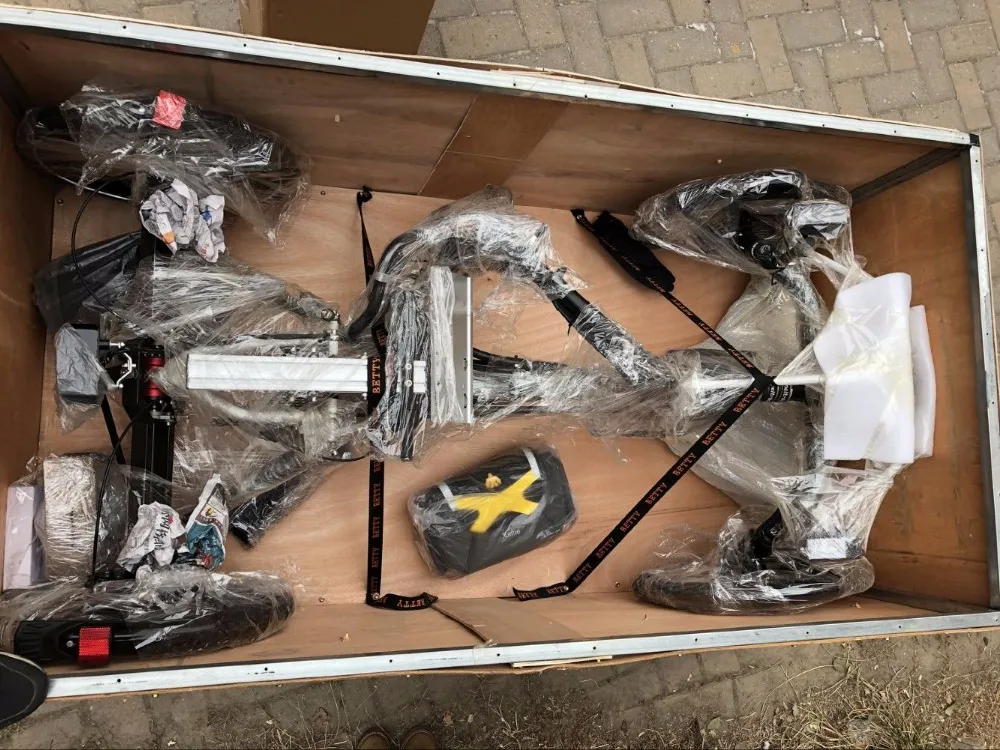

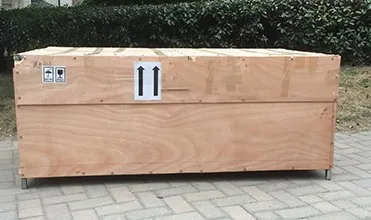

In accordance with our years of experience shipping to over 50 countries, we utilize various shipping methods. And for all shipping methods, we pack our trikes in individual carton boxes.

When ordering 1-2 units, we will ship trike by express. ( Usually FedEx or TNT, we will find the cheapest shipping company as per your address).
When you order 1-2 units, you can buy it directly, just click the start order.

When ordering more than 3 units, we will ship them by sea or air.
Different port has different freight, please let me know your sea port or airport when you submit inquiry

FAQ

Q: What is the max. speed and range?
A: The max. speed is limited at 25 kph and the range is about 60 km.

Q: What accessories do you supply?
A: We supply charger, head lights, tail lights, head rest, saddle bags, fenders, water holders and mirror . They are free accessories.

Q: What colors are available?
A: Our available colors are blue, red, green, white and black.

Q: I am 190 cm tall and weight 120 kg. Is the trike suitable for me?
A: Yes. Our trike is suitable for 165 to 195 cm height and the max. load is 150 kg.

Q: How is the quad shipped?
A: Usually the quad is shipped by sea. It comes 90% assembled. You only need to mount the seat and two rear wheels.


If you have more questions, feel free to send inquiry to us.

Company & Service

TrikExplor has been producing recumbent cycles in China since 2003, creating a respectable Chinese recumbent brand.

We are deeply committed to manufacturing superior quality recumbent cycles in a constant bid to offer the ultimate recumbent experience.

We are cyclists ourselves. We have logged tens of thousands of miles racing, touring, trail riding, commuting, and day tripping on our trikes and quads.

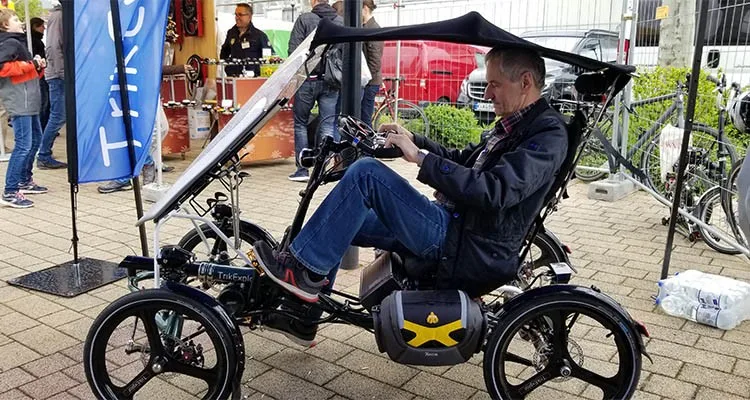

Every year we attend the bike shows in Europe and USA and publish videos, photos and other information on Youtube, forum and other social media.
You can see more info and reviews on these websites and test our bikes at shows.

Return policy
. Return product for refund are subject to a 16% restocking fees.
. Product return for refund must be in unopened, unused, original sealed retail condition.\t
. Refund will be for the item price only, shipping fees will not be refunded.\t
Shipping fees for returning the product is the buyer responsibility. The first shipping of the replacement parts will be on us.\t
If there are parts damaged and scratched when you open the box. We'll send new parts to replace. Refund will not be accepted.

How to buy

Buy one as sample or for personal use.
You can place the order here directly, just click the start order. The posted price is with shipping by express.

Buy more for retail sales
For more information and price, please don't hesitate to send inquiry to us or chat with us.

If you have bicycle store, online shop or do any other bicycle related industries, we are welcome you to be one of our dealers.

If you have not yet found a model that meets your desires, feel free to contact us, our amazing frames are ready for your customization and DIY!
