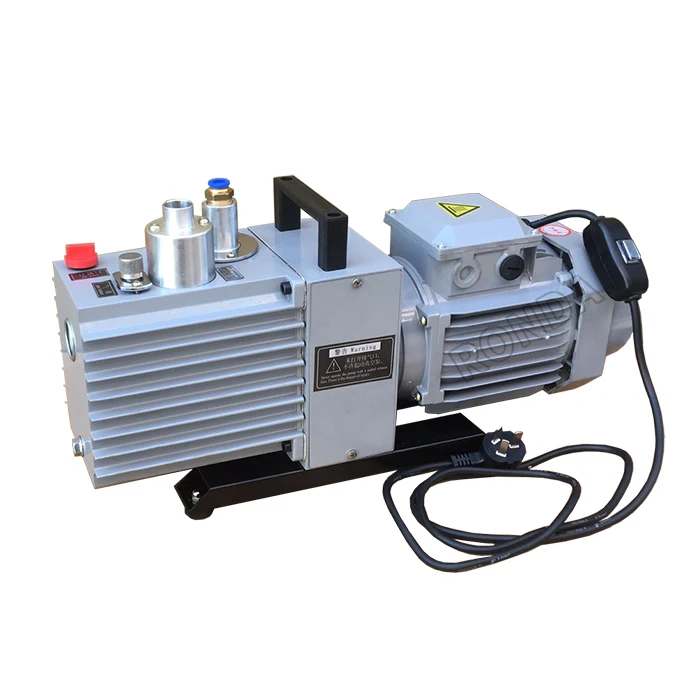

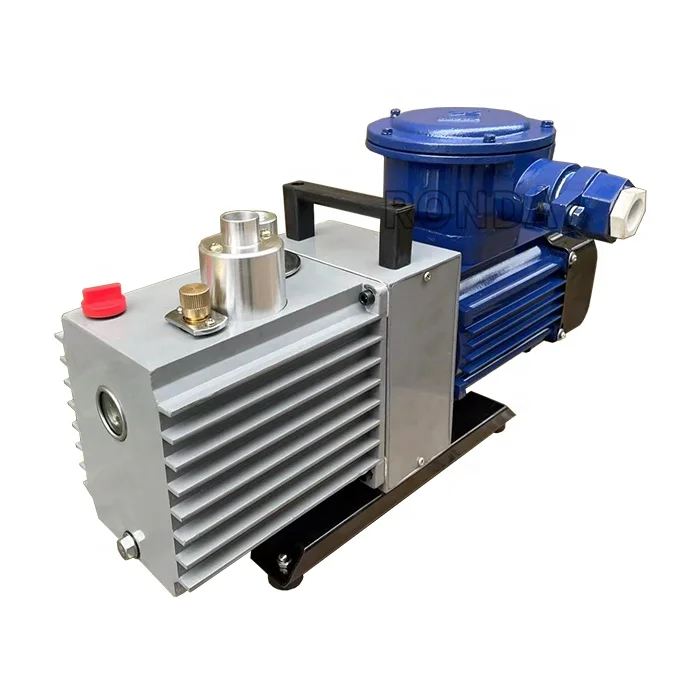

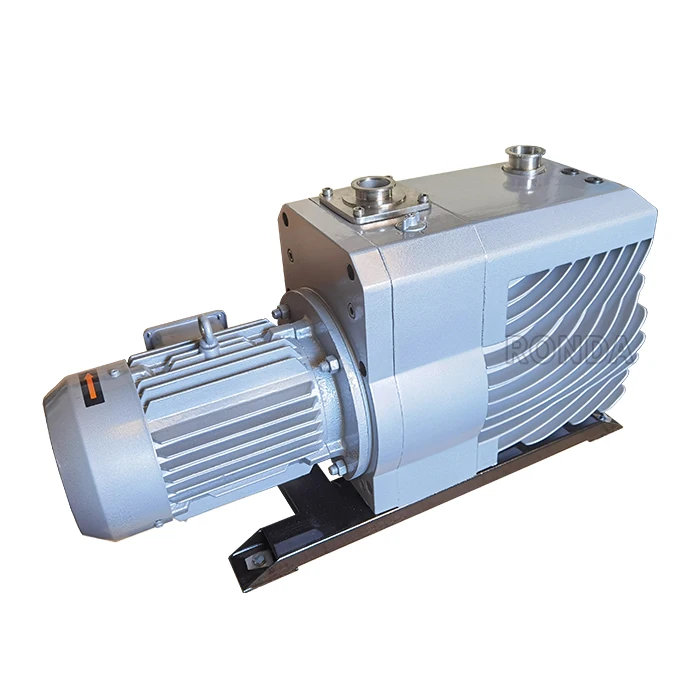

2XZ Bomba de paletas rotativa de doble etapa bomba de vacio

Product Overview

Description

2XZ  Bomba de paletas rotativa de doble etapa bomba de vacio







1. 2XZ  Bomba de paletas rotativa de doble etapa bomba de vacio is a basic device to evacuate gas from closed container.

2. Which can be used alone or work as the backing pump of booster pump, diffusion pump, molecular pump and others.

3. It could pump not only ordinary gas, but also the mixed gas with little condensable gas.

4. This pump is small, light and with little noise, which is suitable for the experimental application.

5. It's popular in vacuum melting, vacuum welding, vacuum drying, vacuum seal, vacuum distillation, vacuum degassing, vacuum operating of electro vacuum and experimental apparatus, etc.

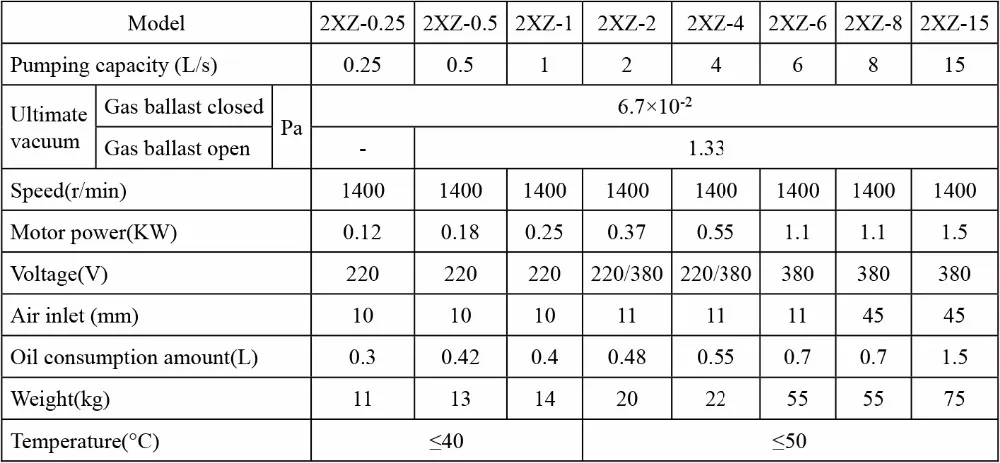

Working Principle:	Slices vacuum pump, double stage
Main applications:	Air & Gas
Driver:	Electric motor
Power Specs:	380/415V 3phase; 220/240V 1phase; 50hz/60hz
Max.permissible fluid temperature:	50°C(122°F)
Type of connection:	Barb
Installation position:	Horizontal
Casing parts material:	Cast iron
Shaft seal type:	Oil seal
Free passage:	0mm
Limited vacuum:	0.067pa(6.7×10-7bar)
Maximum drive rating:	1.5KW(2HP)
Maximum caliber:	45mm(1 1/2inch)
Flow rate range:	0.25-15L/s(0.53-31.8CFM)
