220v 2.2kw Electric Instant Water Heater Heating Element

Product Overview

Description

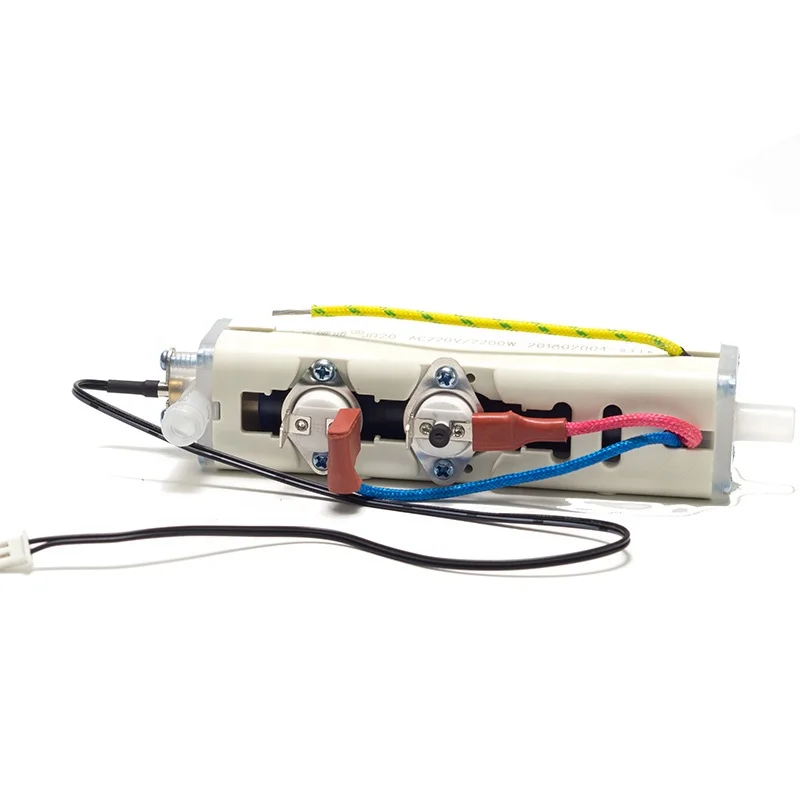

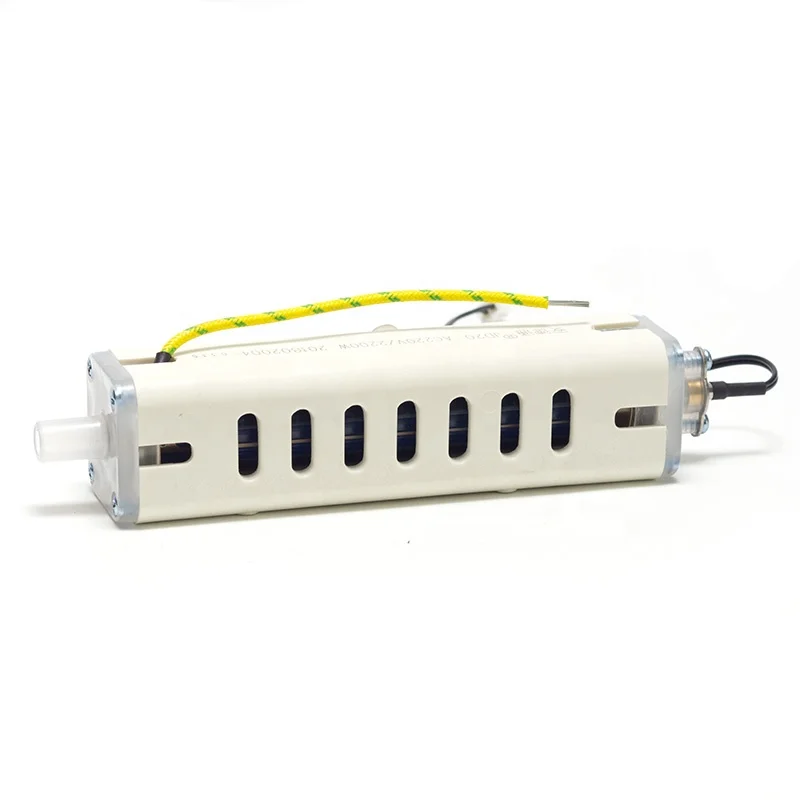

220v 2.2kw Electric Instant Water Heater Heating Element

Simple Profile to repace immersion water heating element





Product Description

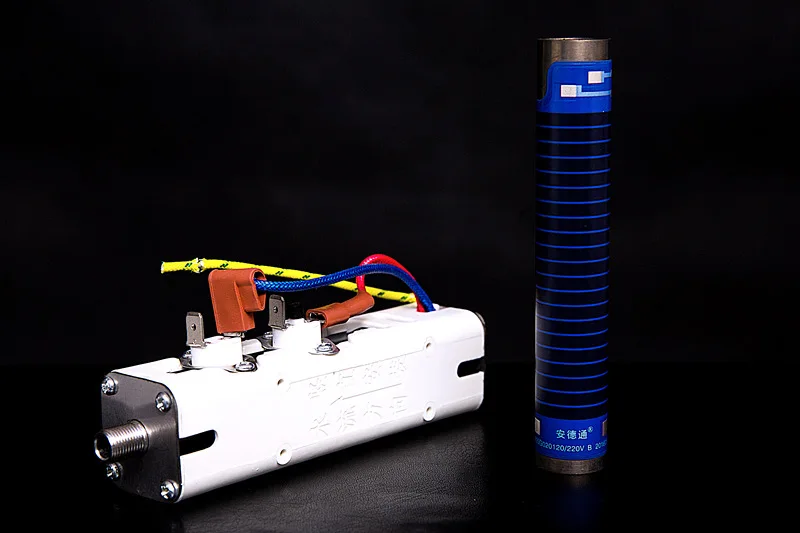

Thick Film is one of today’s most innovative and forward-looking solutions for heating technology.



Precisely manufactured thick film heating elements feature a quick temperature rise, an extremely low thermal capacity and minimum temperature fluctuations. Their high efficiency is 97%.



Thick film heating elements feature very high surface power density(up to 60 W/cm2).



Suitable for applications where extra fast heating of flowing liquid is required. Ideal heat transfer is guaranteed by flowing of liquid through all inner surface of the heating element.







Installation and Use



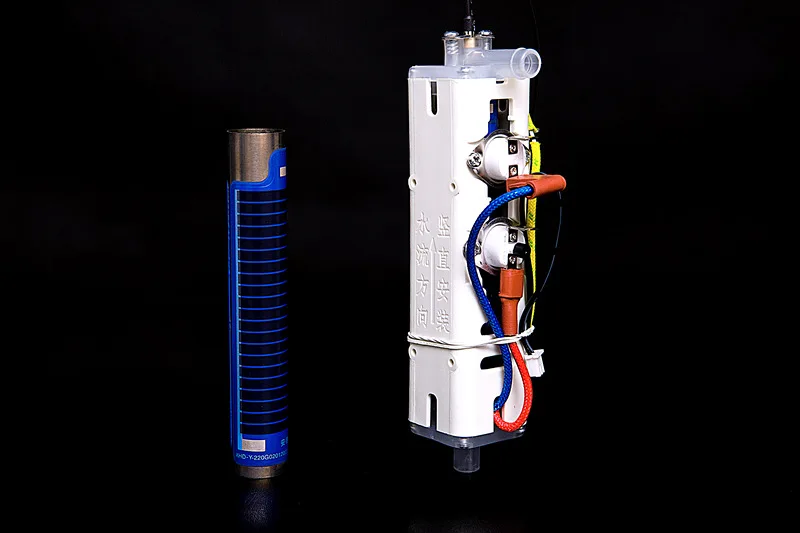

As this is a new type tubular structure water flow instant heating element, it can connect with water route directly.



SUS444 Thread Connector can be welded on the heater tube.



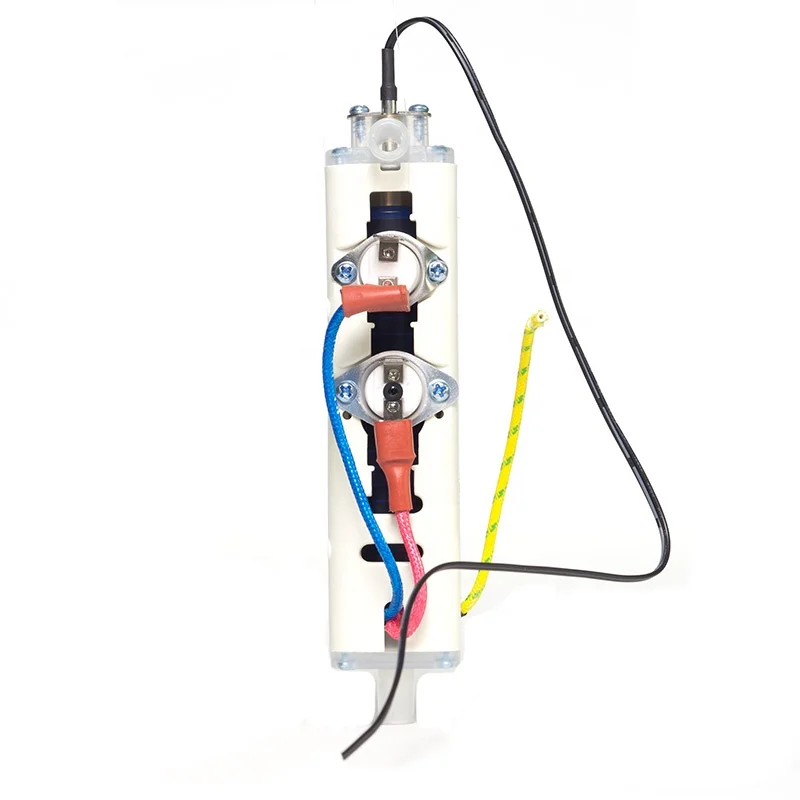

In order to mount it easily, we assemble plastic housing, PP end caps, thermostats (prevent dry heating), NTC sensor, wire leads. It can be mounted by side or two ends.





Product Characteristics



Compared with other immersion water heater elements, Jieda Thick Film Heating Tube/Element are advanced in bigger heat area, higher power density, faster temperature ramp up (80℃/S).

As a new product in the Andetong series, JD20 is small size, easy to control and fully equipped,and it has stable performance just like other products in the series. It not only safe and endurable also is “the most compact instant type heating element” in the world.

Dimension	161mm*48mm*33mm	Heat Density	>40W/cm²
Ramp-Up Rate	150℃/s	Thermal Efficiency	≥97%
Heating Power	2,200W	Service Life	>10,000 hours
Rated Voltage	220v	Certificate	CQC, RoHS
Dielectric Strength	1,500V/5mA/60s	Power Deviation	-10% - +5%
Leakage Current	≤0.25mA	Insulation Resistance	≥200MΩ
Type	PA66+ glass fibre, temperature resistance≥250℃	Snap Action Thermostat	16A, installed close to the heating tube’s heating circuit
Shield Thermistor	PTC	Grounding Type	Spot-Weld
Water Inlet & Outlet	Φ10mm	Heating Tube Dimention	Φ20mm*120mm





Product Application



JD20 is the ideal electric accessories that will be used in home electrical appliances, such as water dispenser, water purifier, coffee machine, milk machine etc.

















FAQ



Q: What's Thick Film Heating Element?

A: -Thick Film Heater is a new technical art which is use screen printing technology and new thick film material.

      It is printed with isolation dielectric, heating element and glass prevent on a substrate that is made by                 stainless steel, and through drying firing process with 800°C. Thick Film Heater has become a new type of                   heater.



Q: What’s the advantages of Jieda Thick Film Heating Element?

A: We fully master screen printing and sintering technology on curved surface stainless steel tubes, which             makes it possible to heat continuous water flow without water tank.

    60W/CM² POWER DENSITY

    UP TO 150℃/S TEMPERATURE RANP UP



Q: What's the inlet and outlet diameter?

A: Thick Film Heating Tube      :  Ø18, Ø20, Ø30, Ø35, Ø40, Ø50mm

    Thick Film Heating Element :  Available with Ø10mm, Ø16mm and G1/2 OD20.9mm



Q: How to get the suitable model for our application?

A: We need to know the water temperature in inlet and outlet port, water flow rate, connection port details and       other special requirements, to recommend the suitable Thick Film Heating Elements.



Q:  What's the operation attentions?

A: 1. The temperature ramp-up above 80°C/s, please make sure the tube fulfilled with water before use.

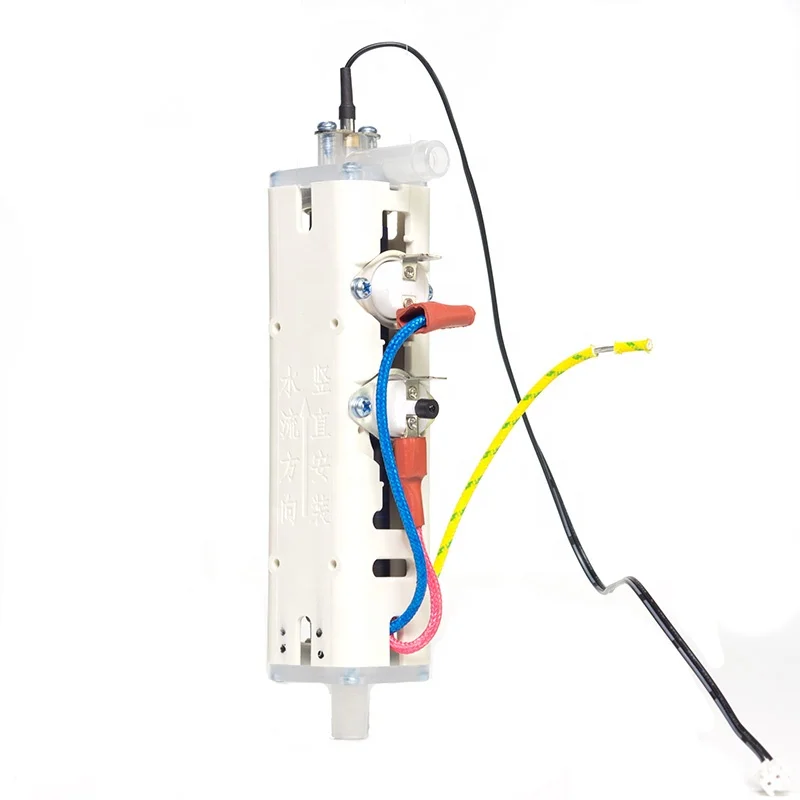

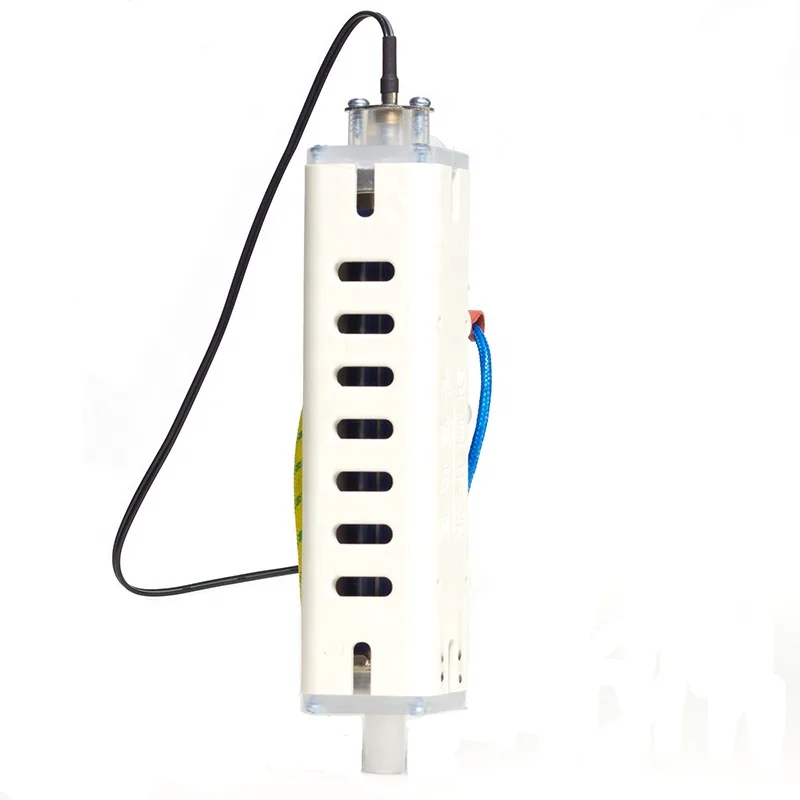

 2. Please install it vertically, make sure water flow direction from bottom to top, to prevent DRY HEATING in  partial area of heating tube.

 3. Set the minimum flow rate according to tubes' power watts, ensure smooth flowing of water, to prevent  vaporizing and dry heating

     4. Make sure reliability grounding.
