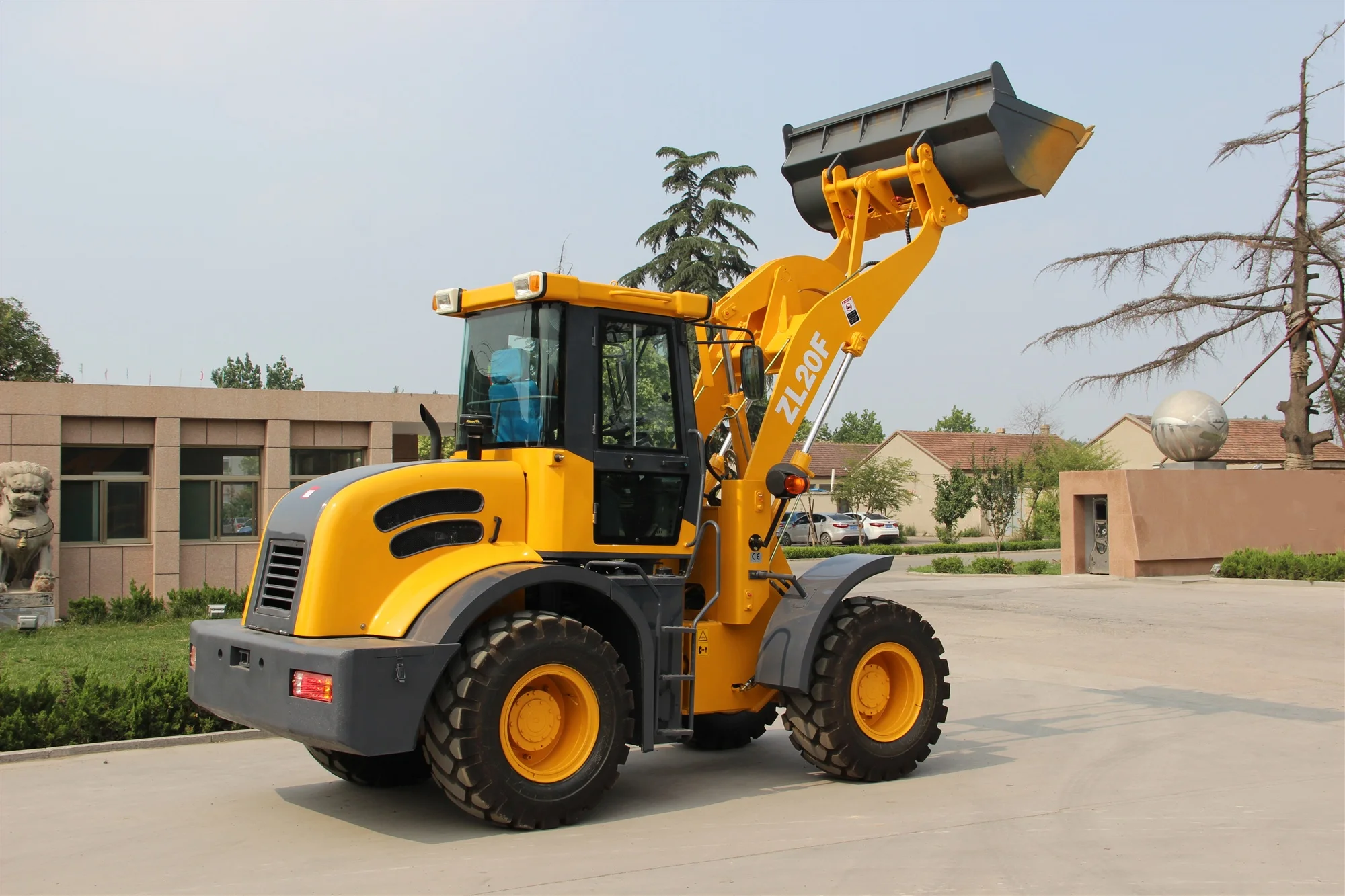

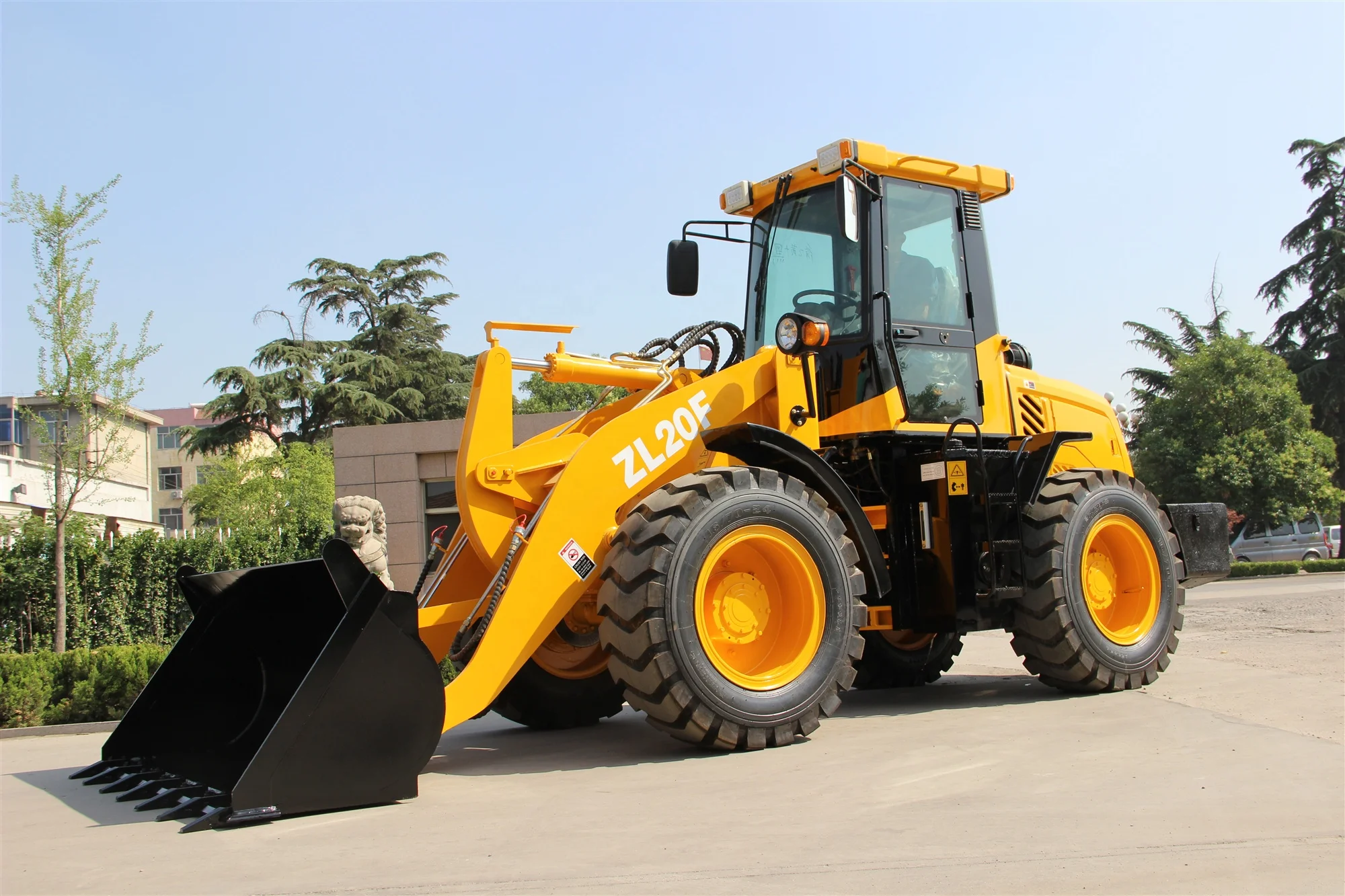

Hot sale 2022 China Top well known Hongyuan brand 2.0ton small wheel loader front end loaders
- Category: >>>
- Supplier: Qingzhou Hongyuan Vehicles Co. Ltd.
Share on (60605156316):
Product Overview
Description
Product Description
Front/Rear Axle
Planetary transmission is equipped with a compact structure and big torque.
Friction sheet and antiskid transmission ensure strong cross-country and climbing capacity.
Welding Structure
New-style articulated front/rear frames, small turning radius, good through and climbing capacity. Good carrying capacity and stability.
Hydraulic System
The variable plug pump motor is adopted in the traveling system which leads to simple operation, stable traveling and reliable performance.
The high-pressure gear pump is adopted in the working system which leads to quick lifting speed and high efficiency.
All the hydraulic parts are well-known brands in China, with perfect and reliable performance.
Wide Thread Steel Radial Tyre
Excellent cutting proof and wearproof performance, wide antiskid groove, good heat dispersion and self-washing performance, big adhesive to ground, and nice traction.
Widely applied for mining, earth-moving, loading and digging operation.
Technical parameter
THE TECHNICAL PARAMETERS OF ZL20F CE CERTIFICATE MINI WHEEL LOADER | |||
Item | Specifications | Item | Specifications |
Rated loading weight | 2000kg | Operating weight | 5900kg |
Rated bucket capacity | 1.0m3 | Overall dimensions (LxWxH) | 5800x2000x2750mm |
The minimum circle diameter | 310mm | Engine model | Dongfanghong 4108/Cummins |
Track base | 1500mm | Engine type | In-line arrangement, water cooled, four-cycle diesel engine |
Wheel base | 2350mm | Engine starting mode | Electric |
Min. turning radius (outside of buckets) | 4600mm | Rated power/ Rated speed | 60KW/2400rpm |
Min. Ground clearance | 350mm | Brake mode | Four-wheel hydraulic spread -shoed brake |
Dump height fully raised | 2800mm | Warranty | 12 months after received the goods |
Reach fully raised | 1050mm | Color | According to the requirements of customers |
Lifting time | 5.0S | Tyre type | 16/70-20 |
Max. Tilt angle | 300 | Shipping port | Qingdao port, China |
Max. Bucket breakout, lift cylinder | 60KN | Packing details | Nude package, 1Unit/20's GP with disassembled cabin, 2Units/40's HC |
Driving mode | Four-wheel full hydraulic drive | Delivery time | 20 days after confirm the order |
Maximum Speed | 25km/h | Supply ability | 100 units per month |

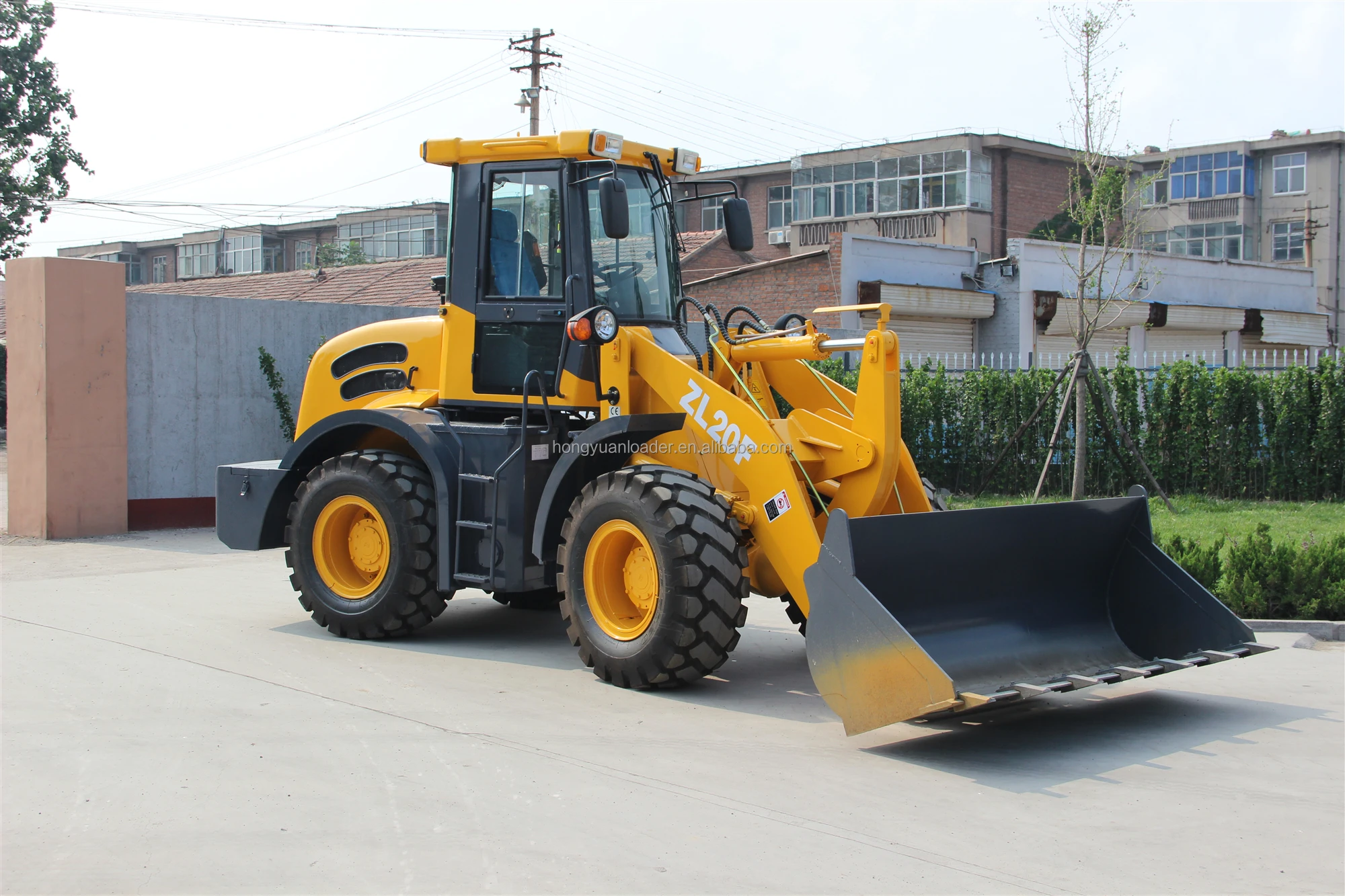

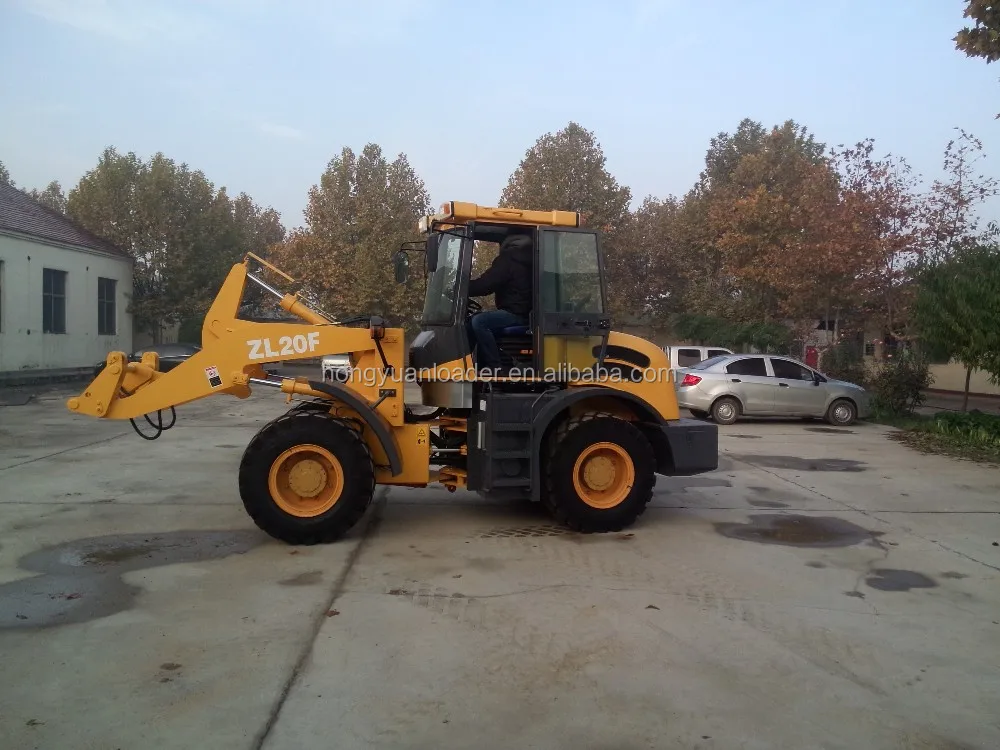

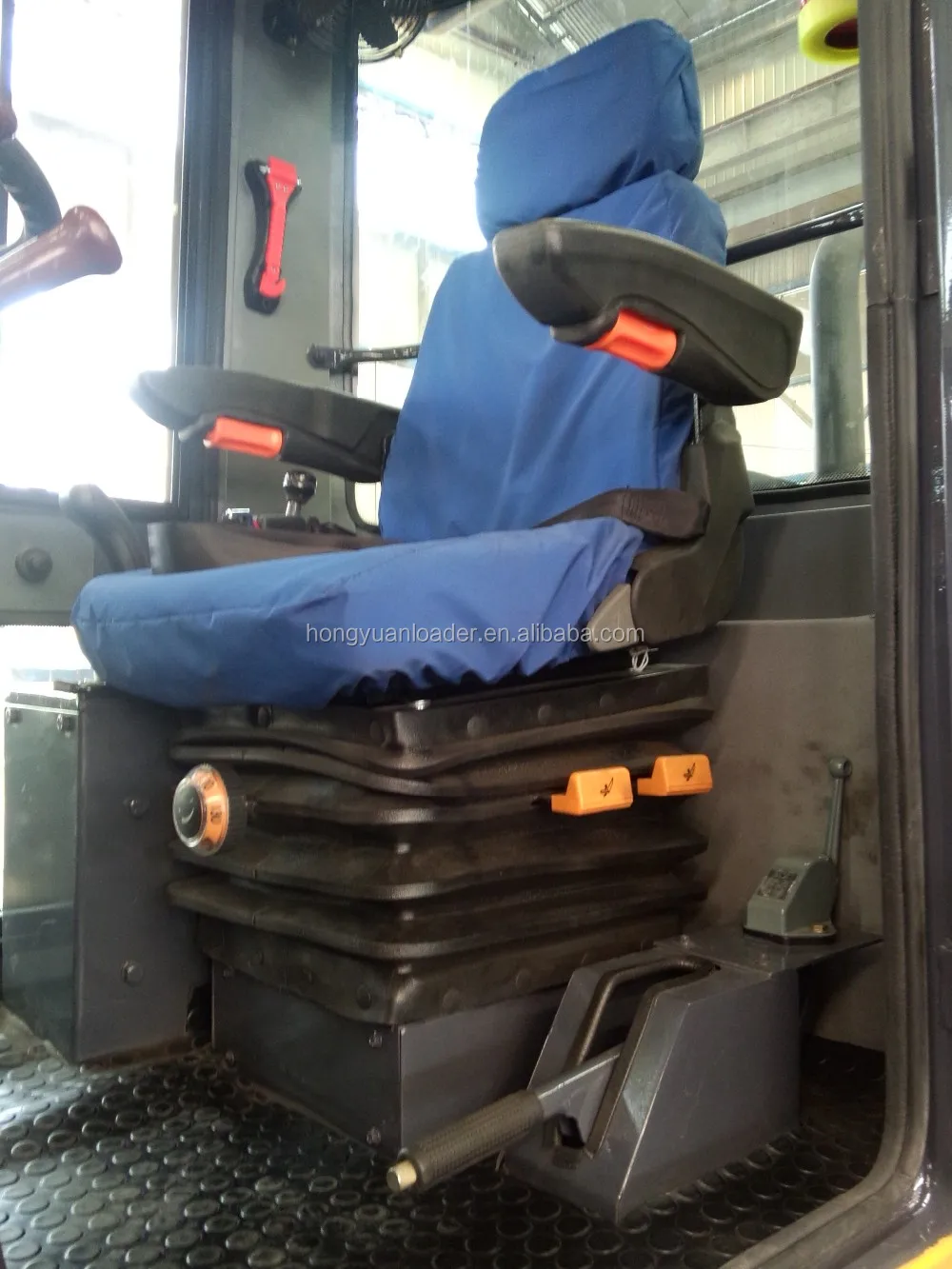

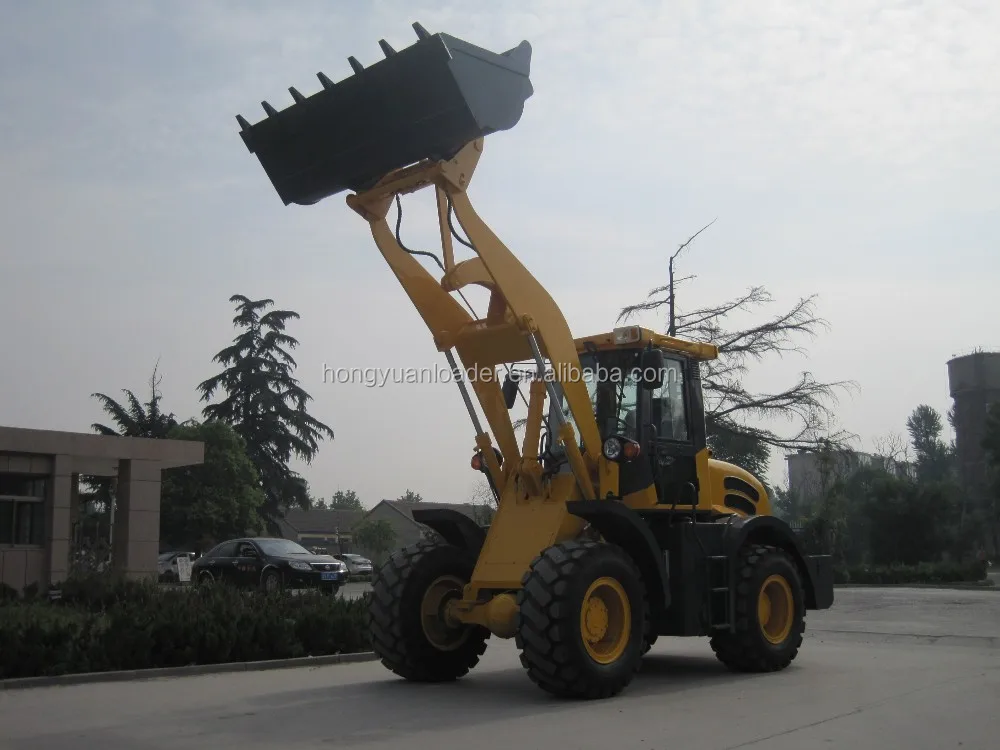

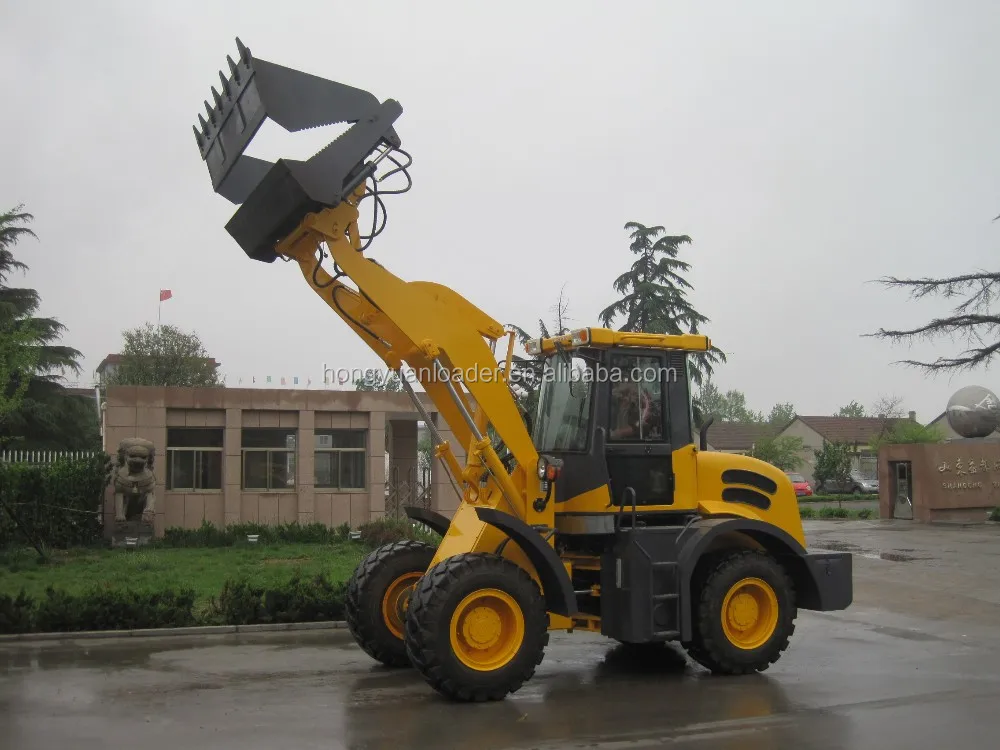

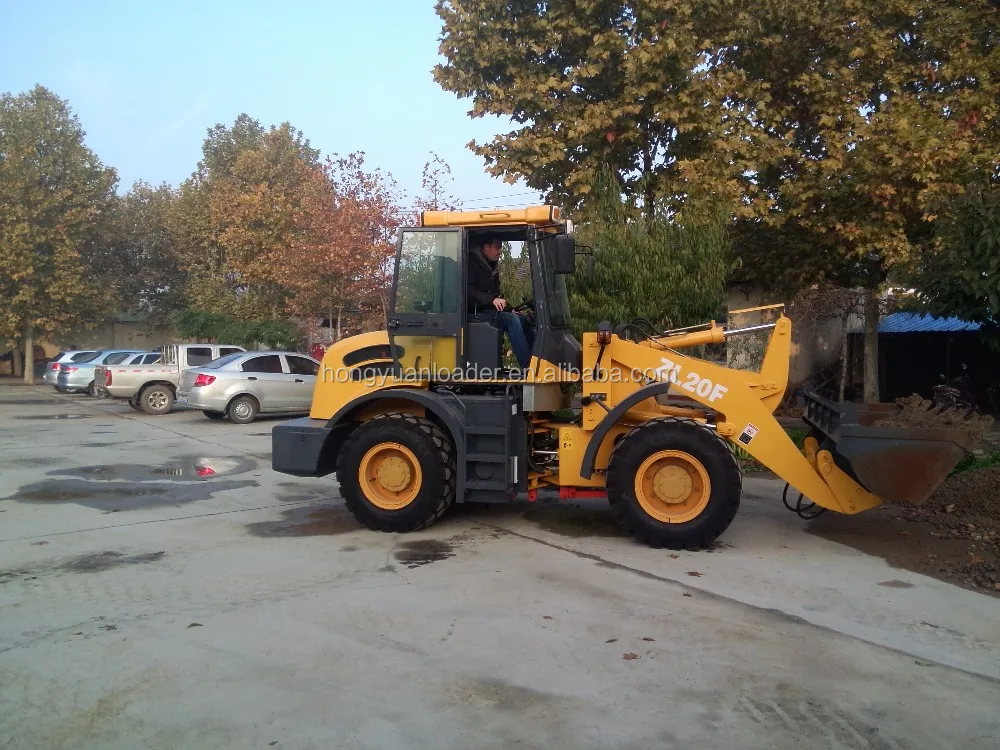

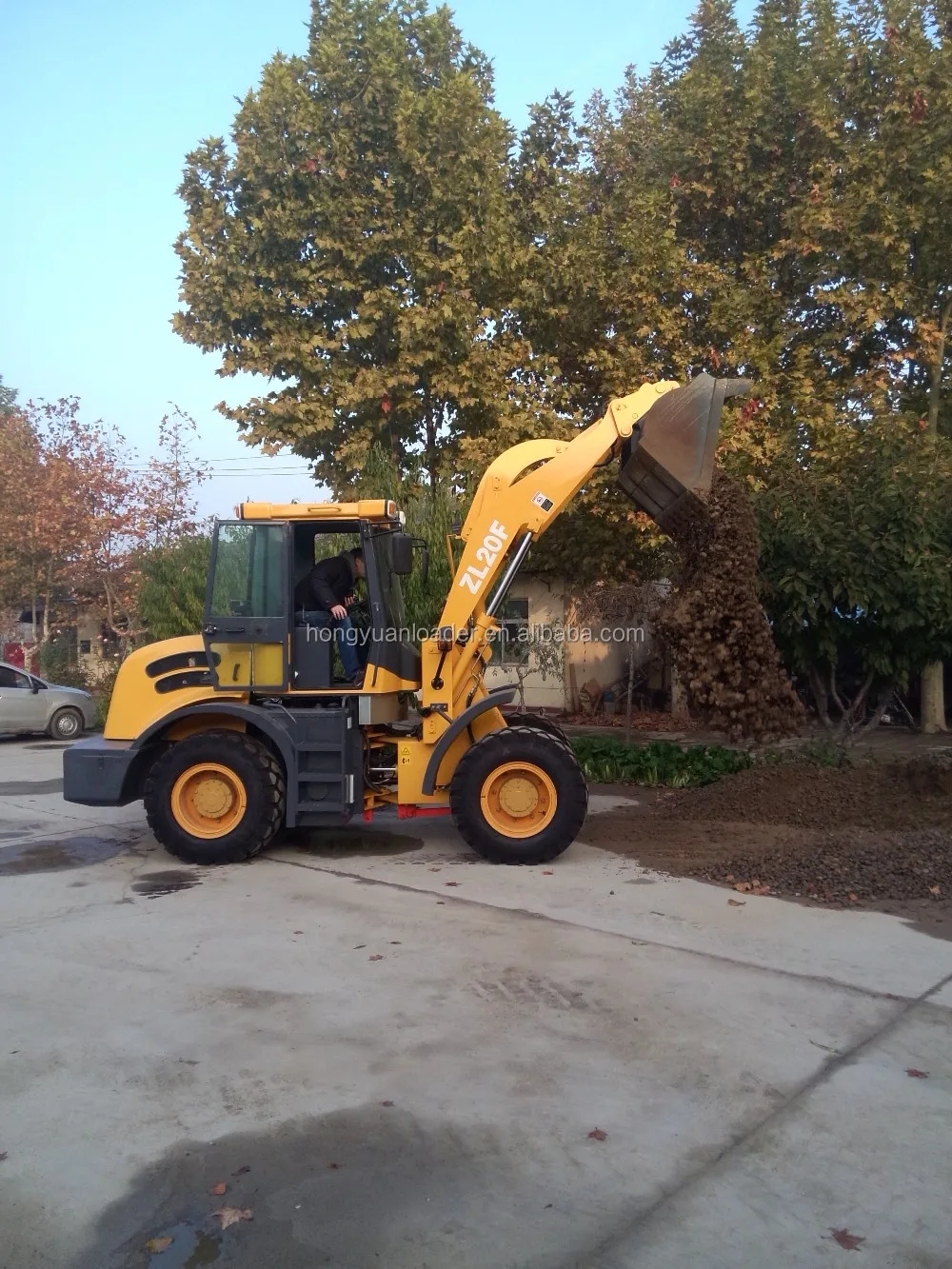

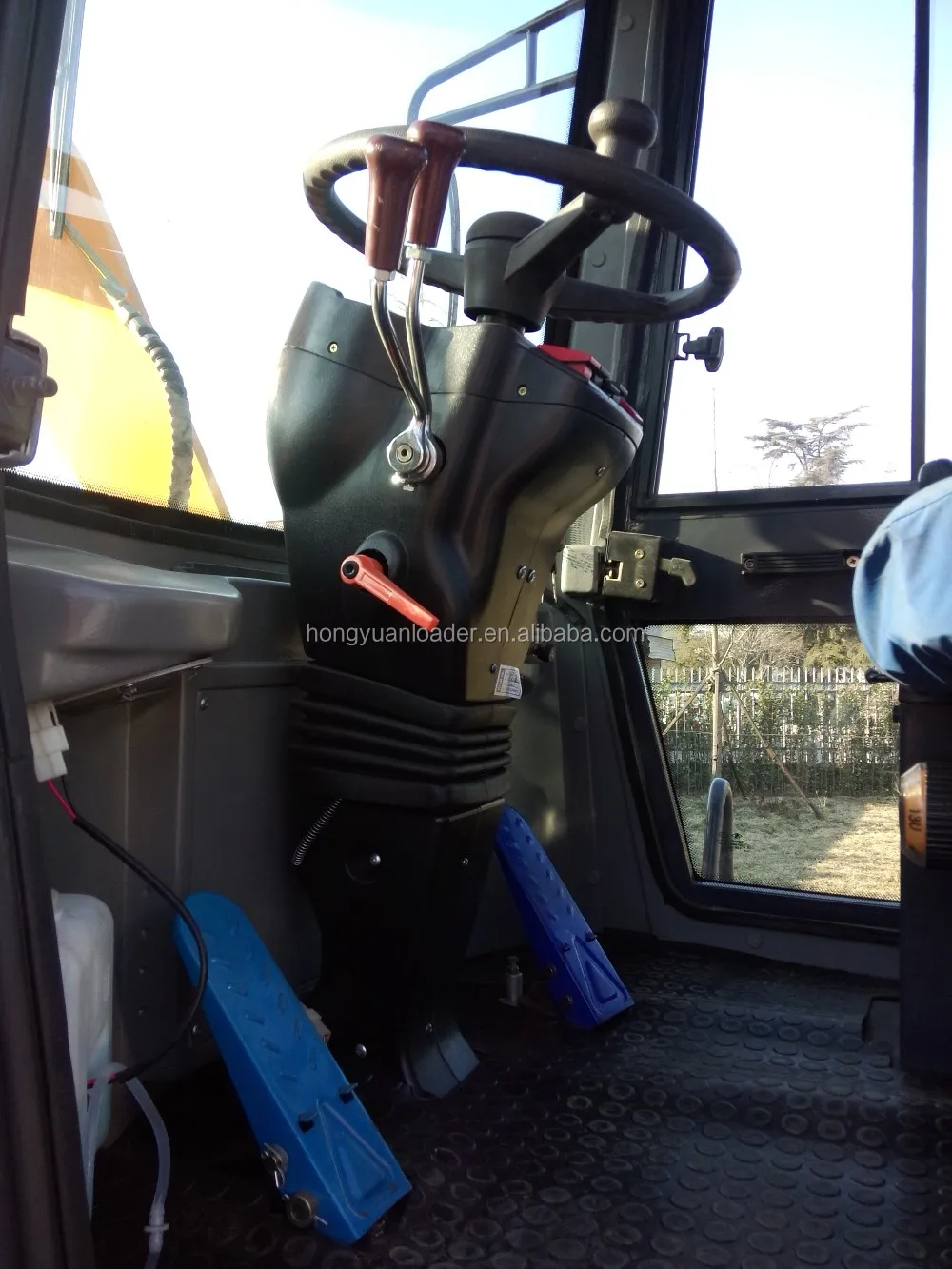

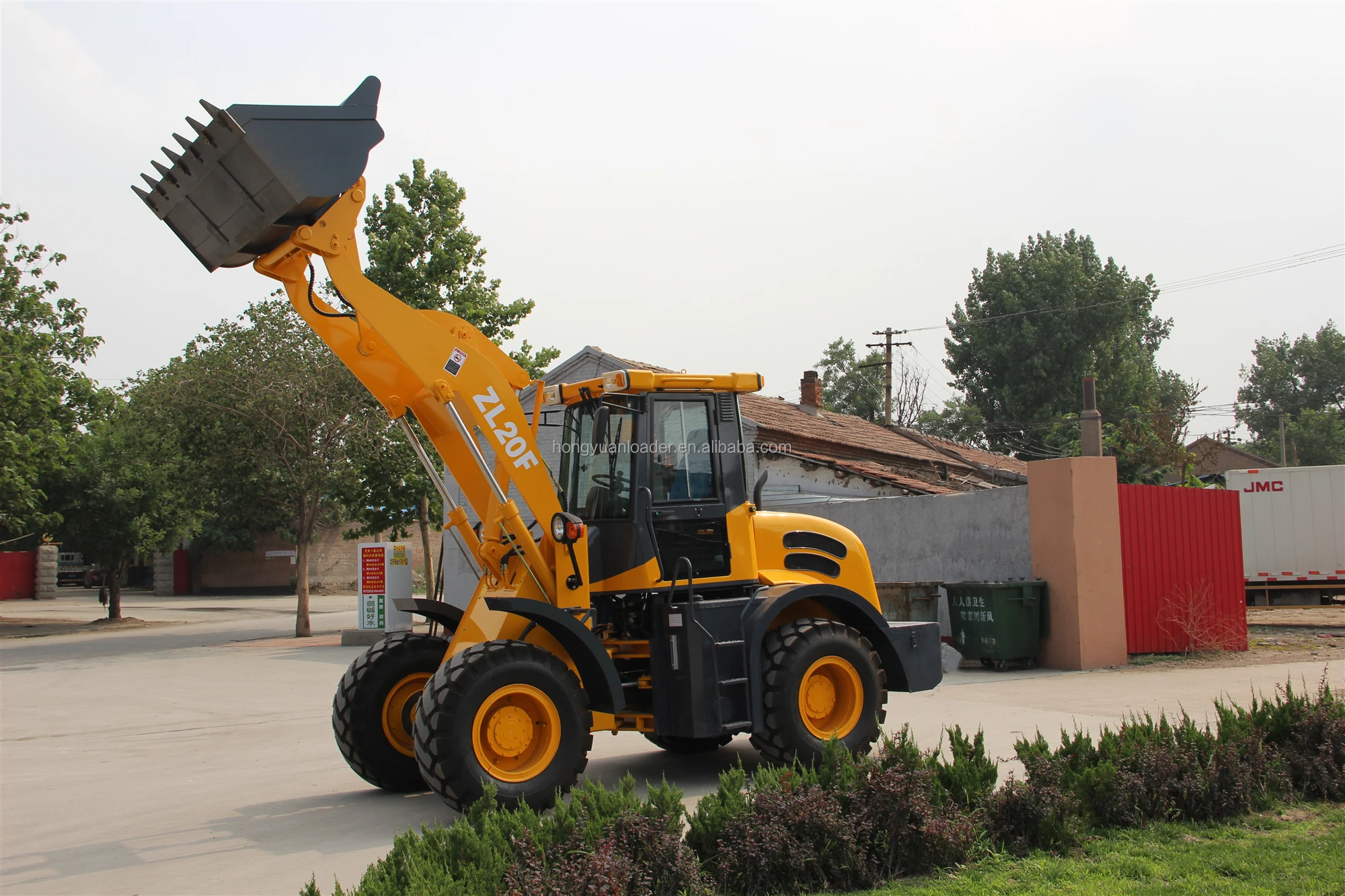

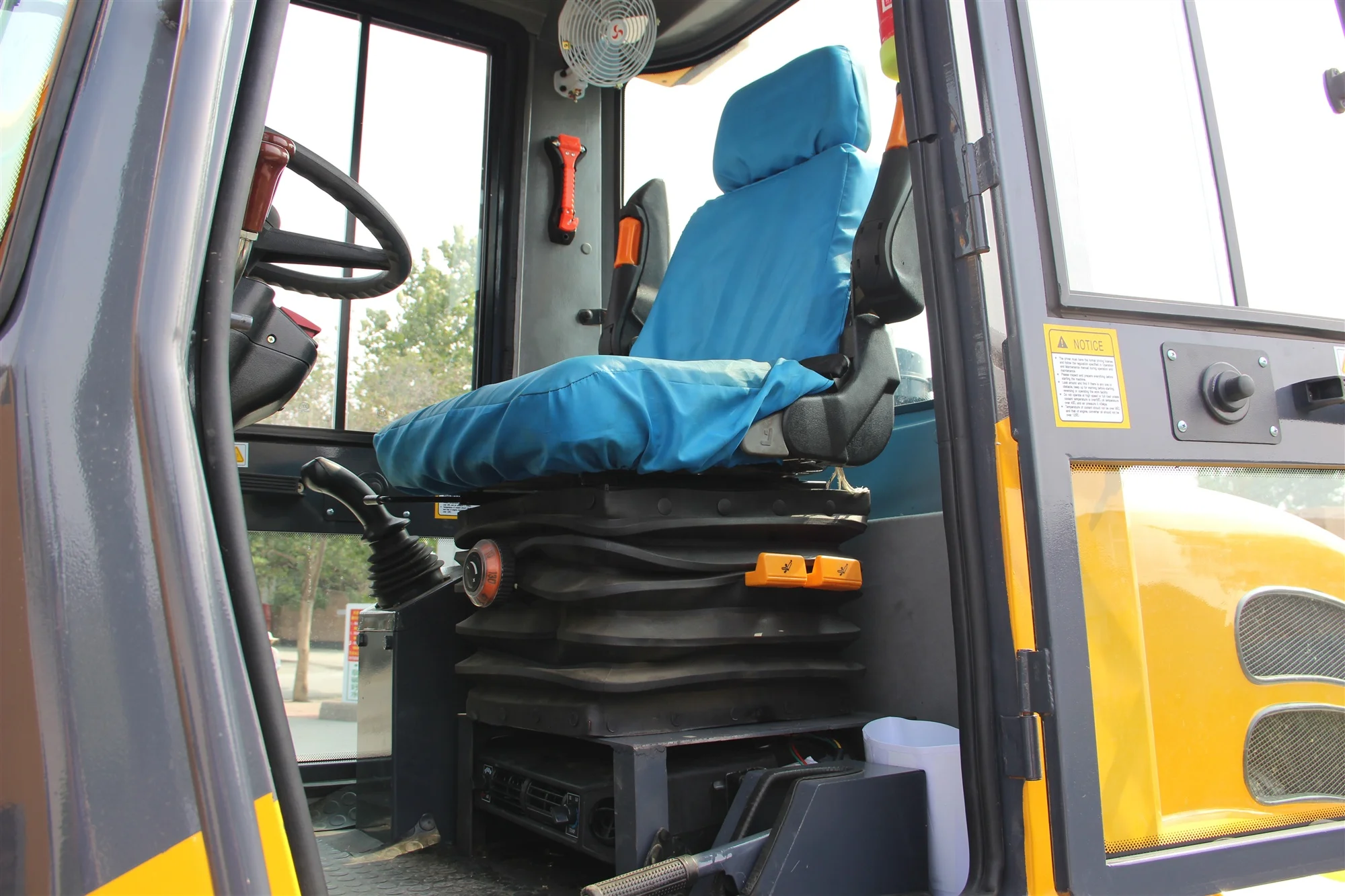

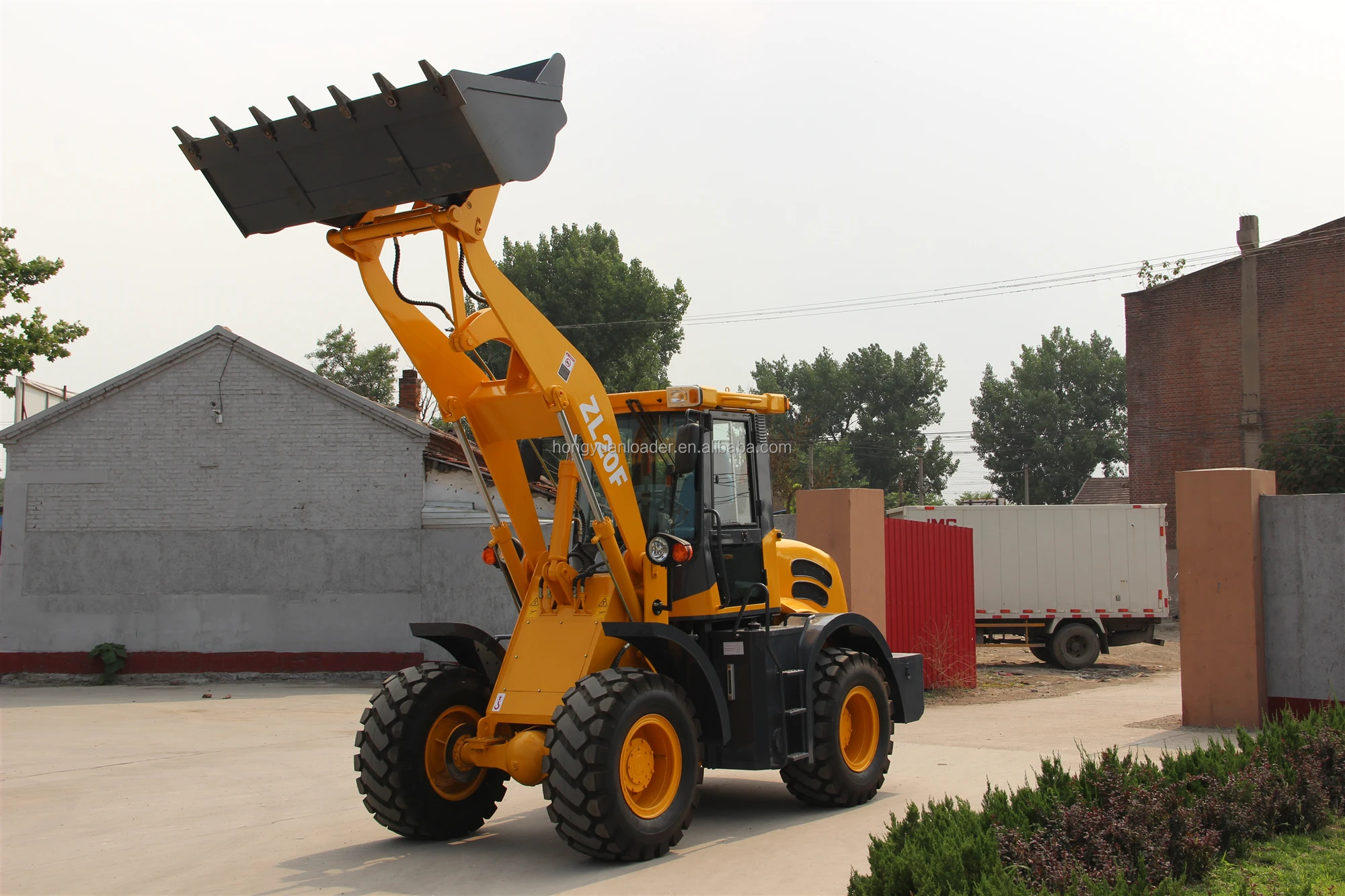

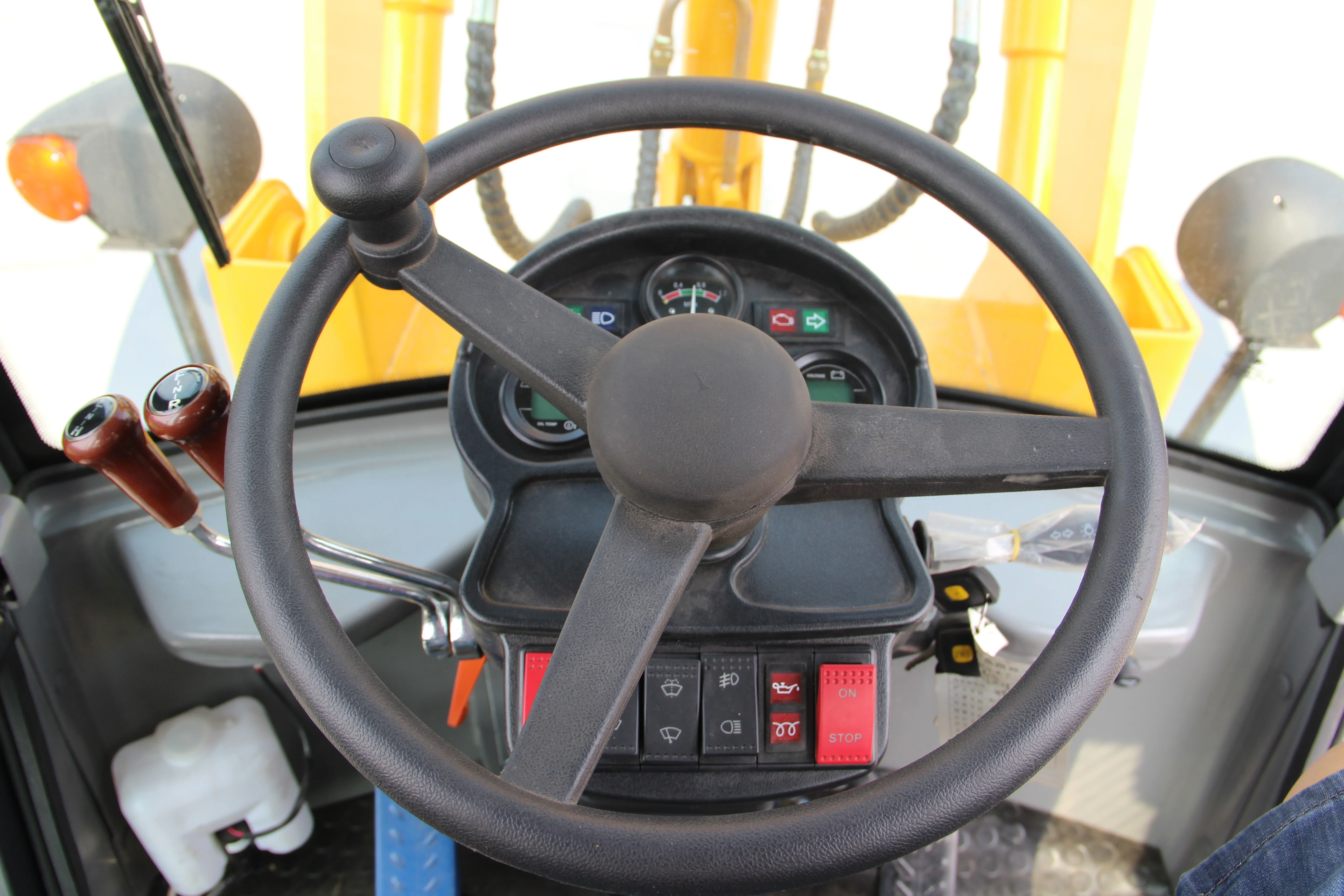

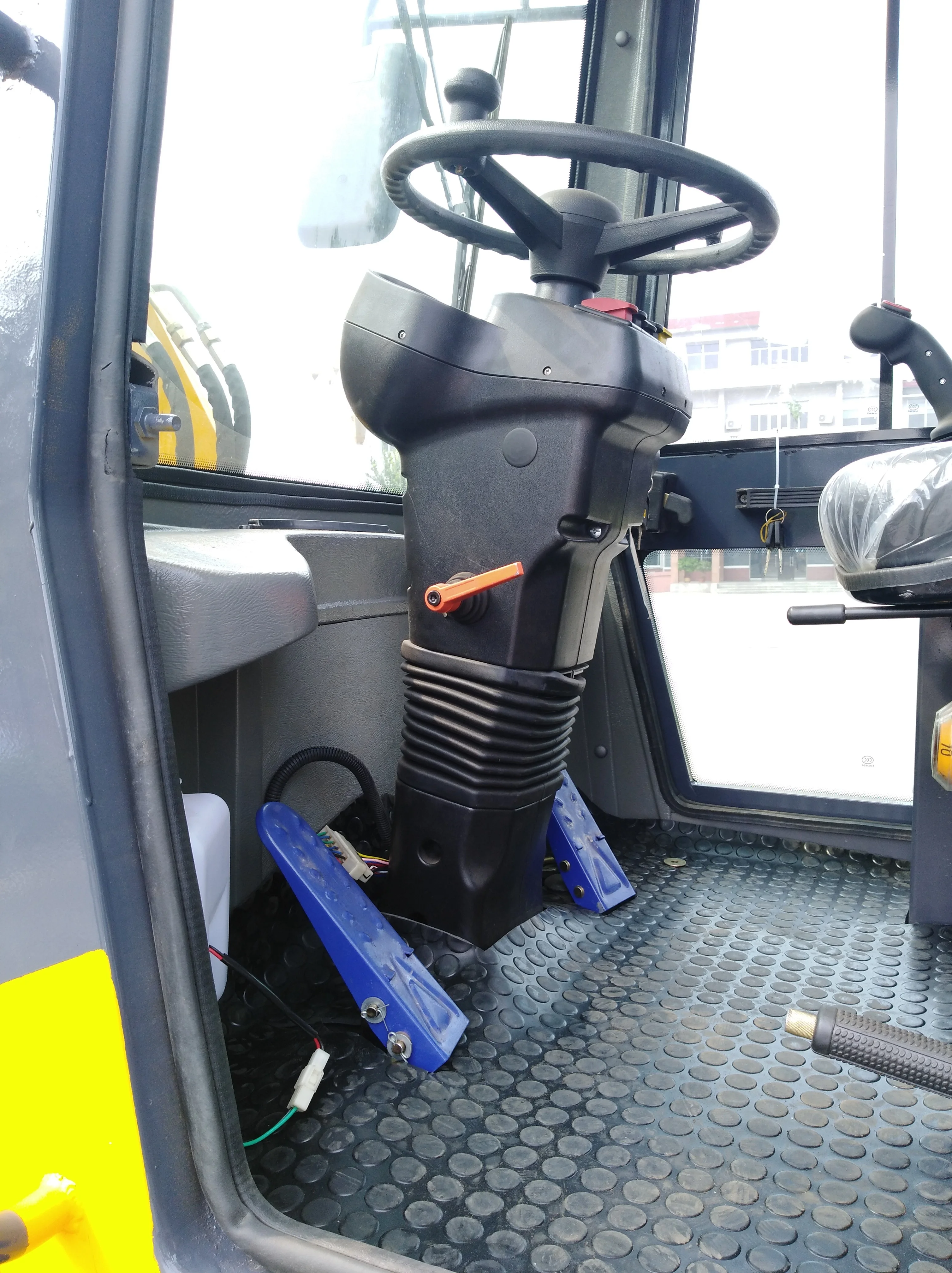

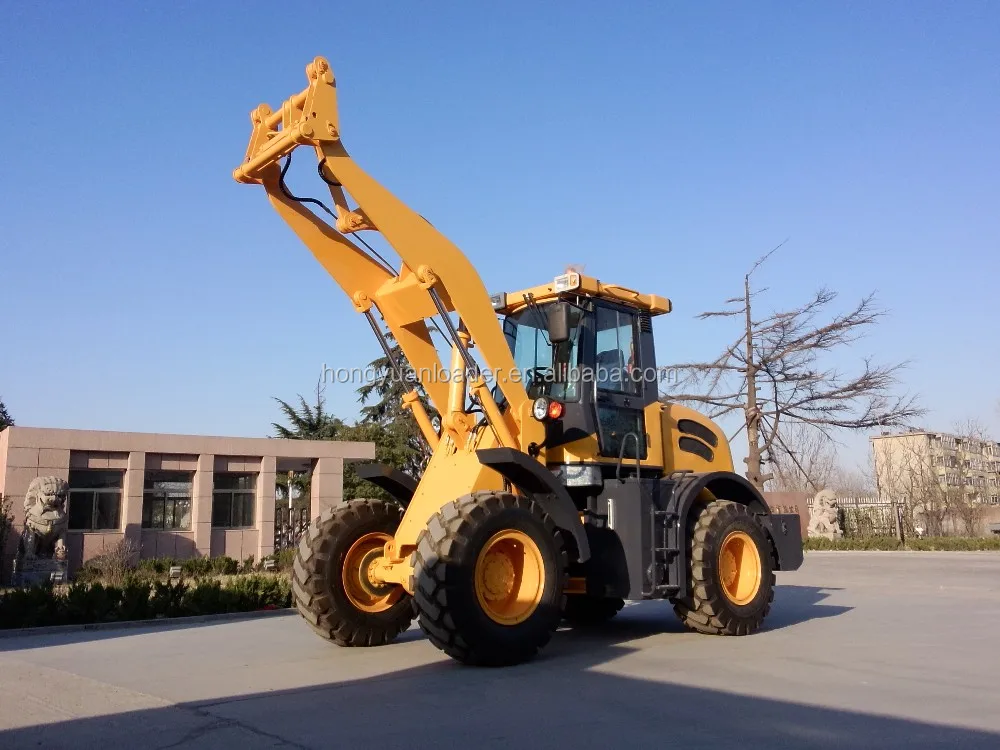

The detailed pictures
