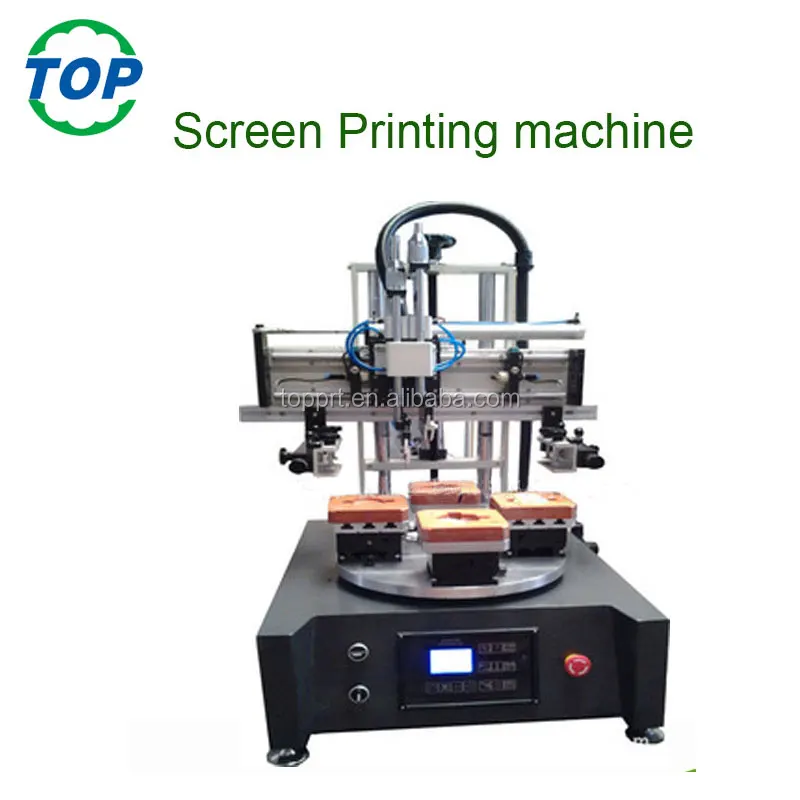

High Precision Silk Screen Printing Equipment Manufacturer

Product Overview

Description

Specification:



1. IC with touch panel program action programming.

2. Alloy Aluminum casting body with metal coating  .

3. Auto 4-digit counter, calculate printing quantity

4. Double pillar up/down structure, making  sure precision and stable   .

5. Transverse stroke can be adjusted, using Taiwan sensor to limit

6. Squeegee, flood bar can set as any angle

7. Squeegee constant pressure, keeping printing pressure stable

8. T-slot worktable or vacuum worktable, convenient to install jig

9. Action mode: Auto semi-auto manual

10. Start up: Panel pedal

11. Squeegee pressure control: Pressure regulating valve

12. Vertical driven: Pneumatic  Transverse driven: Electronic

13.Rotary worktable turn 360degrees for loading/unloading more convenient.

14.Install 4 or 2 workstations on worktable, distance between every stations by precision segmentation



Parameter:



Model	TP-300P/4C	TP-400P/4C	TP-3050P/4C	TP-4060P/4C
Max. printing area	100mmx150mm	150mmx250mm	120mmx250mm	150mmx350mm
Max.Printing size	60mmx100mm	100mmx200mm	80mmx200mm	100mmx300mm
Max Frame size	200x250mm	250mmx350mm	220mmx350mm	250mmx350mm
Printing Accuracy	± 0.01mm	± 0.01mm	± 0.01mm	± 0.01mm
Max. printing speed	2500pcs/hr
Air consumption	104litre/min(6bar)
Power	220V 60/50Hz 0.75Kw		220V 60/50Hz 1.5Kw
Pneumatic Cylinder	SMC/FESTO/AIRTAC
Work stations	4pcs
Weight	108kg	130kg	210kg	245kg
Machine size	600x700x1300mm	800x1500x1300mm	1050x1300x1500mm	800x1500x1600mm
