24V High Performance Brushless DC Motor Controller RS232,CAN Control bldc driver
- Category: Motor Drivers >>>
- Supplier: Jinan Keya Electron Science And Technology Co. Ltd.
Share on (60605664070):
Product Overview
Description
Product Description
24V High Performance Brushless DC Motor Controller,RS232,CAN Control,PID Control Loop, Forward & Reverse Control, Four Quadrant Open/closed loop

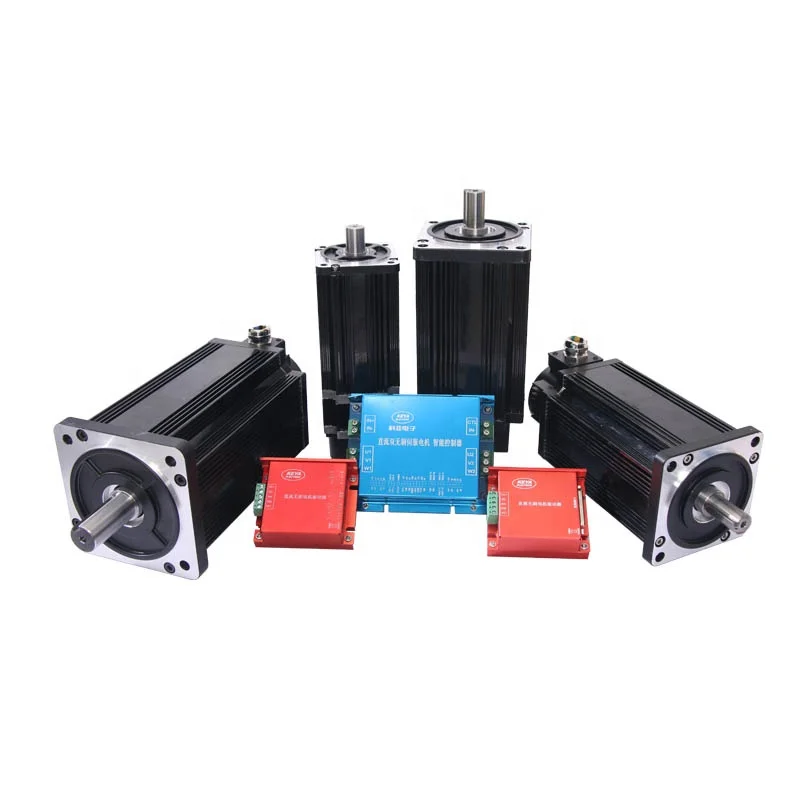

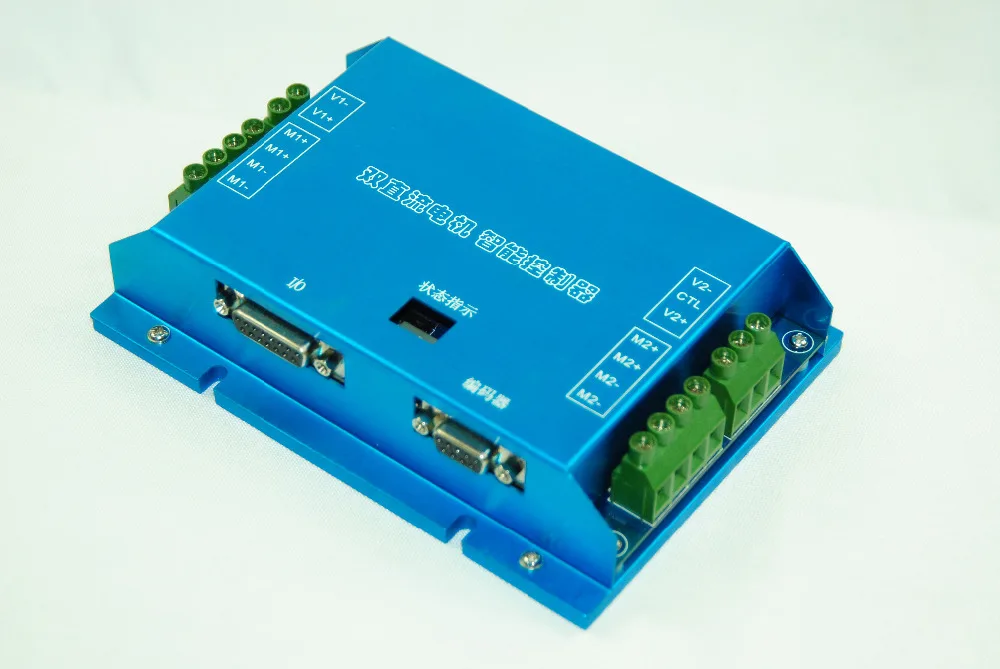

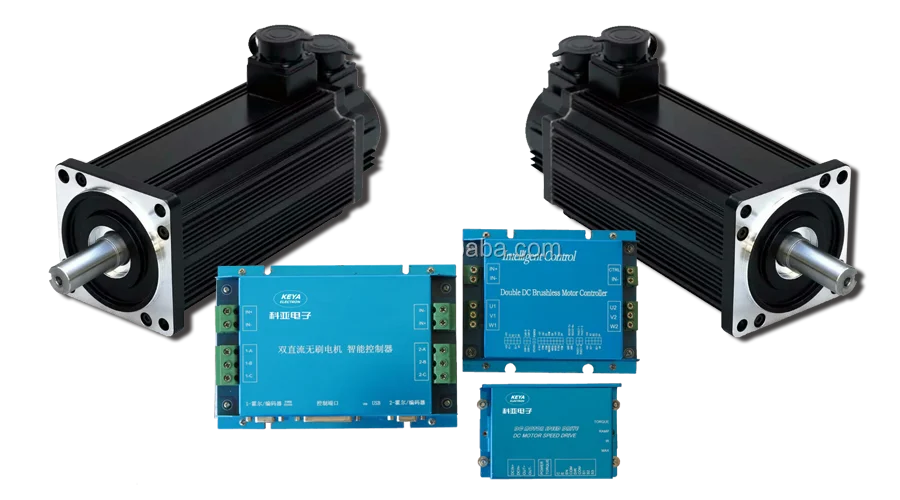

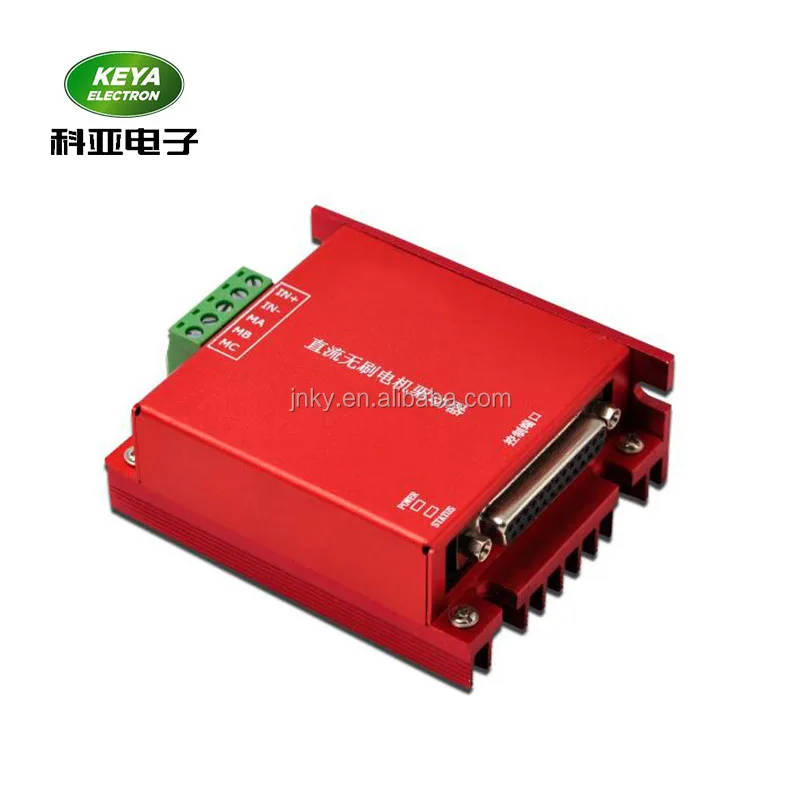

24V /48V High Performance Brushless DC Motor Controller with RS232 and CAN Interface
MMT KYDBL2430-1E is a kind of intelligent brushless dc motor controller.The use of high-performance 32-bit MCU controller, adopts the advanced control algorithms, coordinate external quadrature encoder input to complete the open loop and closed loop speed, under the closed loop torque of motor sport.Controller with multiple analog input port, the pulse input port and digital I/O port, can through the special software to redefine its functions.Universal RS232 serial port communication, CAN bus, the USB communication, CAN be widely used in automation.
Wide input voltage.
Pieces of intelligent PID control loop.
Four works: open loop control, closed loop speed control, open loop and closed loop torque control.
Pieces of external potentiometer, external 0 to 5 VDC analog, pulse command control mode, the RC control mode.
Safety of forward & reverse control, four quadrant operation, support regeneration.
Mixer can make control function.
In pieces the maximum current limit.
Pieces of 4 road input port, the function may be defined as analog input, pulse input or digital input function.
MOS tube drain open circuit output mixer 2 road, generally as 24V 1A output (maximum load capacity of 40 v 1A), can be used to control relay coil or other attachments.
Over-current, overheating, overvoltage, undervoltage, short circuit anomalies such as start protection function.
Pieces of LED status indicator, fault alarm output.
Mixer CAN bus communication, and customers to use you then details of the communication protocol.
RS232 communication, and customers to use you then a serial port protocol in detail.
1, the power supply voltage: 10 to 50 VDC.
2, continuous working current 13A, peak current 30A.
3, the Out + 5 VDC power supply (power supply) to encoder: 5 v DC 20 ma.
4, analog input range: 0-5 VDC.
5, pulse input range: 500 hz - 5000 hz (corresponding to maximum speed)
note the minimum pulse frequency with different maximum speed Settings will have corresponding change.
6, the duty cycle input range 20% to 80% (f input frequency range 1 KHZ or less, it is recommended to use 250 hz frequency)
7, RC signal (a PWM signal: RC remote control receiver output signal)
8, the digital output interface: 2 road, open drain, maximum load capacity of 40 v 1 a
9, temperature protection status: 70 overheating protection to reduce the output, 85 stop output.
: 10, working environment temperature 25 - + 60
11, environment humidity: relative humidity rh 80 or less.
12, appearance size: L * W * H = 90 mm * 75 mm * 35 mm
13, weight: 185 g
2, continuous working current 13A, peak current 30A.
3, the Out + 5 VDC power supply (power supply) to encoder: 5 v DC 20 ma.
4, analog input range: 0-5 VDC.
5, pulse input range: 500 hz - 5000 hz (corresponding to maximum speed)
note the minimum pulse frequency with different maximum speed Settings will have corresponding change.
6, the duty cycle input range 20% to 80% (f input frequency range 1 KHZ or less, it is recommended to use 250 hz frequency)
7, RC signal (a PWM signal: RC remote control receiver output signal)
8, the digital output interface: 2 road, open drain, maximum load capacity of 40 v 1 a
9, temperature protection status: 70 overheating protection to reduce the output, 85 stop output.
: 10, working environment temperature 25 - + 60
11, environment humidity: relative humidity rh 80 or less.
12, appearance size: L * W * H = 90 mm * 75 mm * 35 mm
13, weight: 185 g
Product Overviews
Packaging

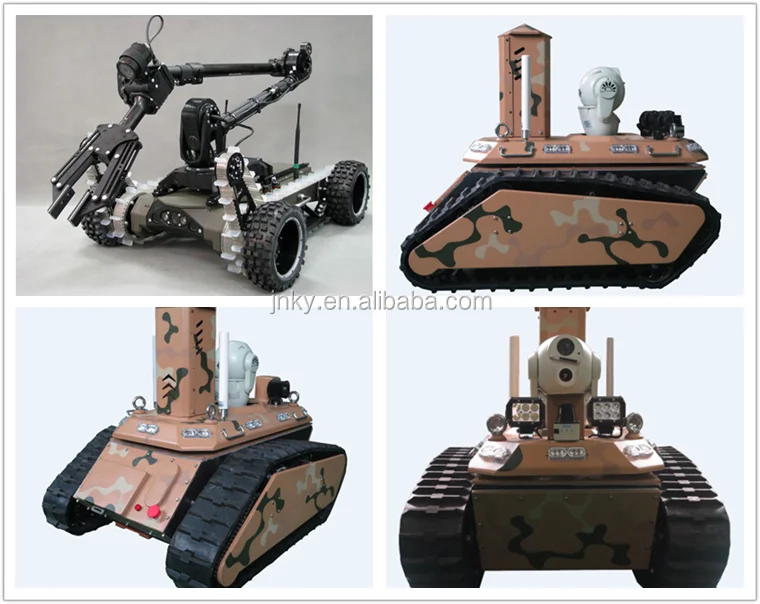

Application
Control Infromation
Jinan Keya Electronic Science and Technology Co., Ltd,founded in 2001, has been trading in the research &development, manufacturing and sales of DC motor and control system for years. The company owns technology,talent,management and other advantages,carry on effectively integrate,it keeps a stable,rapid development. The company has adopted ISO9001:2008 quality management system certification,products through the CE certification.And sold to America ,Europe,Southeast Asia and other regions.
The company based on controller product’s research and development manufacturing, we are dedicated to supply a set of the perfect solution.Pay attention to environmental protection quality and technology research and development .All kinds of products has high performance.Low voltage high power dc controller and low voltage 4Q reversible controller is leading in our country.we have the technical patents of these products.Companies adhering to the ‘Quality to survive,technology for future’ as guiding ideology, we take "serving for customers" as Service concept. Pursues excellence and brave in innovation. We are ready to share mutual benefit and a right future with our users and friends,make ‘KEYA’ to drive industry’s first brand.

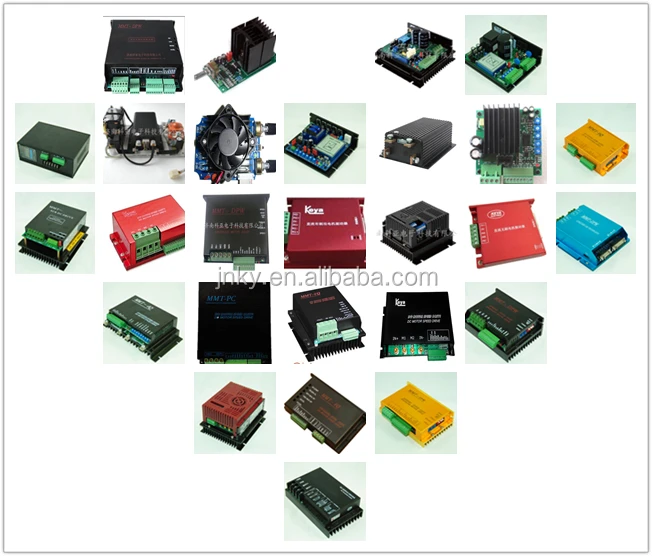

Main product:intelligent double brush-less dc servo controller,high power 4Q reversible dc controller,high power dc motor controller,brush-less dc motor controller and so on,these products widely used in AGV automatic cruise system,logistic storage system,intelligent control system,welding equipment,packing equipment,electric forklift,rail flat car and so on.
