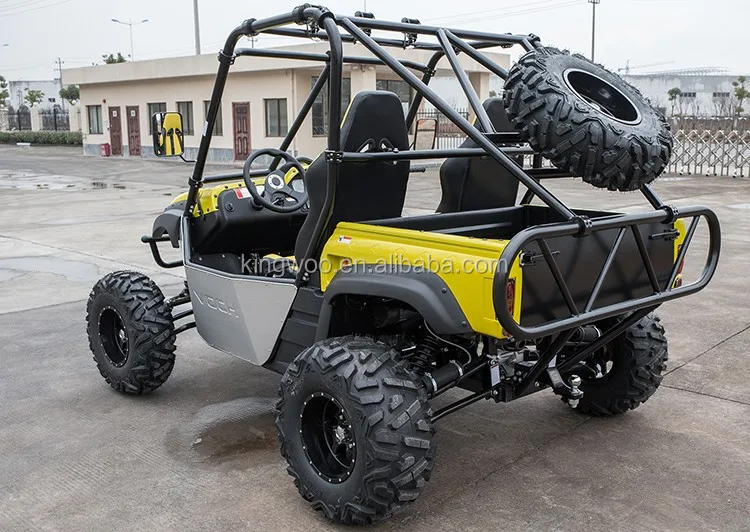

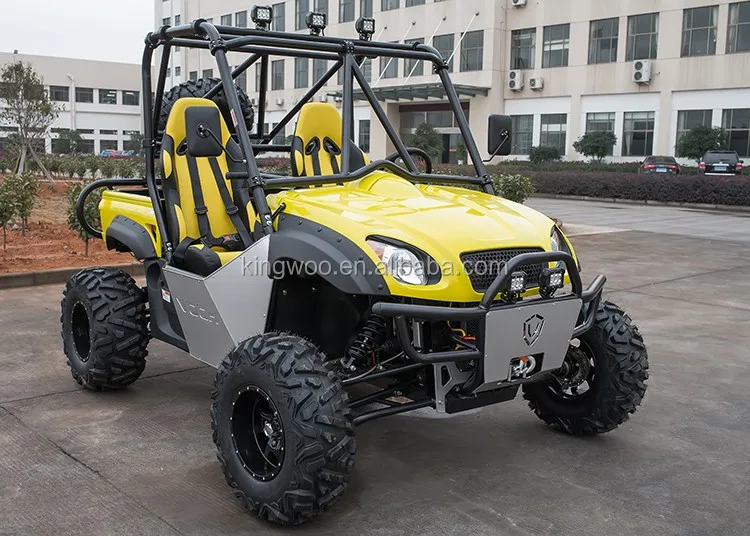

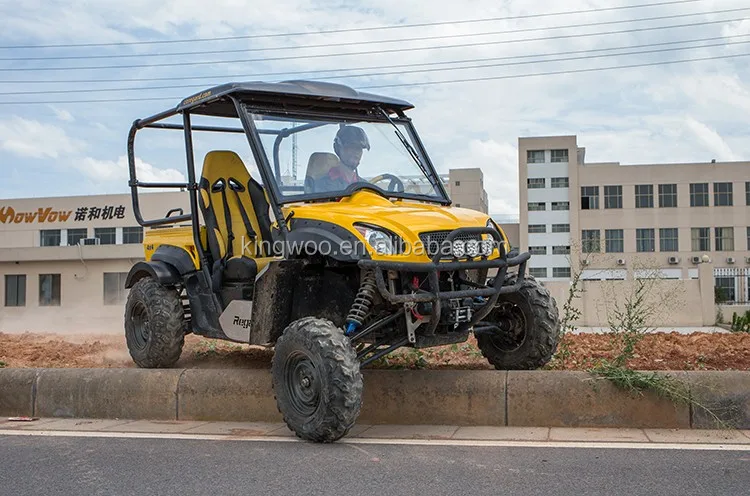

2017 600CC UTV 4X4 for farmer


\t
1. Overall dimension(s):
\t
2950x1860x1860mm
\t
2. Max forward speed
\t
80(km/h)
\t
3. Climbing ability:
\t
 <=45°
\t
4. Cago Bed Capacity
\t
185kgs
\t
5. Towing Capacity
\t
 800kgs
\t
6. Fuel Capacity
\t
25L
\t
7. Dry Weight
\t
530kgs
\t
8.Max. power (kW/rpm)
\t
28/6,500
\t
9. Wheel span(front / rear, mm):
\t
 1,540 / 1,580
\t
10.  Wheelbase(mm):
\t
 1905
\t
11. Max torque. N.m(r/min):
\t
46N.m/5500r/min
\t
12. Engine Type:
\t
4-Stroke Single Cylinder
\t
Engine
\t

\t
Engine Type: 4-Stroke Single Cylinder
\t
Displacement: 600cc
\t
Cooling: liquid&Oil /Fan
\t
Fuel System: EFI
\t
Drivetrain
\t

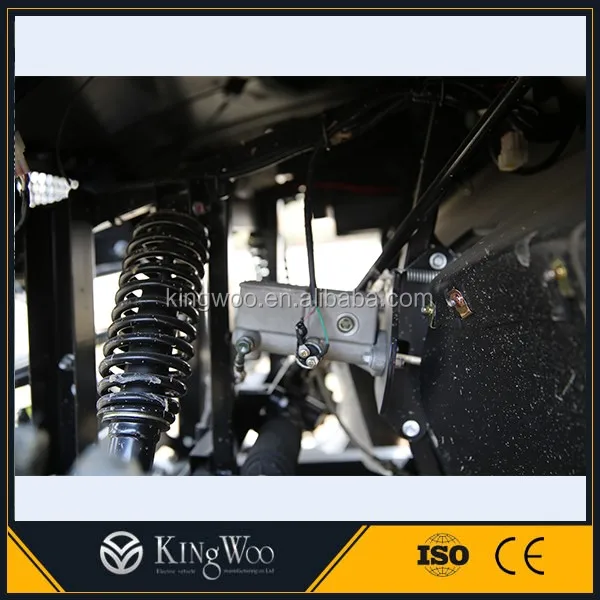

Suspension
\t
Transmission/Final Drive: Automatic CVT H/L/N/R; Shaft
\t
Front Suspension: Dual A-Arm 185.42mm(7.3") Travel
\t
Drive System: 2WD, 4WD, locked 4WD; shaft, Controled by buttons
\t
Rear Suspension: Dual A-Arm 185.42mm(7.3") Travel
\t
Brakes
\t

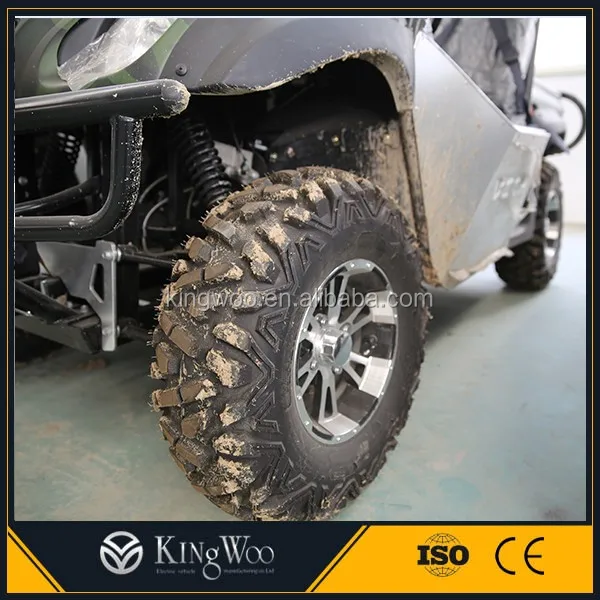

Tires
\t
Front/Rear Brakes:Dual Hydraulic Disc,Twin Piston
\t
Front Tires: 25*8−12 NHS
\t
Hydraulic Disc,Self adjust parking system,Shaft Mounted
\t
Rear Tires: 25*10−12 NHS
\t
Function/ Dimensions/ Capacities
\t
\t
Wheelbase: 1905mm
\t
Fuel Capacity: 25L
\t
Dry Weight: 520kgs
\t
Max. power (kW/rpm): 28/6,500
\t
Overall Vehicle Size: (L x W x H)2950x1860x1860mm
\t
Overall Vehicle Load Weight: 350kgs
\t
Min Ground Clearance: 320mm
\t
Hitch Towing Rating: 800kgs
\t
Cargo bed Dimensions: (L x W x H)1180×930×340mm
\t
Cargo bed: Capacity185kgs





HENAN KINGWOO ELECTRIC VEHICLE MANUFACTURING CO., LTD.

A shareholding industrial enterprise
Specialized in Electric Vehicle manufacturing
10 years manufacturing experiences
Import advanced technique from USA, korea etc.
Own design patent, ISO 9001, CE certification
Focus on international market
China No. 1 brand electric classic car manufacturer





A. Pre-sale service
a. Guide customer to choose the best suitable model, offer detailed specification and competitive prices
B. After-sale service
a. Technical support: engineer go to abroad for oversea service
b. Warranty time: 13 months from shipping time
c. Spare parts: send for free due to quality problems (except for wear parts)
