Product Overview
Description

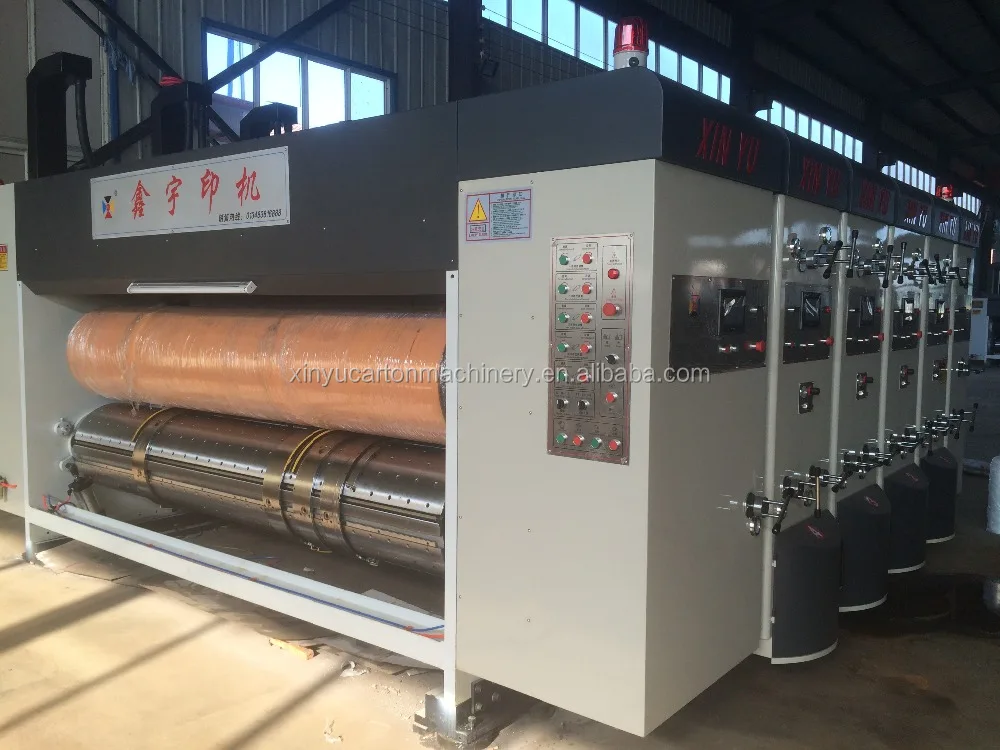

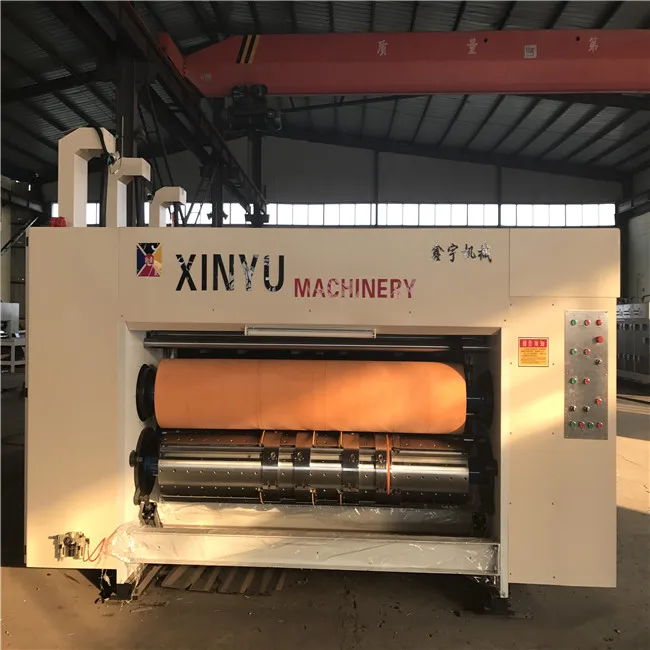

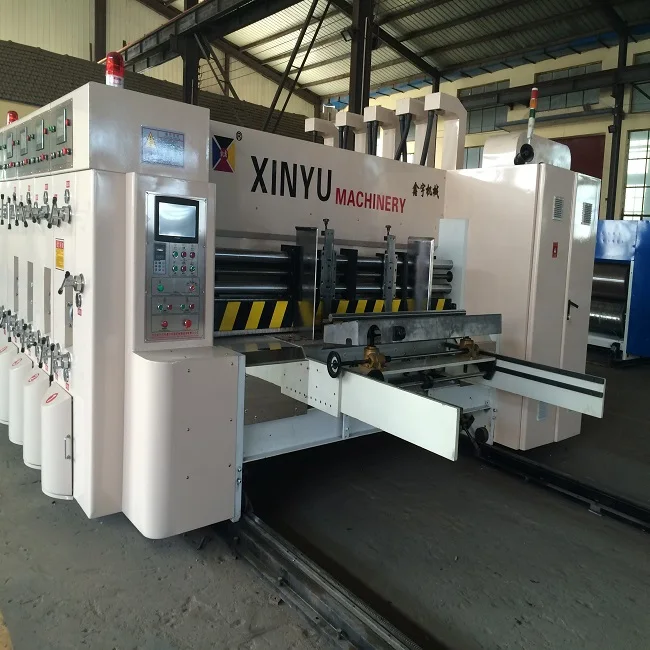

Pizza box making machine
Product Description
Design speed | 200(piece/min) |
Economic speed | 180 (piece/min) |
Max Cardboard size | 1200*2600mm |
Min cardboard size | 360*650mm |
Max printing size | 1200*2400mm |
Max skip cardboard | 1600*2600mm |
Slot width*slot depth | 7×400mm |
Min slot distance | 300*100*300*100mm |
Max die cutting size | 1200*2600mm |
Standard plate thickness | Hanging plate7.2mm |
Main motor power | 22kw |
Air fan power | 7.5kw |
Total power | 35kw |
Tinted precision | ±0. 5mm |
slotting precision | ±1.5mm |
Die cutting precision | ±1mm |
weight about | 35 Ton |

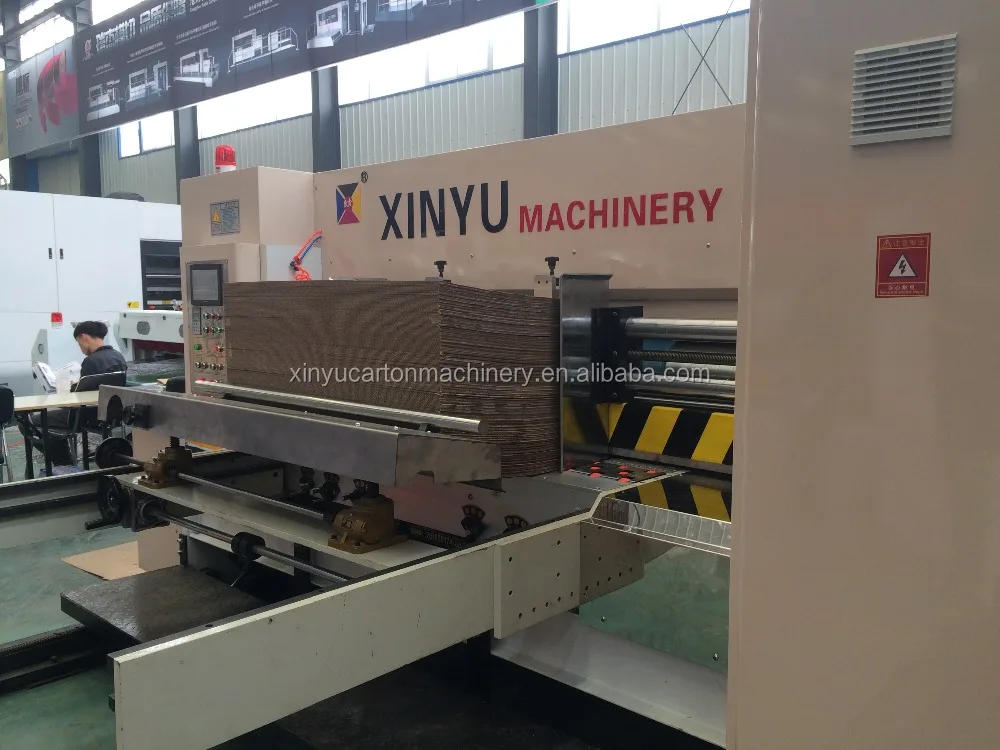

Lead edge feeding part:
1. Lead edge feeding system , easy operation and accurate
2. 7.5kw high pressure centrifugal ,frequency converter control blower pressure to ensure feeding warp cardboard exactly
3. Position of Right and left side apron is adjusted by electric with screw drive
4. Front apron lower and upper gap is sync adjustment
5. Skip feeding device , you can choose this as your request to ensure large size cardboard can be processed
6. Install 7.5 inch touch screen and can show productivity number and speed and also to set speed
7. Slotting die-cutting part with chain control switch and it can realize stop or start feeding

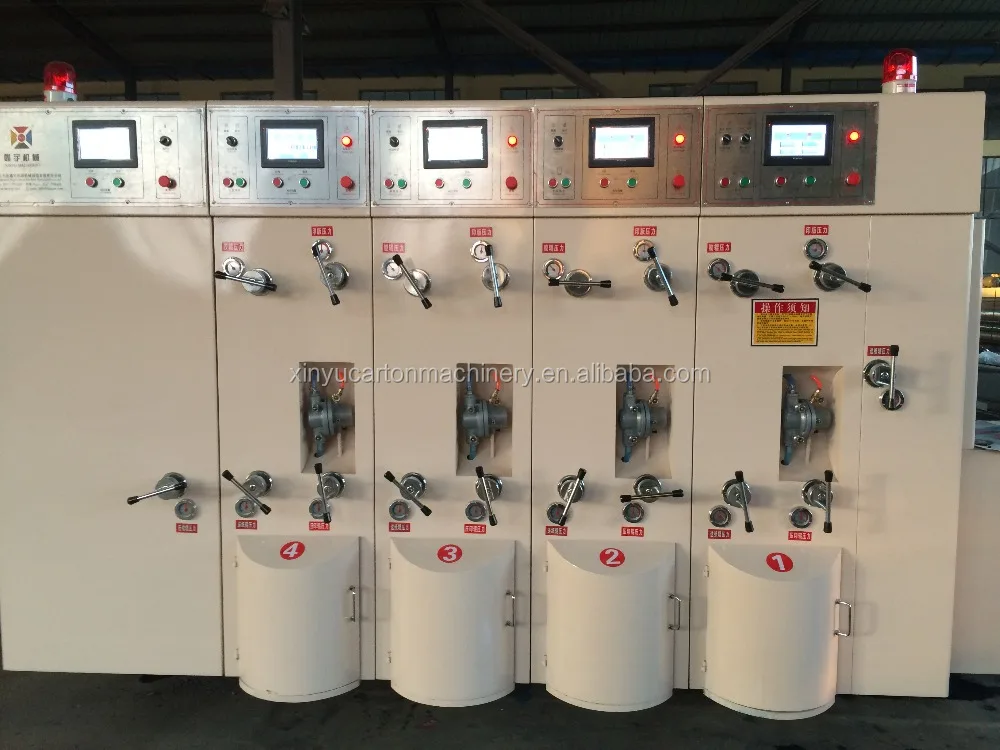

Printing part:
1. Phase 360°electrical adjustment (planetary gear )
2. Roller axial position is adjusted electrically and manually , left and right movement 10mm
3. Excellent metal anilox roller made by professional manufacturer
4. Rubber roller made by professional manufacturer and ensure ink quality
5. Supply ink cycling pneumatically
6. You can choose ceramic roller
7. Whole roller with hang lath which is standard
Slotting part
1. Phase 360°adjustment electrically (planetary gear ),keyless connection
2. Adjust box height electrically and inside gear adjustment structure
3. Polyurethane pre-pressing wheel to ensure cardboard in good situation
4. Length and width of box is adjusted electrically sync adjustment
5. You can choose positive and negative knife
6. With handle attachment device and order management function
Die-cutting part:
1. Axial position cycling moving automatically
2. Choose excellent durable rubber imported from Taiwan
3. With repair-auto rubber device
4. Track and compensate after lower and upper roller repair
5. Slotting slitting knife is special designed and installed on special fixtures , four blade can sync adjust box height . Load and install is convenient and it can replace rotary slotting machine . Blade incision is smooth
6.Die-cutting roller lift pneumatically and make rubber good when idling and phase adjustment to save cost
7. Rubber shaft axial moving 40mm automatically . Creasing not repeat and improve rubber using life
8. Rubber shaft with repair device auto and can repair 3-4 times
Stacking part
1. Receiving arm can be manual or auto operation , it is with insurance system to avoid receiving arm fall down suddenly that make worker safe
2. Bed desk lift by strong chain driving
3. Stacking height is 1600mm 1800mm 2000mm
4. Adjust bed table tilt height as stacking height , lifting motor , brake function , bed table can keep fixed position
5. Paper-lifting system pneumatically , when cardboard stacking up to desire height , paper-receiving tray is open automatically , tray seat hold cardboard
6. Wrinkle belt to avoid cardboard glissade
Packaging & Shipping
Our Services
1.We need to test the machine working condition before delivery to customer country.
2.If you need our engineers install and teach you how to operate machine, we also can send our engineers to your country, but need you bear all fee: tickets, food, hotel and salary.
3.Our machine has one year warranty, during this period, if problems caused by our machine quality, we will change all parts for you by free fee. If any questions, send me email by 24 hours, we also help you solve these problems.
Company Information
Based on DONGGUANG CANGZHOU, XINYU CARTON MACHINERY was established in 1990, Mrs Li, the ceo of the company, has always helped inovercoming challenges in the industry. with the rich of experience of around 30 years, we are capable of successfully serving several clients. Quality Assurance At XinYu company, quality is our prime forte. Keeping this in mind, we havedirected all our endeavours to attaining highest level of quality in our products, We have a trained team of quality auditors who take care of quality department. Also, we manufacture our products from the finest qualty of material. Client Satisfation We provide quick solutions to clients for their feedback and queries,Morever,we facilite our client with easy payment modes.
FAQ
1)Q: Are you a factory or trading company?
A: We are a manufacture which is specialized in the production of various kinds of carton equipment for 3o years. (with export license)
2)Q: What are your products?
A: We are specialized in producing 2ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.
3)Q: How does your factory do regarding quality controlling?
A: Over the years our company take"the quality first"integrity-based corporate purpose always meet user's requirements as our sole purpose providing the products with excellent quality, professional technology. always attach great importance to quality controlling from the very beginning to the very end.
a.All raw material we used are environment-friendly.
b.Skillful workers care every details in handling the product and packing process.
c.Quality control department specially responsible for quality in each process.
4)Q: What is the payment terms?
A: T/T, it is 3o% deposit due at placing order and 7o% balance due before loading, or L/C.
5)Q: What is your warranty?
A:12months after the date of installation for mechanical parts, electric parts(expect easily damaged parts under the normal use). within the guarantee period, if the parts failed due to the manufacturing cause, the seller shall send the replacement parts free of charge. otherwise the buyer shall pay for the cost of replacement parts.
