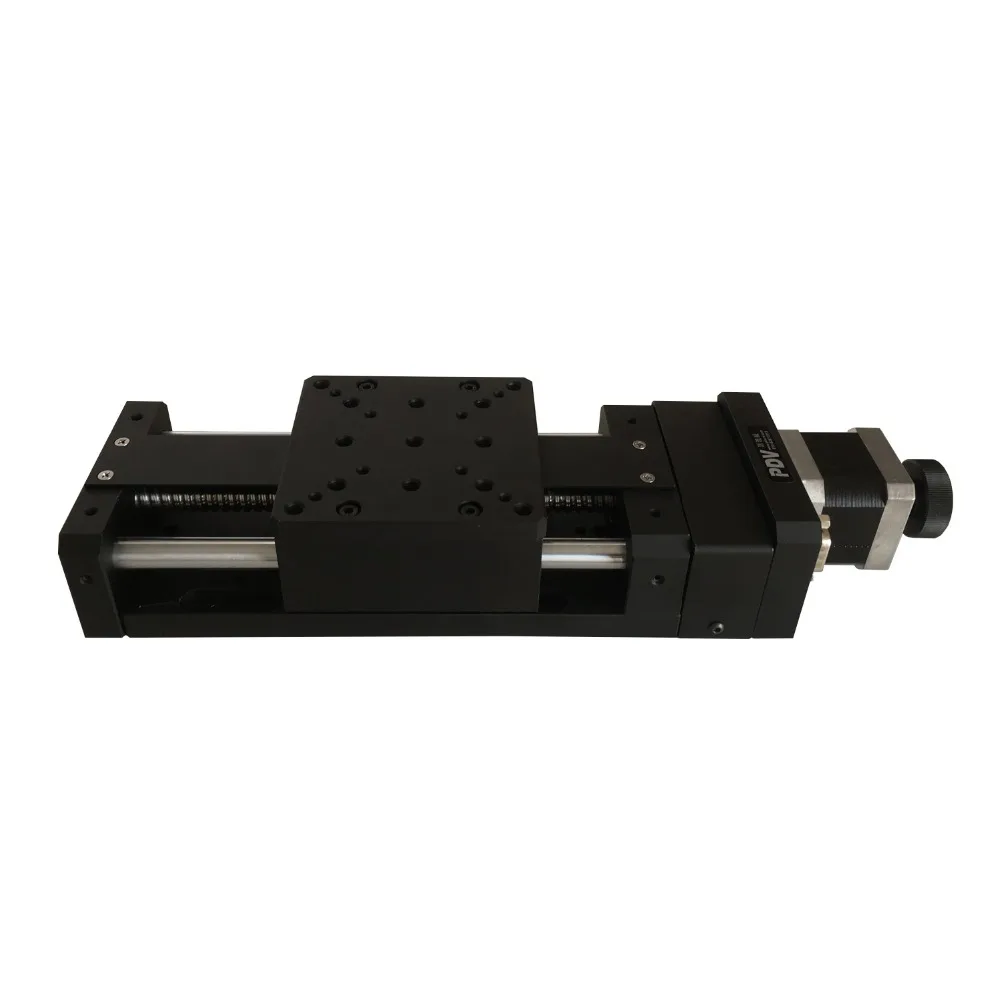

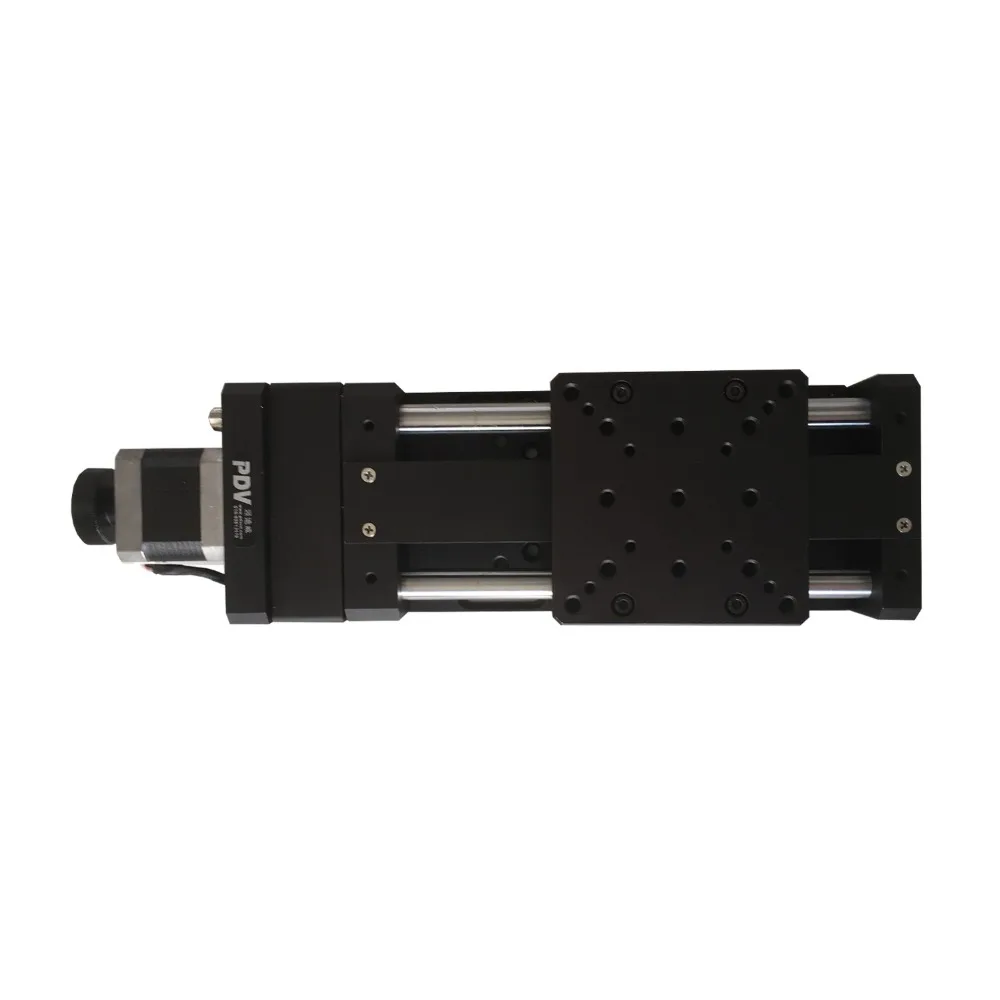

PP120 (50 300) Precise Electric Translating Platform, Motorized Linear Stage

Product Overview

Description

High precise ball screw provides high-performance

Low bearing capacity and a proper travel range were required for this model because of the type of linear ball bearing.

XY, XZ and XYZ stages can be stacked by 2 or 3 pieces of this model.

Original position and limit switches at both ends which can supply the precision positioning and protection.







PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage,High Precision Motorized Goniometer StagesHigh Precision Motorized XY StagesHigh Precision Motorized Rotation Stages

Use for ;

precision motorized tranlationstages,extensively application: institute, industry ,research precisonexperiment,postion and processing fields

Introduction:

PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage,High Precision Motorized Goniometer StagesHigh Precision Motorized XY Stages,High quality China Motorized Linear Stage.



The design of limited switches and zero switch protect products and supply convenience;

Standard interface is convenient for singal’s output.

The back of motorized stages has handwheel , it is for convenience for adjustment;

 Standard hole is so easy for combine with other units, ensure convenience for multi-dimensional system;

standard stepper motor and DB9 interface, choose to any controller according to requirement

 Grinding ball screw ,linear slide and elastic couplings adopt high-quality products ,provide quality assurance .
