HG 7500 S2 low noise industrial air pump air pump 12v
- Category: >>>
- Supplier: Shanghai Pretty Industries Co. Ltd.
Share on (60606110133):
Product Overview
Description
Product Description

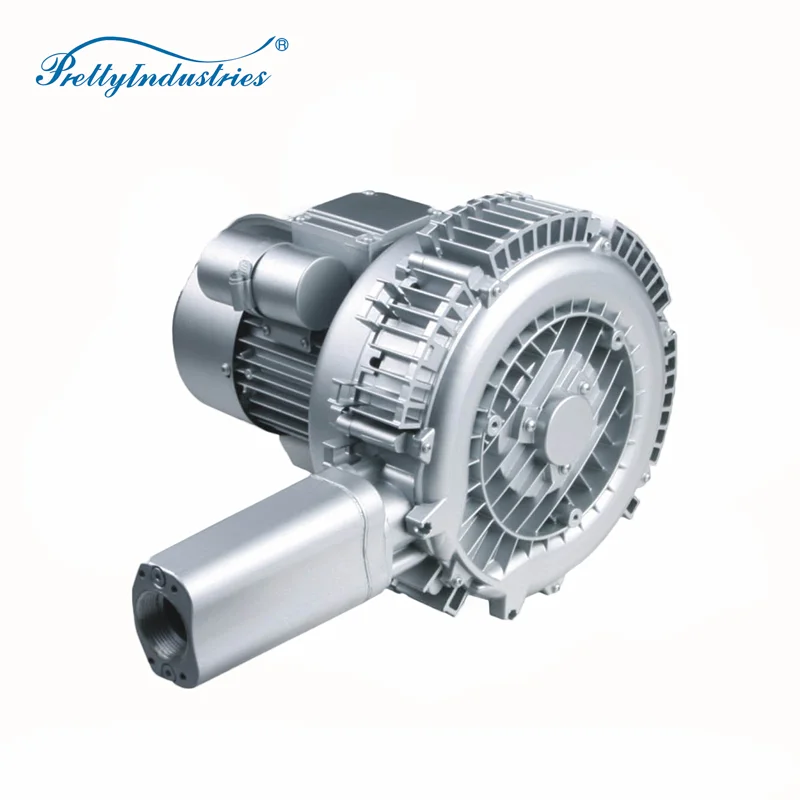

HG-7500-S2 low noise industrial air pump
FEATURES
1.Centrifugal vanes make high pressure,great outflow and low noise;
2.High quality engine ensures safe snd steady effect;
3.Non-oil lubrication and pure compressed air;
4.Phosphorize disposition,regular coloring and adhesive strength;
5.Wide range of power,long life of this machine.
APPLICATION
To be used in paper cutters,filter cigarette shapers,pulverizing driers,net printers,photo plate makers,
liquid-canning machines,electric welding equipment,film machinery,plate makers,liquicanning machines,
electric welding equipment,film machinery ,paper transporting,clothes dry-cleaning,rinsing,air cleaning,
pneumatic conveying,material conveying,collection and so on.
NOTE: The products must be put at dry and ventilated places above water level.
FEATURES
1.Centrifugal vanes make high pressure,great outflow and low noise;
2.High quality engine ensures safe snd steady effect;
3.Non-oil lubrication and pure compressed air;
4.Phosphorize disposition,regular coloring and adhesive strength;
5.Wide range of power,long life of this machine.
APPLICATION
To be used in paper cutters,filter cigarette shapers,pulverizing driers,net printers,photo plate makers,
liquid-canning machines,electric welding equipment,film machinery,plate makers,liquicanning machines,
electric welding equipment,film machinery ,paper transporting,clothes dry-cleaning,rinsing,air cleaning,
pneumatic conveying,material conveying,collection and so on.
NOTE: The products must be put at dry and ventilated places above water level.

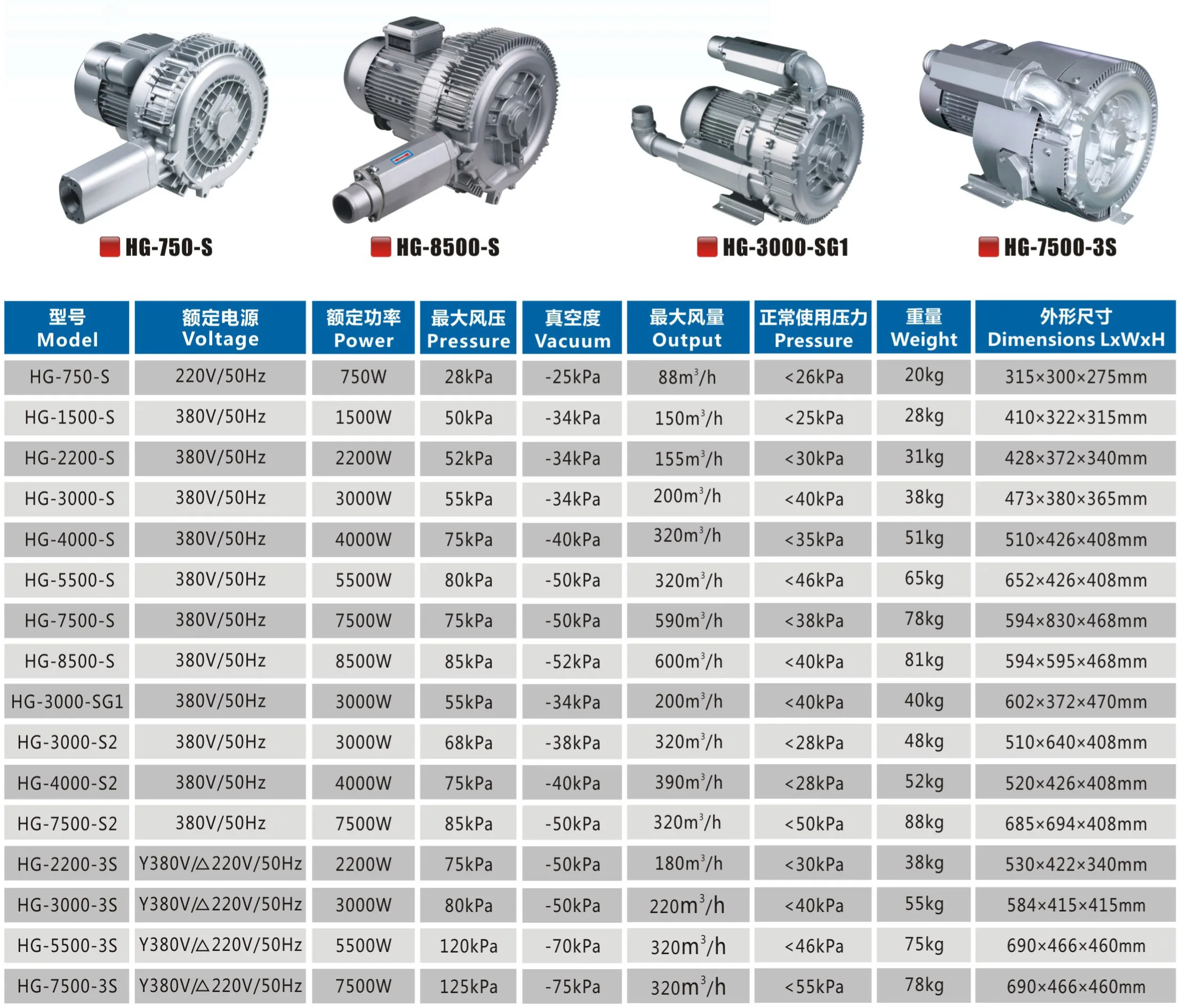

型号 Model | 额定电源 Voltage | 额定功率 Power | 最大风压 Pressure | 真空度 Vacuum | 最大风量 Output | 正常使用压力 Pressure | 重量 Weight | 外形尺寸 DimensionsLxWxH |
HG-750-S | 220V/50Hz | 750W | 28kPa | -25kPa | 88m/h | <26kPa | 20kg | 315x300x275mm |
HG-1500-S | 380V/50Hz | 1500W | 50kPa | -34kPa | 150m/h | <25kPa | 28kg | 410x322x315mm |
HG-2200-S | 380V/50Hz | 2200W | 52kPa | -34kPa | 155m/h | <30kPa | 31kg | 428x372x340mm |
HG-3000-S | 380V/50Hz | 3000W | 55kPa | -34kPa | 200m/h | <40kPa | 38kg | 473x380x365mm |
HG-4000-5 | 380V/50Hz | 4000W | 75kPa | -40kPa | 320m/h | <35kPa | 51kg | 510x426x408mm |
HG-5500-S | 380V/50Hz | 5500W | 80kPa | -50kPa | 320m/h | <46kPa | 65kg | 652x426x408mm |
HG-7500-S | 380V/50Hz | 7500W | 75kPa | -50kPa | 590m/h | <38kPa | 78kg | 594x830x468mm |
HG-8500-5 | 380V/50Hz | 8500W | 85kPa | -52kPa | 600m/h | <40kPa | 81kg | 594x595x468mm |
HG-3000-SG1 | 380V/50Hz | 3000W | 55kPa | -34kPa | 200m/h | <40kPa | 40kg | 602x372x470mm |
HG-3000-S2 | 380V/50Hz | 3000W | 68kPa | -38kPa | 320m)/h | <28kPa | 48kg | 510x640x408mm |
HG-4000-S2 | 380V/50Hz | 4000W | 75kPa | -40kPa | 390m/h | <28kPa | 52kg | 520x426x408mm |
HG-7500-S2 | 380V/50Hz | 7500W | 85kPa | -50kPa | 320m/h | <50kPa | 88kg | 685x694x408mm |
HG-2200-3S | Y380V/A220V/50Hz | 2200W | 75kPa | -50kPa | 180m/h | <30kPa | 38kg | 530x422x340mm |
HG-3000-3S | Y380V/A220V/50Hz | 3000W | 80kPa | -50kPa | 220m/h | <40kPa | 55kg | 584x415x415mm |
HG-5500-3S | Y380V/O220V/50Hz | 5500W | 120kPa | -70kPa | 320m3/h | <46kPa | 75kg | 690x466x460mm |
HG-7500-3S | Y380V/O220V/50Hz | 7500W | 125kPa | -75kPa | 320m3/h | <55kPa | 78kg | 690x466*460mm |
Detailed Images

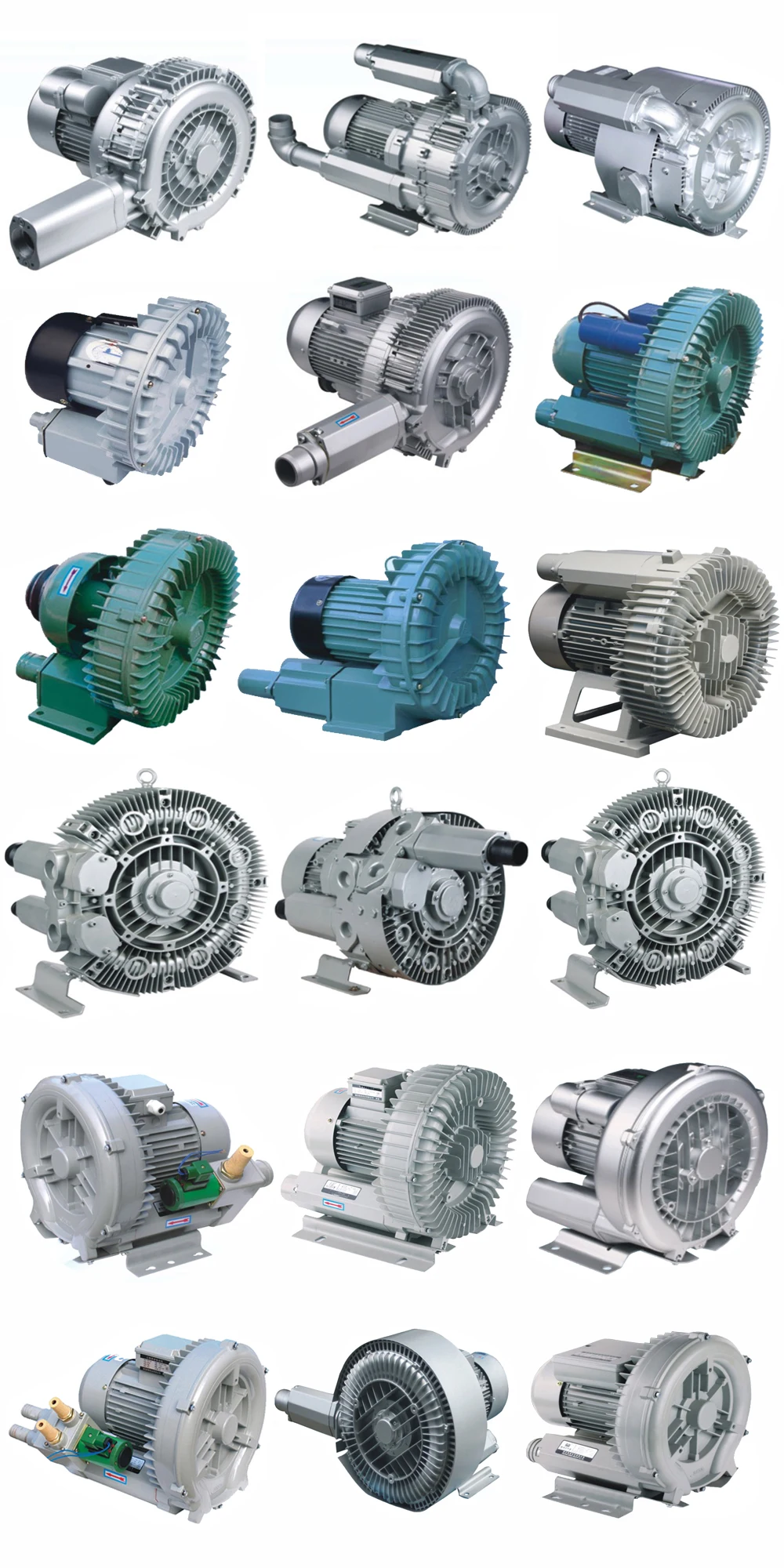

Related Products
