Safeagle F5030 Airport Security Mini X Ray Baggage Scanner for Saudi Arabia Dubai
- Category: >>>
- Supplier: Shenzhen Jinjian Era Technology Co. Ltd.
Share on (60606124035):
Product Overview
Description
Product Description
How to choose the right x-ray machine?
The X-ray baggage scanners tend to same with different quality in the recent market, which let many consumers confused and alarmed, below is to teach you how to choose a x-ray baggage sanner correctly.
QUESTION 1: What objects are you trying to see through?
If machines will secure building entrances, it’ll likely be scanning briefcases, backpacks, purses and mail parcels. In that instance your best option will be scanners with narrow frames, perfect for fitting into the tight space.
QUESTION 2: Are you looking for drugs? Guns? Explosives?

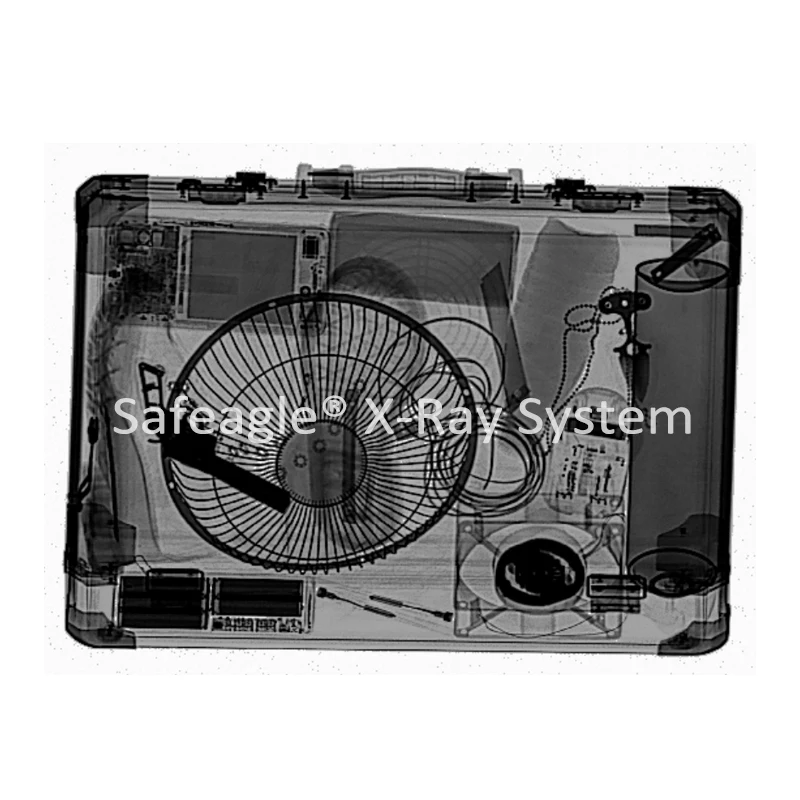

If scanners will be looking for small knives and possibly guns. Briefcases and backpacks aren’t usually made of materials that are hard for X-rays to penetrate. In this case a smaller X-ray generator(80KV) should offer plenty of visibility. When combined with the X-ray imaging features, such as HD imaging and material discrimination offer operators the best opportunity to identify and isolate threats before they enter any buildings.
Specification
Safeagle® X-ray Baggage Scanner | ||||||
Tunnel Size | 507(W)*303(H)mm | Film Safety | Guarantee ISO 1600 (33 DIN) | |||
Belt Speed | 0.22m/s Forward/Reverse | Display Type | 19" LCD Color Monitors | |||
Conveyor Load | 100 kg Evenly Distributed | Display Resolution | 1280 x 1024; 24 bit/pixel Color | |||
Voltage | 80KV | Operating Temperature | 0°C - 40°C | |||
Tube Current | 0.6mA | Humidity | Up to 95% Non-Condensing | |||
Cooling | Sealed Di-Electric Oil Bath with Forced Air | Power Requirements | 220VAC±10%, 50 / 60Hz, 10A Max | |||
Duty Cycle | 100% | Memory | 4GB RAM | |||
Beam Direction | Diagonally Upward | Storage | 250GB SSD | |||
Accessories-Optional
Important Notice
About Accessories and Installation of X-ray Baggage Scanner
1. If order a standard Safeagle X-ray baggage scanner, the packing list will be
1) Scanner machine *1
2) User manual, radiation test report, acceptance certificate *1
3) 21.5 inch display with wireless keyboard and mouse *1
4) 0.7m tunnel extension *1
5) 1.5m electric wire *1 (European/British/American/South Africa/France/Italy/Brazil/Australian standard etc.)
2. If received, you're required to install the scanner quickly with below 4 steps.
1) Take out and installed the monitor, keyorard from the tunnel
2) Install the tunnel extension
3) Power on
4) Start the software then test it
3. One-stop Service
1) If you're a professional agent who well understand the security products what we supplied, then you can enjoy a very good agent price and direct sales service and factory support from Safeagle.
2) If you're end user who have no idea about the product interested, then Safeale can provide with a profssional security solution for you.
1) If you're a professional agent who well understand the security products what we supplied, then you can enjoy a very good agent price and direct sales service and factory support from Safeagle.
2) If you're end user who have no idea about the product interested, then Safeale can provide with a profssional security solution for you.
Packing & Delivery
▪ Packing
Out side: Plywood Case
Inside: Pearl Wool
Standard export package, custom suffocating free
▪ Delivery
Incoterms: EXW, FOB, CIF, DDP, etc
Transport mode: Sea, Air, Express
Lead time: 1~2 weeks
Our Company
Nowadays, terrorist attack and crime in the world are only increasing, what we offer is the most commonly used security detectors used around the globe to keep it safer. Safeagle is the experienced high-tech manufacturers for the mainstream security equipment in China, our oversea high-end brand "Safeagle" receive high reputation at home and abroad, we mainly specializes in:
Our Team

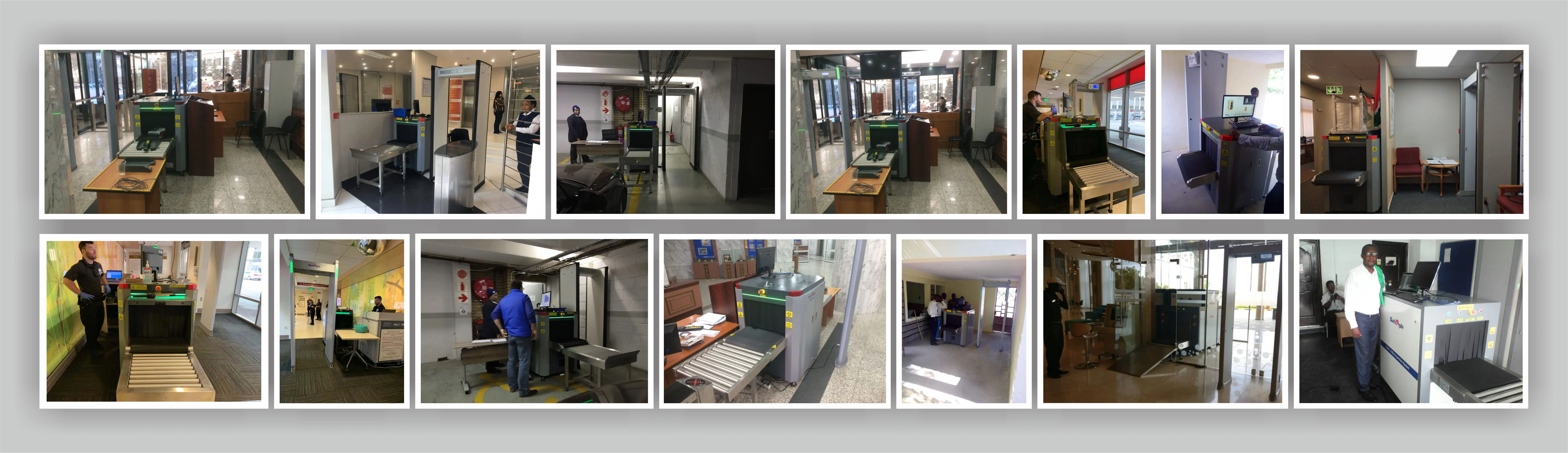

Case Study
