Product Overview
Description

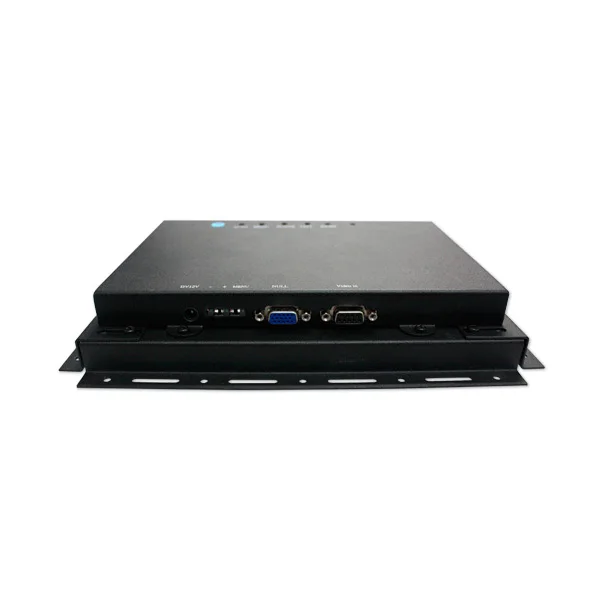

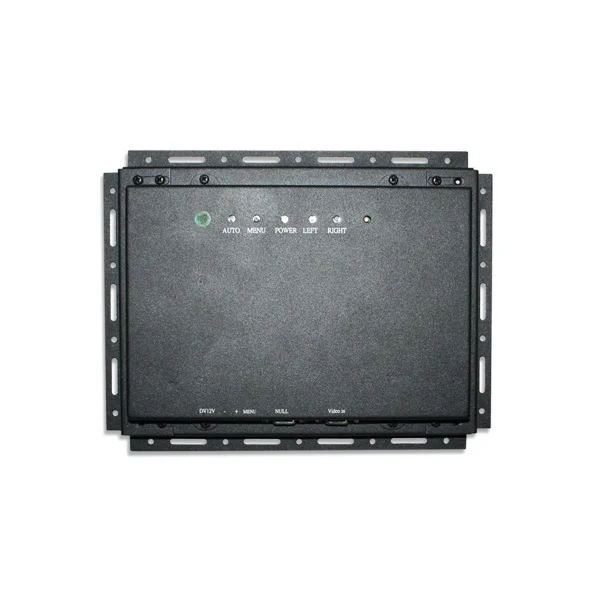

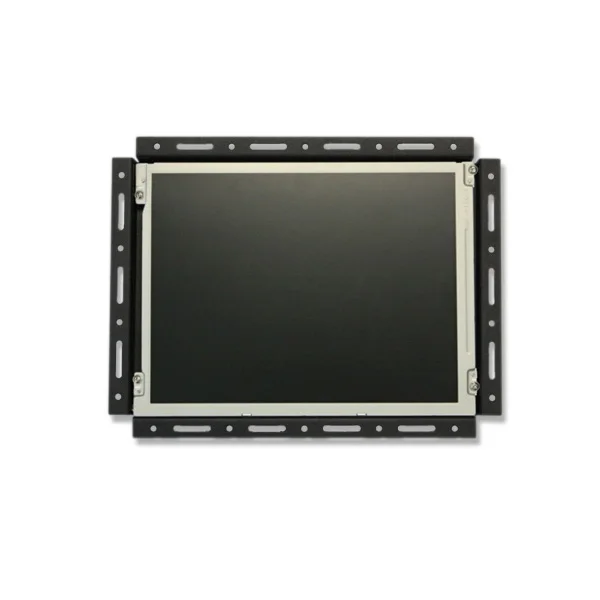

15 inch c-5470ns monitor CRT Replace Repair CNC CRT LCD Monitor
Application:
Repaire & replace CNC mazak 8dsp40 monitor repair replacement CRT to LCD, flexible open frame design, like Fanuc, Siemens, Mazak, Heidenhain, Hitachi, Toshiba, Mitsubishi, Sharp, Tatung, Totoku, and Magnetek, and etc.

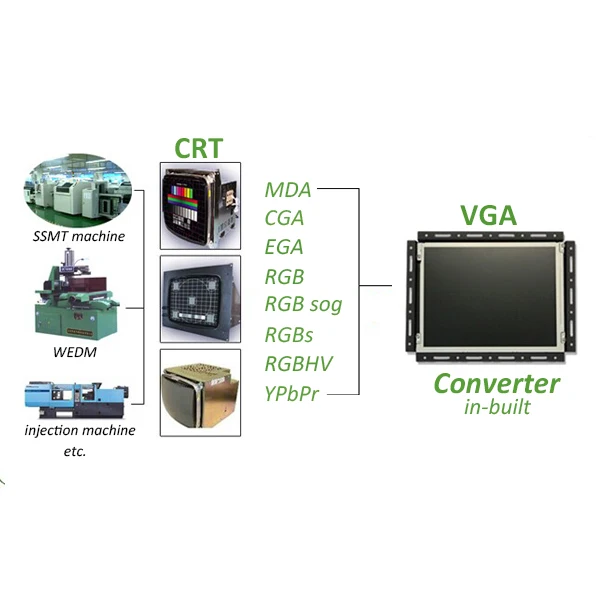

The replacement : GBS8229 = old CNC CRT monitor + XVGA Converter
Available sizes: 8.4 inches, 10.4 inches, 12.1inch
Feature specifications
| Input | Signals | TTL MDA,CGA,EGA,RGB,RGB Sog,RGBS,RGBHV,YPbPr |
| Interface | 9pin,3pin,6pin,14pin,20pin,25pin | |
| Horizontal Frequency Rate(H) | 12kHz to 40kHz, auto recognized | |
| Output | Supports | 15pin VGA,Resolution:800*600/60HZ, or custom |
| Interface | D-Sub 15 PIN standard VGA port | |
| Power | DC 12V 1.0A | |
Note:
1. YPbPr = YUV
2. Input Horizontal Frequency Rate 12 kHz to 40 kHz automatically recognized.
3. Support RGB and YPbPr
4. Support Interlaced Scanning and Line by Line Scanning.
5. Support Vertical Resolution from line200 to line 600 automatically recognized.
6. Support variable Horizontal Resolution automatically recognized.
7. Support RGBHV (separate sync), RGBS (composite sync), automatically recognized.
8. Output resolution: 800*600/60Hz standard VGA or custom-resolution.

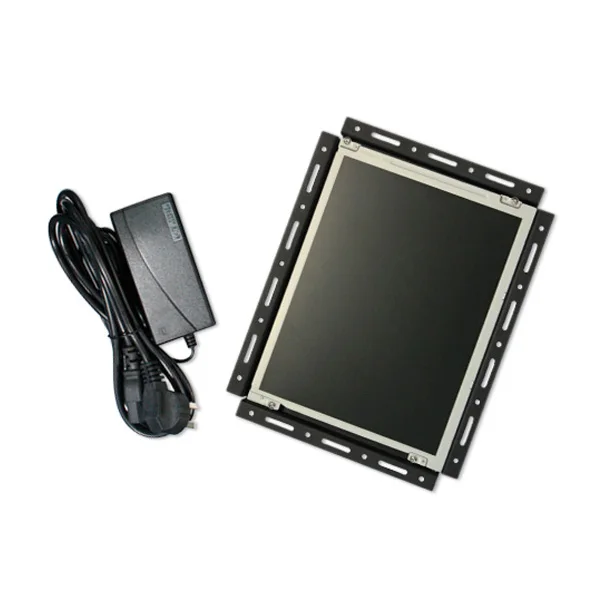

Delivery Carton Contents
| Item | QTY | Remarks |
| GBS8229 | 1 | 15 inch c-5470ns monitor CRT Replace Repair CNC CRT LCD Monitor |
| User’s Manual | 1 | English |
| Power Adaptor | 1 | DC12V,1A |
| half 9pin cable | 1 | |
| 9pin M-F cable | 2 | 1 Male + 1 Female |
Definition of 9 Pin cable
Name | Wire color | Signal | |
| A | Silver | Shield |
B | Black | Ground(GND) | |
C | White | Vertical Frequency Rate(V) | |
D | Orange | Horizontal Frequency Rate(H) | |
E | Blue | Blue(B) | |
F | Green | Green(G) | |
G | Red | Red(R) | |
H | Brown | Undefined(null) |
Packaging & Shipping
Export Packing
Quantity: 1unit/ctn
Carton Size: 39*33.2*15 cm
Carton G.W.: 3.1 kg
Gonbes XVGA Products
FAQ
Delivery Lead Time
1 day upon payment. (PayPal, Western Union, TT)
