Dust filter/filtrator with small cyclone separator, industrial dust collector, fume extraction system
- Category: >>>
- Supplier: Shanghai Kaisen Environmental Technology Co. Ltd.
Share on (60606308109):
Product Overview
Description

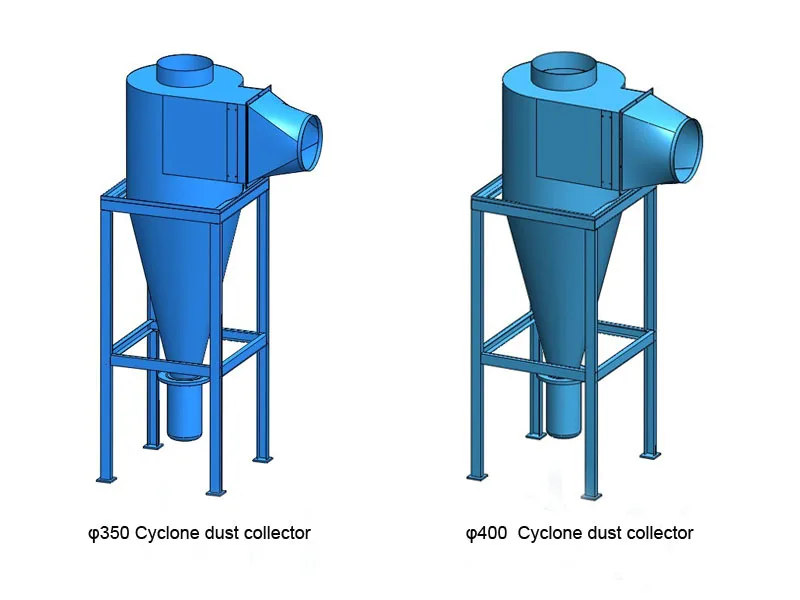

Dust filter/filtrator with small cyclone separator
Features
1. The air purifier applies to all kinds of soot purifications caused by welding, grinding, as well as recycling of rare
metals, precious materials, etc
2. For the potential of fire and molten slag particles, three protective measures are used inside purifier, to make it
a longer life, more secure and reliable.

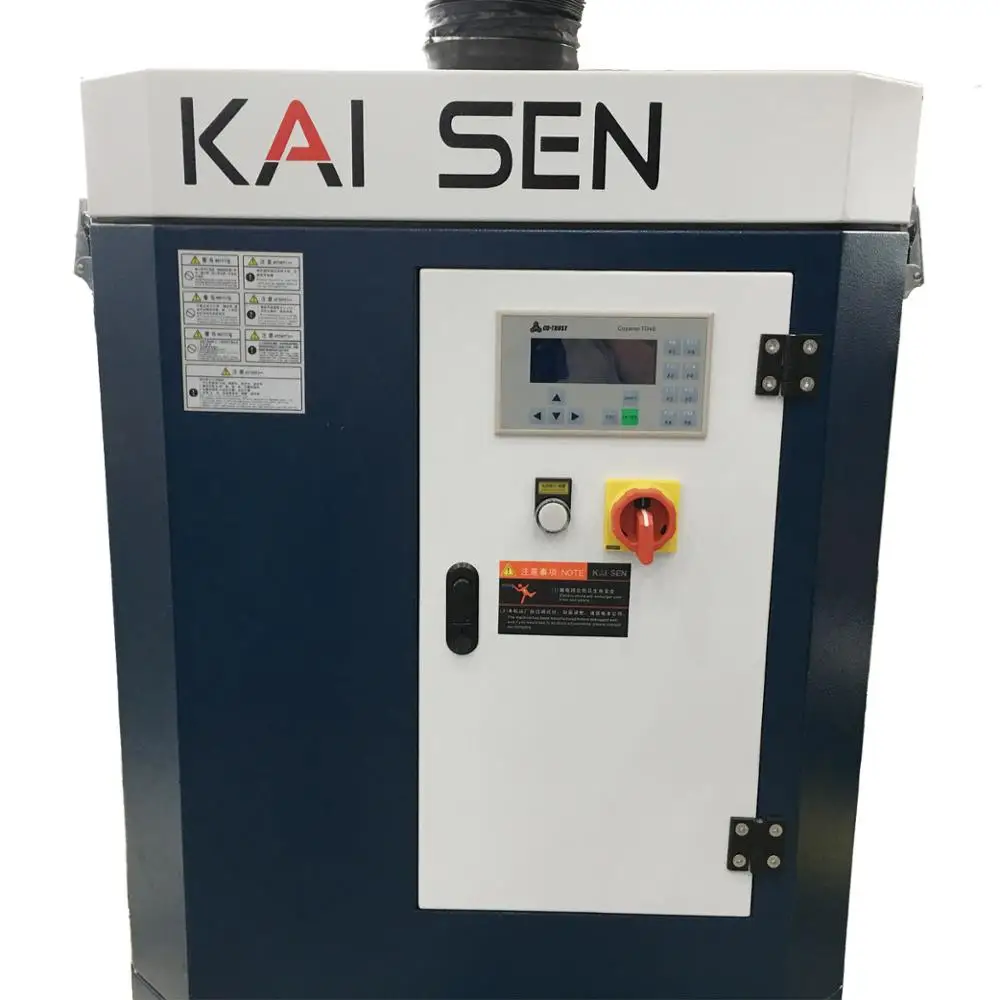

3. Intelligent model using PLC automatic control makes operation easy; filter rotates with the use of full-automatic
cleaning in all directions, so that there is a more thorough cleaning filter surface, always to guarantee a
constant air volume absorption; Filter is made of imported microporous PTFE film , filtering with high precision
can meet GB indoor emission standards.
4. Power phase sequence instructions, short-circuit protection for lack of phase, with shutdown protection
measures when too high temperature.
5. With large air volume, low noise and better capture effect. Suction hose uses the real anti-temperature, wear-
resistant compounded materials, without crack and damage for sparks but longer life.
6. Photoelectric switch, efficient and energy-saving, with lighting fixtures cantilever cover (optional).

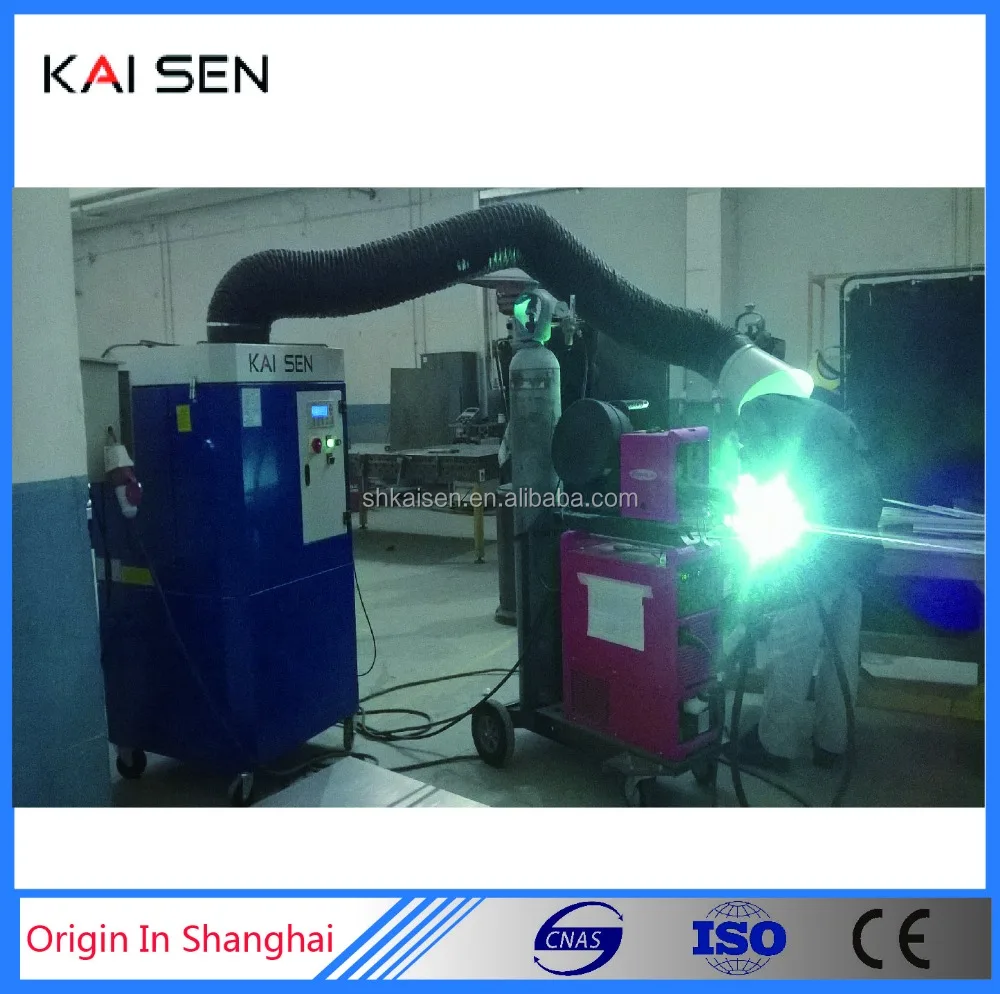

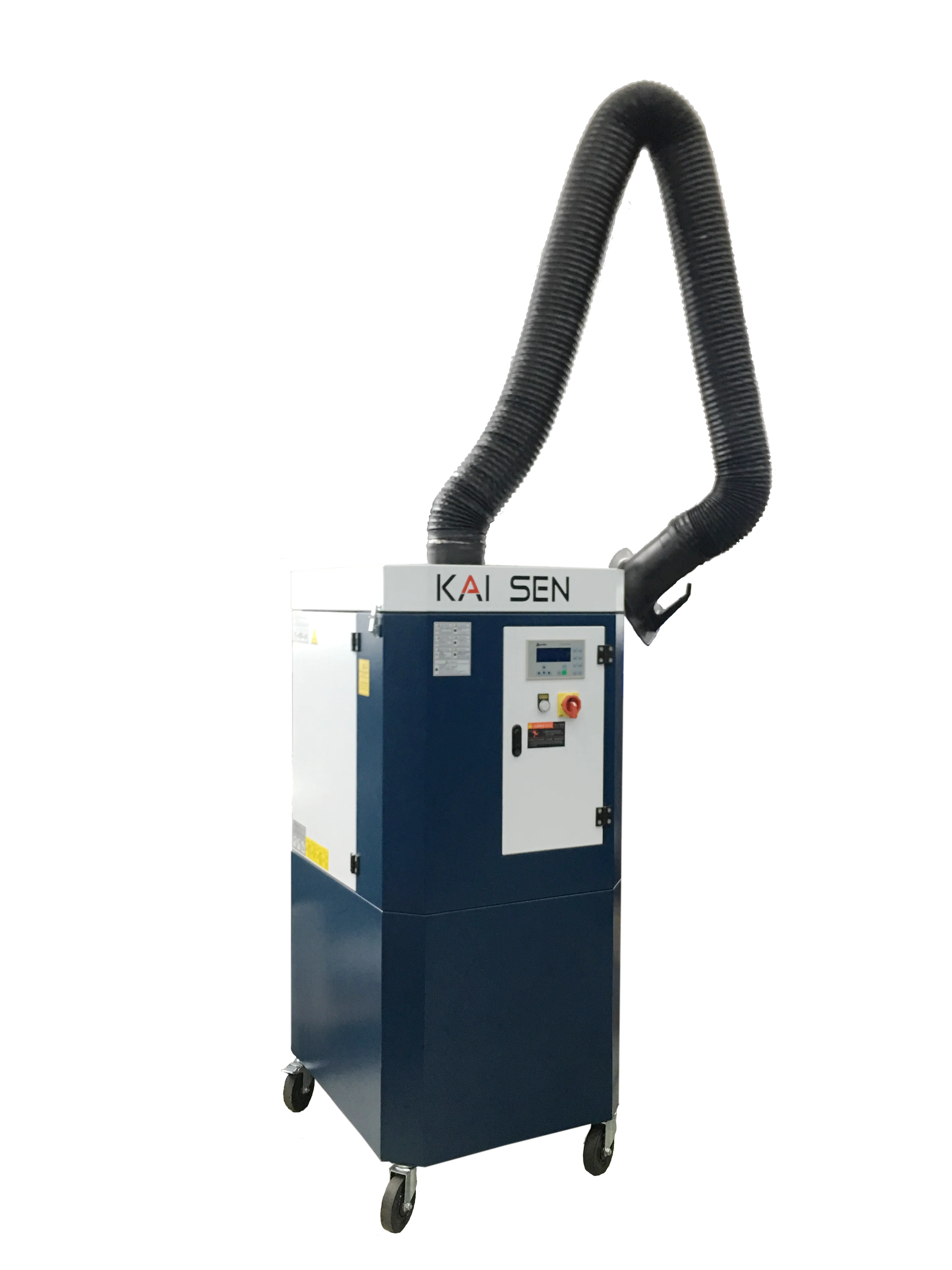

MOBILE WELDING FUME EXTRACTOR - WITH IMPULSE COUNTER BLOWING
1. Economic type or Intelligent type
2. Exported many years
3. Professional factory
4. 360 degree flexible suction arm
Parameters
Model | KSZ-3.0D | KSZ-3.0D1 | KSZ-3.0D2 |
air flow | 2600 (m3/h) | 4000 (m3/h) | 4000 (m3/h) |
Motor Power | 3.0 (kw) | 3.0 (kw) | 3.0 (kw) |
Voltage | 380( V/50 Hz) | 380( V/50 Hz) | 380( V/50 Hz) |
Filtering area | 20 (m2) | 20 (m2) | 20 (m2) |
Surface Cleaning Methods | Automatic Cleaning | Automatic Cleaning | Automatic Cleaning |
Compressed Air | 0.5~0.6 (MPa) | 0.5~0.6 (MPa) | 0.5~0.6 (MPa) |
Filtration Efficiency | >99.9% | >99.9% | >99.9% |
Quantity of suction arm | 2 sets (φ160 3m) | 1 set (φ200 3m) | 1 set (φ250 3m) |
Noise | ≤74 dB(A) | ≤74 dB(A) | ≤74 dB(A) |
Demission | 800×800×1570 (mm) | 800×800×1633(mm) | 800×800×1633(mm) |
Weight | 266 ±10 (kg) | 266 ±10 (kg) | 266 ±10 (kg) |
Why us?
1. Advanced 3D design and fluid simulation software to ensure “0” error manufacture and assembly.
2. High efficiency plasma cutting machine to ensure the accuracy of metal parts.
3. Qualified senior technician to ensure the perfect weld seam.
4. Strict inspection procedure to ensure final quality of the dust collector.
5. Modular design to ensure the flexibility of the rebuild of existing dust collector.
6. ISO 9001:2008 & ISO14001 management and continuous improvement.
7. More than 10 years dust collector solution experience.
8. Strong technical team to provide professional product selection and custom design.
9. More than 1000 pcs projects in domestic and overseas market.
10.We are one of the most well-known brands in this field in China.
FAQ
1. Q: Do you have any certificate such as CE, CSA?
A: We have different certificates for different products and different markets. Please feel free to
contact us for further information.
2. Q: How long is the warranty period of your dust collector?
A: We provide free service (except filter)within 24 months and paid service for the whole working life
of the product
3. Q: Do you have installation guidance for export product?
A: We have standard installation guidance in English version and also we could provide other language
guidance.
