expanded metal gutter guard making machine
- Category: >>>
- Supplier: Zhangjiagang Gihua Machinery Co. Ltd.
Share on (60606333930):
Product Overview
Description
Product Description

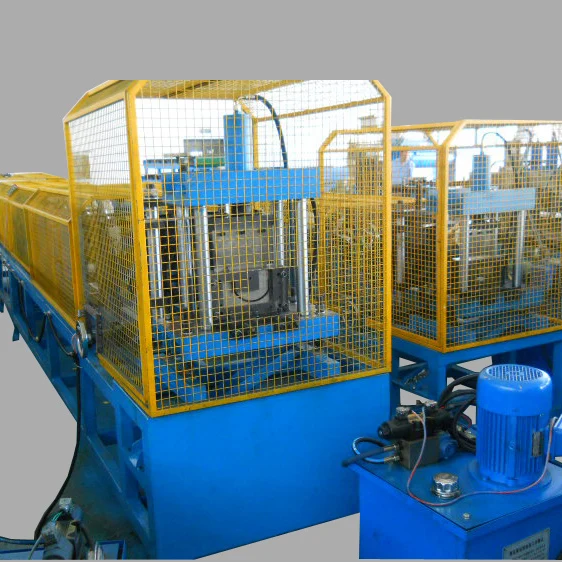

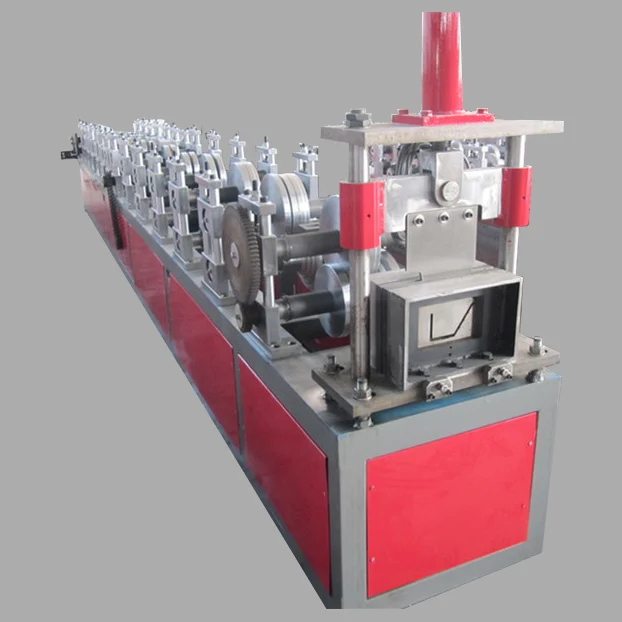

Gutter roll forming machine（Only for reference）
Maximum production speed: not less than 12 metres per minute (excluding cutting); Material: 0.3-0.8mm, GI or clor steel
If you have your own special requirements,our machine can be also customized.

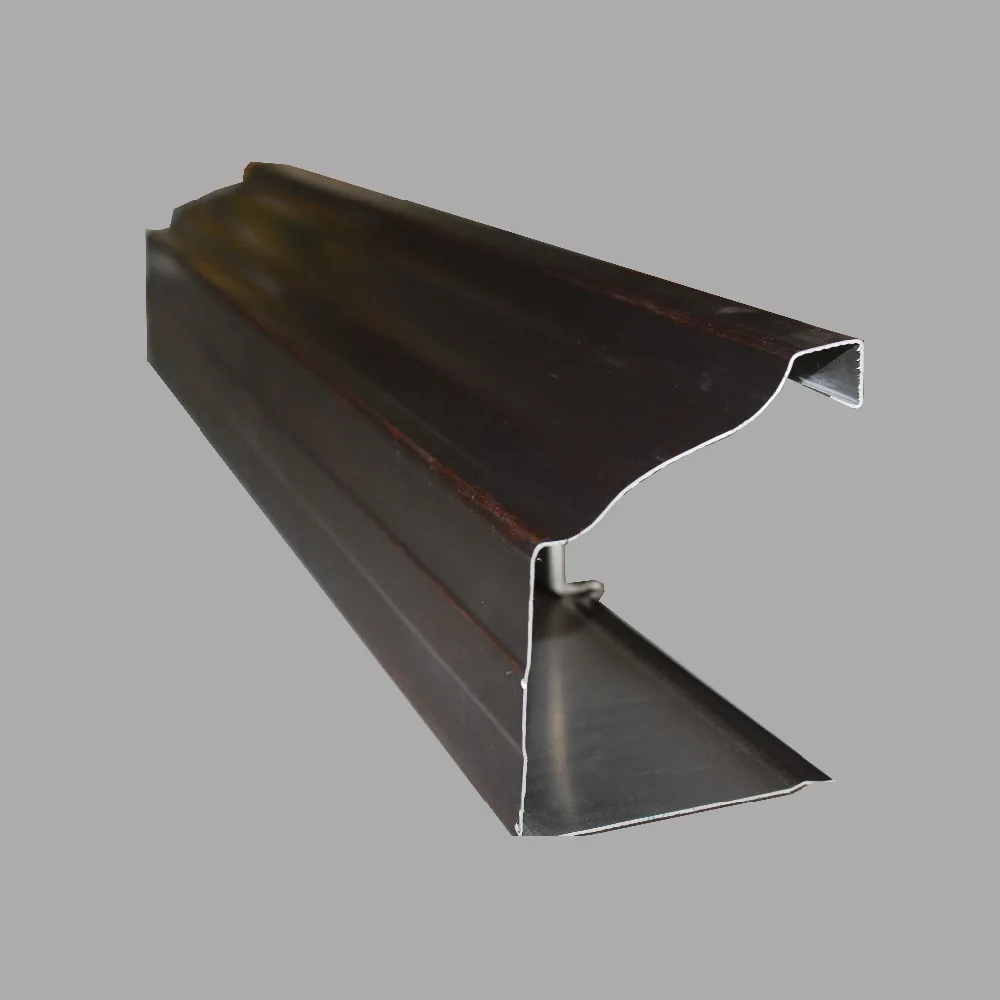

profile as following:

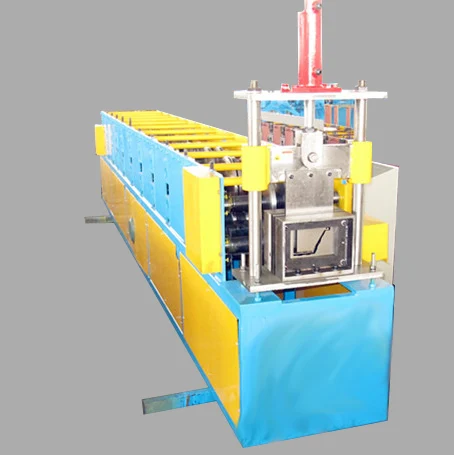

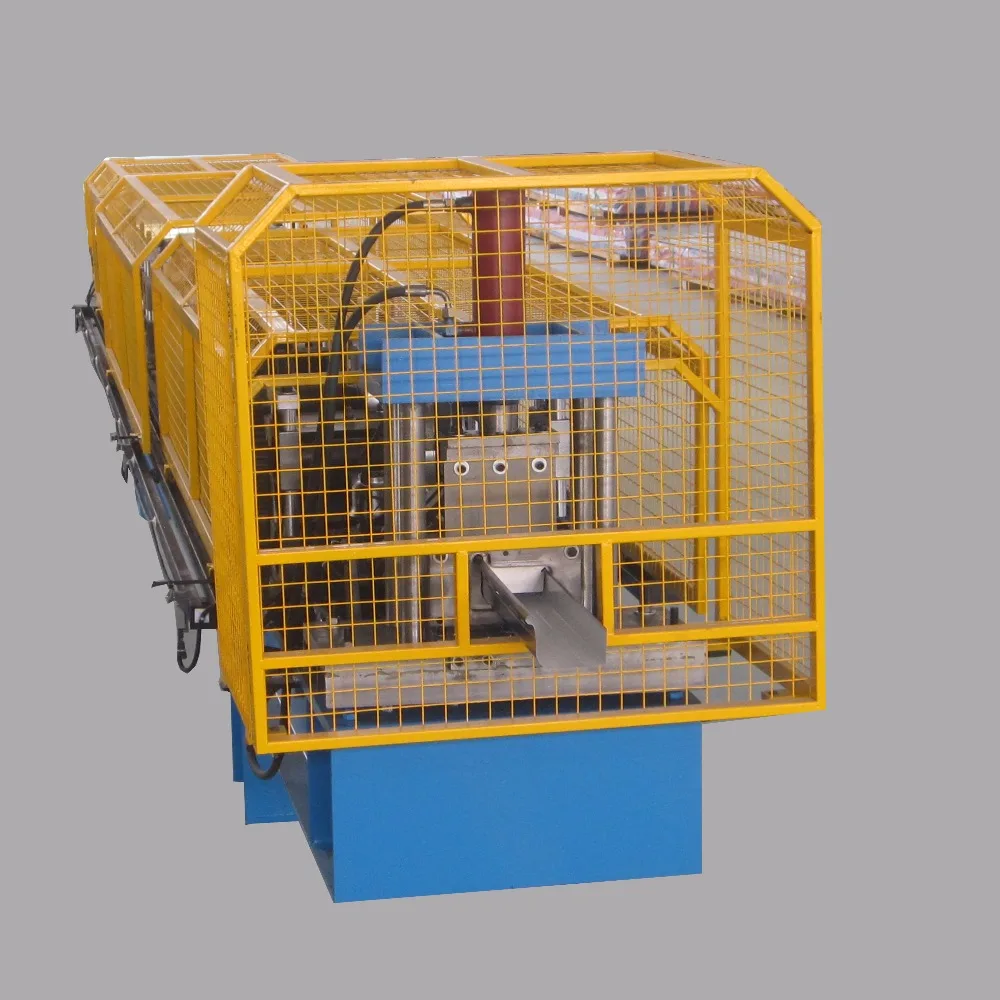

Whole machine:
Main Features
Material of the profile: GI or color steel
Thickness range: 0.3-0.8mm
Coil width: 255mm
Height: 64±2，effective width: 77±2mm
Finished product length: from 500 mm to (at least) 12’000 mm
Detailed Images
3T hydraulic decoiler:
Coil weight (Max):3000kg
Inter diameter: 420mm-510mm
Maximal out diameter:1300mm
Oil cylinder dia:100mm
Coil width (Max.)500mm
Working speed: 0-15m/min adjustable
Main motor power: 4KW AC motor
Hydraulic power: 3kw
Forming section
Material of the profile: GI or color steel
Thickness range: 0.3-0.8mm
Main motor power:5.5kw, AC motor, motor inside of main machine (Brand: Guomao of China)
Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Roll station: about 16 stations （according the final design）
Roller material:ASTM1045 chrome plated surface with chrome,CNC,
Shaft diameter: ￠65mm material: SAE1045 with quenching and tempering
Machine roll forming speed:not less than 12m/min
Transmission: by chain, one inch, Single line
Post cutting :
Cutting after forming: Cut the sheet after roll forming to required length
Uses two hydraulic cylinders for operation shall include a flow regulator to achieve a uniform lowering knife.
Material of blade:Cr12, 58-62 HRC hardness
Cutting power by hydraulic, 5.5KW
Working pressure: 12Mpa adjustable
Tolerance of length: +/- 1.5mm for each piece end product
out table:
Frame: welding by tube
Size: about 2.0m long*0.3mwide*0.9mhigh
One out table with support roller
Supporter roller: ASTM 1045 with chrome
Diameter of rollers: 55mm
Color: Blue
Quantity: 2 units
Size: about 2.0m long*0.3mwide*0.9mhigh
One out table with support roller
Supporter roller: ASTM 1045 with chrome
Diameter of rollers: 55mm
Color: Blue
Quantity: 2 units
Hydraulic station:
Hydraulic power: 5.5kw
Working pressure: 12Mp adjustable
Solenoid valve: 6 groups (one for cutting)
Hydraulic oil: 46# hydraulic oil
Quantity : 1
Color: blue
Control carbinet:
1)Programmable setting of profile length and quantity
2)Automatic stopping of the equipment after completion of the cutting programme.
2)Automatic stopping of the equipment after completion of the cutting programme.
3)Operating system language: English and Chinese
4)Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview
