Car Central Locking System 2 Wire Gun Type Door Lock Actuator

 Car Central Locking System 2-Wire Gun Type Door Lock Actuator

·2-Wire gun type actuator

·Convert any vehicle with manual door locks to central locking power door locks

·Universal features and fits any model of any brand

·Motor with Japanese technology

.Parting line sealed by ultrasonic welding

.Water-proof

·Original ABS housing

·Patented double track design, moving more stable and anti-block

·Adjustable positioning hardware for easy installation and quiet operation

·Hardware with 8 mounting holes for flexible installation

. Operating voltage: DC 12V ±10%

. Empty-load current: 1.5A ±5%

. Blocking-load current: <6A

. Load current: 2.5A ±5%

. Pull force: 5.5kgs ±5%

. Push force: 5.0kgs ±5%

. Mechanical life: ≥80,000 times (one up and down action as one time)

. Electric life: ≥100,000 times ±10%

. Stroke: 16-18mm

. Actuator lock/unlock timer: 0.2~0.3 second

. Operating temperature: -30°C ~ +80°C

. Module circuit current: 25mA max.

·System of control: Negative ground

·Compatible with car alarm system

·360-degree swivel or fixed head available

Models Available:

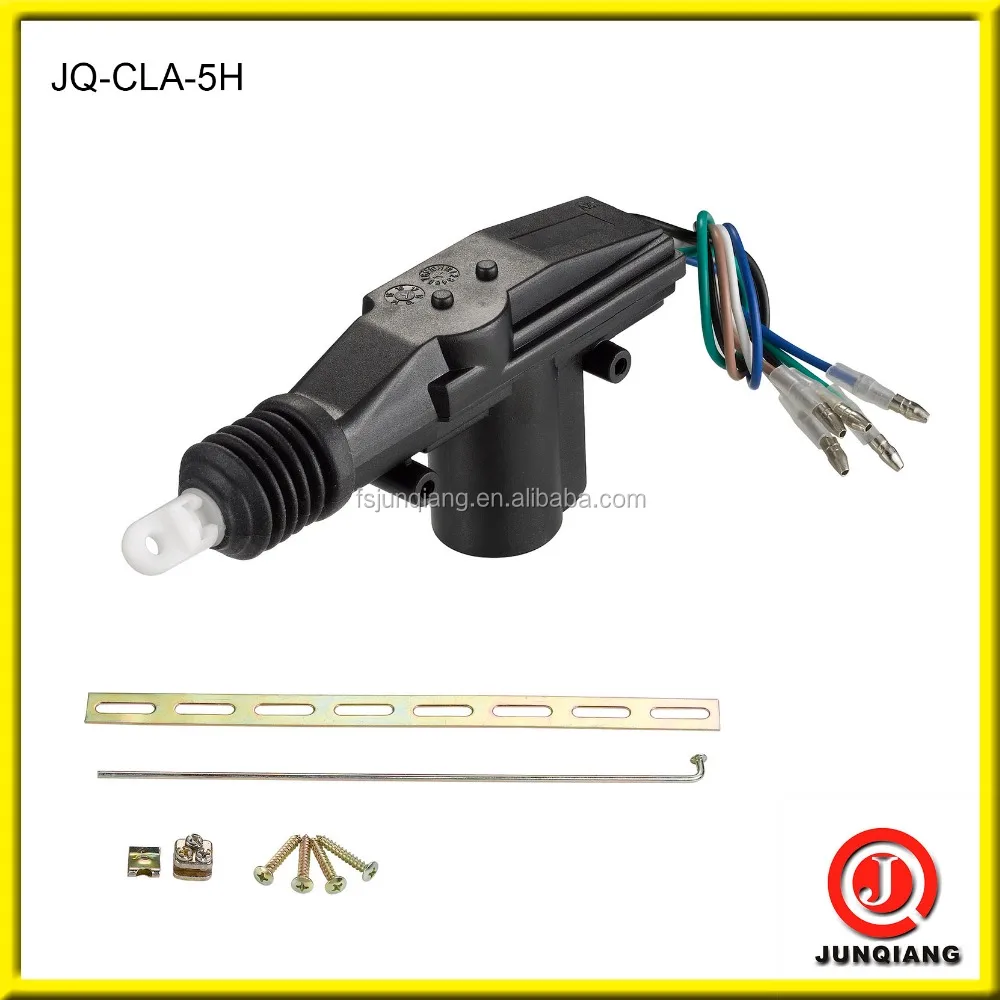

. 5-Wire car door lock actuator: JQ-CLA-5H

. 2-Wire car door lock actuator: JQ-CLA-2H
