QS 14000W 160KPH 96V 28kW Peak Hub Motor Electric Motorcycle Motor Kit for Racing Motorcycle

Product Overview

Description

QS 14000W 160KPH 96V 28kW Peak Hub Motor Electric Motorcycle Motor Kit for Racing Motorcycle

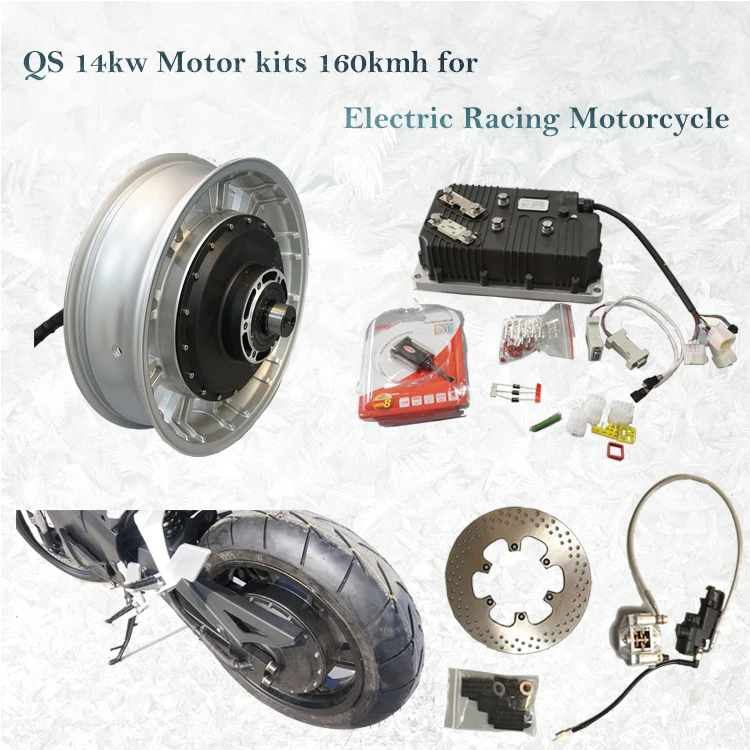

QS 14kw Motor kits 160kmh for Electric Racing Motorcycle: sample price USD2903.0/set,

including one motor + one controller + one contactor + one disc brake assembly



For this motor, now we are stopped producing, our max power is 12kw for now.



We also have pure electric motorcycle for sale, if you are interested, pls. refer to below hyperlink.

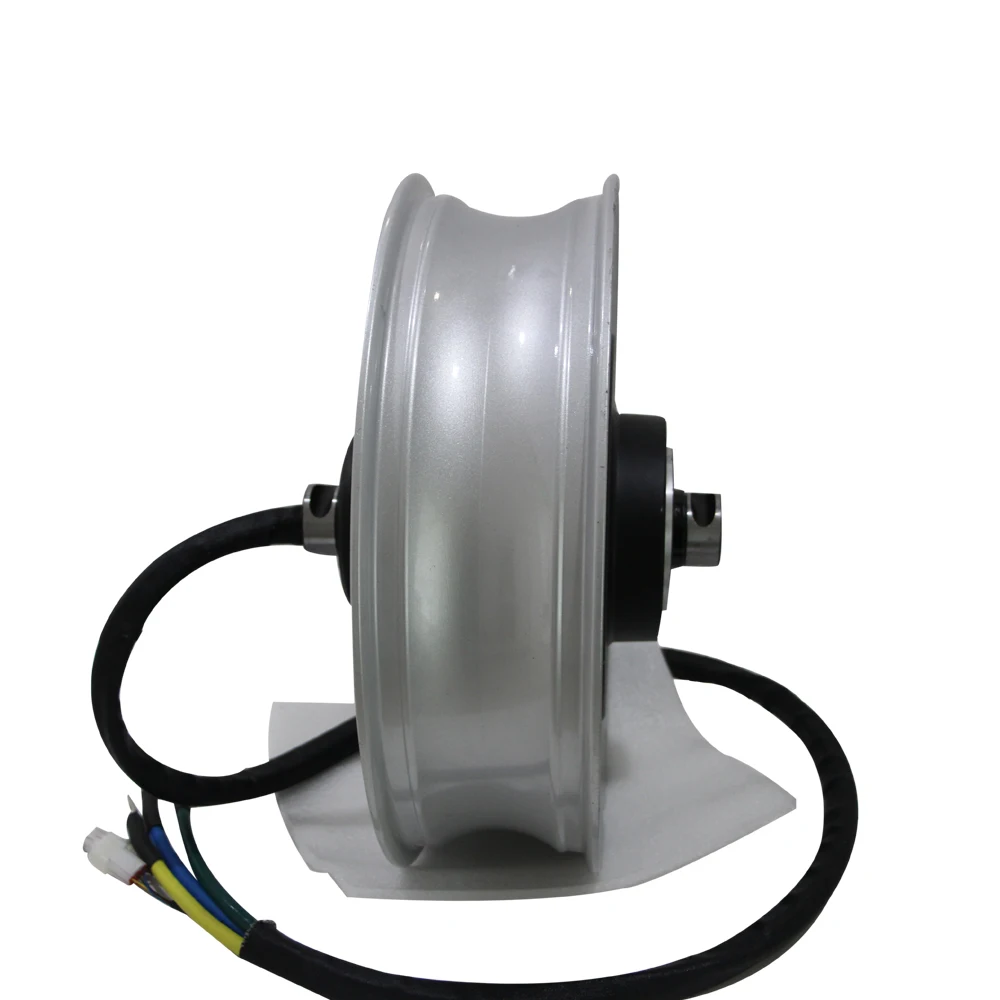

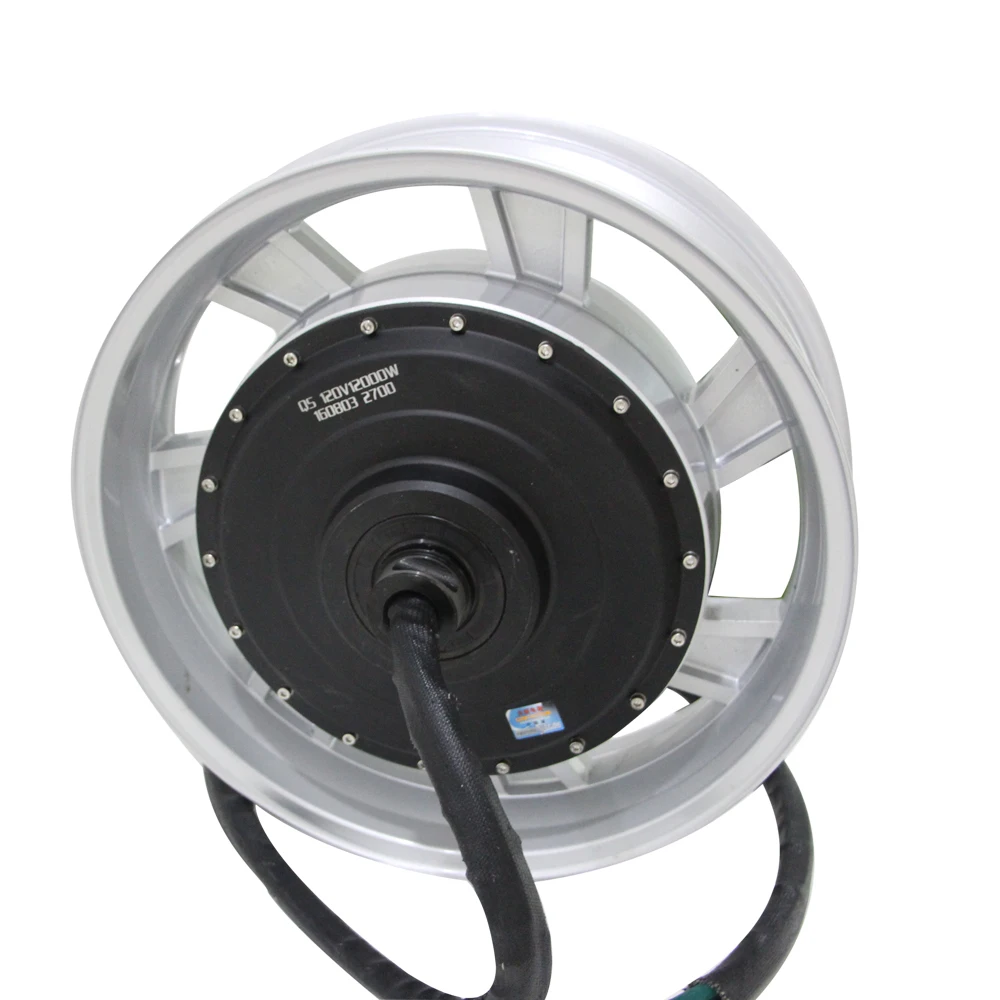

1. Motor: QS Motor 17*4.5inch 273 14000W 80H V3 Water Cooled Electric Motorcycle Hub Motor

Detailed Motor Spec(Speed can be customized):

• Rated 14kw power, peak 28kw power
• 273 80mm magnet
• Pole pairs: 16
• Minmum Dropout 280mm
• voltage & rpm: 96v 1400rpm
• KV: 14.5
• winding: 3 X (28X6T) in parallel, equal to 17.13mm² per turn.
• Max. speed: 160km/h for 200kg weight motorcyle(including driver)
• Cooling System: Water cooling
• Net Weight: 43kg
• Gross Weight: 53kg(wooden box)

For more information, refer to the hyperlink.



2. Controller: QSKLS96601-8080I Sine Wave controller with contactor ZJW-12V/600A

Controller Spec:

• Sine Wave controller, programmable, no noise
• Suitable for battery voltage 18-120v
• Motor Current Limit, 30 seconds: 600A, depending on the model.
• Motor Current Limit, continuous: 240A, depending on the model.
• Max Battery Current :Configurable

(The controller will be install in this part), refer to hyperlink.



3. Benelli Rear Disc Brake: Use 255mm brake disc





No QS Motor, No Super EVs!
