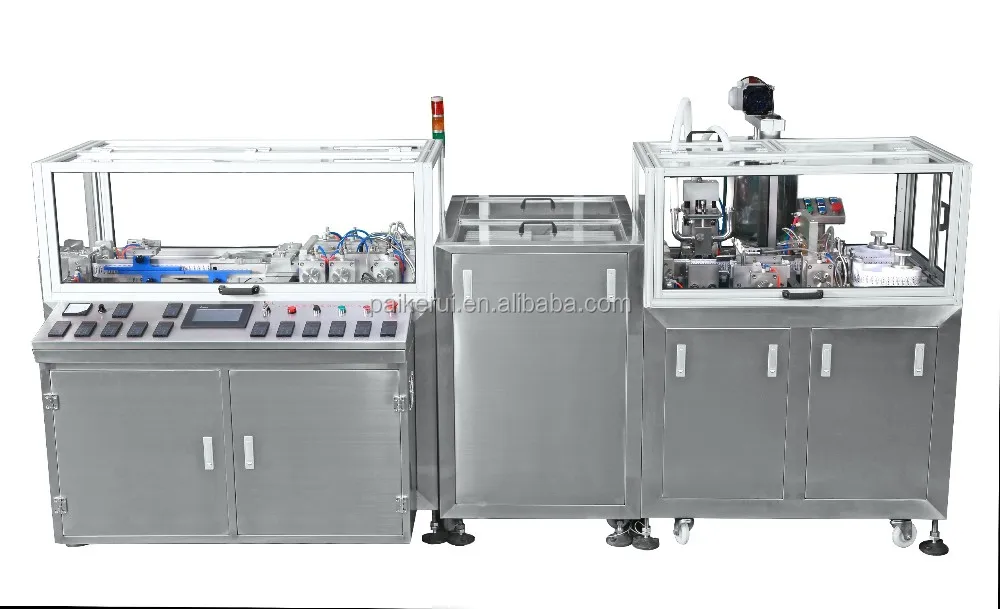

Laboratory automatic suppository production line

 The design is novel, the operation is simple, is a highly efficient and stable production unit of automatic suppositories.

Main application:



The full-automatic suppositories production unit is a use of PLC do the whole control and use of pneumatic mode for the automatic production line source of power. This equipment combining foreign advanced technology and domestic actual situation, the design is novel, the operation is simple, is a highly efficient and stable production unit of automatic suppositories. Its leading position in domestic technical content. In the process of development, we need to consider the user everywhere, adjustable and accuracy can confirm the work, with different parameters, the equipment can mold production of different shapes and specifications of the suppositories can sue different packing material(PVC, PE, PVC/AL/PE Compound film),

eliminating unqualified products etc.



Working principle:

Rolls of Packing film (PVC PVC / PE, dual aluminum composite film) will be send to filling process after shell making, and the liquid medicine will be filling into empty suppository shell automatically through the high precision metering pumps. Then it will be a suppository line and cuts into sections automatically according to the length of the suppository line. And conveyed to cooling devices to make it cool and be solidification. After that it will be filling, truing, printing date of production and molding.

 Technical Parameters:



Output		1200-1800granule/h
Single dosage		0.5-5ml
Dosage allowed		<±2%
Form		Bullet, Torpedo,Duckbilled and other shape
Adapt to the host		Synthcticfat glyceric acid,glyceride,glycerin gelatine,polyethyleneglycol and so on
Store the capacity of the liquid barrel		20L
Atmospheric pressure		0.6MPa
Consume the tolerance		1.5m3
Water quantity		15kg(cycled using)
The voltage of the power		380v
Total power		2.5kw
External dimension		3280x1530x1600mm
Total weight		500kg
