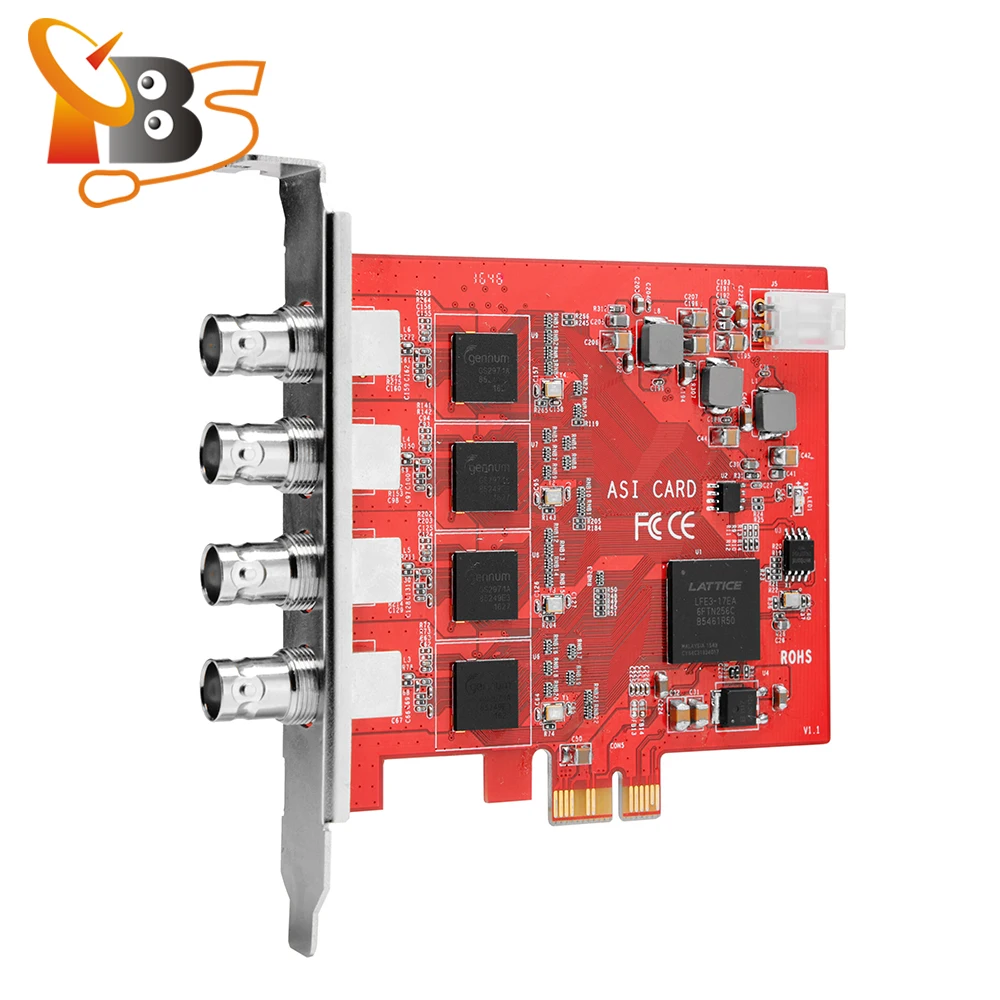

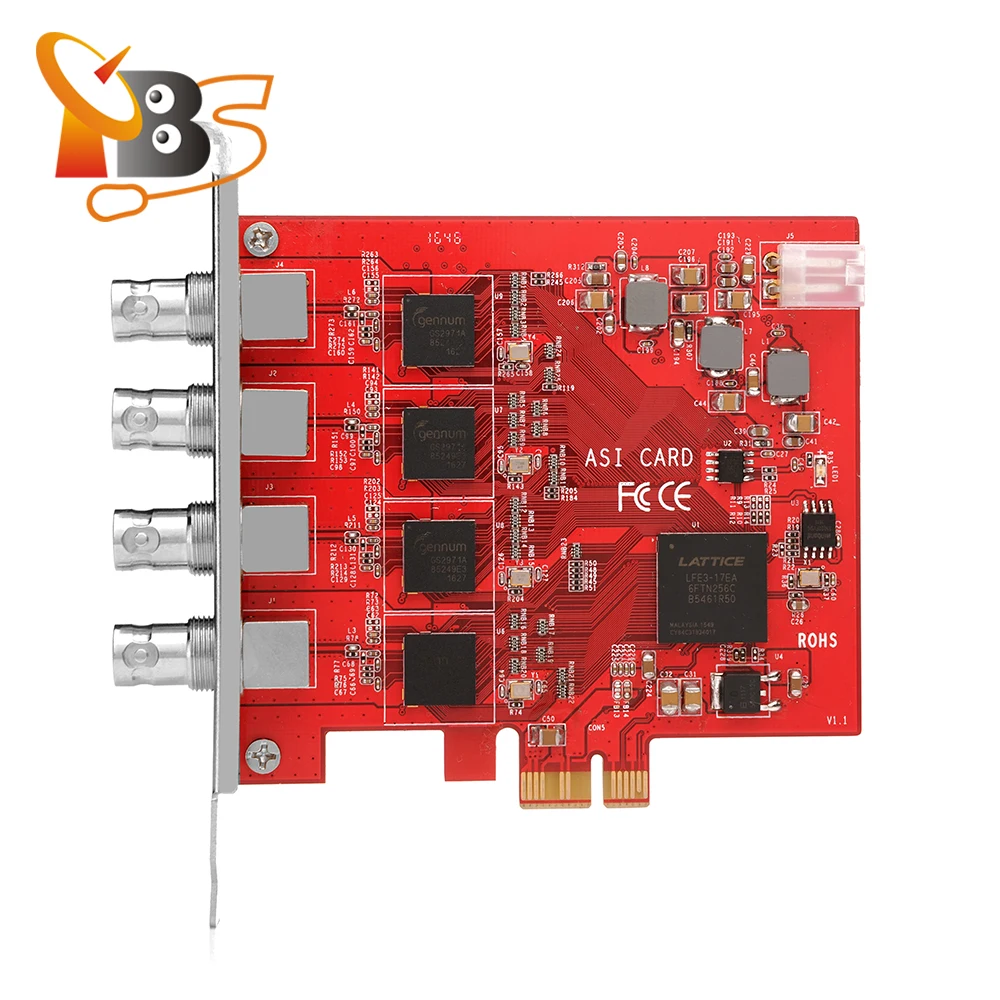

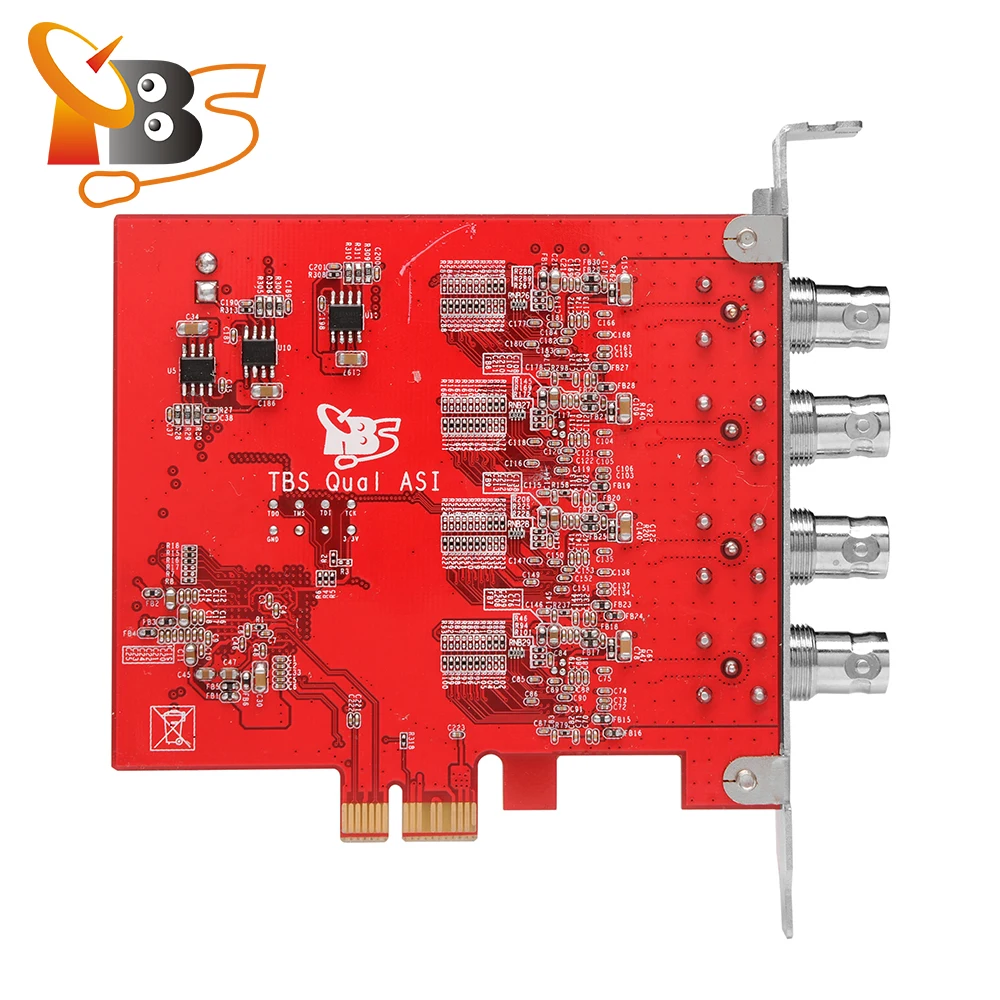

TBS690A 4 Input DVB ASI Capture Card

Product Overview

Description

Description:

TBS690A is a DVB-ASI capture card with 4 channels input, which used to receive DVB transport streams up to 270 Mbps/channel on one card, and the transport streams can be single programs or multi programs. TBS690A is ideal for high-density applications requiring up to four ASI inputs, the input channels can run independently. With minimal power consumption, TBS690A is tailored for industrial applications where reliability is an option.

Main Features:

• DVB-ASI input
• Compatible with DVB Standard
• Four receiver channels on the same PCI-e card
• Full DVB-ASI throughput of 270 Mbps per channel
• Bandwidth can be divided as required between the ports
• Signal quality sensing support in hardware



Applications:

• IPTV Servers
• ASI to IP conversion
• Datacasting and monitoring
• Electronic Program Guides (EPG's)
• Broadcast TV



Specifications:

Model	TBS690A
Interface	PCI-E x1
Input	4x ASI embedded Video/Audio
Form Factor	Standard-height
Connector	BNC
Data input	DVB-ASI Transport Stream (MPEG-2, H.264, HEVC/H.265 or JPEG2000 compliant transport stream)
Video Formats	DVB ASI Coaxial, DVB Transport Stream
Video Interfaces	DVB-ASI at 270Mb/s
Receive FIFO Size	4 KB per channel
OS and Driver	Linux
Power	390mA & 5V
temperature	0~60℃
Dimension	11.5*12*2.1cm
Weight	120g
