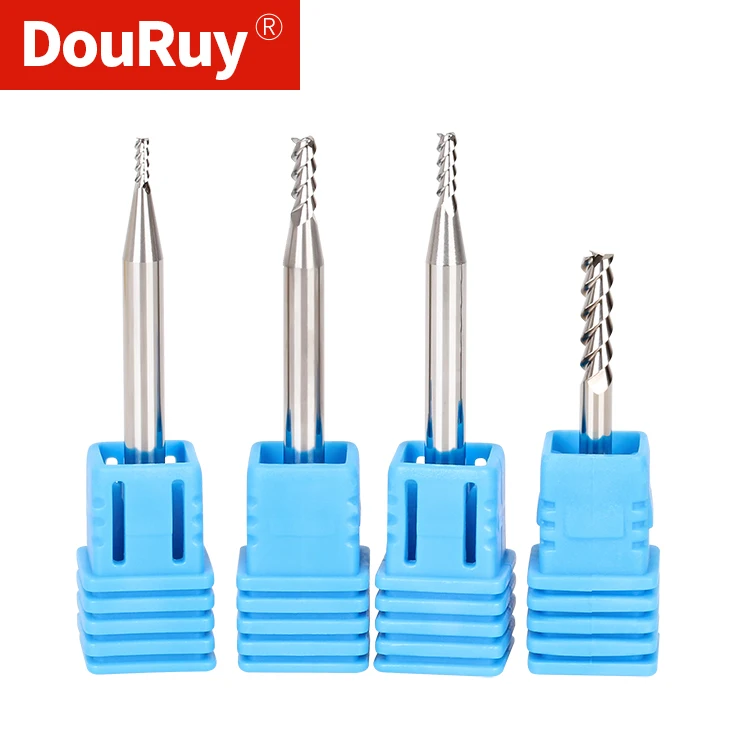

3 Flutes Solid Carbide CNC End Mills Aluminum Milling Cutter
- Category: >>>
- Supplier: Zhenjiang Yongtian Precision Tools Co. Ltd.
Share on (60606706233):
Product Overview
Description
Product Description
| |||||||||

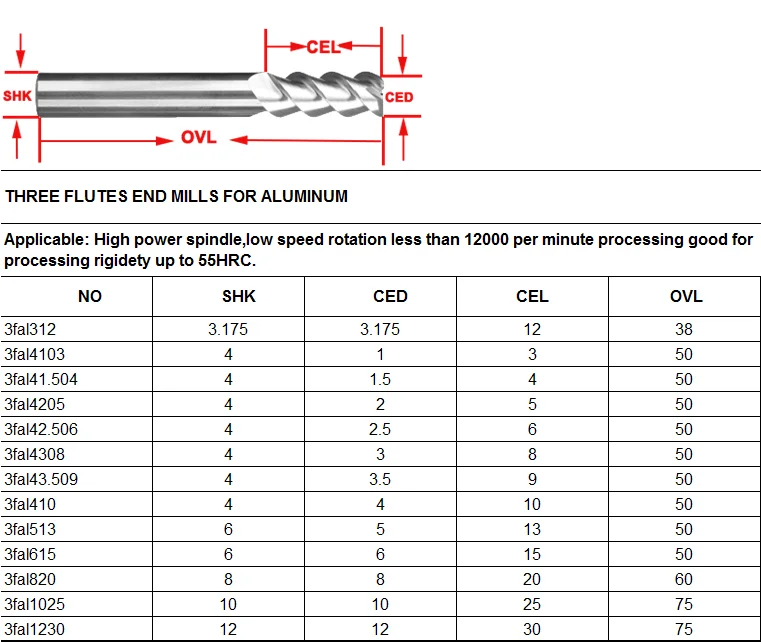

| THREE FLUTES END MILLS FOR ALUMINUM | |||||||||
| Applicable: High power spindle,low speed rotation less than 12000 per minute processing good for processing rigidety up to 55HRC. | |||||||||

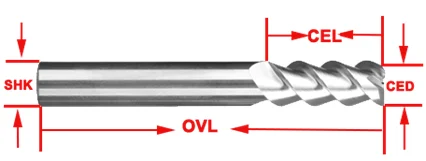

| NO | SHK | CED | CEL | OVL | |||||
| 3fal312 | 3.175 | 3.175 | 12 | 38 | |||||
| 3fal4103 | 4 | 1 | 3 | 50 | |||||
| 3fal41.504 | 4 | 1.5 | 4 | 50 | |||||
| 3fal4205 | 4 | 2 | 5 | 50 | |||||
| 3fal42.506 | 4 | 2.5 | 6 | 50 | |||||
| 3fal4308 | 4 | 3 | 8 | 50 | |||||
| 3fal43.509 | 4 | 3.5 | 9 | 50 | |||||
| 3fal410 | 4 | 4 | 10 | 50 | |||||
| 3fal513 | 6 | 5 | 13 | 50 | |||||
| 3fal615 | 6 | 6 | 15 | 50 | |||||
| 3fal820 | 8 | 8 | 20 | 60 | |||||
| 3fal1025 | 10 | 10 | 25 | 75 | |||||
| 3fal1230 | 12 | 12 | 30 | 75 | |||||
3 Flutes Solid Carbide CNC End Mills Aluminum Milling Cutter
Product features
1.High quality material of tungsten steel
2.Wear-resisting and Not easy to stick milling cutter
3.The blade by mirror grinding process
4.High efficiency of chip removal
5.Speed machining and High degree of smoothness
6.Strong and Continuous machining is not easy to break
7.Sharp sharp angle and precise front angle sharp sharp edge, Cutting design of 3 edge geometry.
Product Parameters
Product name: 3 Flutes Solid Carbide CNC End Mills Aluminum Milling Cutter
Spiral angle of milling cutter: 55 Degrees
Blade number: 3
Hardness: 55HRC
Machining center: CNC machining/NC machining/CNC engraving and milling machine/High speed machine/Wooding work cutters
Main characteristics: Using the Australian ANCA high precision grinder, Large core diameter design, chip breaking and smooth chip evacuation. Increasing the rigidity of the tool and Unbreakable angle; Processing with fine particle grinding wheel, Reducing the trace of the grinding wheel on the tool surface, Increase the uniformity of the coating treatment, Long service life and improve work efficiency.
Our Services
Contact:
Mob: 0086-19952859030
Tel:0086-0511-83175806
TM: deruicutter
Skype/Whatsapp:+86-15706176461
Payment:
T/T(bank transfer), credit card
Welcome send inquiry to us, pleasure to offer the best price and good service. Thanks.
Why choose DouRuy
1, OEM&ODM.
2, 100% Product quality protection.
3, 100% On-time delivery.
4, Outstanding R&D team.
5, Over 20 years experience in Solid carbide cutting tool industry.
6, High precision CNC production line.
7, Absolutely strict inspection.
Company Information
A Brief Introduction to our Factory
*A New Guy on Alibaba, but an Old Man in this Trade
The company’s predecessor, Zhenjiang Hongfeng tool factory, was established as early as in 1990, so actually we have been manufacturing milling cutters for nearly three decades. We have a workshop of about 2000 square meters (See the attached picture) where a total of 33 cutter-making equipments are located. We have a very large share (about 5 million USD) in the China domestic market and our current customers are mainly big Chinese wholesalers and foreign trade companies. Now we want foreign customers, so we are here on Alibaba, waiting for you!
*Excellent Quality, Unbeatable Price
We only use high quality reliable carbide from Germany and Taiwan, etc. We use ANCA grinder (See the attached picture) to manufacture high quality milling cutters. We specialize particularly in making small shank (3.175 mm) milling cutters such as 3.175 mm single flute milling cutter and 3.175 mm engraving bit and their prices are unbelievably competitive.
*A large Inventory of a Wide Range of cutters
Ranging from single flute-four flute milling cutter, tapered ball nose end mill (cone cutters) , up&down cut bits, mini letter carving cutter, 3D engraving bits, two straight flute milling cutter, to engraving bit and PCB milling cutter (see attached picture), you name it, we have it all in stock! Therefore, it is very convenient for you to place a mixed order. If we don’t have the cutter you need, we can custom make it for you.
For more information or samples, please send us an inquiry or add us on TradeManager. We promise doing business with us is enjoyable!
FAQ
Q: When can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q: How can I get a sample to check your quality?
A:After price confirmation, you can require for samples to check our quality.
Q: What about the transportation and delivery date?
A:Normally we send the goods via air express or as your request.
Q: Are you trading company or manufacturer?
A: We are professional manufacturer, have more than 20 years experience in this field.
Q: Where is your factory located?
A:We are located in golden harbor avenue 75, Zhenjiang New District, Zhenjiang, Jiangsu province, China. Welcome to visit us.
Q: How about your stock?
A:We have large quantity products in stock, regular types and sizes are all in stock.
Q: Is free shipping possible?
A: We don't offer free shipping service, but we will give you some discount if you buy large quantity products. And we have cooperation Express Companies, can offer you the best price of shipping cost.
Q: Can you send products to our Forwarder in China?
A: Yes, if you have Forwarder in China, we will glad to send products to him/her.
Q: Can you produce Special carbide Tools ?
A: Yes We can.
