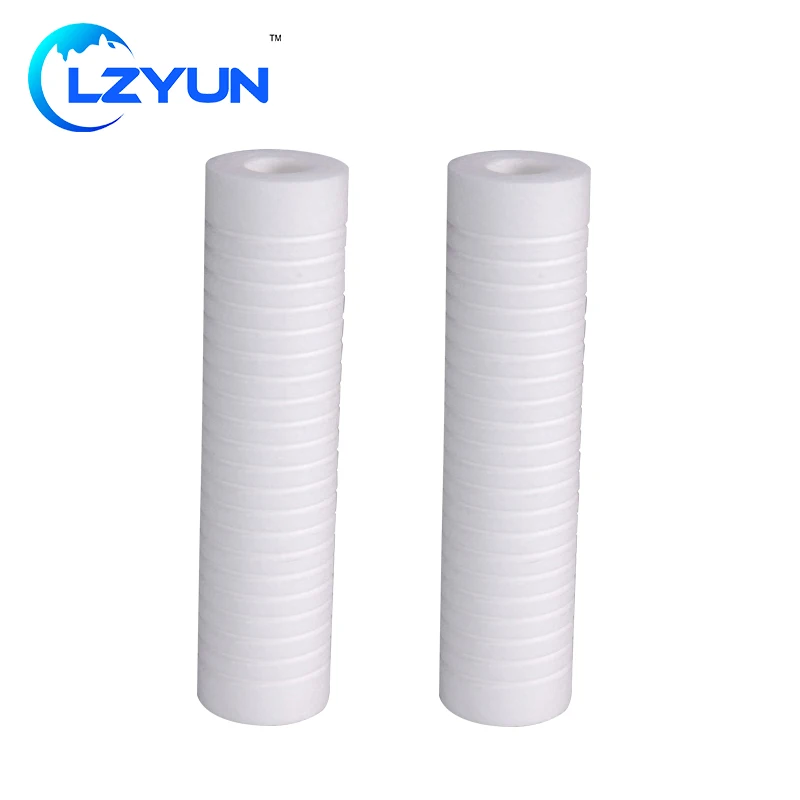

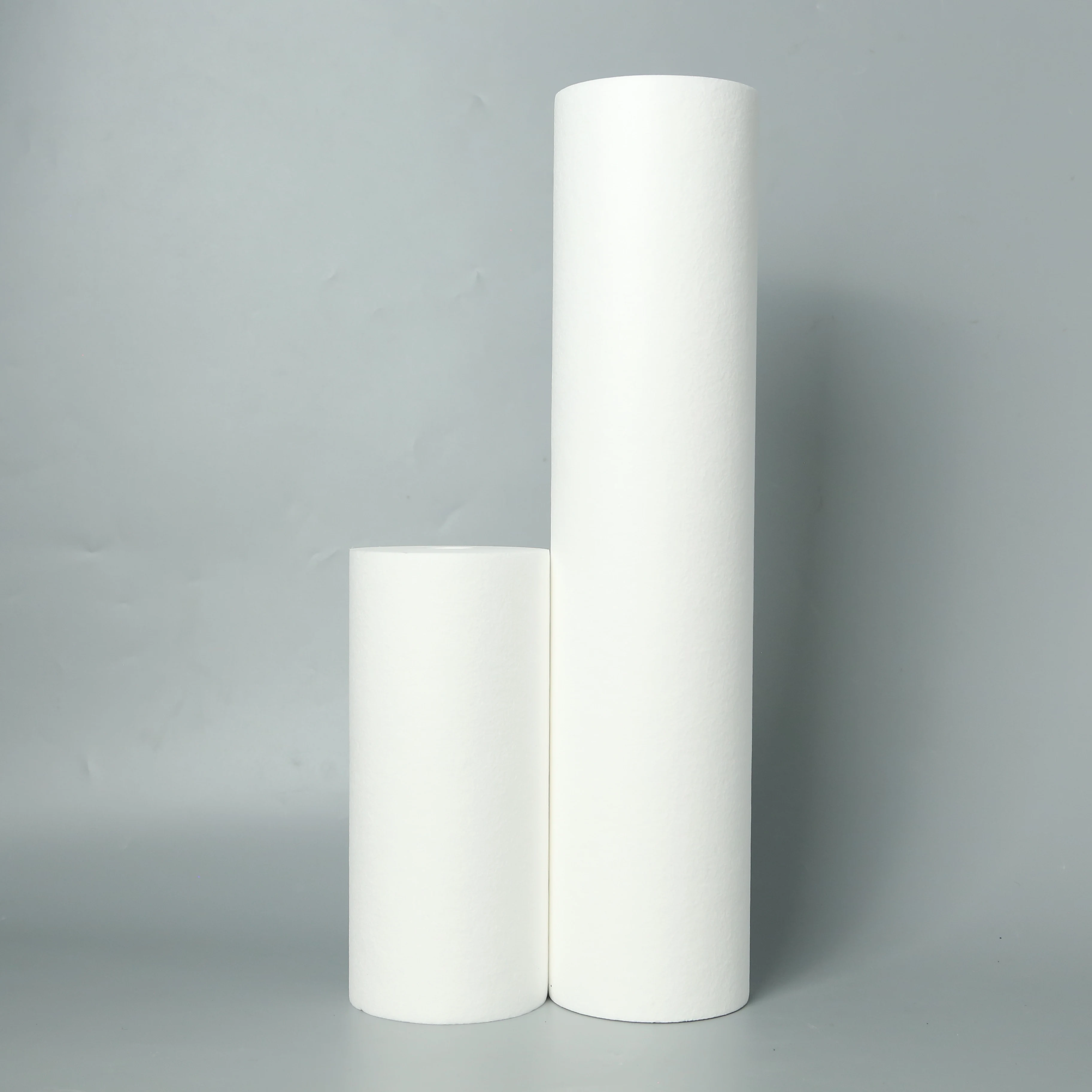

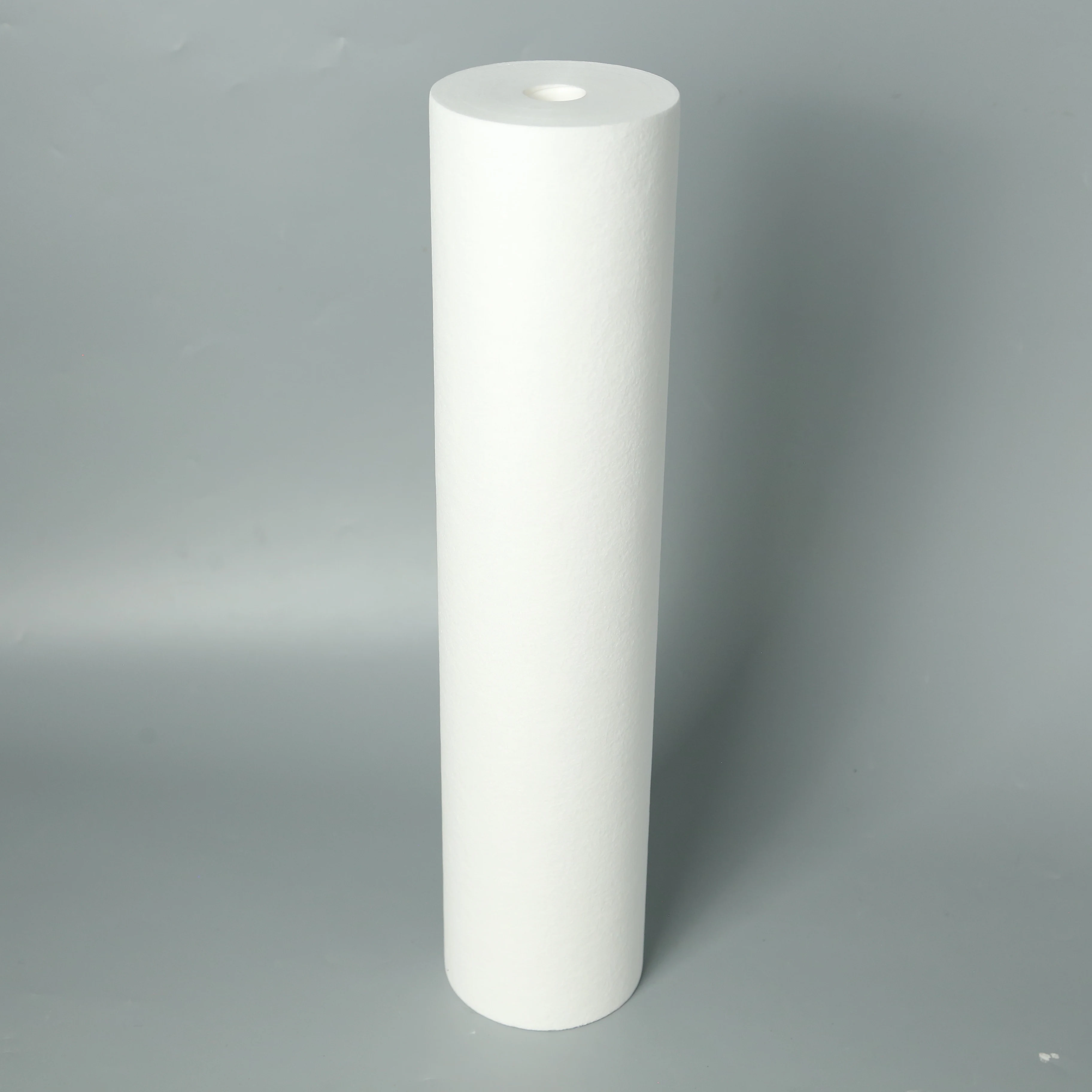

PP SEDIMENT MELT BLOWN FILTER CARTRIDGE

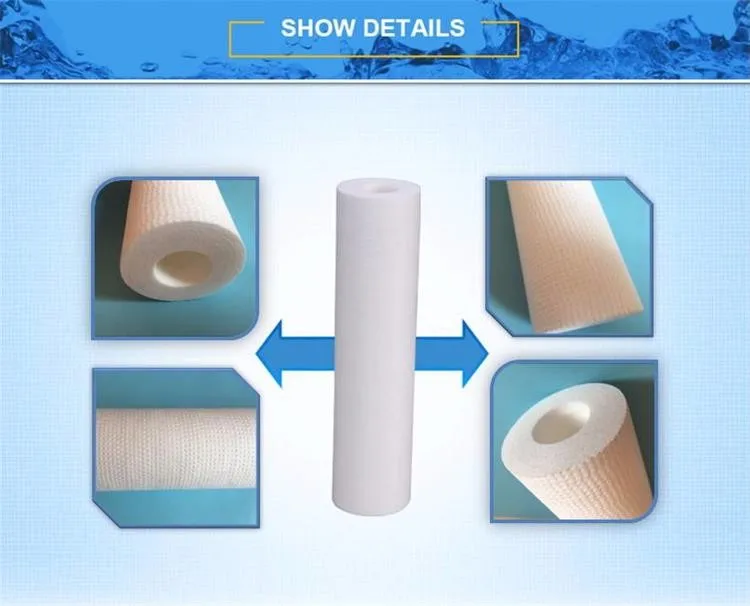

Using 100% food grade polypropylene (PP) as material , the filter cartridge contains no wetting agents , solvents agents or binders . By special production technology to control the diameter of PP fiber , the micron rate of filter cartridge is controlled . Removing efficience can reach 98% . The surface layer of the cartridge is designed to be low density to assure the high dirt-holding capability , while the inner layer is higher density to keep the accurate filtration ability to small particles . The density type is 30% higher filtration effect than the general type .


SPECIFICATION | ||||||||
Item No. | PP 10 | PP 10BB | PP 20 | PP 20BB | ||||
O.D.(inch) | 2.5 | 4.5 | 2.5 | 4.5 | ||||
Length(inch) | 9¾ | 9¾ | 20 | 20 | ||||
Micro Rating | 1 , 5 , 10 , 25 , 50 , 75 , 100 , 150 μm | |||||||
Min./Max. Operating Pressure | 60psi | |||||||
Min./Max. Temperature | 4℃-52℃ | |||||||
Max. Flow Rate | 2.5 GPM | 5 GPM | 5 GPM | 10 GPM | ||||
Filtration Life (Depends on water quality and level of contaminants) | 3-6months/2500G | 4-6months/5500G | 4-6months/5500G | 6-12months/11000G | ||||

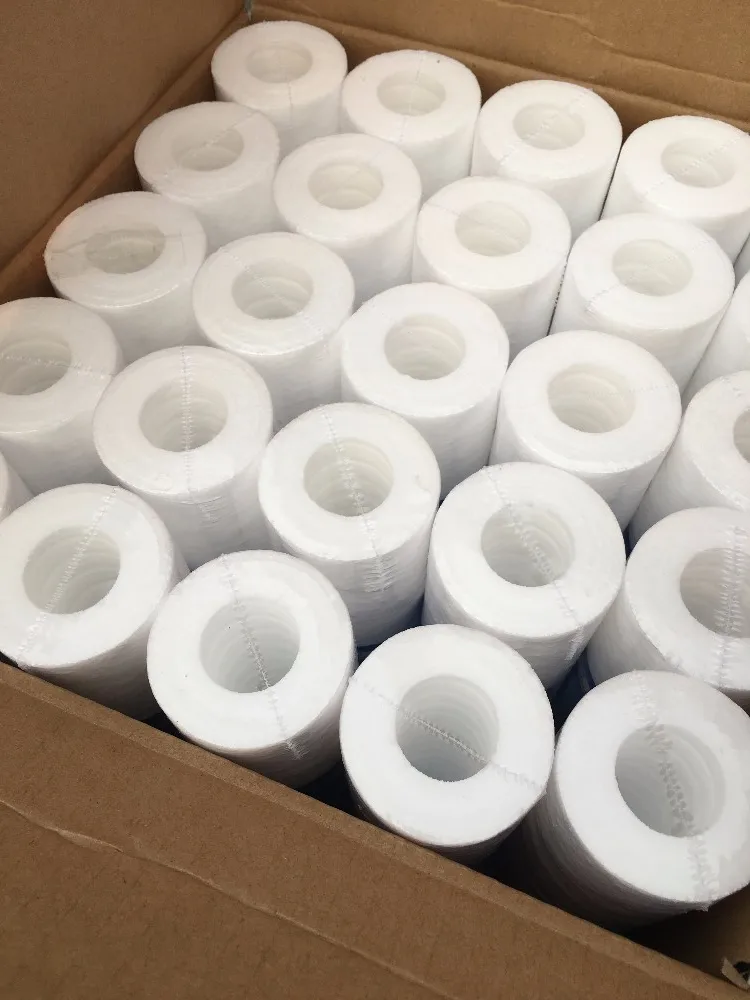

QTY(PCS/CTN) | 50 | 10 | 25 | 6 | ||||
CTN SIZE (mm) | 320×320×520 | 580×240×520 | 320×320×520 | 580×240×520 | ||||
