Industrial belt dryer machine for hemp leaves seaweed
- Category: >>>
- Supplier: Changzhou Doing Machine Co. Ltd.
Share on (60606967148):
Product Overview
Description
Product Description
Main features
1. Continuously drying or cooling of granular wet materials(1-20mm);
2. Drying belt area: 10-50 M2
3. Drying temperature: 60-180 degree C
4. Heat source: electricity, steam, hot water, hot oil or oil/gas/coal/biomass hot air generator
2. Drying belt area: 10-50 M2
3. Drying temperature: 60-180 degree C
4. Heat source: electricity, steam, hot water, hot oil or oil/gas/coal/biomass hot air generator
6. Different types of air flow pattern and mesh belt can be designed according to specific material
Working principle
DW series conveyor mesh belt dryer is a continuous convective drying processor of which the drying of product takes place on ventilated conveyor belts.
After evenly fed onto the drying belt via the feeding system, raw material is transported to the other end of the drying chamber with the movement of drying belt. At the same time, hot air evenly flows through the raw material for drying process. The drying chamber can be consisted of several drying zones, of which the drying temperature and air flow rate are adjustable.
After evenly fed onto the drying belt via the feeding system, raw material is transported to the other end of the drying chamber with the movement of drying belt. At the same time, hot air evenly flows through the raw material for drying process. The drying chamber can be consisted of several drying zones, of which the drying temperature and air flow rate are adjustable.
Different types of hot air flow parttern and mesh belt can be designed according to specific raw material and drying condition to achieve ideal drying efficiency.
Technical advantages
1) Wide applications: The residence/drying time is adjustable from 15 minutes to 120minutes which makes it flexible to dry various kinds of raw material.
2) Energy-saving: Different types of hot air flow pattern and well insulated drying chamber can considerably reduce heat loss. Hot air circulation can be designed for energy-saving.
3) Uniform drying: The specially designed hot air distributor and drying zones can make sure uniform air flow in side the whole drying chamber to guarantee uniform drying.
4) Easy operation and maintenance: The whole drying system is highly automatic. The simple but robust design can not only reduce production cost but also maintenance and repair cost.
2) Energy-saving: Different types of hot air flow pattern and well insulated drying chamber can considerably reduce heat loss. Hot air circulation can be designed for energy-saving.
3) Uniform drying: The specially designed hot air distributor and drying zones can make sure uniform air flow in side the whole drying chamber to guarantee uniform drying.
4) Easy operation and maintenance: The whole drying system is highly automatic. The simple but robust design can not only reduce production cost but also maintenance and repair cost.
5) Flexible heat source: The heat source for drying can steam, electricity, hot water, thermal oil or oil/gas/coal/biomass fired hot air generator. We can design and engineer different heat sources according to customer's actual conditions.
6) Different types mesh belt and hot air flow patterns are vailable based on specific raw material and drying conditions.
Main technical parameters:
Model | DW-1.2x10 | DW-1.6x10 | DW-2x10 | DW-2x20 |
Belt length M | 10 | 10 | 10 | 20 |
Belt width M | 1.2 | 1.6 | 2 | 2 |
Material thickness mm | ≤60 | ≤60 | ≤60 | ≤60 |
Working temp. ℃ | 50-180 | 50-180 | 50-180 | 50-180 |
Evaporation capacity kg/h | 80-220 | 95-250 | 120-300 | 240-600 |
Overall dimension LxWxH mm | 11500x1500x2300 | 11500x1900x2400 | 9800x2300x2400 | 22000x2300x2400 |
Weight kg | 4500 | 5000 | 7500 | 14000 |
Detailed Images

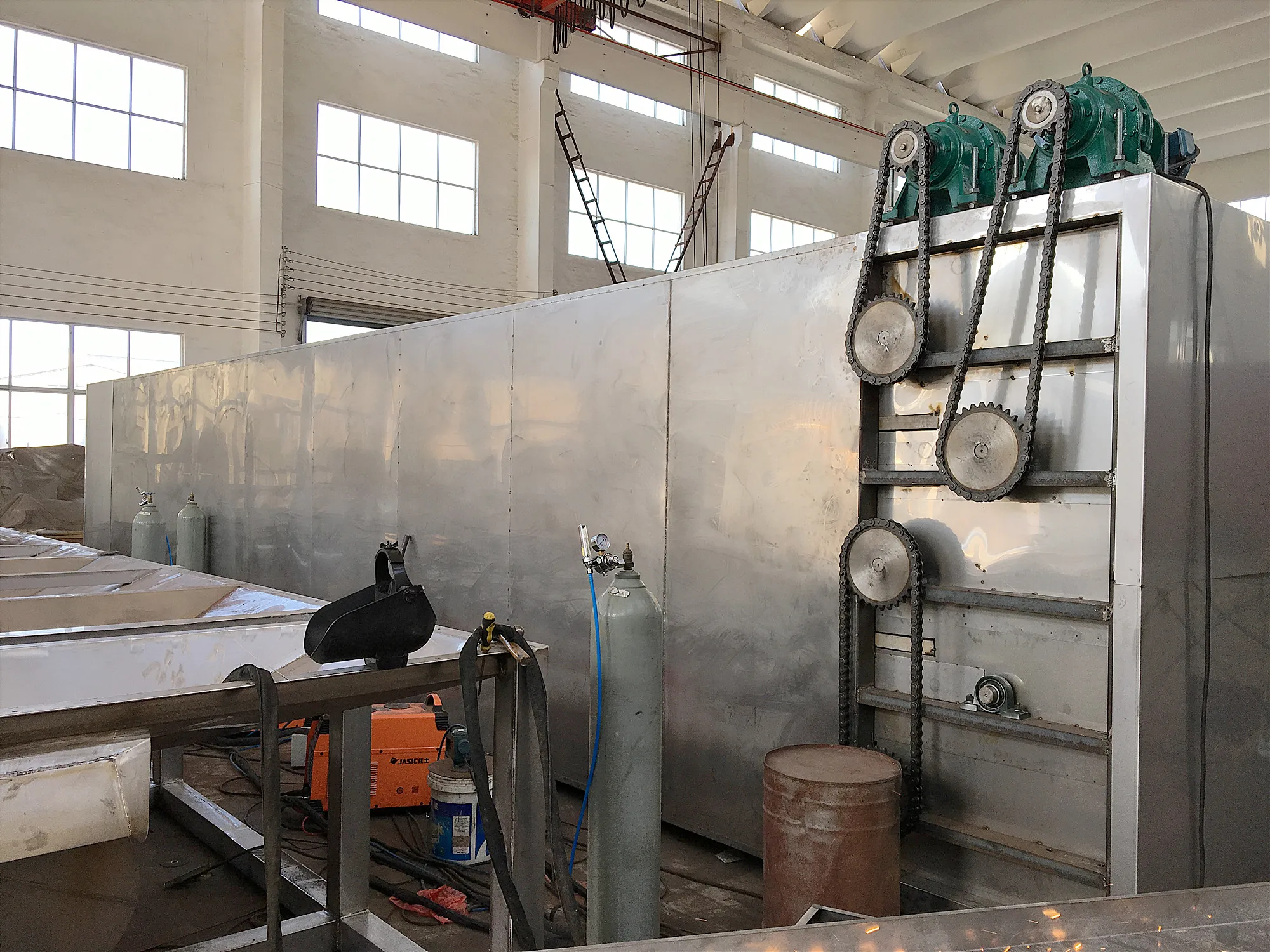

Drying chamber outside

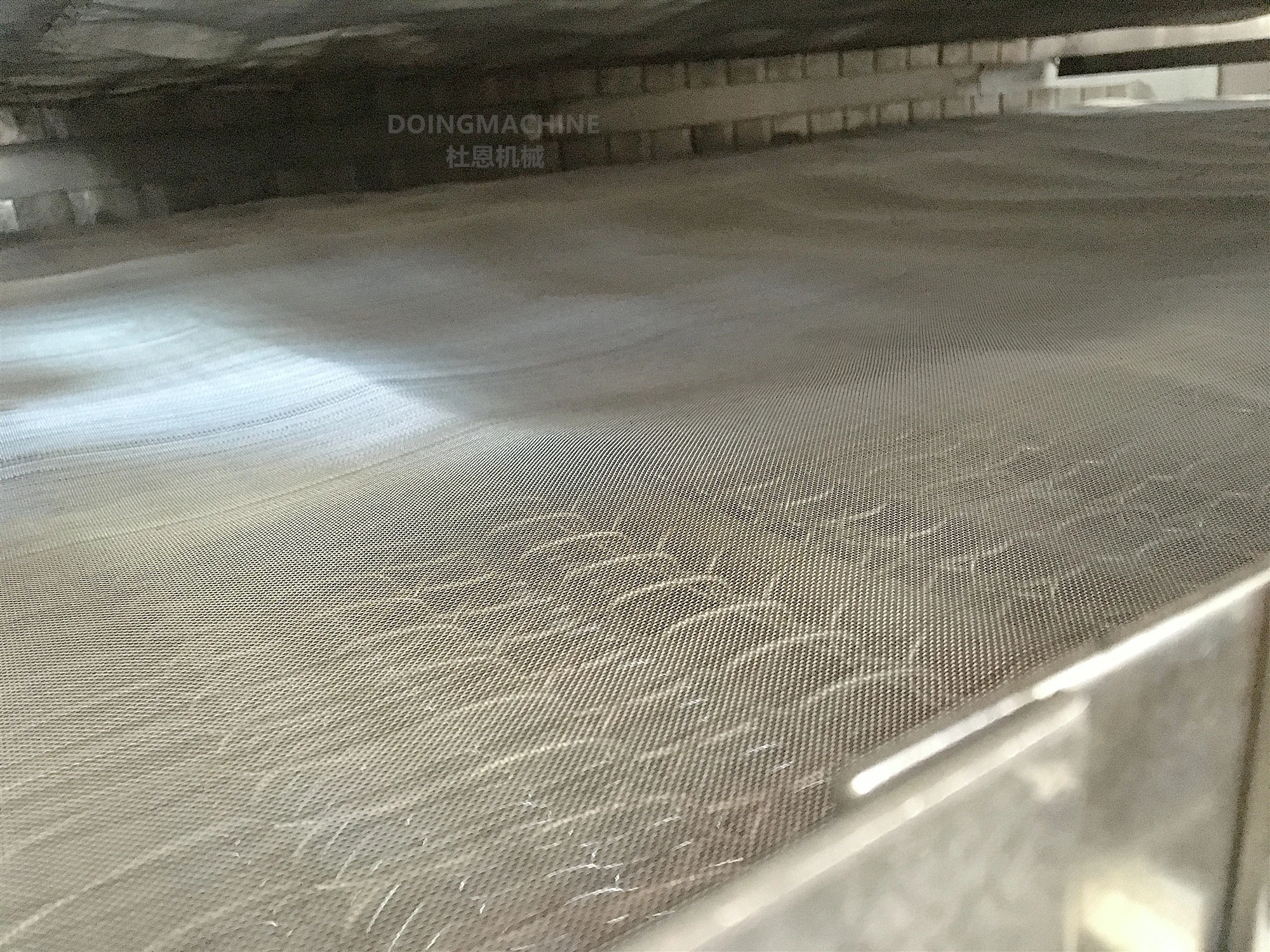

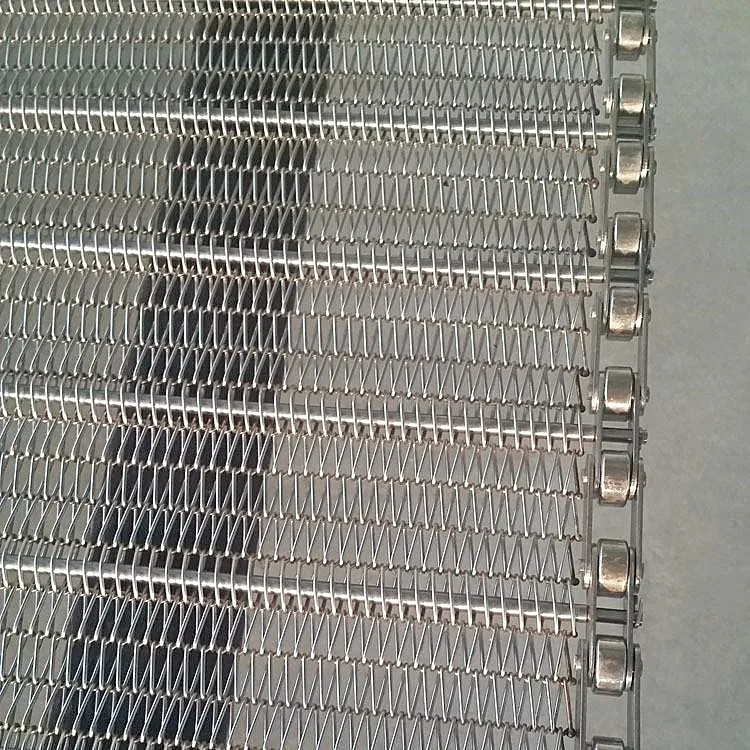

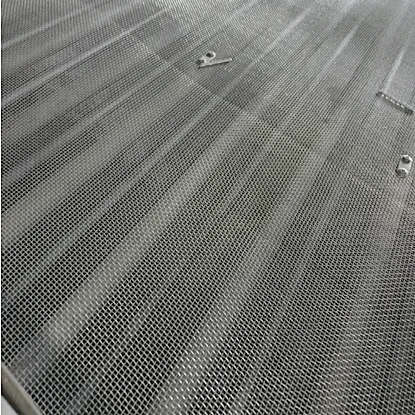

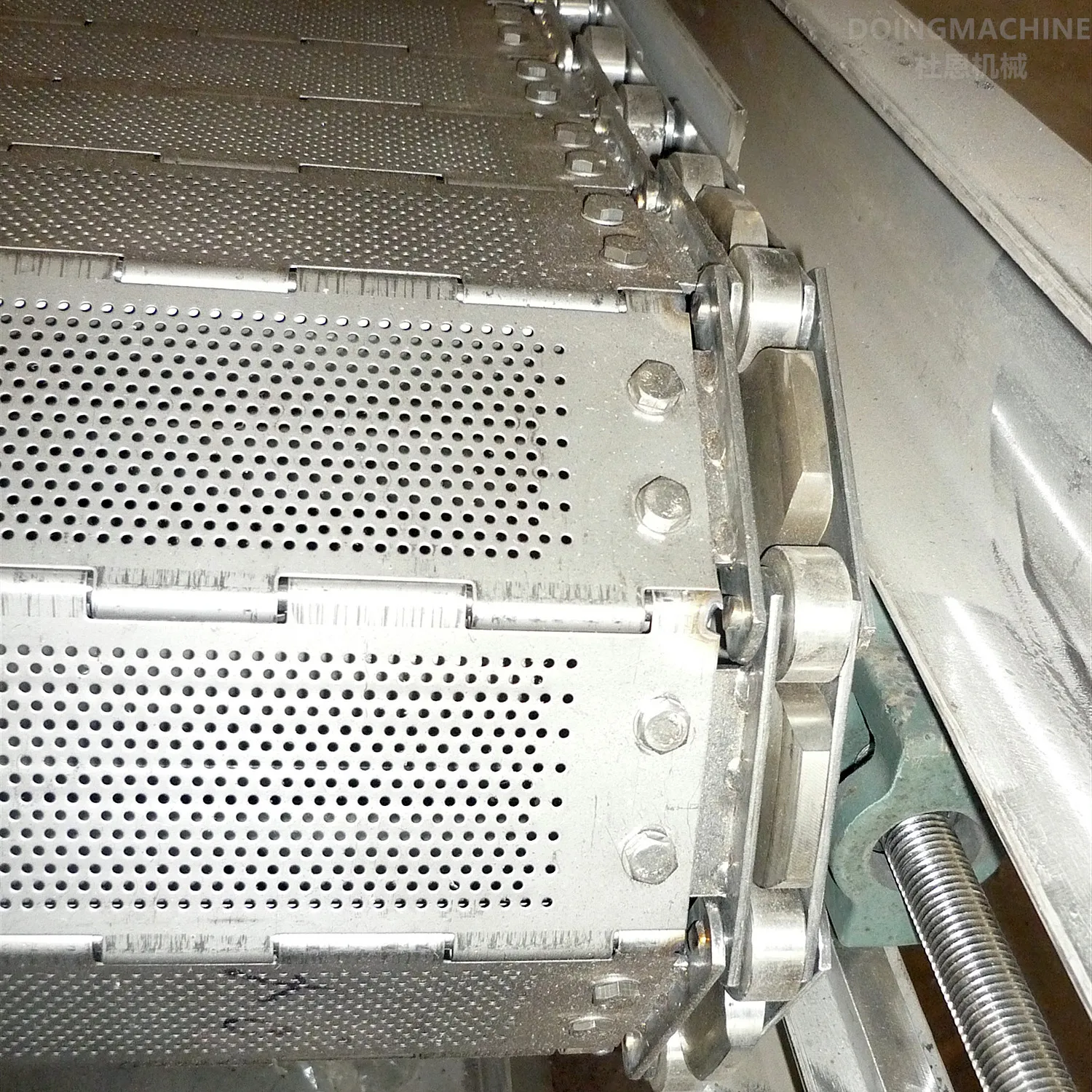

Mesh Belt

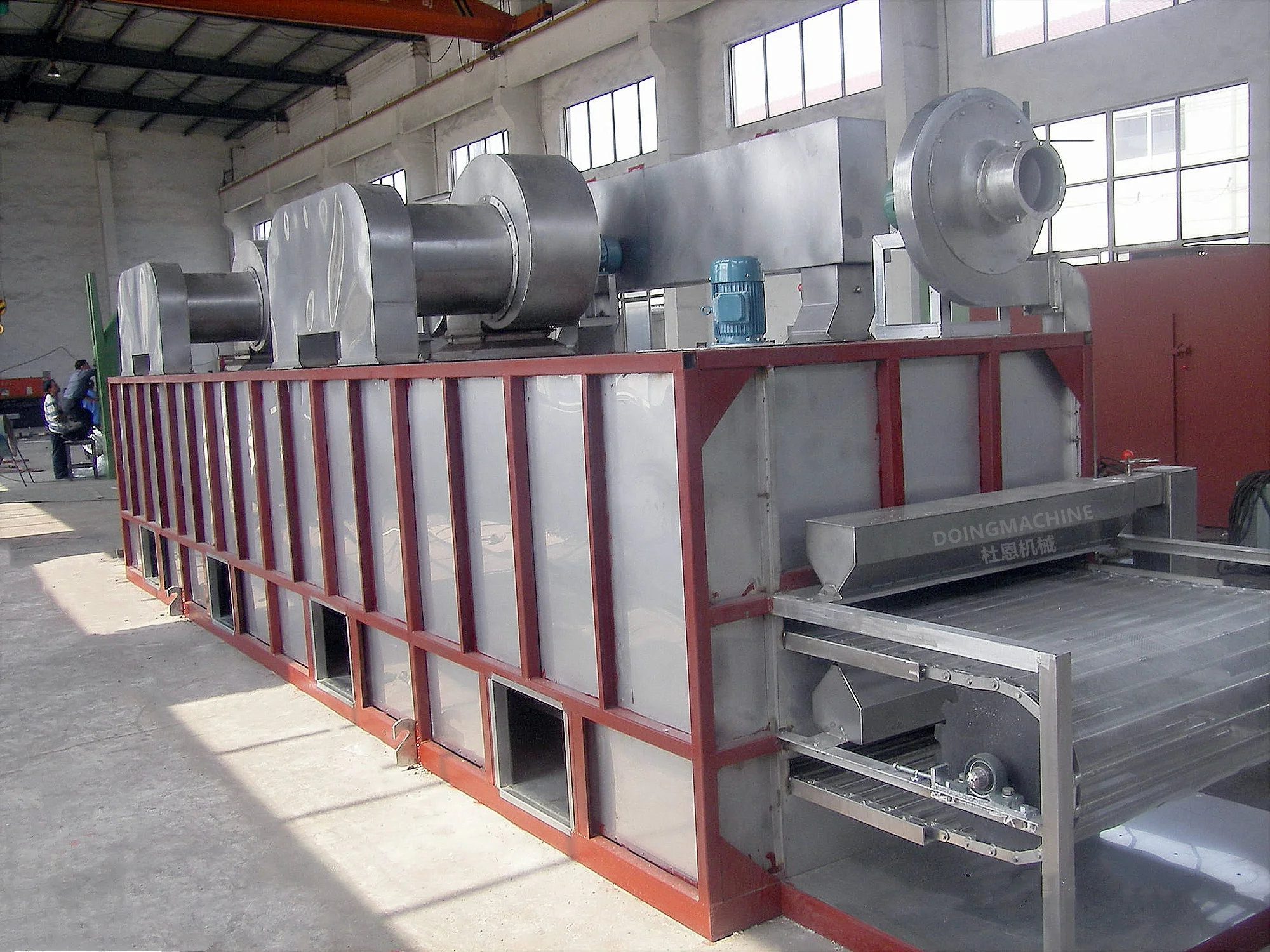

Exhaust fan

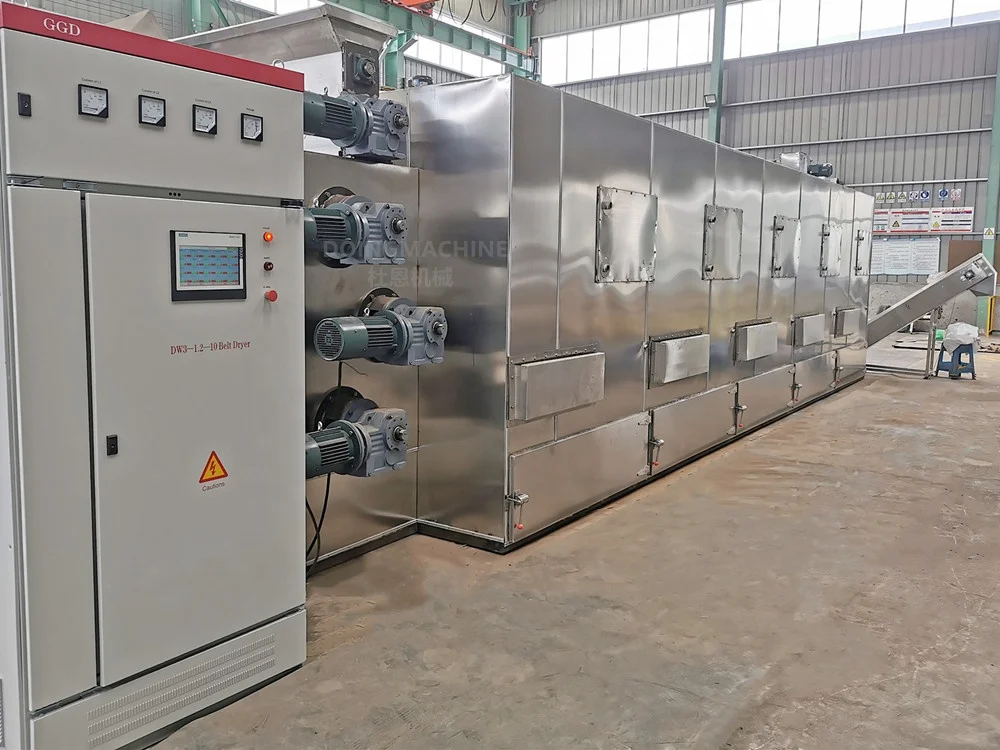

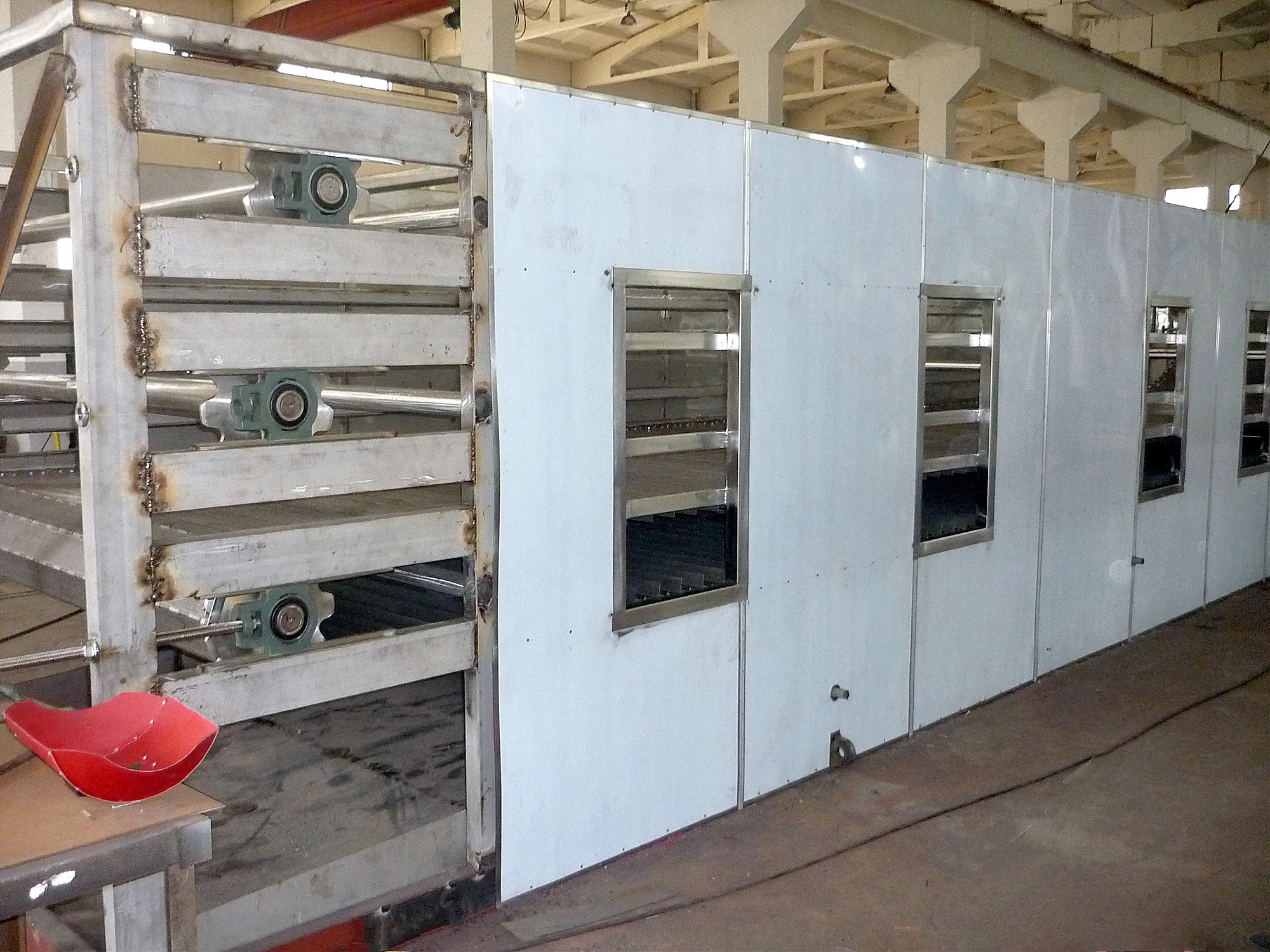

Multi-layer belt dryer

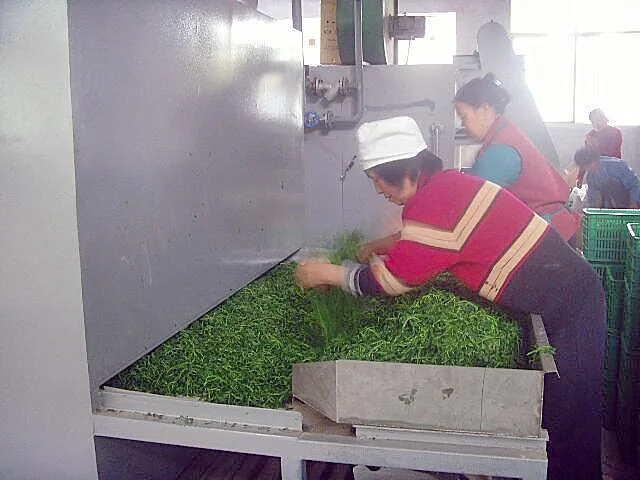

Typical Applications

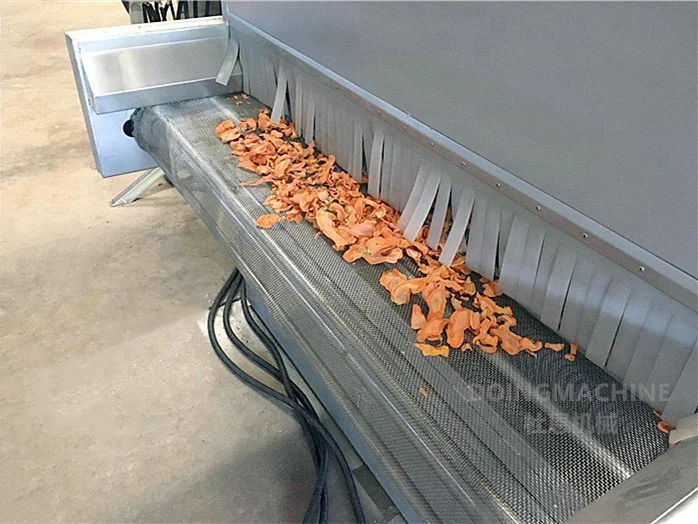

Vegetabls & fruits

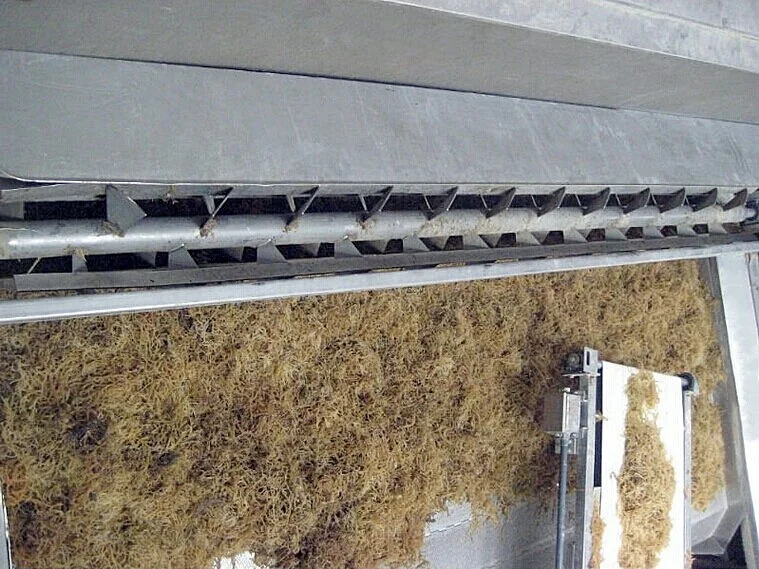

Seaweed
Hemp leaves

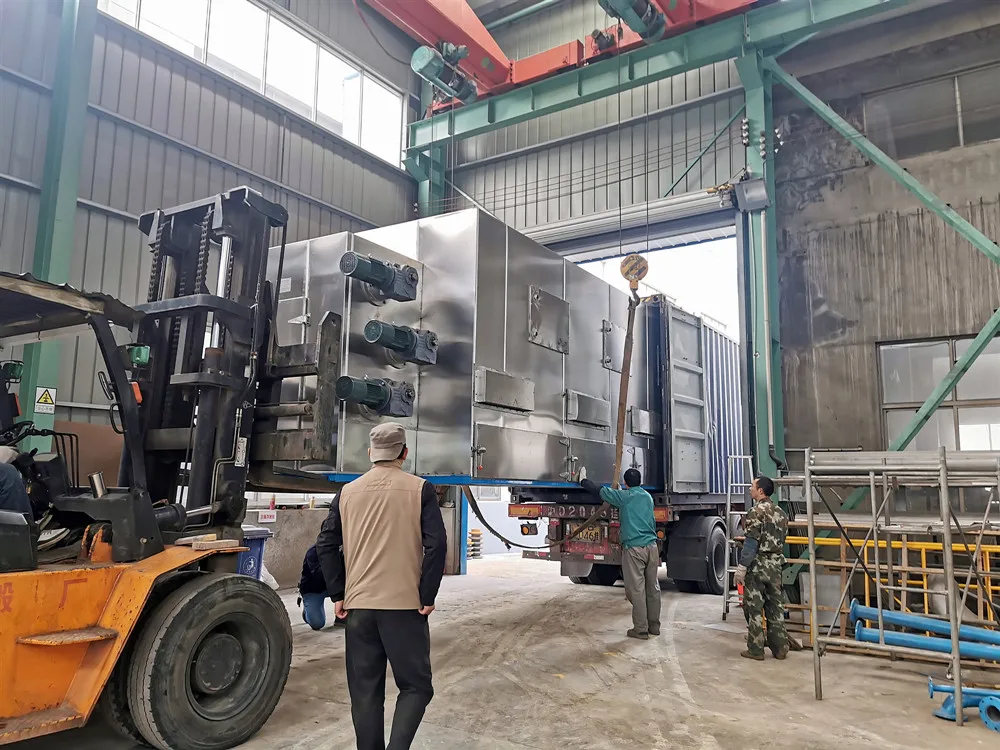

Packing & Delivery
FAQ
Q: What information should be provided in order to get a proposal or quotation?
A: Our conveyor mesh belt dryer is specially designed for each customer according to specific raw material, capacity and heat source avaiable. Before we can work out a detailed proposal or quotation, we have to know the following information:
1) What kind of raw material to be dried?
2) Size of raw material
3) Moisture content of raw material; and target moisture content in dried product
4) Drying capacity in kg/h
5) Suggested drying temperature
6) Heat source for drying
Q: What kind of after sale service you can provide?
A: We have professional after sale service team who can reach you in short notice. They can supervise the installation, do commissioning and train your workers.
