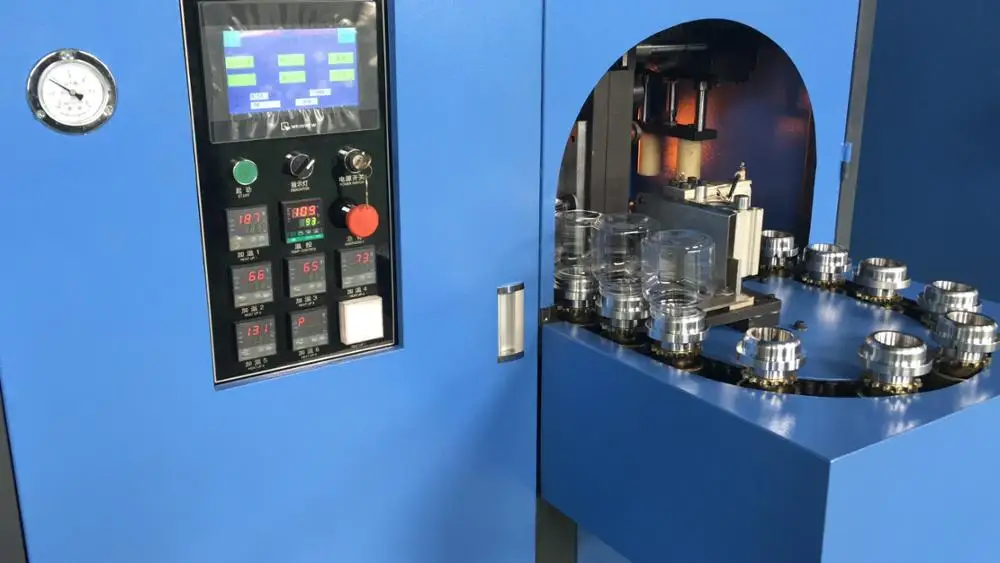

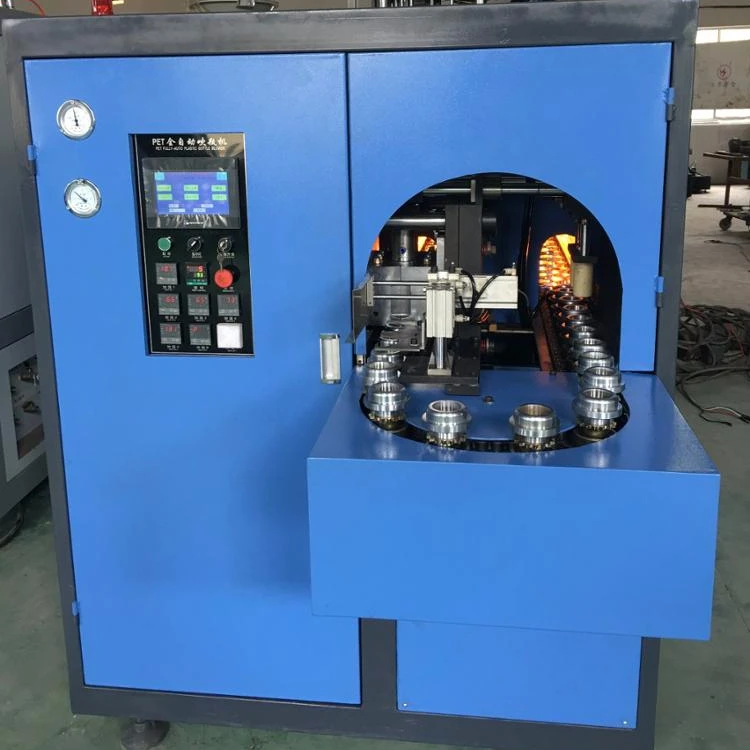

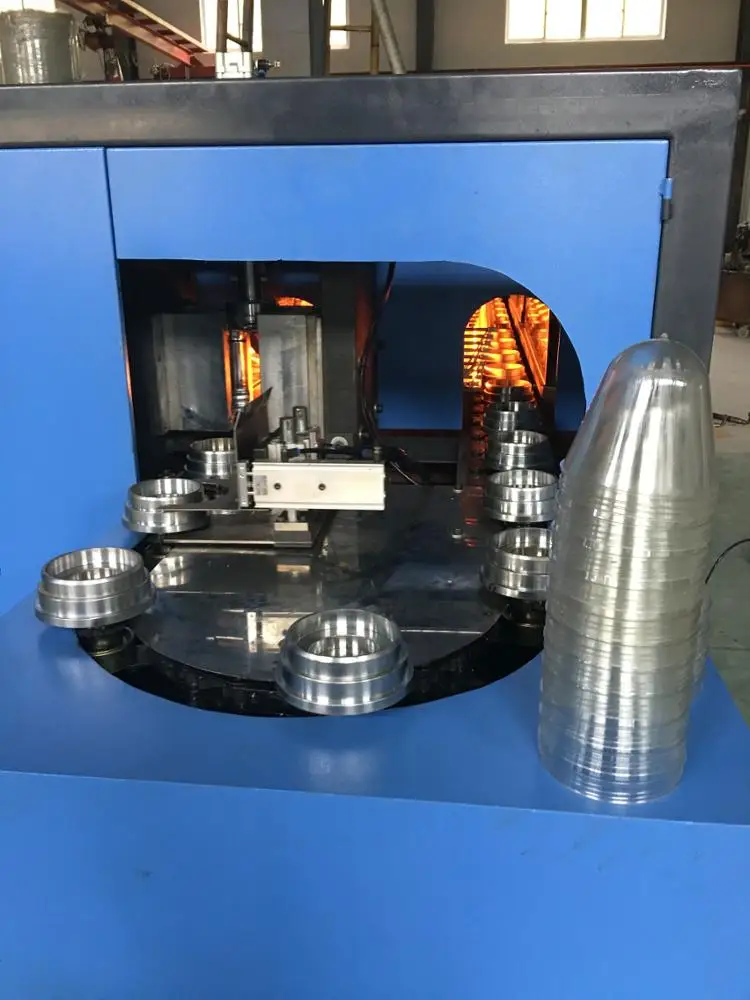

pet jar blow moulding machine machinery 2cavity automatic blowing with preform hand feeding

Product Application

pet jar blow moulding machine is specialized in blowing big neck jar bottle with max neck 50-90mm,from 100ml-2L,

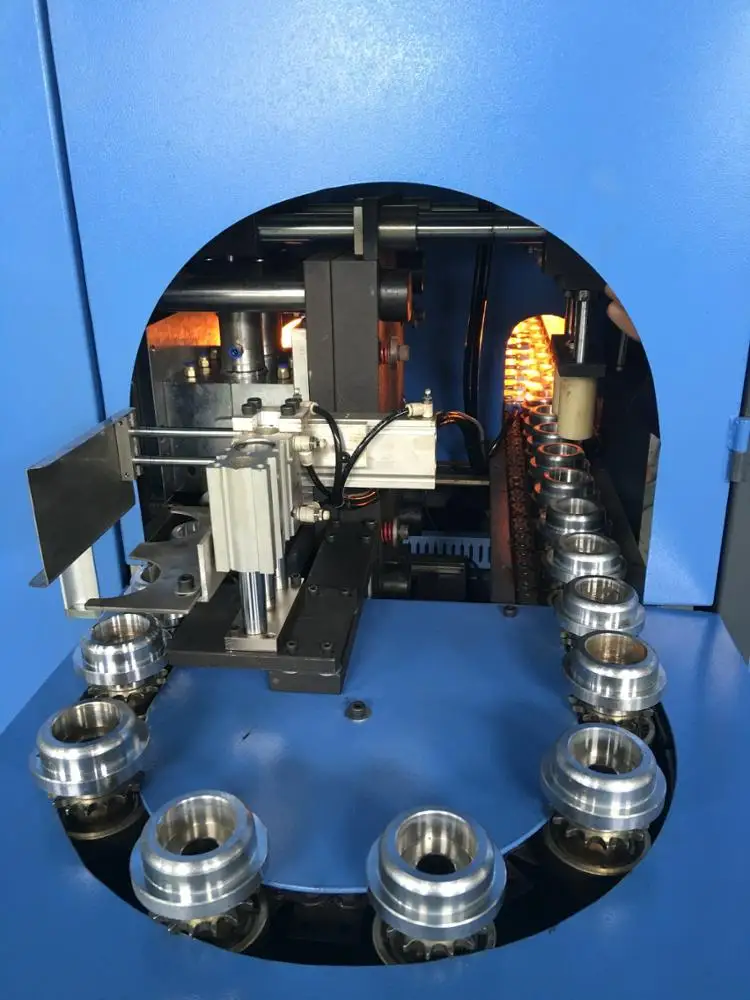

pet jar moulding machine machinery is special designed with preheater and blowing unit in one machine, manually put jar preform,automatic blowing,automatic bottle take out,

jar blow moulding machine the Jar preform need to be manual put on the preform holder or the preform can be loaded by our designed automatic loading unit,which can load big quantity of jar preform in short time and save cost of labor,

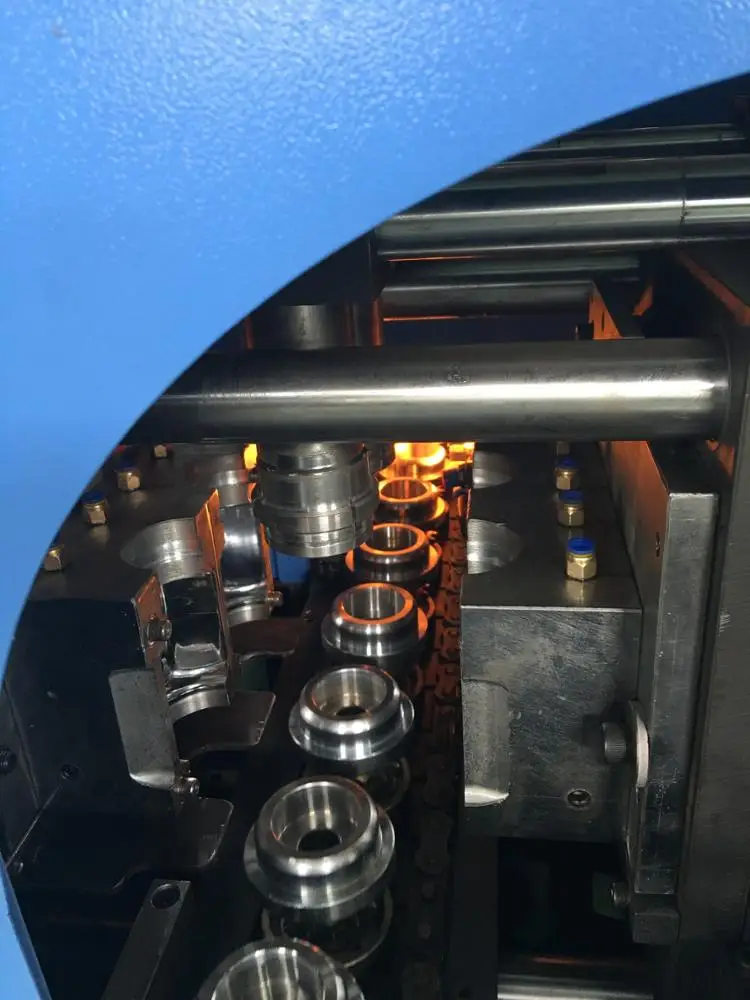

jar preform is automatic transmit by servo motor to the heating oven, then heated preform automatic transmit into blow mould for blowing, the final jar will be drop down to packing bags or cartons,or by mechnical hand to bottle jar conveyor for inline working with jar filling machine,

Shangair brand High Pressure Air compressor

High pressure Air Tank

Air Cooling Dryer With two Air Filters

Water Chiller Air Cooling Type
