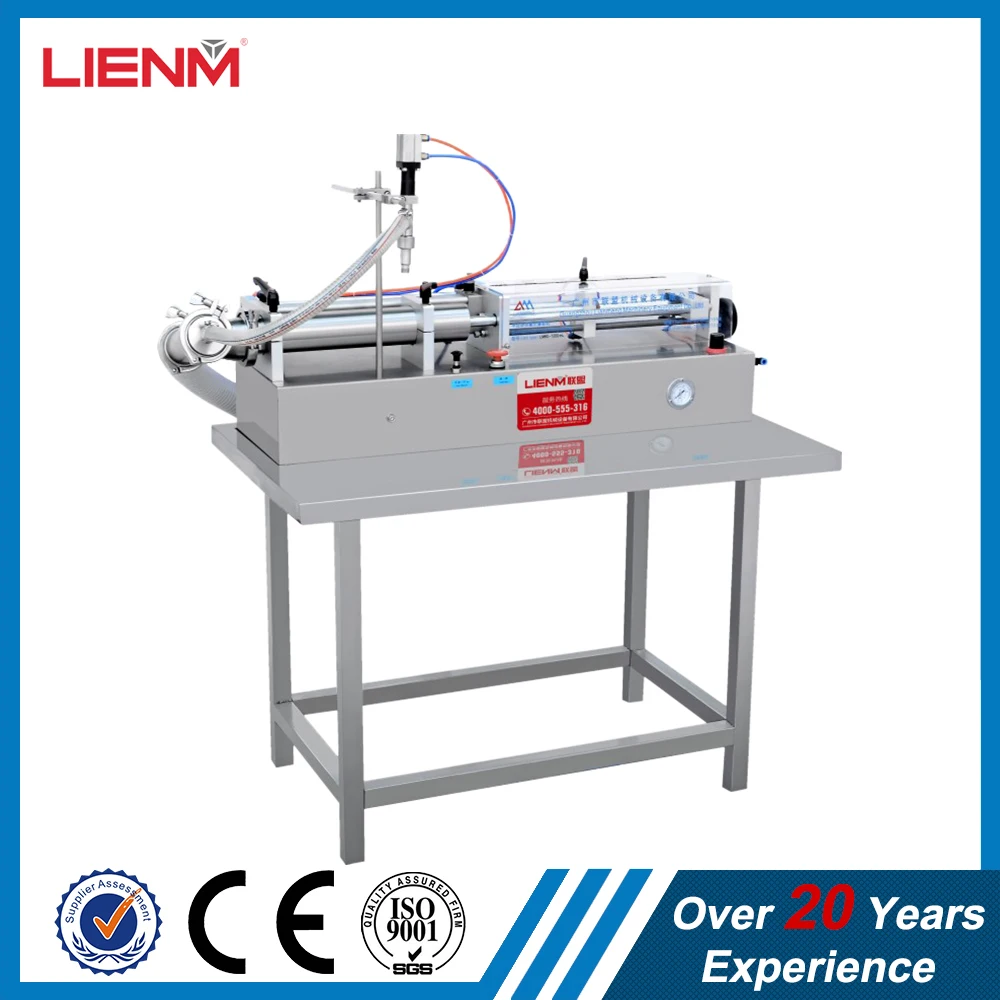

5ml-5L Semi automatic pneumatic piston filling machine/filler for shampoo,liquid soap,liquid detergent,oil,dishwasher/shower gel
Company Information
Contact us
Product Description
Introduction:

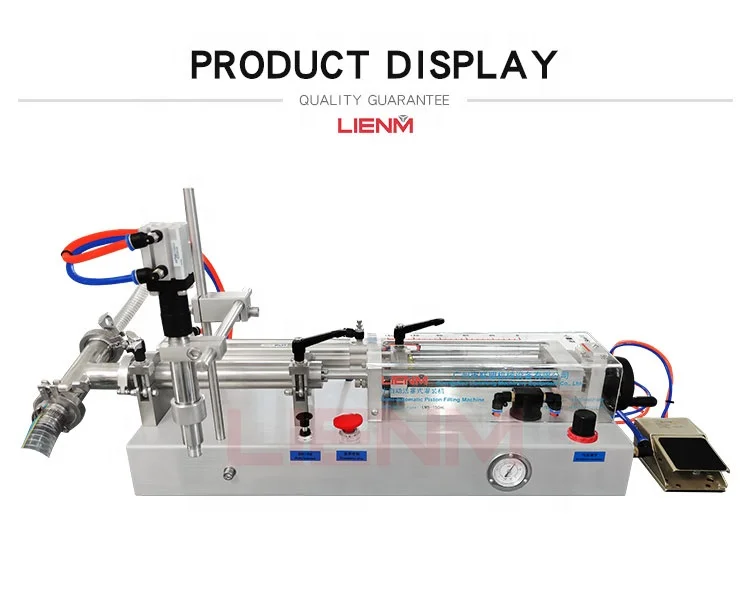

Semi-automatic Full Pneumatic Liquid Filling Machine (500-5000ml), Full Air Bottling Machine for Liquid is suitable for filling products of various viscosity such as water injection and ointment etc. It is applied in such industries as daily chemical industry, pharmacy, food and pesticide etc. The semi-automatic piston type filling machine(full-pneumatic) is a new generation product developed on the basis of the original electric combined machines. It adopts pneumatic components to replace the electric control circuit. Therefore, it is especially suitable for use in damp conditions or conditions with explosion-proof requirements. The parts of our LM series products that contact materials are all made of imported 316L stainless steel and are machined through CNC machine tools with the surface roughness lower than 0.8.
Semi-automatic Full Pneumatic Liquid Filling Machine (500-5000ml), Full Air Bottling Machine for Liquid has replaced the electricity control by pneumatic elements, so it is especially suitable for anti-explosion requirements
Technical Parameter:
| Model | Filling volume | Air consumptin | Net Weight | Dimensions(Unit:cm) |
| LM-1-15 | 5-150ml | 25L/min | 11kg | L92xW28xH40 |
| LM-1-25 | 10-250ml | 30L/min | 25kg | L102xW30xW40 |
| LM-1-50 | 30-500ml | 44L/min | 28kg | L108xW32xH41 |
| LM-1-100 | 60-1000ml | 87L/min | 36kg | L128xW36xH41 |
| LM-1-250 | 250-2500ml | 106L/min | 60kg | L130xW60xH51 |
| LM-1-500 | 500-5000ml | 300L/min | 75kg | L130xW60xH51 |
Related Products
Characters of the Semi-automatic Full Pneumatic Liquid Filling Machine (500-5000ml), Full Air Bottling Machine for Liquid:
1. Control by adopting compressing air so it is especially suitable for use in conditions with explosion-proof requirements and has security.
2. No static and hemp-electricity, do not need to touch the ground.
3. It adopts pneumatic control and forcibly orientation, so that the filling precision is high and the precision can be controlled in 2/1000(the largest filling volume as the standard)

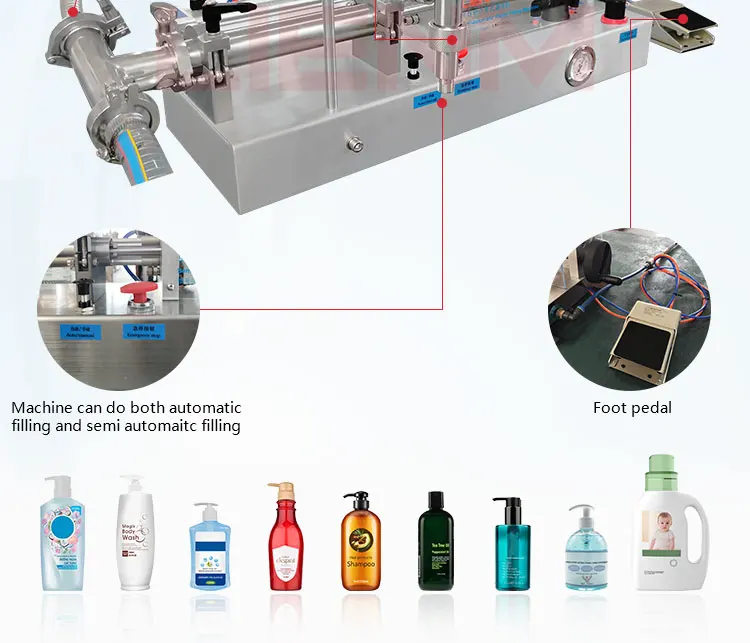

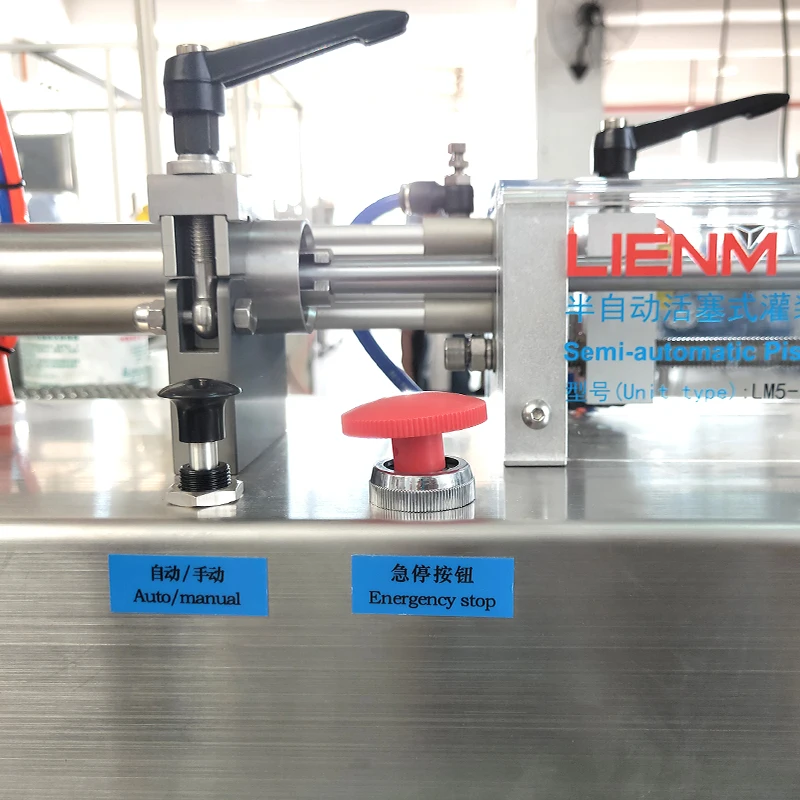

4. It only need to turn off pneumatic switch when it is in urgent stopping, the filling will be stopped when the piston back to original position automatically.
