FRP Dry Van Container Carport Panel GRP trailer sheets
- Category: >>>
- Supplier: Dongguan City Higoal Enterprise Co. Ltd.
Share on (60607084972):
Product Overview
Description
\t\t\t\t\t\t\t\t\tFRP panel \t\t\t\t\t\t\t
FRP Dry-Van Container Carport Panel GRP trailer sheets
1) Machine continuously made flat panels, no limit on length;
2) Anti-impact: much better stiffness and strength than plastic, due to fiberglass reinforced;
3) Fire resistant: made by thermosetting resin;
4) Mildew resistant: Effectively inhibit the growth of mildew;
5) Easy install: No other tools are needed except for rivet or glue only;
6) Anti-corrosive: stay good condition immerged into 10% Hydrochloric acid or 3% NAOH solvent for long time;
7) Easy cleaning: It can be easy cleaned by steam or high-pressured squirt gun;
8) Extreme temperature resistant: Withstand temperature at -40 -110 degree C for long time;

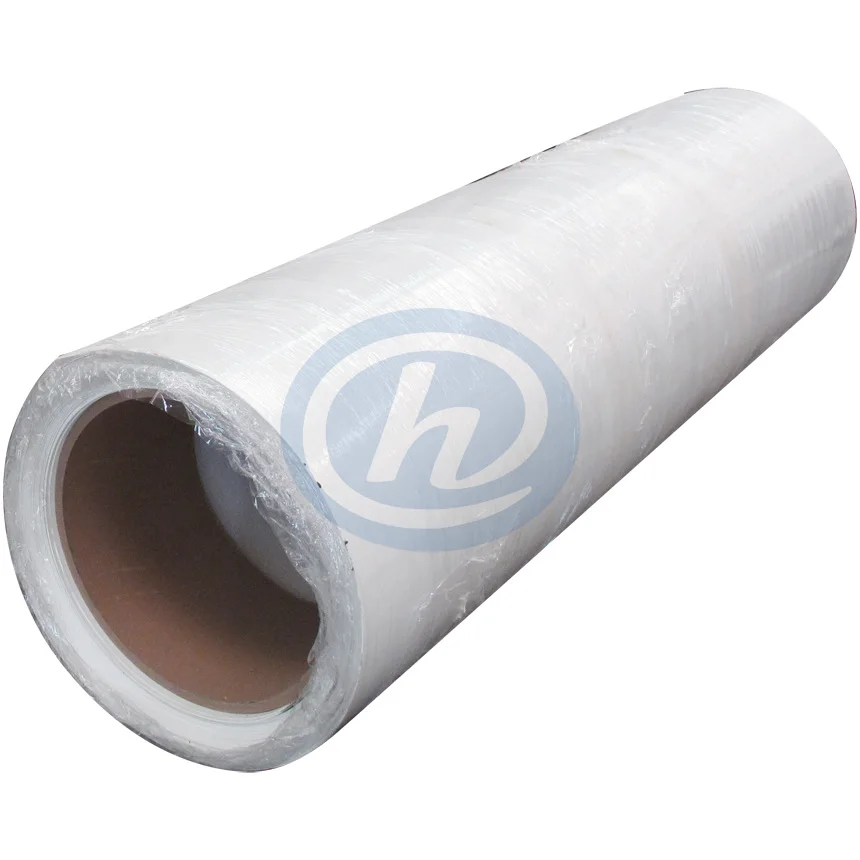

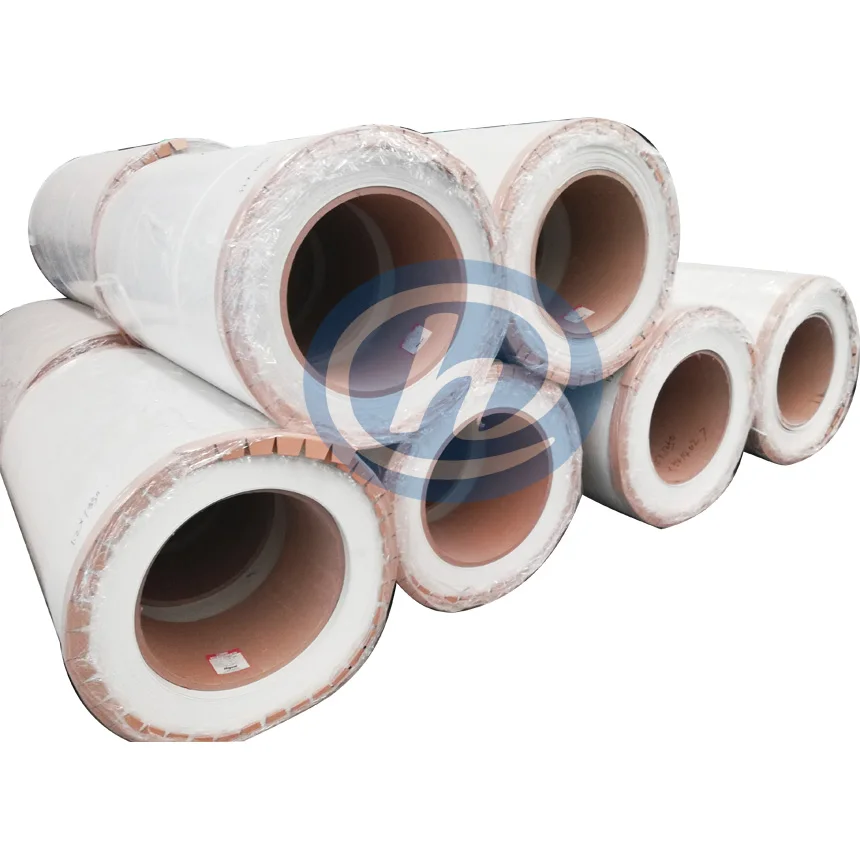

9) Rolled up by machine with 50-100m length as a coil, to save shipping cost.
Higoal Panel Options

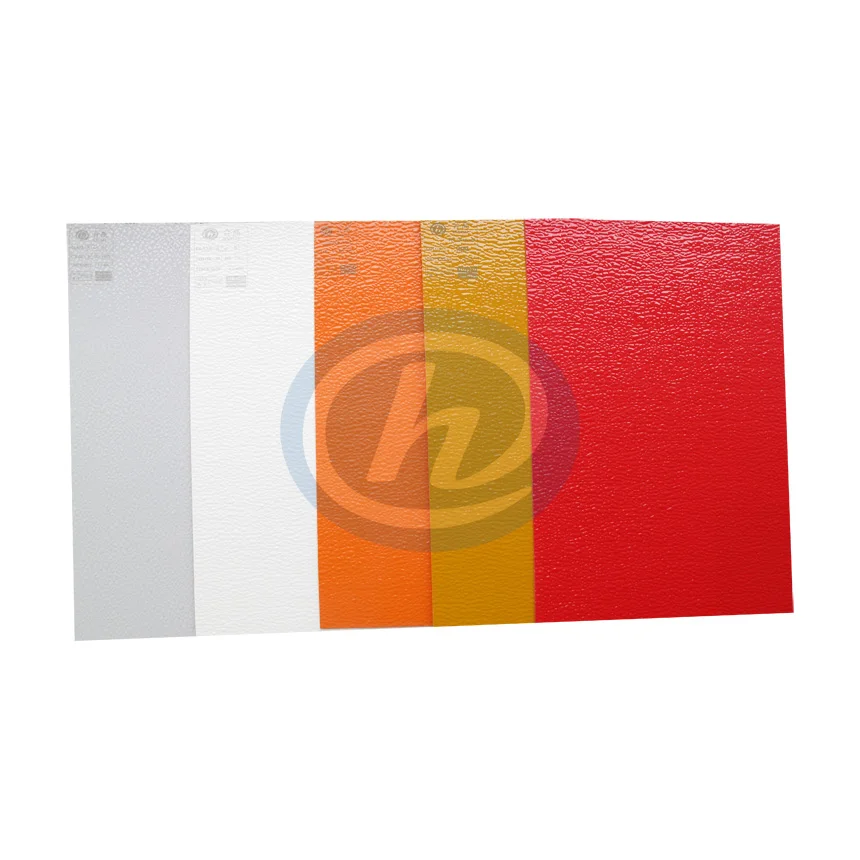

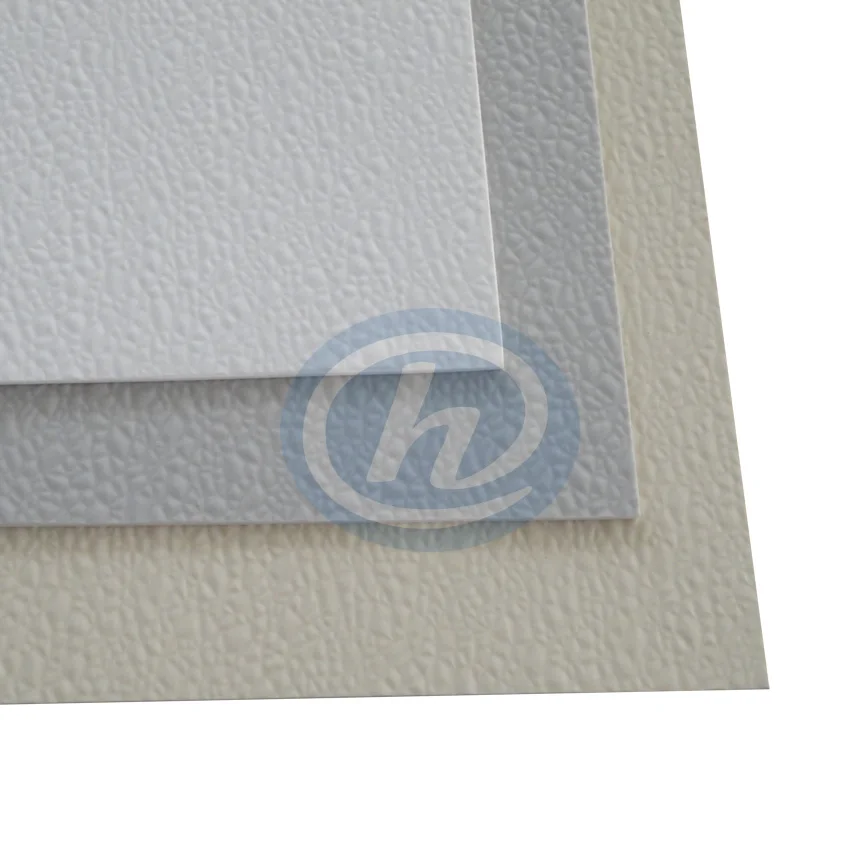

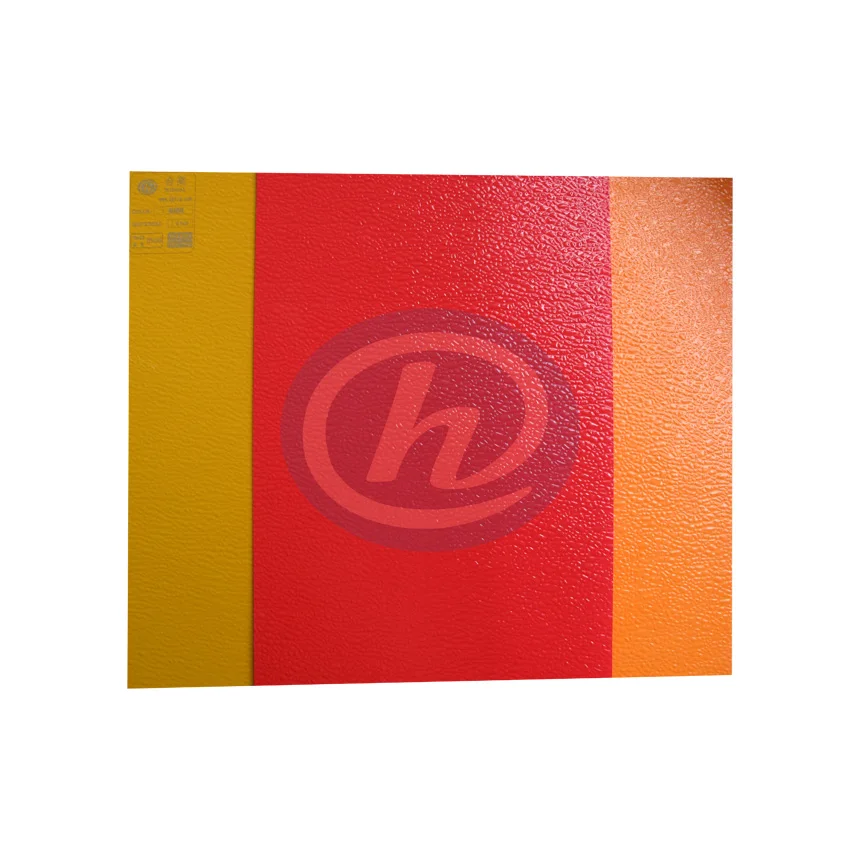

Pebbled texture panel
Thickness:1.2mm-3.0mm
Max width: 2750mm
Feature: anti-aging, good decorative surface, impact resistant.
Standard color: white creamy, Black
Smooth panel
Panel type: Gel coating flat panel & Non-gel coating flat panel
Thickness:1.2-3.0mm
Feature: anti-aging, smooth glossy surface.
Standard color: White Creamy Black
FRP Leaf Texture Panel
With 300μm gel coating on surface, anti-skid
Thickness:1.2-3.0mm
Standard color: White Grey Blue
The above mentioned panels can be combined with the froth, gypsum, polywood, aluminium honeycomb ,the lsandwich panels is a more strengthen, better rigidity panel, sandwich panels will be easier to install, the installation efficiency will be improved greatly, furthermore, the requirement of wall coarseness will be reduced also.
Project case
Specification
Items | FRP Dry-Van Container Carport Panel GRP trailer sheets | ||||
Material | Gel coating: 300um ISO-phthalic polyester gel coat Matrix resin: unsaturated polyester resin Reinforce fiber: E-glass | ||||
FRP panel size | Thickness: 1.0mm-3.0mm Width: ≤2750mm ; Length: customer length | ||||
Tensile strength | ≥75MPa | ||||
Tensile modulus | ≥4800MPa | ||||
Bending strength | ≥120MPa | ||||
Bending modulus | ≥5GPa | ||||
Impact strength | ≥35KJ/m2 | ||||
Compression strength | ≥35MPa | ||||
Distortion temperature(1.8MPa) | >230℃ | ||||
Thermal expansivity | 2.4×10-5℃-1 | ||||
Gravity | 1.6-1.7g/cm3 | ||||
Water Absorption | 0.16%/24hrs, 25C | ||||
Stickiness | ≥42dyne | ||||
Approval test standards: | ASTM-E84, RoHS 2002/95/EC | ||||
Chemical resistance | Can be used in foggy environment of 10% HCl and 3% NaOH solvent for long. For usage in other solvent, please contact our engineer. | ||||
Packing & Delivery
Corrosion resistence high strength insulation FRP products | ||||||
Packing | 1. Protected by stretch film; | |||||
2. Fasten by packing banding and packed on pallet; | ||||||
3. Grating corners are protected by FRP angle or thick papercard. | ||||||
Delivery | 1. Stock grating: 3-5 working days. | |||||
2. Manufacturing: 1-2 weeks, or depends on the order quantity. | ||||||
Higoal Company Profile
Higoal FRP was established in Dongguan City in May 1995, as a technology enterprise in composite application field,
dedicated to manufacturing, developing and selling high-quality fiberglass products, with industrial plant of 21980 square meter. With a wide range of products, including large width flat panel, continuous-made corrugated panel, pultruded profiles, moldedgrating, etc., Higoal is a large-scale Chinese manufacturer on FRP products, and also a supplier of total solution for anti-corrosion construction.
Benefit from 25-year-manufacturing experience, Higoal engineers are capable to provide designer and contractor with total
solution, and also assist investors to make preliminary planning and feasibility analysis of each project development. From
design, installation, to construction, Higoal is comprehensive in consideration, and mature in technology
dedicated to manufacturing, developing and selling high-quality fiberglass products, with industrial plant of 21980 square meter. With a wide range of products, including large width flat panel, continuous-made corrugated panel, pultruded profiles, moldedgrating, etc., Higoal is a large-scale Chinese manufacturer on FRP products, and also a supplier of total solution for anti-corrosion construction.
Benefit from 25-year-manufacturing experience, Higoal engineers are capable to provide designer and contractor with total
solution, and also assist investors to make preliminary planning and feasibility analysis of each project development. From
design, installation, to construction, Higoal is comprehensive in consideration, and mature in technology
Higoal FRP Plant
Higoal industial plant is located Dongguan City, sharing the convinience of exporting, near Shenzhen and Guangzhou Port.
Engineering Support
Higoal engineers are experienced to provide technical support and most cost-effective and high-performance solution on any given project.
.
.
Easy-to-work with Company
As a Higoal's customer, you'll never have to worry about duties, shipping costs, customs, import brokers, language barriers, or products quality.
