cdoe metal waterproof lock momentary 1no1nc 3 pin push button 10mm spst mini on off switch
- Category: >>>
- Supplier: Yueqing Dahe Electric Co. Ltd.
Share on (60607085630):
Product Overview
Description

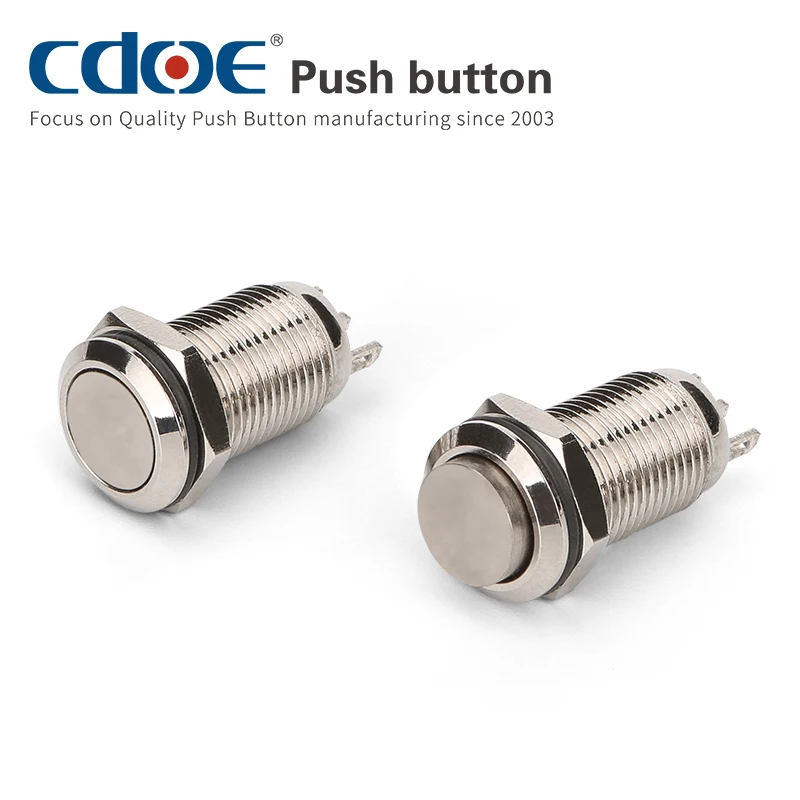

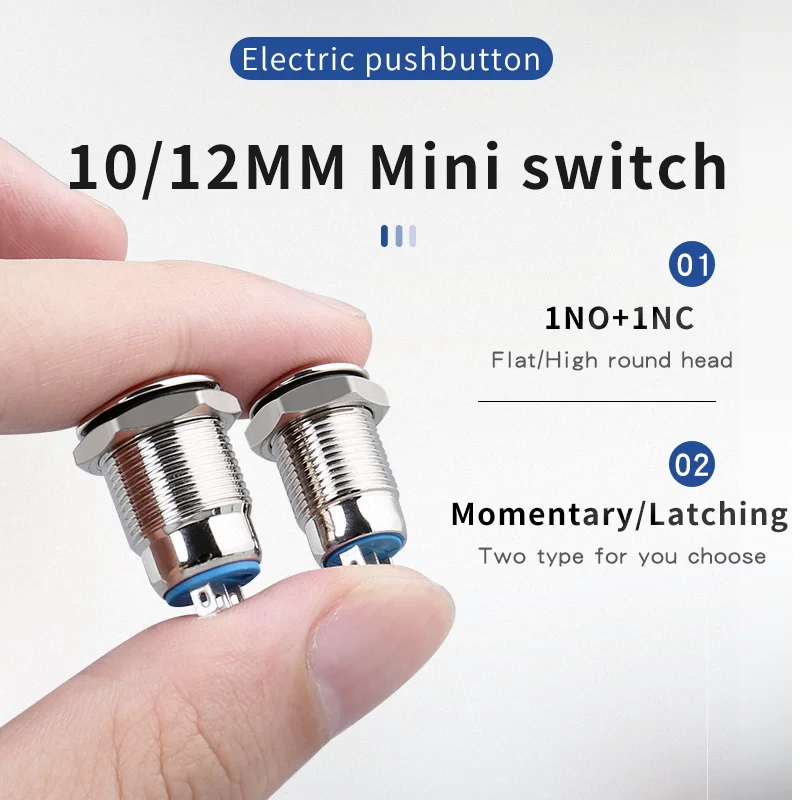

GQ series push button switch surface plating bright nickel treatment，can anodized red, green and black color selection, the shell is made of stainless steel, brass and aluminum alloy.It has a simple and reliable double breakpoint slow moving structure.There are two types of connection: pin feet or screw feet.Different size diameter: 10.12.16.19.22.25.28.30mm;At the same time, the series also has a micro stroke mini button switch（12/16/19）。Button switch built-in waterproof rubber ring.Can make the waterproof grade up to IP67.Tri-color LED can also be customized, but only at low voltage!!!GQ series push button switch waterproof ip40,Switch contact:1NO or 1NO and 1NO1NC;Two types of switches:reset 【Momentary】 or self-locking【Latching】；Switch rating: 50mA/12vc;For more information please contact us.
Parameter

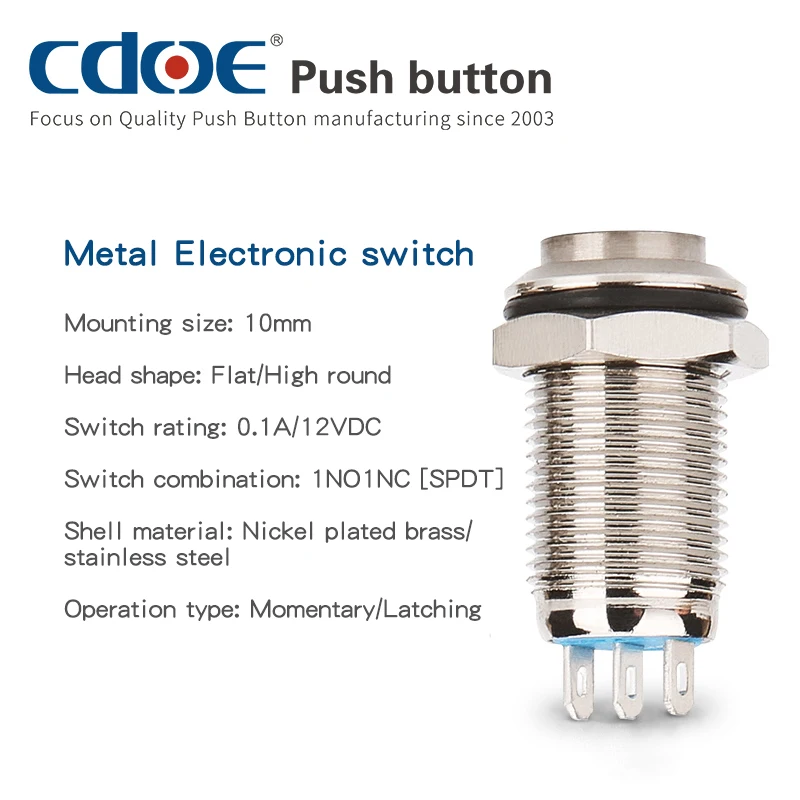

Metal Push Button Switch Without Led | ||||||||

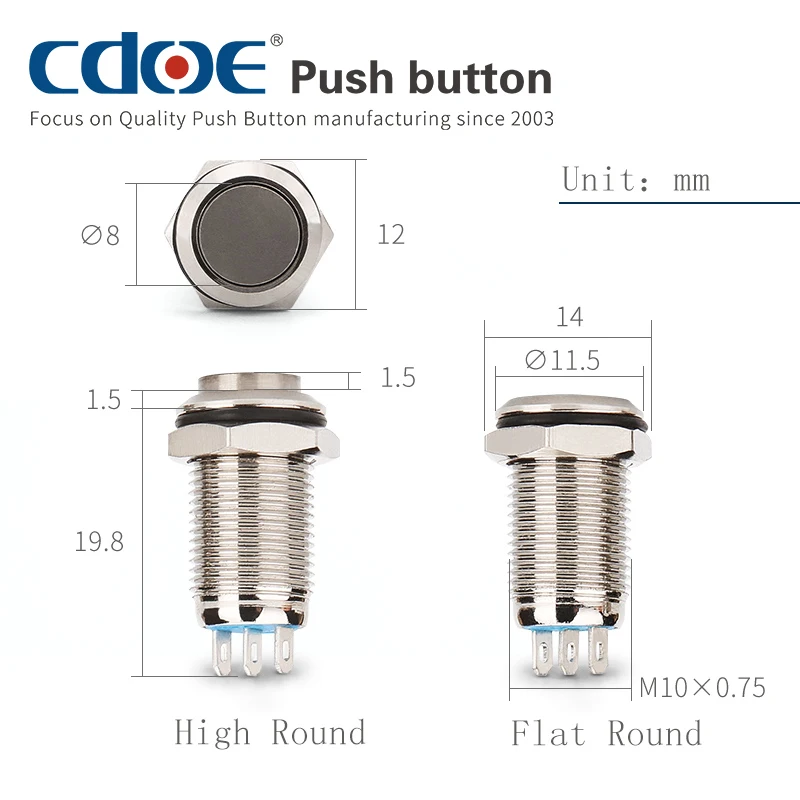

Mounting hole size : | 10mm | |||||||
Switch value: | 0.1A/12VDC | |||||||
Operation type: | Momentary, Latching | |||||||
Contact configuration: | 1NO1NC | |||||||
Head shape： | High,Flat | |||||||
Crust material: | Stainless Steel | |||||||
Terminal type: | Pin terminal | |||||||
Electrical life : | ≥50,000 times | |||||||
Mechanical life: | ≥1，000,000 times | |||||||
Operation temperature: | -40℃~+80℃ | |||||||
Contact Resistance: | ≤50mΩ | |||||||
Insulation Resistance: | ≥1000mΩ | |||||||
Protection grade : | IP40 | |||||||
Contact material: | Silver alloy | |||||||
Products Description
Product packaging
Product packing method.
We pack 50 pieces diameter 12 mm metal push button into 1 foam box to protect them.We supply 50 pieces rubber rings.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
Company Information
FAQ
Q: Can you provide samples ? Are the samples free ?
"A: Yes,we can provide samples. we will collect samples fee(1-3pcs)and you have to pay for the shipping cost.when you place normal order.we will refund the sample fee for you."
Q: What kind of payment do you accept ? Can I pay RMB ?
"A: We accept T/T(Wire transfer),Western Union and Paypal,credit card. Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem."
Q : What about your delivery time?
"A: We have a lot of products in stock.We can send the stock products in 3 work days.If without stock,or stock is not enough, we will check the delivery time with you."
Q : How to ship my order ? Is it safe?
"A: For small package, we will send it by Express, tsuch as DHL,FedEx,,UPS,TNT.That’s a Door to Door service.For big packages, we will send them by Air or By sea.We will use good packing and ensure the safety.We will be responsible to any product damage caused on delivery."
Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.
Q: Do you have a guarantee of your product quality?
A: We have a guarantee of one year. Any requirement or question,pls send us an e-mail now! It's our great honor to do services for you! We will reply you ASAP. If no response within 24 Hours, please kindly check the spam in your mail box.
"A: Yes,we can provide samples. we will collect samples fee(1-3pcs)and you have to pay for the shipping cost.when you place normal order.we will refund the sample fee for you."
Q: What kind of payment do you accept ? Can I pay RMB ?
"A: We accept T/T(Wire transfer),Western Union and Paypal,credit card. Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem."
Q : What about your delivery time?
"A: We have a lot of products in stock.We can send the stock products in 3 work days.If without stock,or stock is not enough, we will check the delivery time with you."
Q : How to ship my order ? Is it safe?
"A: For small package, we will send it by Express, tsuch as DHL,FedEx,,UPS,TNT.That’s a Door to Door service.For big packages, we will send them by Air or By sea.We will use good packing and ensure the safety.We will be responsible to any product damage caused on delivery."
Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.
Q: Do you have a guarantee of your product quality?
A: We have a guarantee of one year. Any requirement or question,pls send us an e-mail now! It's our great honor to do services for you! We will reply you ASAP. If no response within 24 Hours, please kindly check the spam in your mail box.
Thank you for your trust and support!
