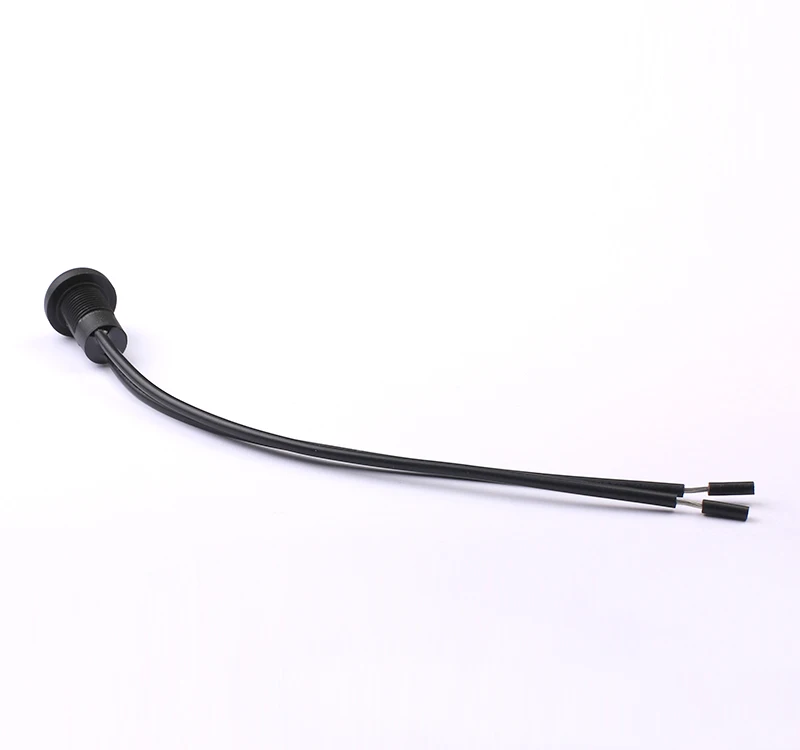

Toowei plastic round button small push button switch with wire 12mm mini waterproof pushbutton switch without light
Toowei plastic round button small push button switch with wire 12mm mini waterproof pushbutton switch without light

Toowei plastic round button small push button switch with wire 12mm mini waterproof pushbutton switch without light

Share on (60607123711):


Price:$1.52 - $1.69

Quantity:


Product Overview

Description


Product Description
A4126 series waterproof push button switch , protection degree reach IP67 ,installation size is 12mm. According to the material ,it has metal push button switch and plastic push button switch . All the switches has self-locking and momentary two differentkinds . If equip with LED light , colour can be customised based on the customer's request . It widely used in beauty equipment ,small yacht, lamps, medical equipment , military communication intelligent network equipment and the other instruments .
Dimension
Diameter 12mm
Terminal
Lead terminal
Shape form
Round
Function
momentary
shell material
Black plastic
Button color
red
Technical parameters
Technical parameters
1. Operating force ≤6Nf, best range is 5Nf~6Nf , Maximum endurance 5kgf
2. Contact resistance ≤50m Ω
3. Rated current 3A , rated voltage 250VAC
4. Insulation resistance ≥100m Ω/min
5. Withstand voltage: AC 1000V(50~60hz)/min
6. Solderability: soldering iron 340°±5°/1-2s
7. Solder resistance: soldering iron 340°±5°/3-5s
8. Durability : Electrical life 50000 times, Mechanical life 100000 times
9. Protection degree: IP67
10 Material: Dupont Nylon PA66+20% glass fiber
11. Installation size: 12mm
