PT SD10 60L/R XY Axis Manual Linear Stage Optical Sliding Table manual linear stage vice

Product Overview

Description

PDV has many differentspecifications manual translation(linear) stage, including manual stage, linear stage, translation stage ,manual translation stage, Z axis lifting platform,Lab Jack,High-Load Vertical Stages, 360 degree rotation stage,Rotary Stage,Angle adjustment stage and so on

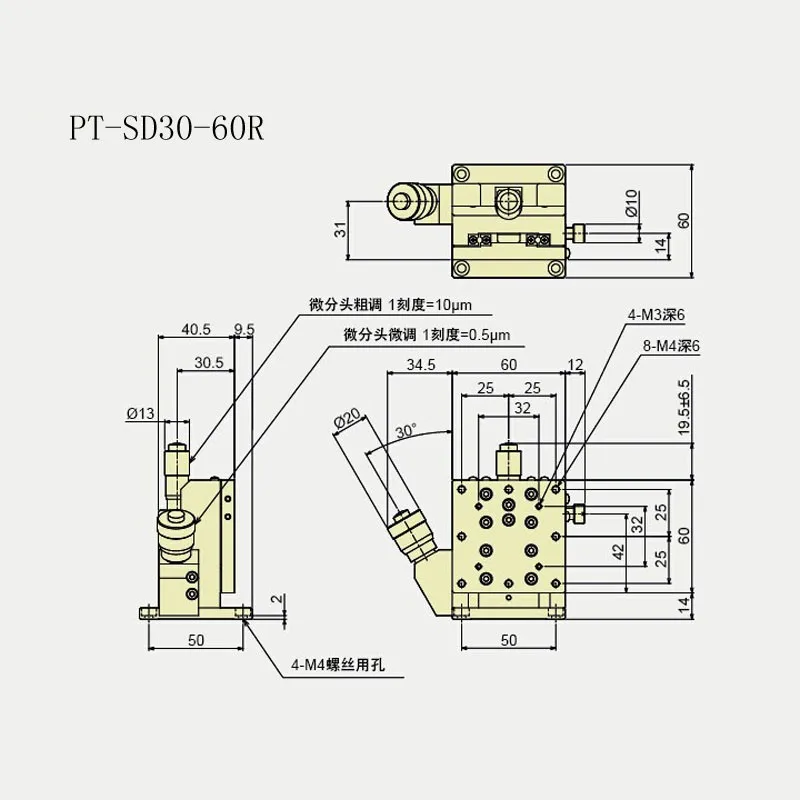

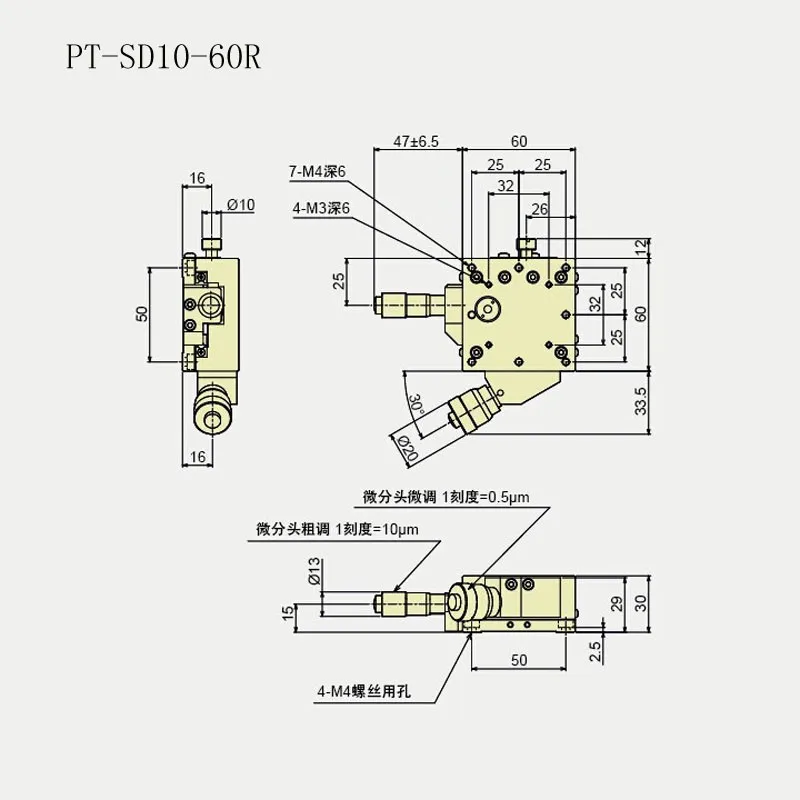

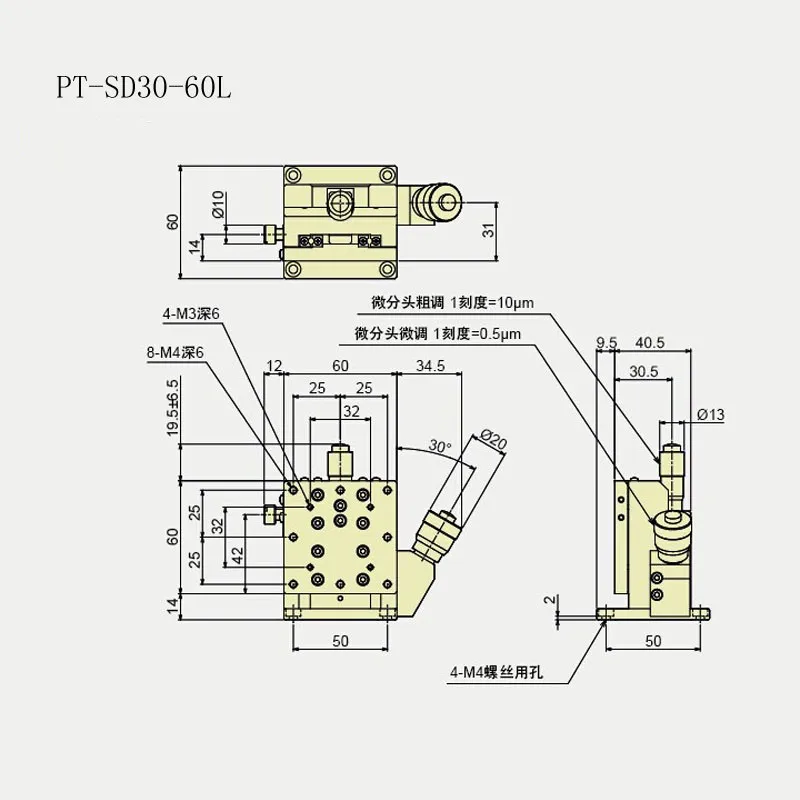

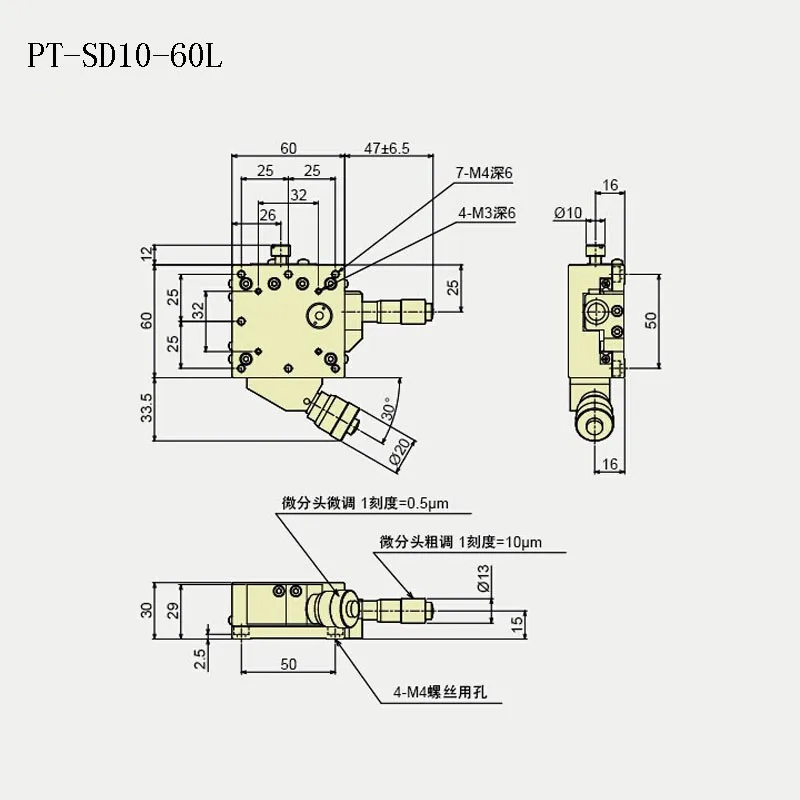

Model Number		PT-SD10-60L		PT-SD10-60R			PT-SD30-60L		PT-SD30-60R
Actuator Type		Micrometer Head
Operating Position		Coarse adjustment:CenterFine adjustment:Right	Coarse adjustment:CenterFine adjustment:Left		Coarse adjustment:CenterFine adjustment:Right			Coarse adjustment:CenterFine adjustment:Left
Minimum Scale		Coarse adjustment:10μm/degree  Fine adjustment:0.5μm/degree
Platform Size		60×60mm
Travel Range		Coarse adjustment :±6.5mm  Fine adjustment:±0.3mm
Travel Guide		Crossed Roller Bearing
Load Capacity		5kgf(49N)				2kgf(19.6N)
Moving Precision	Straightness	2μm
	Pitching	20”
	Yawing	10”
Parallelism		30μm				70μm
Driving Parallelism		10μm				15μm
Weight		0.35kg				0.5kg
Surface Material		Aluminum Alloy BLACK-Anodized
