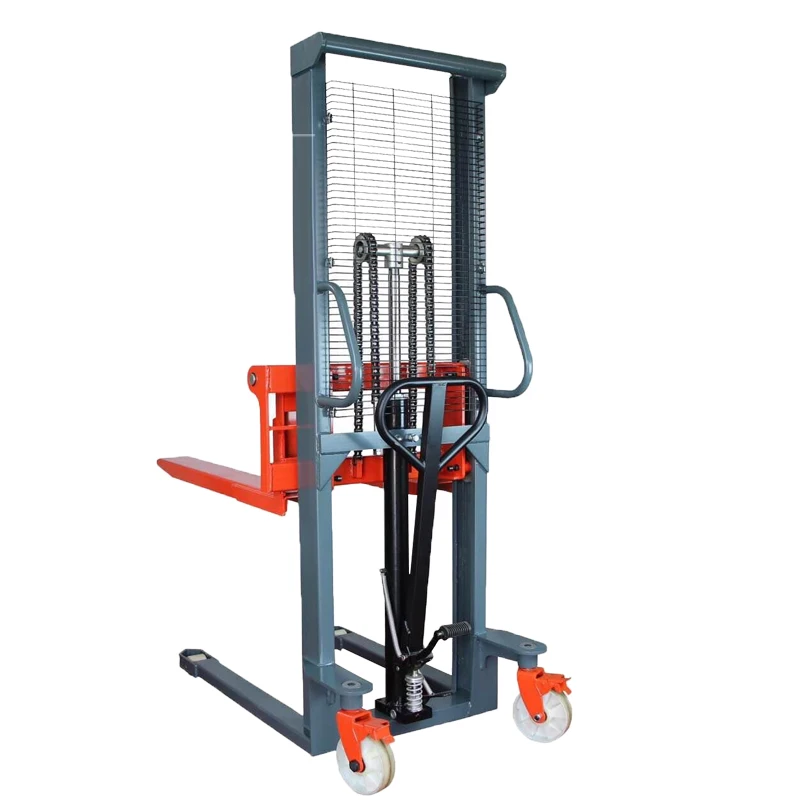

Heami Fixed forks manual hand stacker

Product Overview

Description

1.Hand stacker specifications

Model	Unit
Product type		hand stacker	hand stacker	hand stacker	hand stacker
Loading capacity	Ton	0.5	1	1.5	2
loading center	mm	400	400	400	400
wheel type		nylon	nylon	nylon	nylon
bearing wheel size	mm	Ø75×42	Ø80×60	Ø80×60	Ø80×60
steering wheel size	mm	Ø180×50	Ø180×50	Ø180×50	Ø180×50
Min.fork lowered height	mm	90	90	90	90
Max.fork lifting height	mm	1600	1600	1600	1600
Overall fork width	mm	220-720	220-940	220-940	260-940
Inside width between forks	mm	20-520	20-740	20-740	20-700
Fork size(l/e/s)	mm	800/100/53	900/100/30	900/100/30	900/120/30
Overall length	mm	1284	1375	1430	1430
Overall width	mm	1980	1980	2080	2080
Overall height	mm	800	1000	1000	1000
Min.turning radius	mm	1250	1400	1400	1400
Pump pressure frequncy AT Max.height(laden)	times	≤95	≤95	≤110	≤110
Service weight	KG	190	220	250	275

2.Product details



1)The hydraulic consists of three parts:

the elevating cylinder and controlling parts,the elevating arm and chain-wheel parts,the gantry and back-wheel parts.
The lift lifts the weights with a manual or pedal hydraulic device,and loads weights with manual pull and push at a low position.
The oil-reflow valve is placed in the hydraulic device.
The descending speed is controlled through the pedal,ensuring the correct action of the hydraulic system and safety.



2)Big pump, strong heart



Our factory special for lifting machine since 1994, with top quality and competitive price looking for cooperators all over the world.

Be at your service at anytime !
