high capacity 3.6V AA size LS14500 lithium non rechargeable battery ER14505 2700mAh
- Category: >>>
- Supplier: Xiangyang Ahead Cell Technology Co. Ltd.
Share on (60607295625):
Product Overview
Description
high capacity 3.6V AA size LS14500 lithium non rechargeable battery ER14505 2700mAh
Product Description
Replace Model:
Tadiran TL-5903, Tadiran TL-2100, Tadiran TL-4903, Tadiran TL-5104, Saft LS-14500, Saft LS-14500C, Sonnenschein SL-360/S, Sonnenschein SL-760/S, Maxell ER6S-TC, Minamoto ER14505, Xeno XL-060F.
| Model | ER14505 |
Cell size | AA |
| Nominal Voltage(V) | 3.6V |
| Cut-off Voltage | 2.0V |
| Nominal Capacity | 2700mAh |
| Dimension | Dia14.5mm×H50.5mm |
| Weight | 17g |
| Max.Continuous current | 100mA |
| Max. Pulse Current | 200mA |
| Ambient Temperature Range | -55~ +85°C |
| Storage Life | ≥10 year |
| Self-discharge | Yearly self-discharge ≤ 1% |

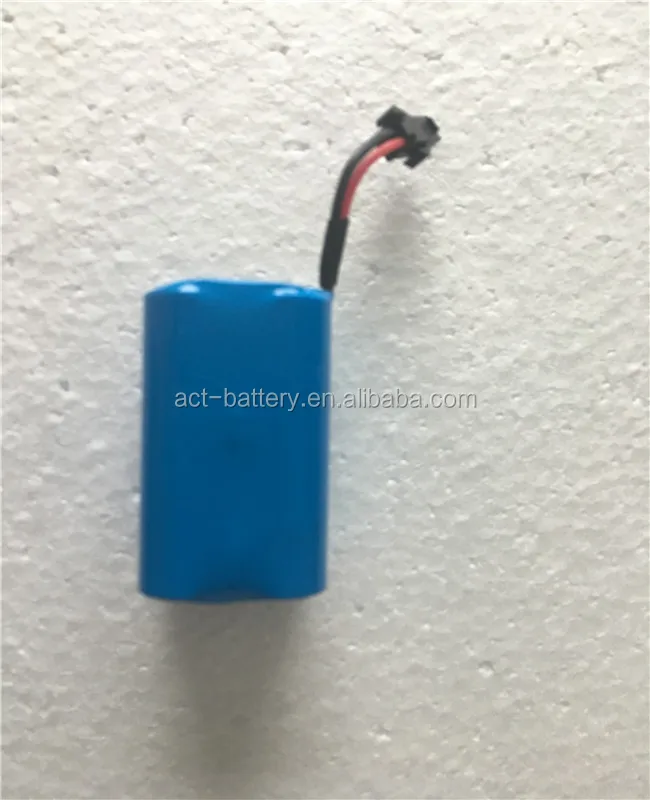

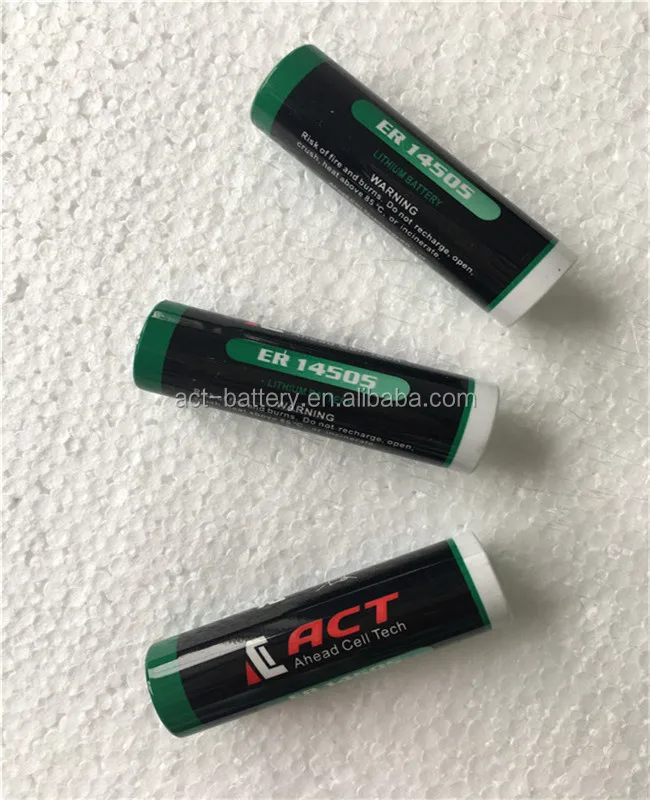

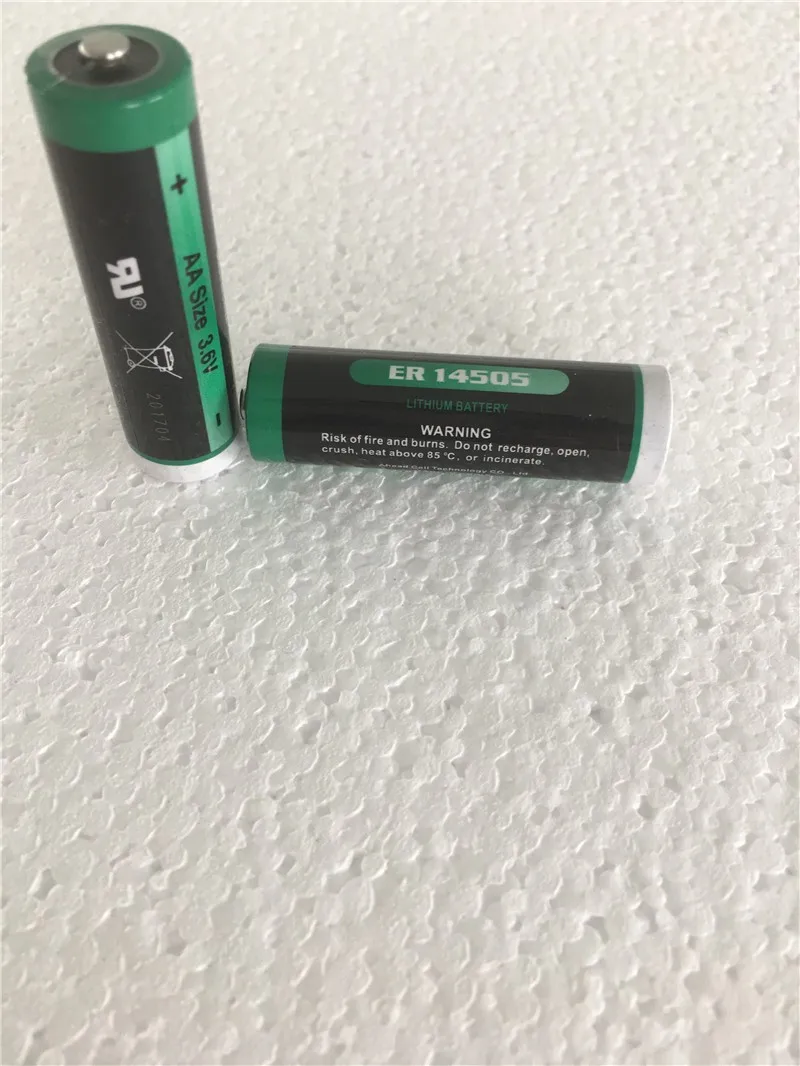

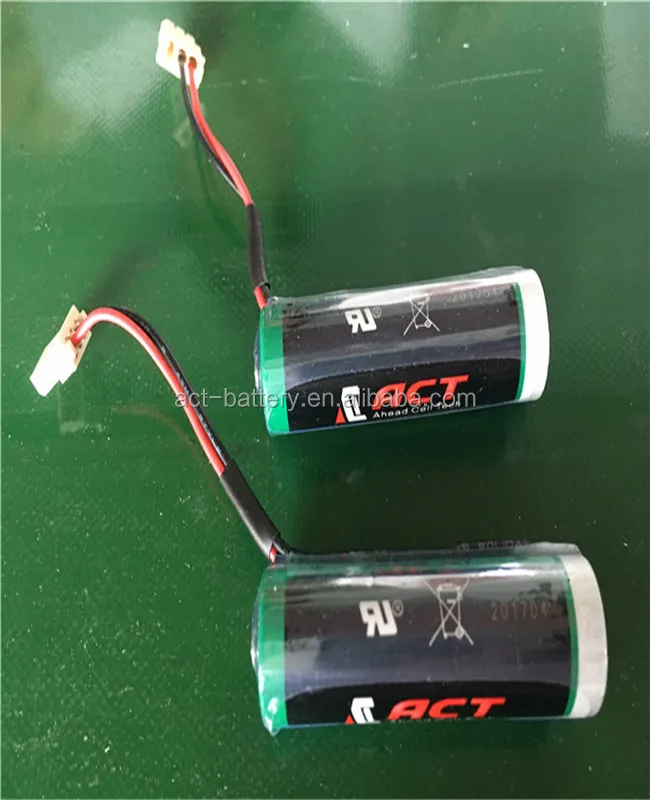

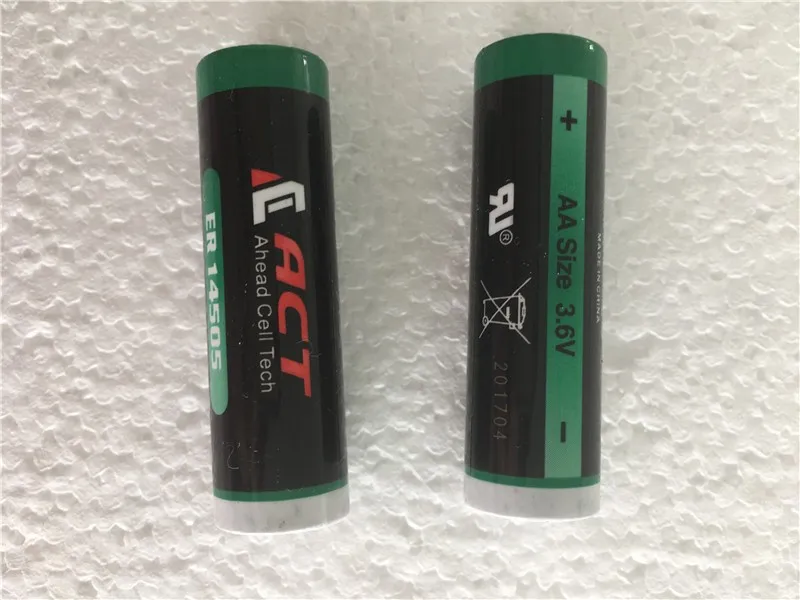

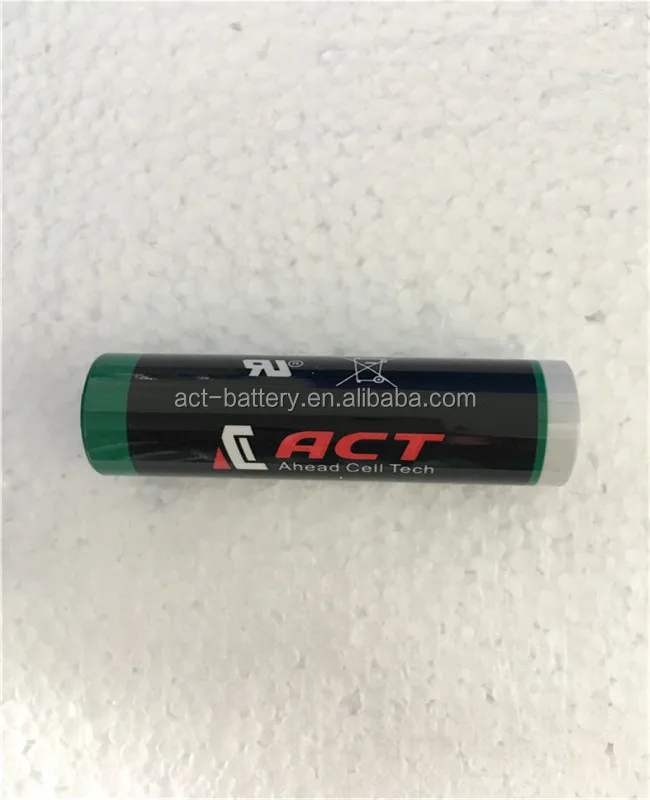

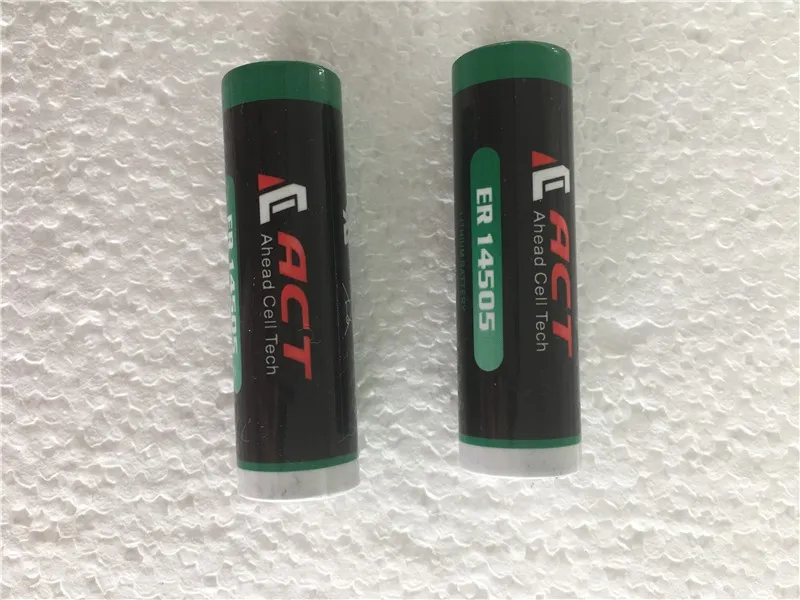

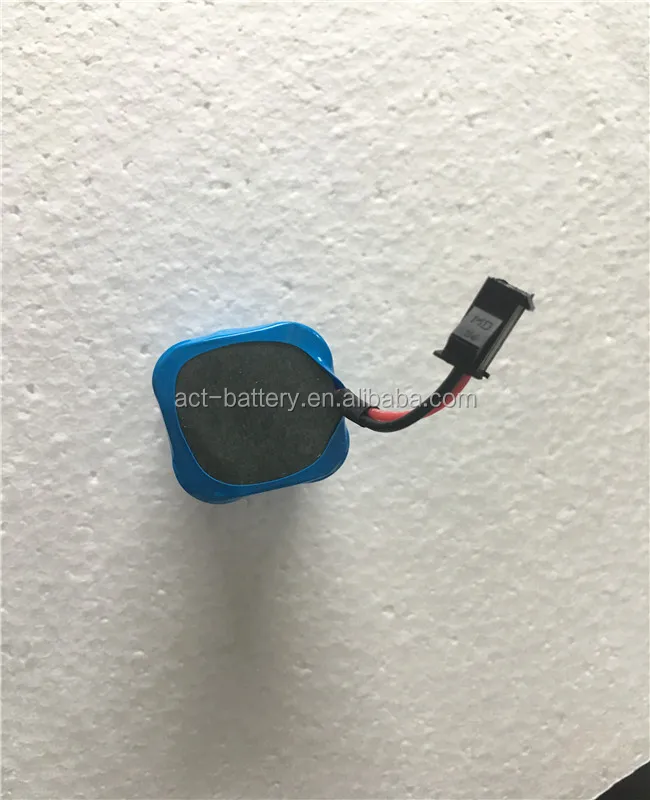

product Picture :
Company Information
About ACT Batteries
Applicantion:
1. Radiocommunication and other military applications
2. TPMS
3. RFID
4. Alarms and security systems
5. Beacons and energy location transmitters
6. GPS equipment
7. Metering systems
8. LED applications
9. Others
Feature:
1. Higher energy density and lower weight.
2. Superior drain capacity.
3. Low self-dischage rate (less than 1% after 1 year of storage at 20 °C.
4. Stainless steel container.
5. Hermetic glass-to-metal sealing.
6. Non-flammable electrolyte.
7. Laser weilding.
8. Injection at bottom,avoiding the leakage of galss-to-metal.
9. Long service life-10 years
10. Short delivery,reasonable price and perfect service.
11. Cetificate:ISO9001,UN,UL,meet the RoHs requiretment.
12. Self-develop, Strong machining ability & quickly developing new type's battery
13. powerful equipments, strong production ability
Storage:
1. Cells should not be stored in a clean & dry (less than 30%RH) area
2. Temp . should not exceed ±30℃
Friendship tips:
1. Do not use if cell casing is mangled
2.Do not use different model of sell in series
3.Soldering the tag should be finsihed in a few seconds
4. Do not try to recharge
Our Services
Quality Warranty:
1. Most of the battery components are self-develop in ACT, who own strong machining ability & quickly deceloping a variety of new type's batteries.
2. On time delivery.
3. Return goods without reason before 7 days.
4. Warranty 1 year.
Payment Terms:
1. T/T, Western Union, Paypal
2. Sample order:100% prepaid;
Mass order: 30% deposite for order confirmation, 70% balance payment before shipment
Why Choose Us:
1, High and stable load voltage
2, Superior drain capacity
3, Low self-discharge rate (less than 1% after 1 year of storage at 20°C)
4, Stainless steel container
5, Hermetic glass-to-metal sealing
6, Laser welding, infuse from buttom of cell.
7, Non-flammable electrolyte
8, Shelf Life:10 years
9, Cetificate:ISO9001,UN,UL,meet the RoHs requiretment
10, a ISO:9001 and IS0:2004 standard factory, production line very strong.
11, a developing industrail zone with own property.
12, powerful equipment 100% protect storng warranty and high quality.
13, welcome to visit our factory and be our partner, our reseller.
14, around 200 workers of production, make sure large order process.
CONTACT US
LUCY LIU
Ahead Cell Technology Co., LTD.
TEL: +86-0755-32905485/7(Ext:805)
FAX: +86-0755-32905486
FAX: +86-0755-32905486
