Mechanical Parameters

Materials                       CNC aluminum + nylon (Bayer)

Dimensions                   Profile  160*82*129mm

                                        Grip   111*38*47mm

Weight                           640g (including battery/standard version)

System Characteristics

Operating System         Android 6.0

CPU                                 Quad-core Cortex-A17 / 1.8GHz

GPU                                 ARM Mail- T764 / High performance 3D engine

RAM                                2G LPDDR3

                                         4G LPDDR3 (Optional)

ROM                               32G EMMC 5.0

                                         64G EMMC 5.0(Optional)

LCD                                5.0 inches / 1280*720 / IPS / 180°view angle

Touch Screen         1.1mm thickness tempered glass / 10-dot touch / can be operated with gloves

Hot-swapping  Battery  Pistol style hot- swapping battery system

PSAM                              PSAM*2 / TI TCA5013(Optional)

Buttons

Power / Volume*2           3ALPS buttons / Operating force 2.2N / Operating life 600,000 cycles

Function keys                  3ALPS buttons / Operating force 2.2N / Operating life 600,000 cycles

Scan Trigger                     OMRON button / Operating force 1.27N / Operating life 10,000,000 cycles

Power                              6000mAh chargeable Li-polymer battery

Card Slots                      Micro SIM card slot / PSAM card slot*2

USB Interface                Micro USB / MOLEX connector / Operating life 10,000 cycles

Audio                               Large speaker stereo system

Vibrator                          Button style/ 10mm diameter

Charge Indicator           Bicolor LED

Wireless Communications

WiFi                                IEEE802.11b/g/n

Bluetooth                       Bluetooth 4.0

3G                                   Huawei MU 609 / Vehicle grade (Optional)

4G                                   Huawei MU 909s / / Vehicle grade (Optional)

Application Environment

Operating Temp           -20°C -/+ 60°C

Storage Temp                -40°C -/+ 70°C

Humidity                       5%RH – 95%RH (Non condensing)

Protection Grade          IP64

Safety Drop Height      2m / 6.56ft

 Data Collections

1D Barcode (Optional)

Engine                             Symbol SE955

Support                          UPC/EA Symbol SE955N / Code128 / Code39 / Code93 / Code11/ Interleaved 2 of 5 /

                                        Discrete 2 of 5 / Chinese 2 of 5 / Codabar / MSI / RSS etc.

2D Barcode (Optional)

Engine                             Symbol SE4750

Support                          Data matrix / QR Code / PDF417 / US Planet / UK Postal etc.

UHF RFID

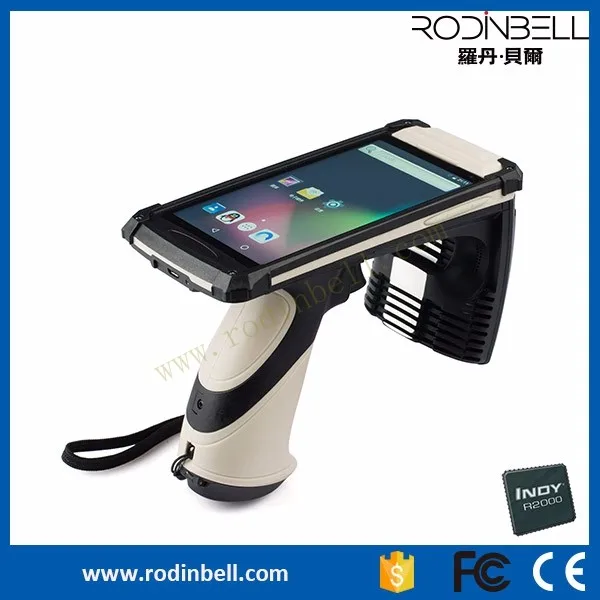

Engine                             RodinBell M-2600 module based on impinj Indy R2000 chip

Buzzer                           12*9.5mm / 2300 ± 300Hz

Protocol                         EPC Global UHF Class 1 Gen 2 / ISO 18000-6C / ISO 18000-6B

Work Frequency            840-960MHz

Output Power                0 – 33dBm

Peak Inventory Speed    >500 tags/s

UHF Antenna                3dBi circularly polarized antenna

Read Distance                6 – 7m (Tested tag : impinj E41b)

Supported Regions        US, Canada and other regions following U.S. FCC

                                       Europe and other regions following ETSI EN 302 208

                             China, Japan, Korea, Malaysia

Camera( Optional)     13 megapixels / automatic focus / flashlight

GPS                               GPS & GLONASS

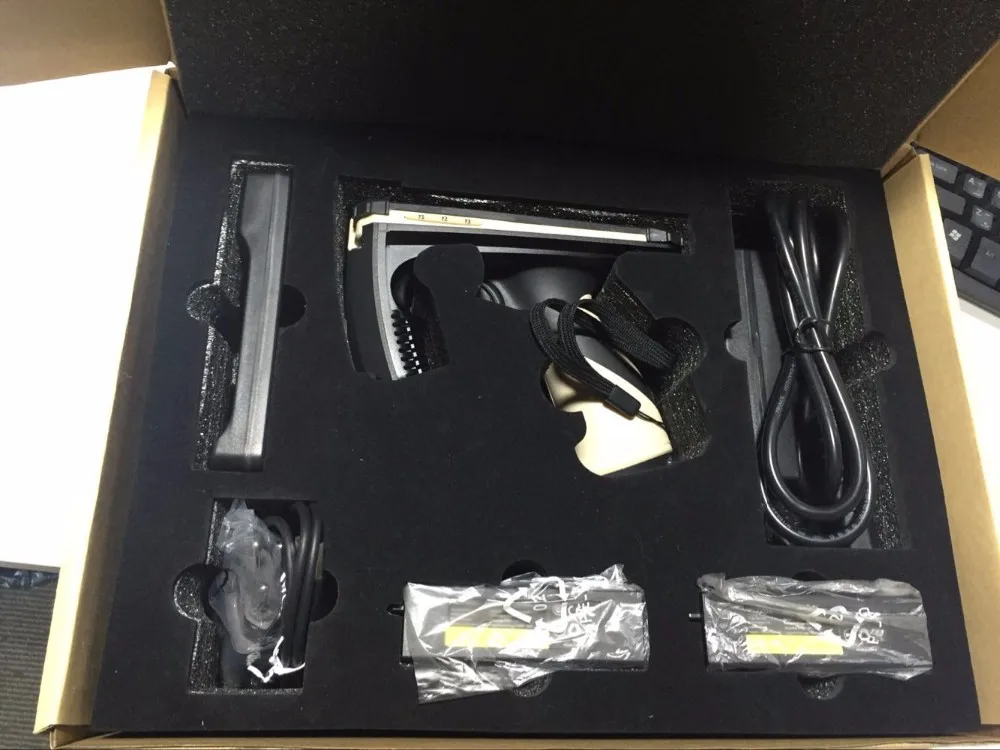

 Accessories

Two Batteries               Battery Bay              Charger & USB Data Cable                Hanging Lace

Packaing Detail: Carton Box

Delivery Detail:5-7 days after receiving payment
