HXL6230 3.5ton mid rise CE garage equipment car scissor lift with portable moving kit
- Category: >>>
- Supplier: Hauvrex (hangzhou) Automotive Equipment Co. Ltd.
Share on (60607427490):
Product Overview
Description
Product Description
Product Application

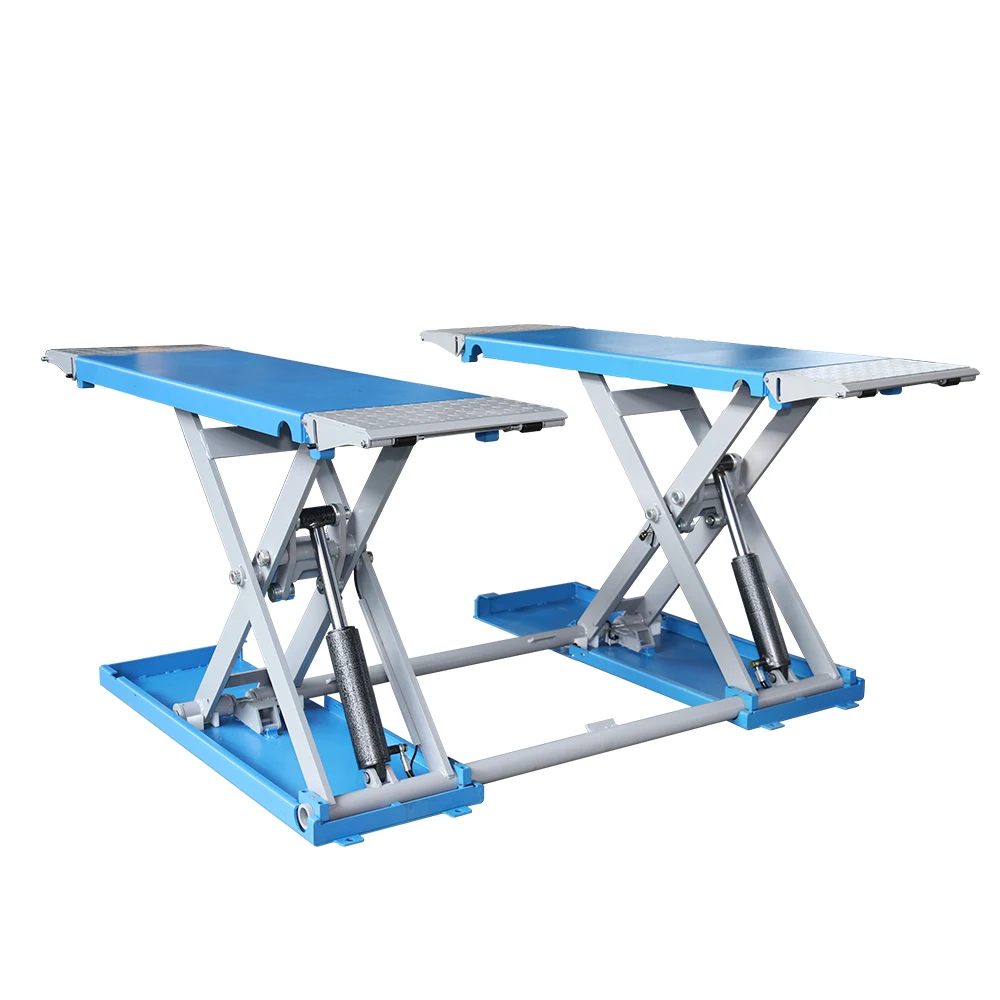

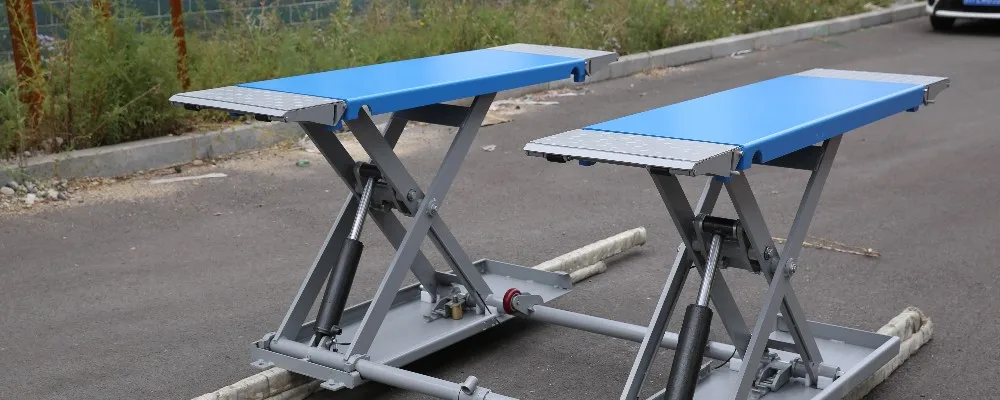

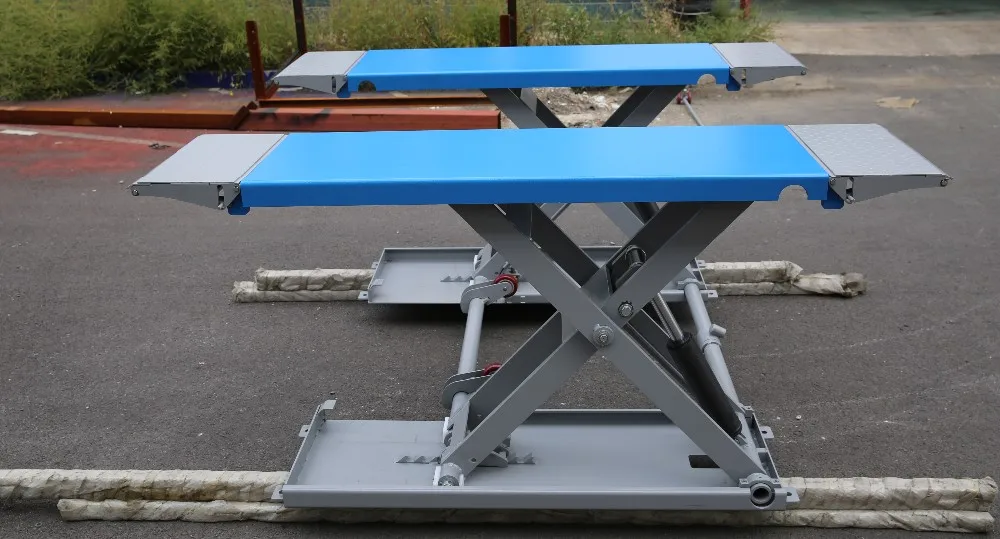

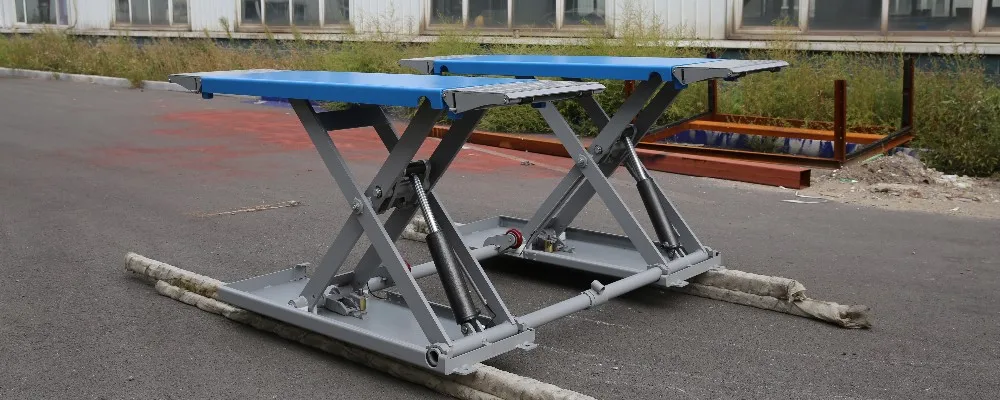

Hauvrex HXL6230 Mid-rise Scissor Lift is an ideal lift for tire workshops. The 3 ton lifting capacity is suitable for almost all kinds of small cars. It is a perfect choice for tire changing, brake works and oil changing, etc. The lift is equipped with portable moving kit. It can be moved freely in narrow workshops to get the car lifted. It can be also used for outside repairs and maintenance.

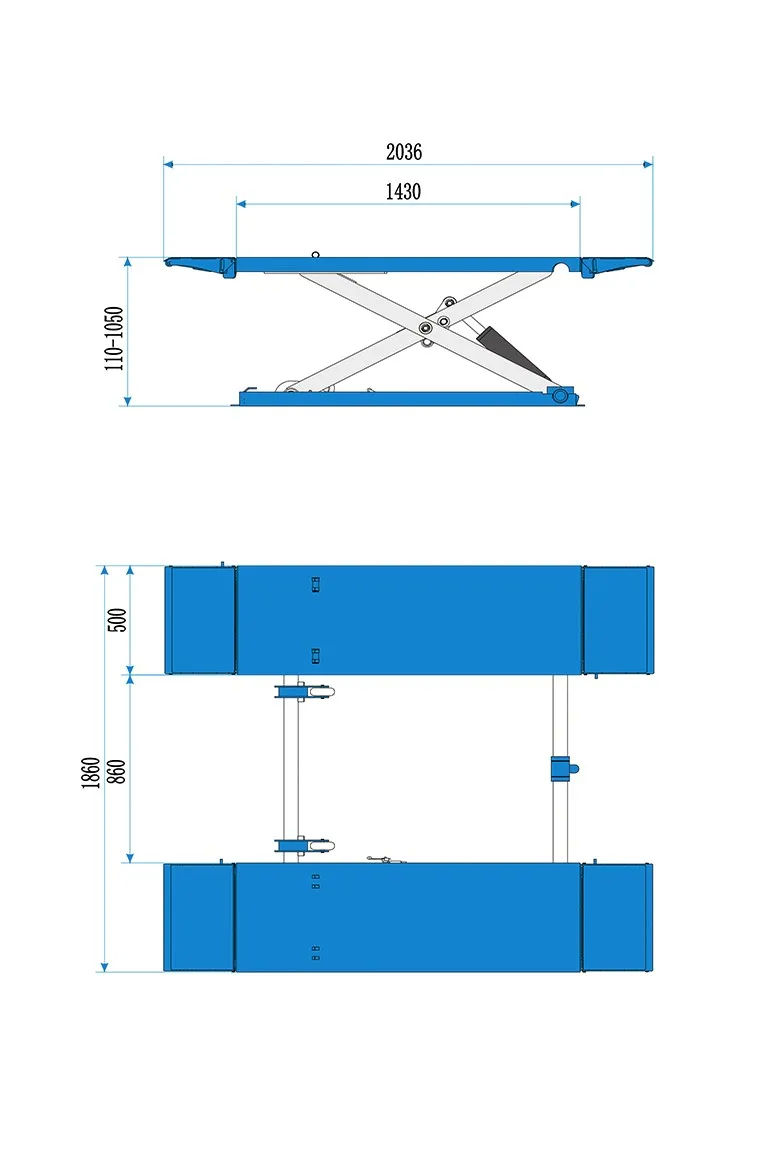

SPECIFICATIONS FOR 3.5 TON MID-RISE SCISSOR LIFT | ||
Lifting Capacity | 3500kg | |
Min. Height | 110mm | |
Max. Lifting Height | 1050mm | |
Overall Width | 1860mm | |
Platform Length | 1430~2036mm | |
Platform Width | 500mm | |
Width between Platforms | 860mm | |
Power Supply | 220V/380V, 50Hz/60Hz, 1Ph/3Ph | |
Main Features
1) 3 ton lifting capacity.
2) Moving kit included for easy service.
3) Drive-on and drive-off ramps can be locked as extension of platform.
4) Trouble-free hydraulic cylinder with imported sealing kit.
5) Portable control bay with 24V low-vltage control (main switch, up button, down button, lock button and power light)
6) Mechanical safety lock with standard pneumatic lock release. Electrical lock release is optional.

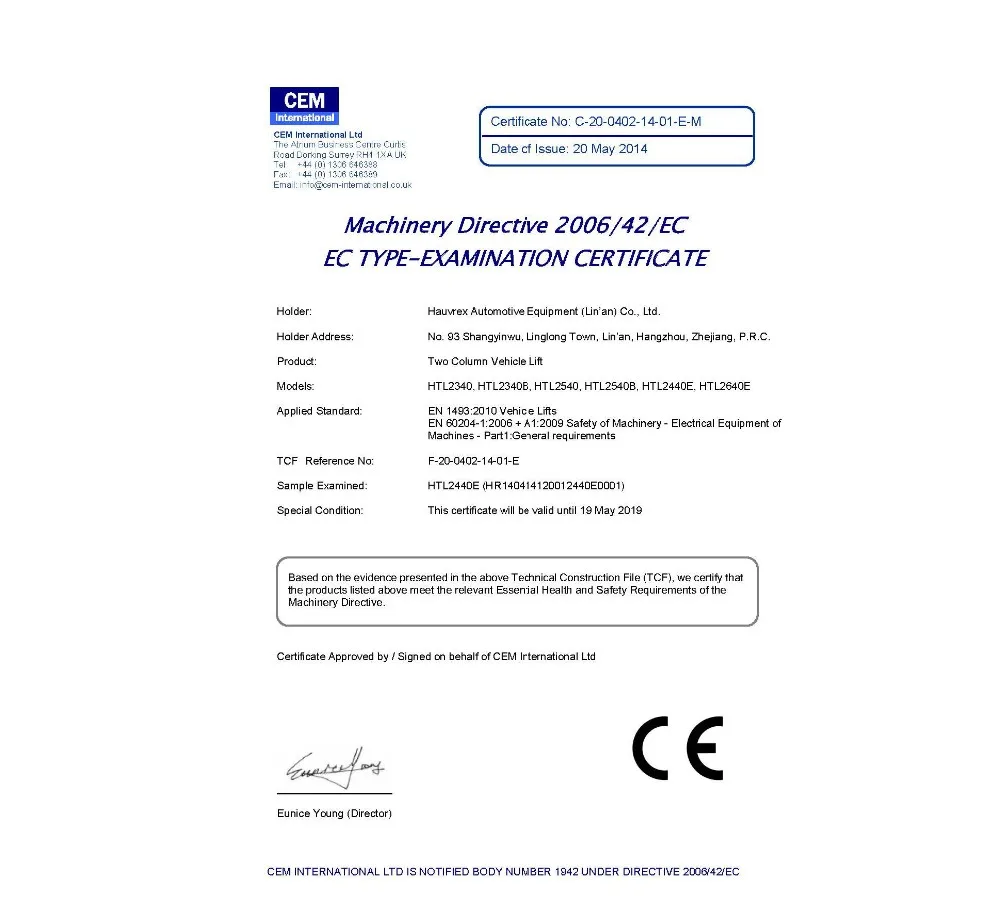

Certifications
Detailed Images
Start-up Device
The star-up device also known as boosting device. It helps the lift lifting 3 ton capacity at the lowest lifting point. It is especially useful when you want to lift a luxury car with very low chassis. It also helps the last lowering stage slow and smooth without "boom-boom" sound.

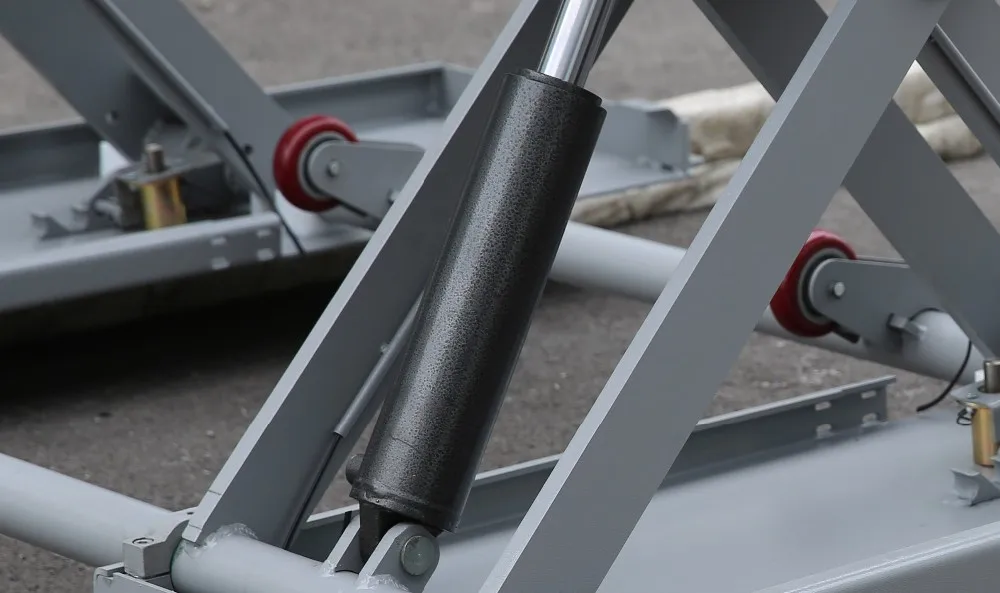

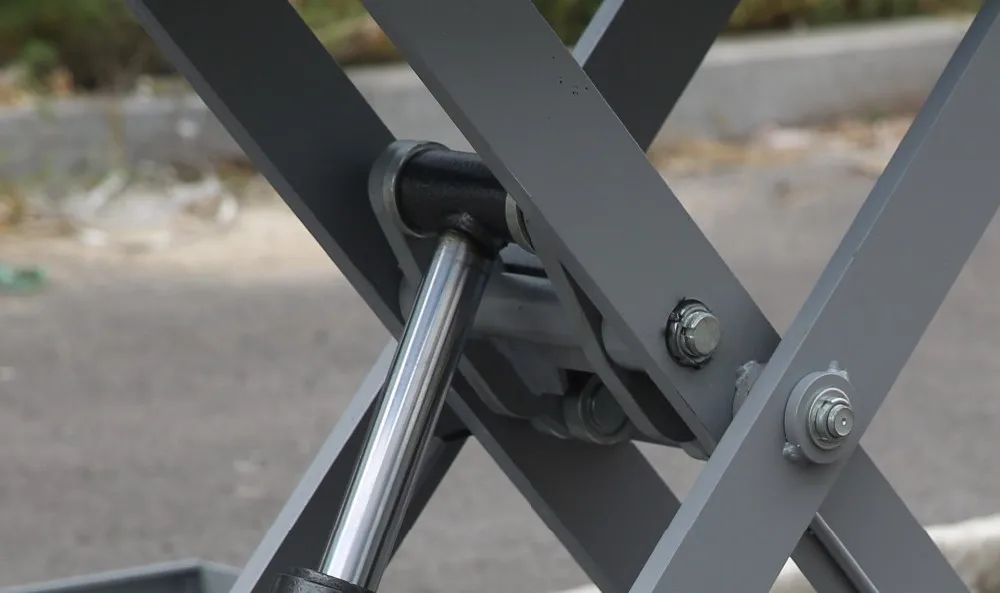

Hydraulic Cylinder
Hydraulic cylinder is the core of the lift. It is quite critical to a good lift. Bad cylinder may leak oil always which is dangerous to your expensive cars and maintenance workers. Our cylinder is from the most professioanl cylinder factory in China. We provide 2 years warranty on it.

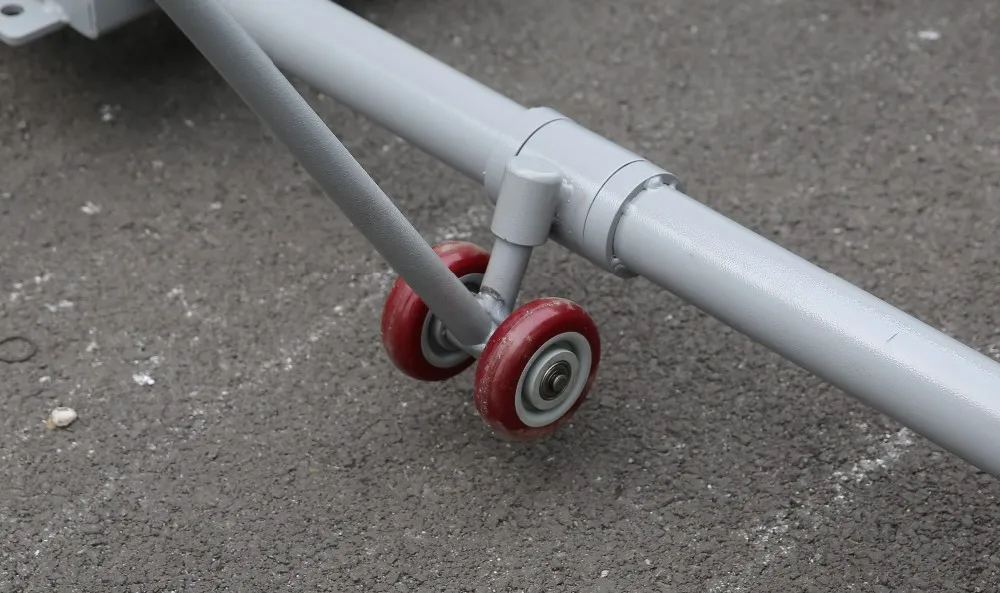

Moving trolley
The moving trolley with tow bar can be hooked to the main lift to move the lift around.

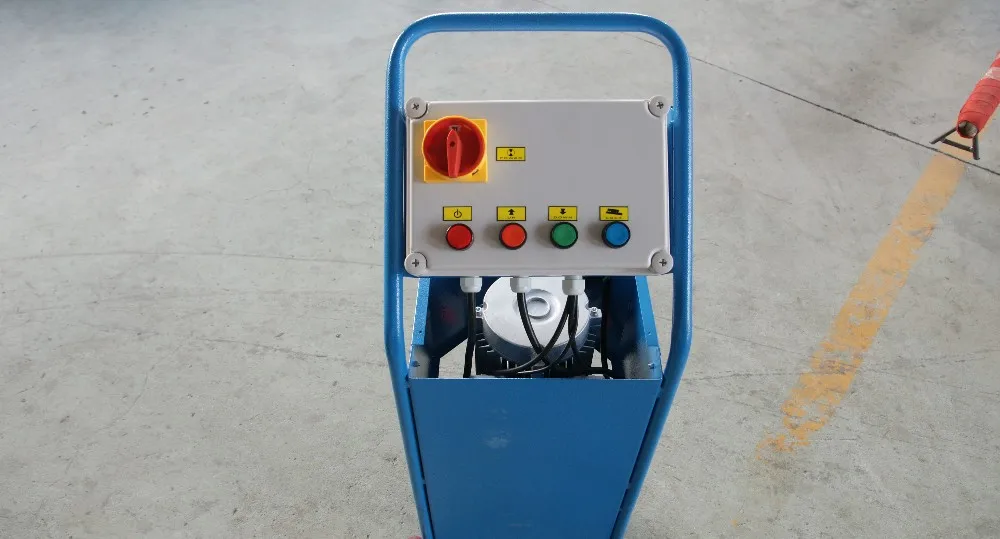

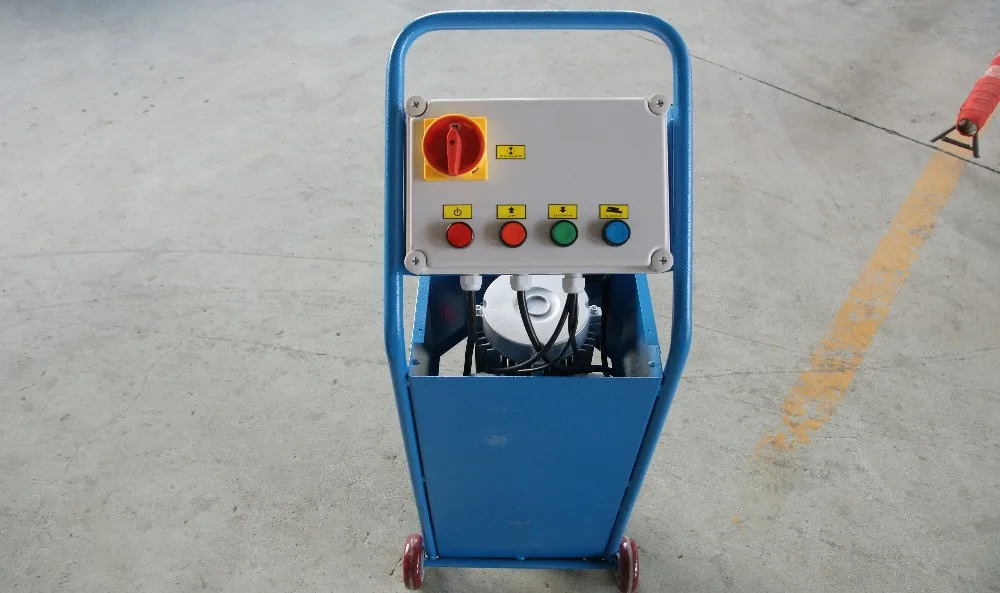

Control Bay
The Control Bay of the lift is installed with wheels. It can be moved around the car during the working. The control system of the lift is fully automatic. It is 24V low-voltage control which conforms to the European CE requirement.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

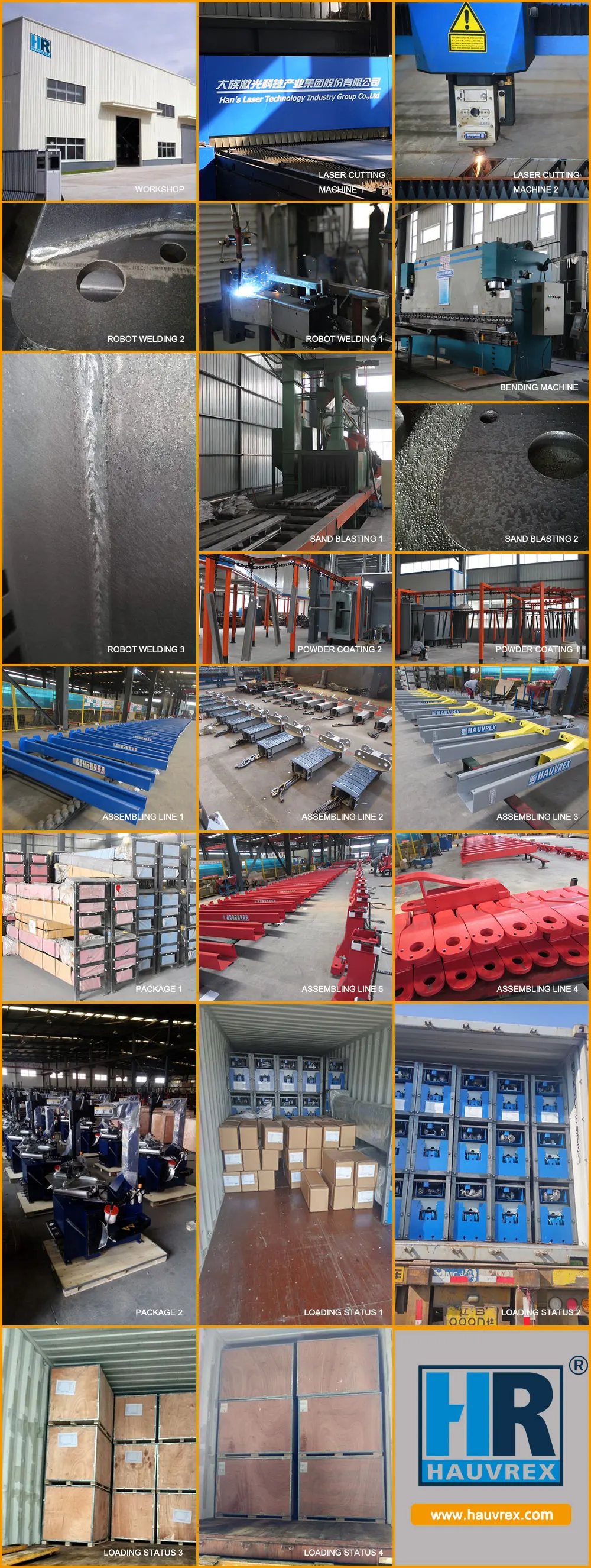

* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 1950 (L) * 1580 (W) * 225 (D) | |
Weight | 590kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). | |
