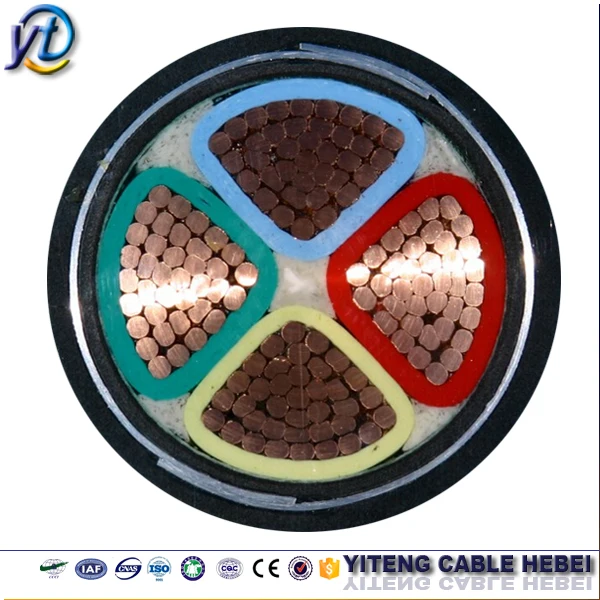

NYFGbY/ NYRGbY/ NAYFGbY/ NAYRGbY 0.6/1 kv Low Voltage Underground Cable
- Category: >>>
- Supplier: Yiteng Cable Technology Hebei Co. Ltd.
Share on (60607447550):
Product Overview
Description
Product Description

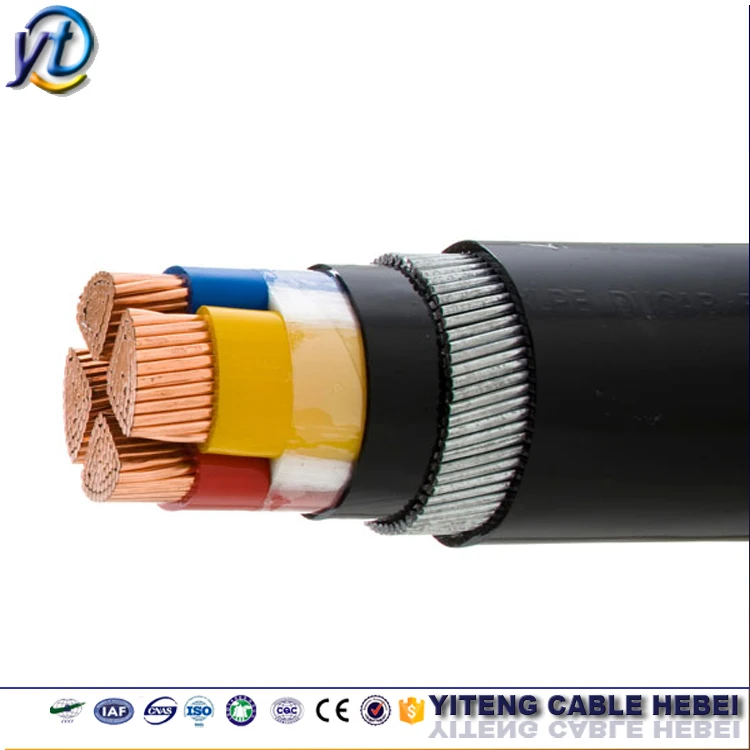

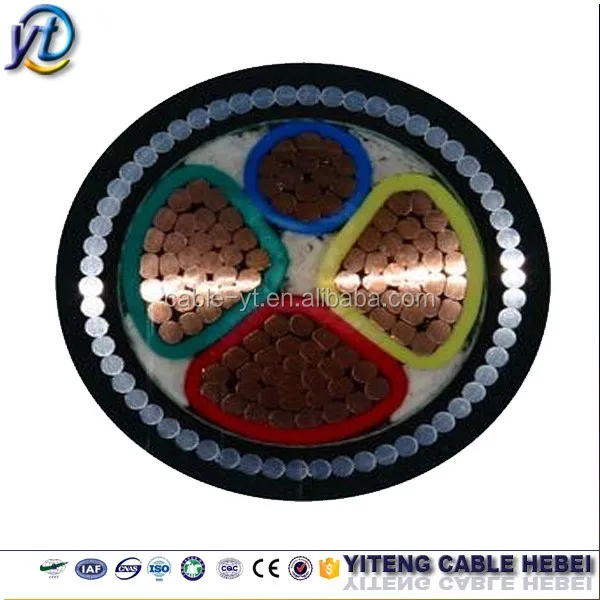

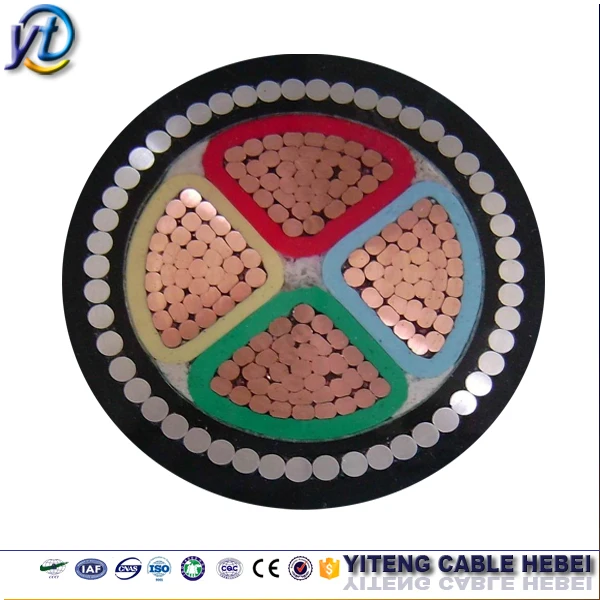

NYFGbY/ NYRGbY/ NAYFGbY/ NAYRGbY 0.6/1 kv Low Voltage Underground Cable
0.6/1 kV, NYFGbY (Cu / PVC / SFA / PVC)
(Copper Conductor, PVC Insulated, Galvanized Steel Flat Armor, PVC Sheathed)
Standard Specification : IEC 60502 – 1, SPLN 43 – 2
Galvanized Steel Flat Armor cable Specification:
| Galvanized Steel Flat Armor cable Application : For installation in ground, indoors, cable trunking and outdoors if increased mechanical protection is required or where high-pulling stress may occur during installation or operation. | |
Galvanized Steel Flat Armor cable Special Features on Request :
Note: Conductor shape | |
Galvanized Steel Flat Armor cable Standard Packing :
| |

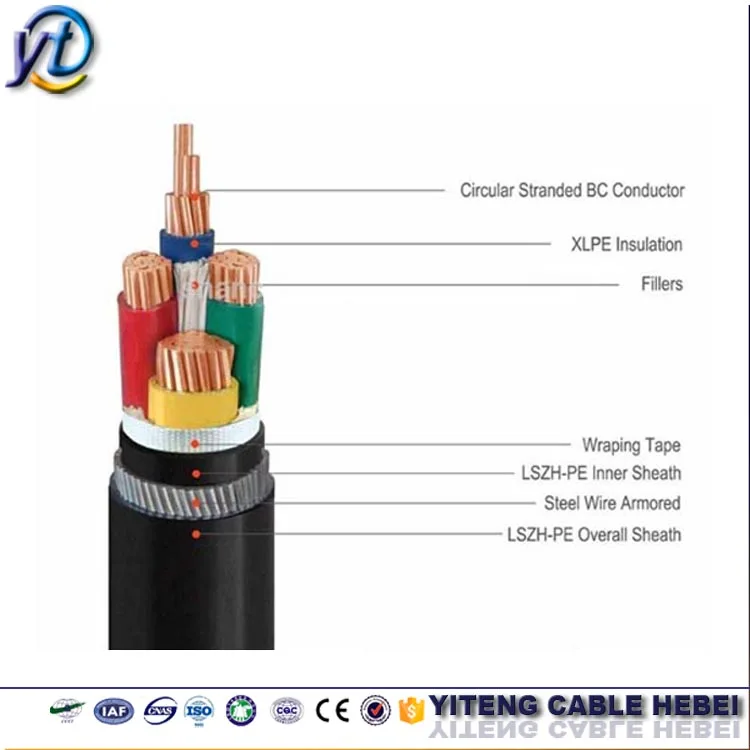

Galvanized Steel Flat Armor cable Construction:1 ..... stranded bare copper |
Standards:
DIN VDE 0271
DIN VDE 0276-603
DIN EN 60228 class 2 (construction)
Technical data:
| Nominal voltage Uo/U | [V] | 3600 / 6000 volt | |
| Test voltage | [V]AC | 11000 | |
| Temperature range | in motion | -5°C till +70°C | |
| fixed | -20°C till +70°C | ||
| Operating temperature | short circuit | °C | 160 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | in motion | x diameter | 15 |
| Flammability | standard | EN 60332-1-2 |
| Number of cores and nominal cross section mm2 | Copper figure kg/km | Overall diameter appr. mm | Weight appr. kg/km | Current carrying capacity ground A | Current carrying capacity air A | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| 3 x 50 SM | 1.500,0 | 41 | 3.520,0 | 175 | 165 | |||||
| 3 x 70 SM | 2.100,0 | 44 | 4.345,0 | 220 | 205 | |||||
| 3 x 95 SM | 2.850,0 | 47 | 5.330,0 | 260 | 250 | |||||
| 3 x 120 SM | 3.600,0 | 49 | 6.220,0 | 295 | 285 | |||||
| 3 x 150 SM | 4.500,0 | 52 | 7.120,0 | 335 | 325 | |||||
| 3 x 185 SM | 5.550,0 | 57 | 8.625,0 | 370 | 380 | |||||
| 3 x 240 SM | 7.200,0 | 59 | 9.885,0 | 425 | 430 |
Galvanized Steel Flat Armor cable Core Identification
Type | NYY-J with protective earth | NYY-O without protective earth |
| 1 core | Green/yellow | Black |
| 2 core | - | Brown, blue |
| 3 core | Brown, blue, G/Y earth | Brown, black, grey |
| 4 core | Brown, black, grey, G/Y earth | Brown, black, grey, blue |
| 5 core | Brown, black, grey, blue, G/Y earth | Black, blue, brown, grey, black |
| 7 core and above | Number coded with a G/Y earth | Number coded |
Packaging & Shipping
Packing
Standard Export package:
100m/roll,500m/roll,1000m/roll on the pallet or wooden drum
Delivery
Within -5-10 working Days once Order Confirmed
Port: Tianjin, or other ports as per your requireents.
Sea freight:FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency
Related Products

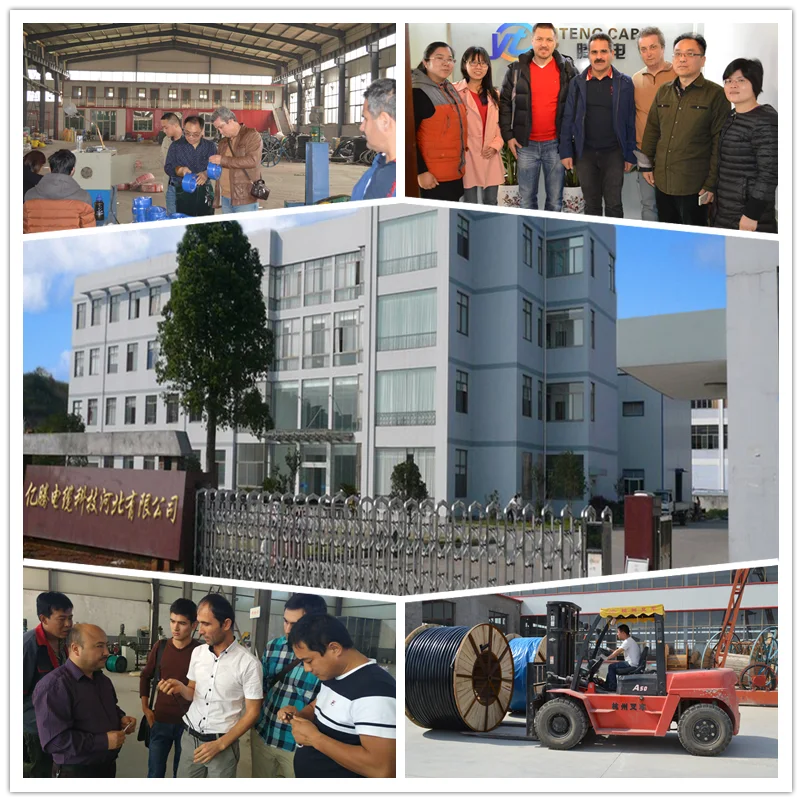

Company Information
| Factory Name | Yiteng Cable Technology Hebei Co.,Ltd |
| Location | Ningjin Town, Shijiazhuang, Hebei, China |
| Establishes in | 1994, 20 years' experience of producing kinds of cables |
Export Office Location | Area1 Donghai Building, Shijiazhuang, Hebei, China |

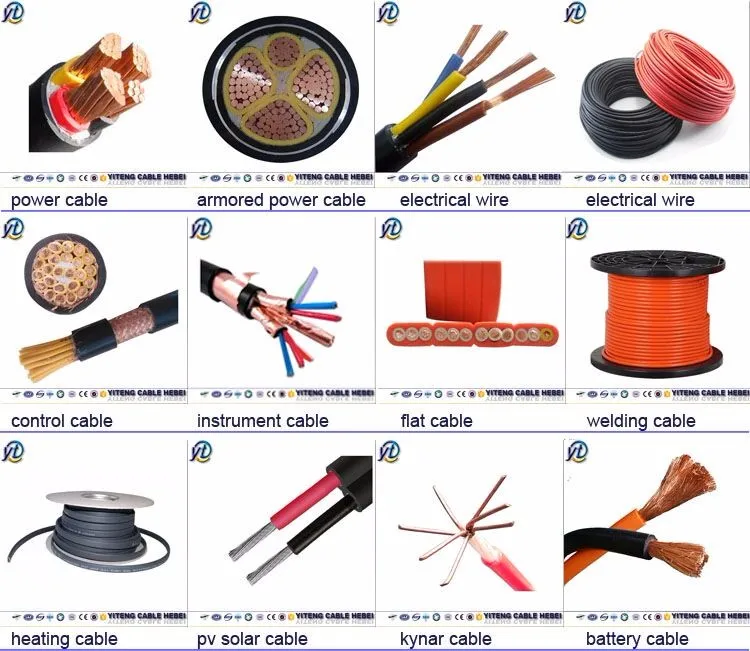

| Our Main Cables Products | Low Voltage Power Cable and Medium Voltage Power Cable with or without Armor(Armor Type:Steel Tape or Steel Wire) High Temperature Cable,Silicone Rubber Insulated Cable, Teflon Insulated Cable Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Aluminum Alloy Cable with/ without Armor and Interlock Shielded/ Screened Control Cable Computer Shielded Cable Flexible Rubber Cable Electrical Wires |
