Ceyear Broadband Solid State Amplifier Modules (Frequency range up to 100 GHz)
- Category: >>>
- Supplier: Ceyear Technologies Co. Ltd.
Share on (60607873400):
Product Overview
Description
Product Description
Ceyear provides multiple types of broadband solid-state amplifiers, such as
low noise amplifiers, medium power driving amplifiers, high power amplifiers, waveguide amplifiers, etc, which can be widely used in the fields like testing and ECM.

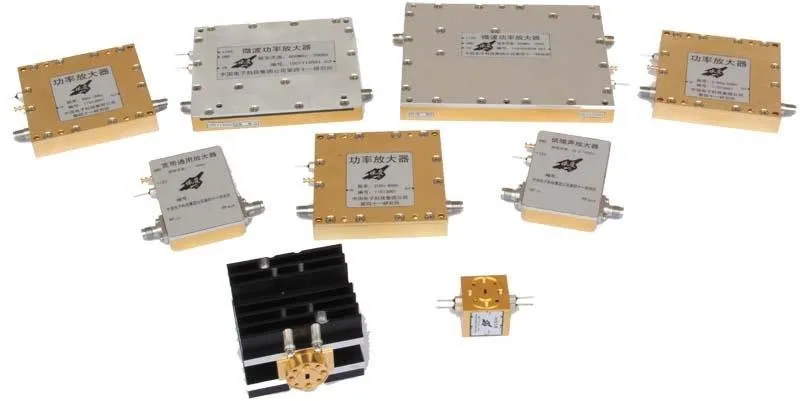

The products include amplifier modules and complete sets
Broadband with frequency up to 100GHz
GaAs or GaN for design
Adopting planar and space synthesis techniques, max. output power reaches 50W
Low Noise Amplifiers
Model | Frequency Range (GHz) | Gain (Min.) (dB) | Noise Figure (Max.) (dB) | P1dB (Typ.) (dBm) | Power Supply (Typ.) | Connector Type | Case Type |
80230 | 2~20 | 25 | 4 | 12 | 130mA@+8V | 3.5mm(f) | AMP1 |
80231 | 18~26.5 | 30 | 4 | 10 | 160mA@+5V | 3.5mm(f) | AMP1 |
80232 | 26.5~40 | 30 | 4 | 10 | 270mA@+8V | 2.4mm(f) | AMP1 |
80230F | 0.5~40 | 30 | 5 (0.5GHz~25GHz) 6 (25GHz~40GHz) | 15 | 360mA@+7V | 2.4mm(f) | AMP1 |
80232F | 26-40 | 22.5 | 5 | 10 | 170mA@+7V | 2.92mm(f) | AMP1 |
80230H | 0.5-50 | 18 | 5 (0.5GHz~25GHz) 6 (25GHz~40GHz) 8.5 (40GHz~50GHz) | 10(40GHz) 7(50GHz) | 200mA@+7V | 2.4mm(f) | AMP1 |

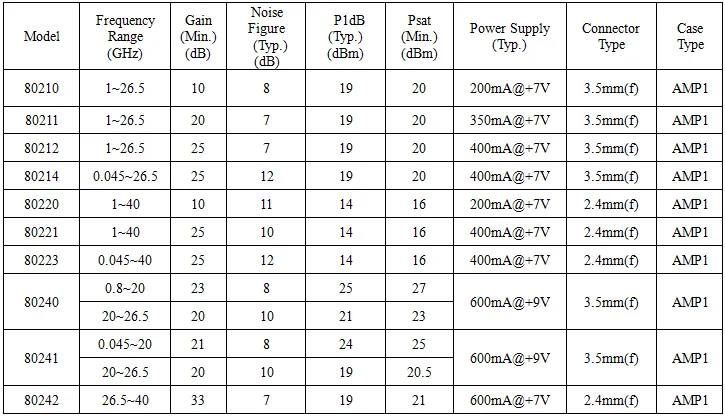

Broadband Driving Amplifiers

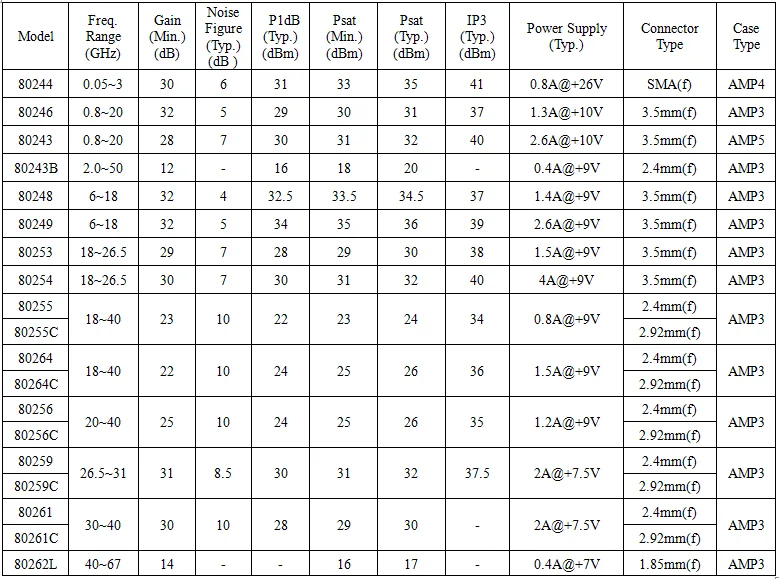

Broadband Power Amplifiers

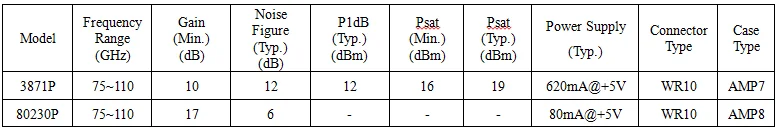

Waveguide Amplifiers

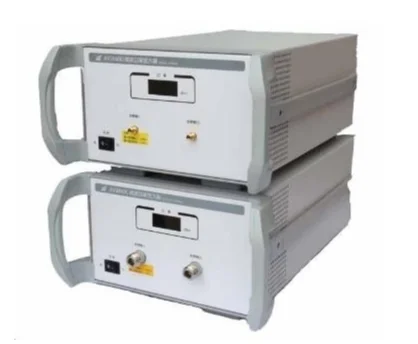

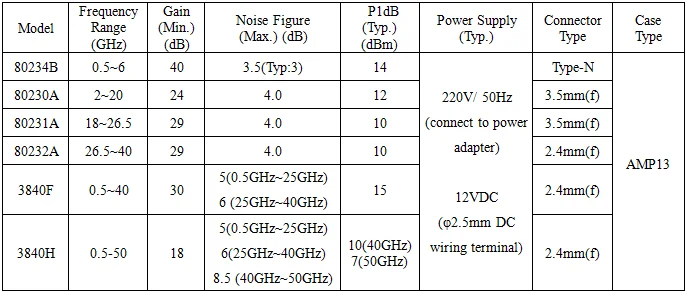

Compact Low-Noise Amplifier Instruments (With power adapter)

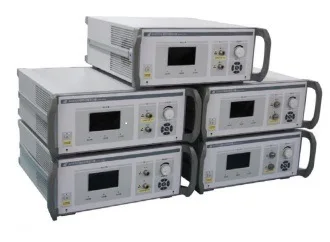

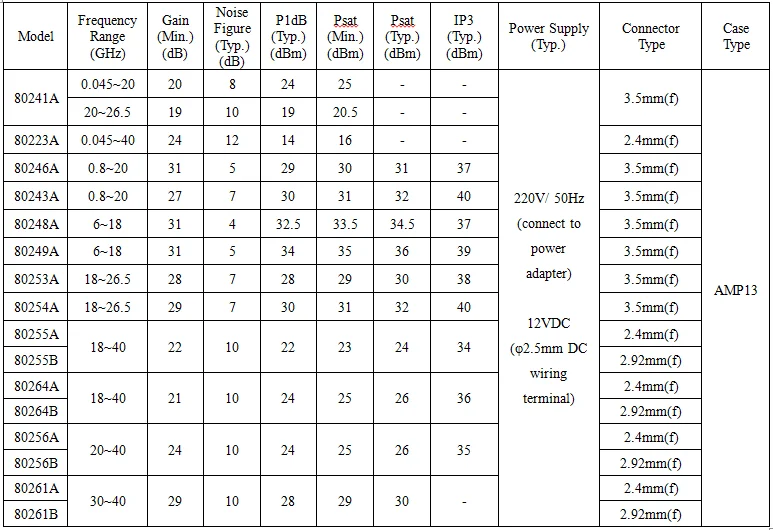

Compact Power Amplifier Instruments (With power adapter)
