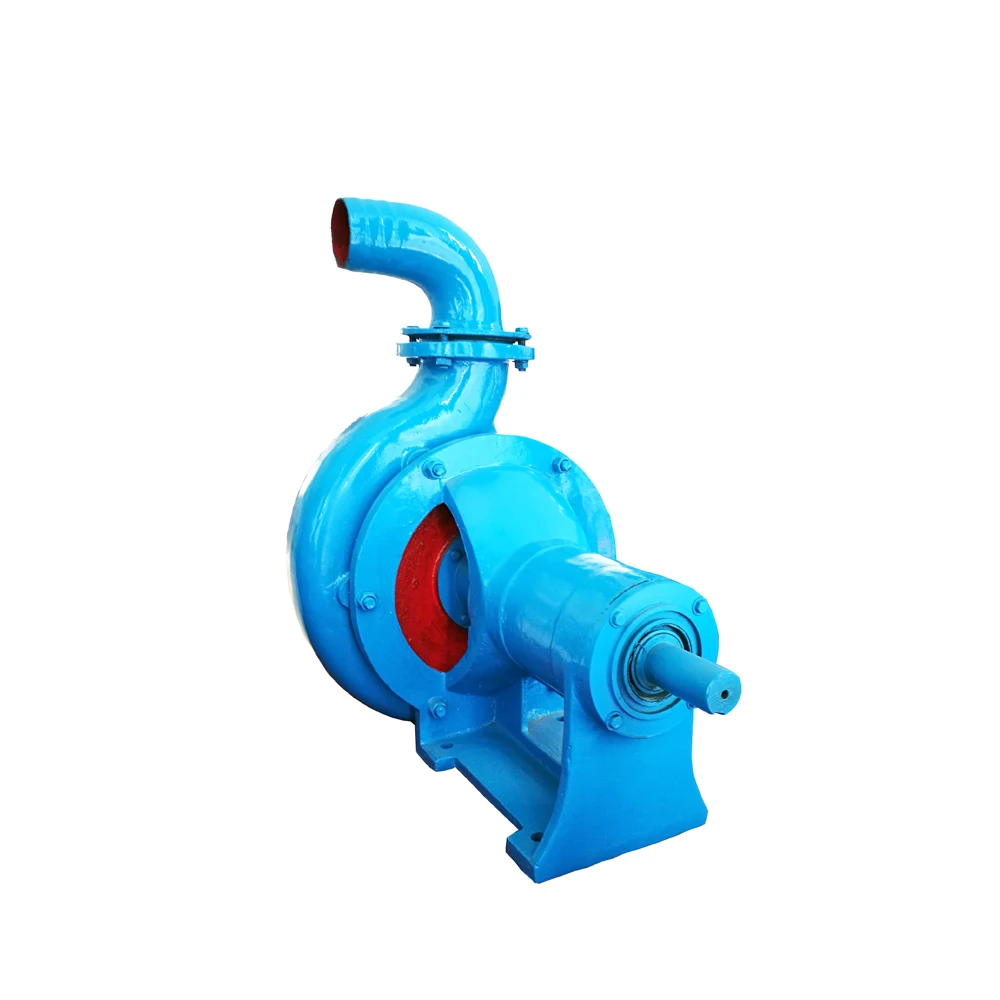

Lakes navigation diesel 6 inch inlet sand gravel pump
- Category: >>>
- Supplier: Yuzhou City Shenlong Pump Co. Ltd. [Henan China]Yuzhou
Share on (60607993816):
Product Overview
Description
Product Description

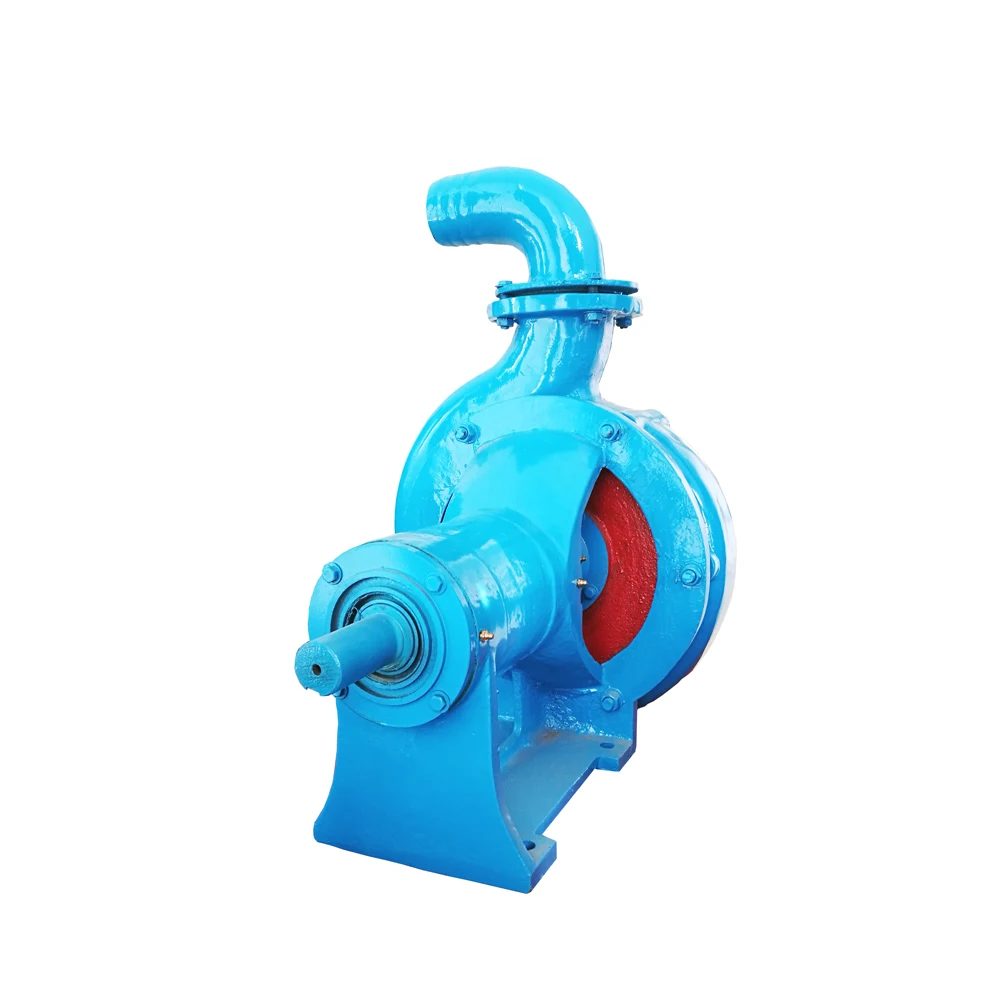

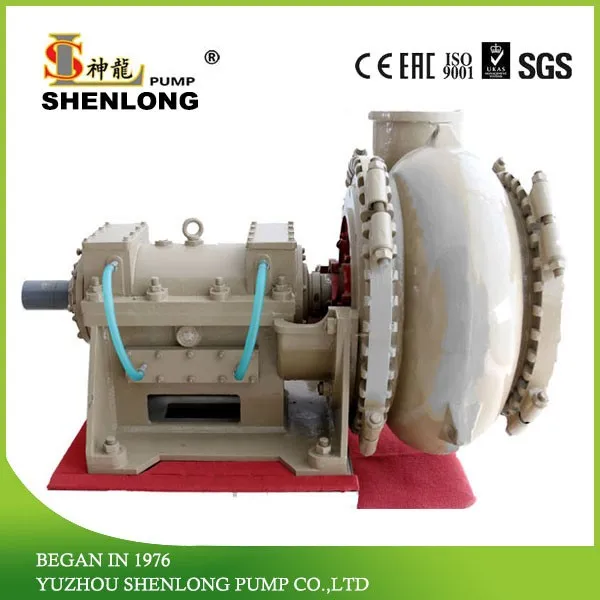

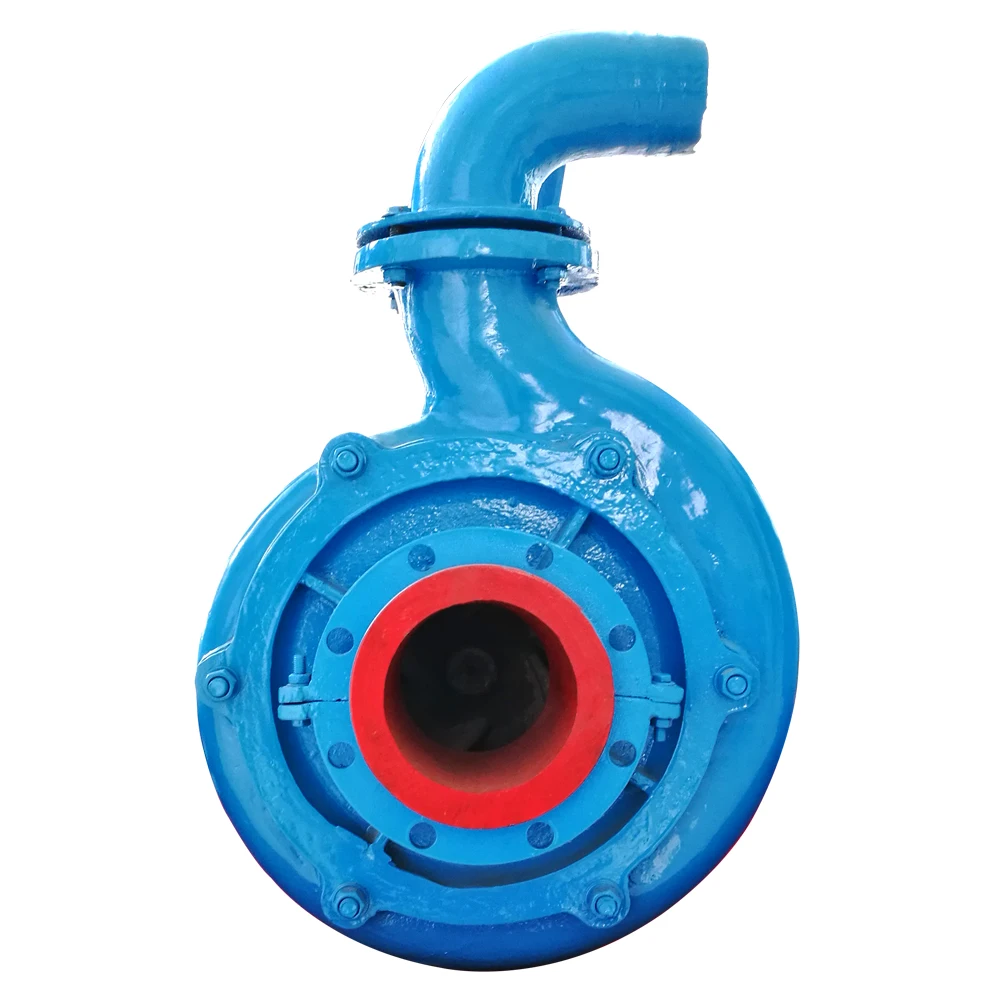

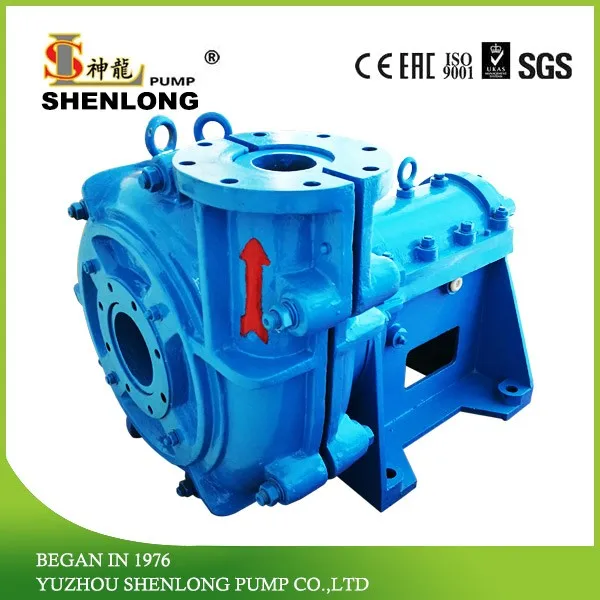

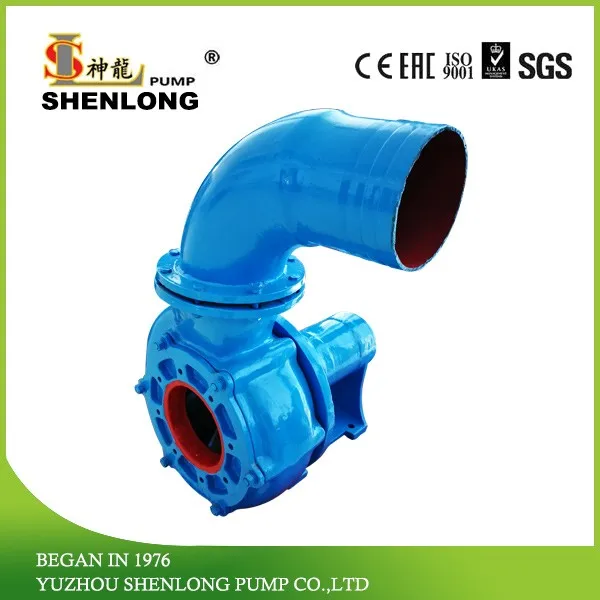

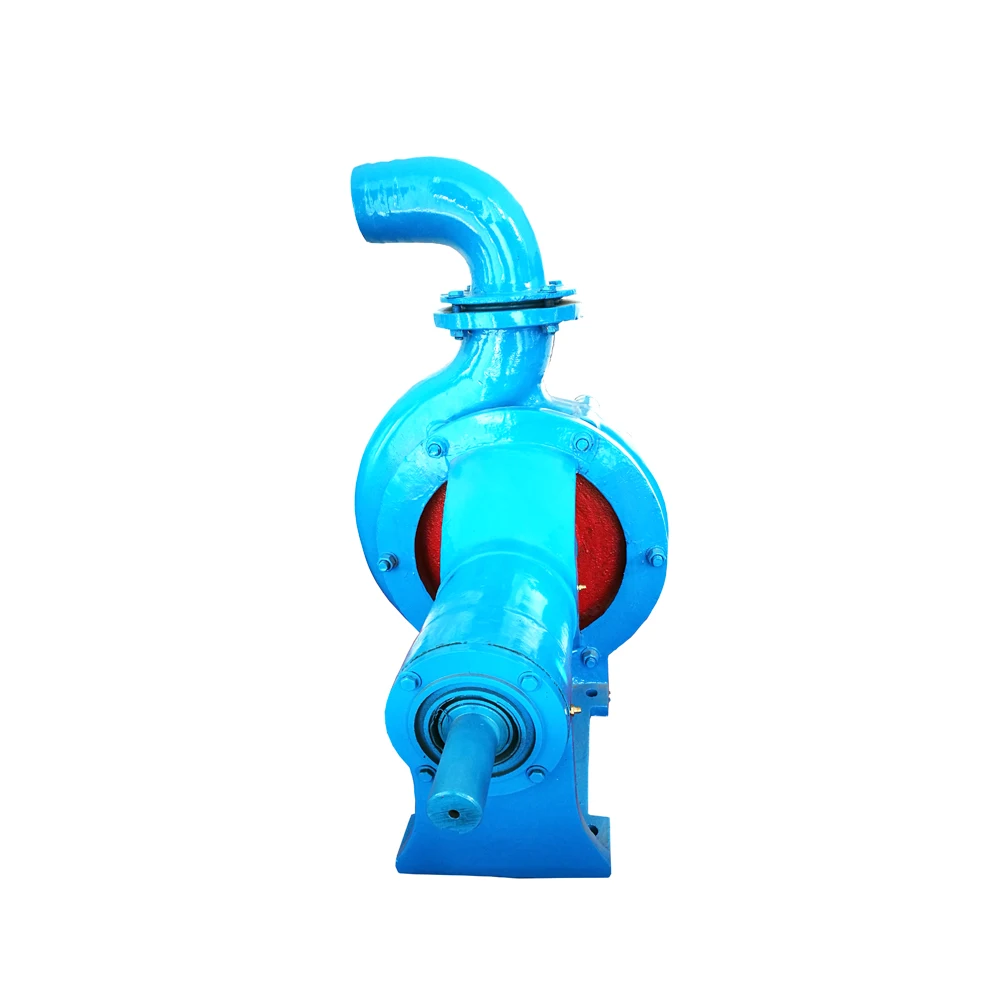

Lakes navigation diesel 6 inch inlet sand gravel pump
For using in mine,building,paper making,textile,food and feeding stuff,etc;
good price 6 inch sand gravel pump features: |
1.Single stage and single suction |
2.haft open impeller |
3.anti abrasive material,high chrome alloy(flow parts) |
4.Adjustable between impeller and protection plate |
5.Max density:50-60%(by weight) |
6.easy intallation |
7.Efficient working |
| Model | Head(m) | Flow(m³/h) | Rotate speed(r) | Power(kw) | inlet/outlet(mm) |
8PNL-35 | 40 | 400 | 1470 | 90 | 200/200 |
| 6PNL-35 | 40 | 300 | 1470 | 75 | 200/150 |
| 6PNL-30 | 22 | 250 | 1470 | 37 | 150/150 |
| 6PNL-28 | 18 | 250 | 1470 | 30 | 150/150 |
| 4PNL-36 | 50 | 250 | 1470 | 55 | 150/100 |
| 4PNL-28 | 18 | 150 | 1450 | 22 | 100/100 |
| 4PNL-25 | 15 | 100 | 1450 | 15 | 100/100 |
| 3PNL-30 | 21 | 108 | 1450 | 22 | 100/75 |
| 2PNL-26.5 | 19 | 47 | 1450 | 11 | 100/50 |
| 2PNL-20.4 | 14 | 25 | 1450 | 5.5 | 75/50 |
| 1PNL-20.4 | 13 | 16 | 1450 | 3 | 50/25 |
Company Information
please click above picture to view company and product vedio
Packaging & Shipping
export wood carton
Our Services
1.processing with supplied drawing
2.processing with supplied samples
3.produce all kinds of anti abrasive spare parts except for pump
4.product warranty:lifetime, no matter how long to use,if there is air hole in the flow parts,please return it,will give you a new one to repalce.
Buying Guides
please provide following technical data for our reference,then we will recommend proper model:
- good quality 6 inch sand gravel pump is used for pumping what is kind of liquid,in what is kind of place
- conveying distance (m)
- conveying height (m)
- suction depth(m);sand layer (m)
- pipe size(inner diameter)
- fine sand,middle sand or rough sand? if is there stone or not,what is the biggest stone diameter?
- take some pictures of your working site
