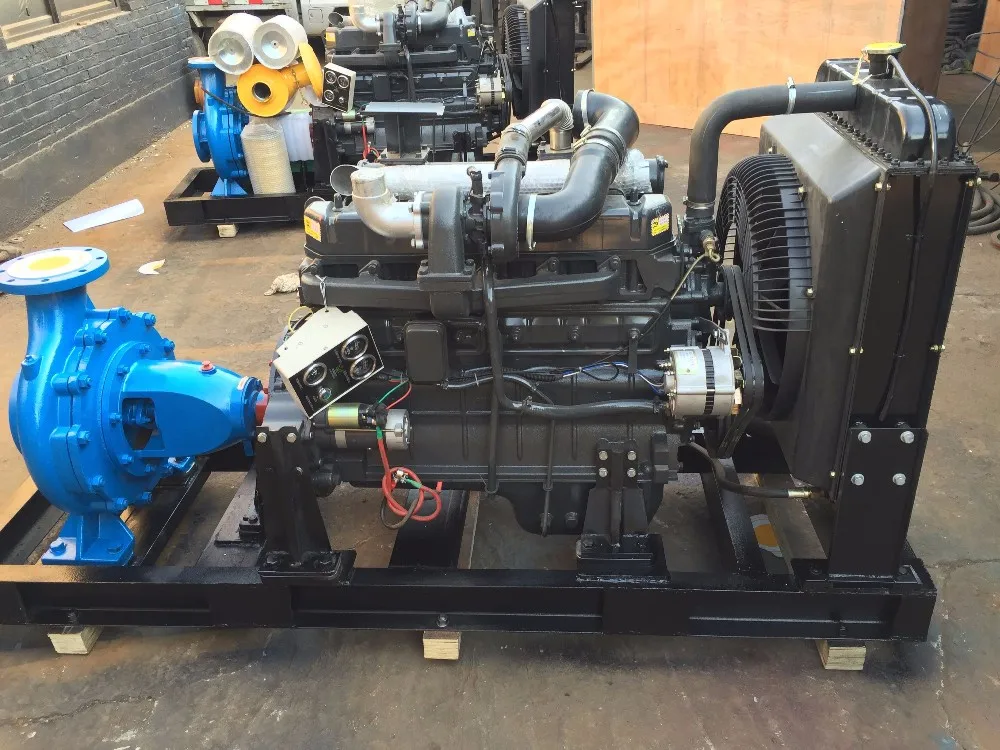

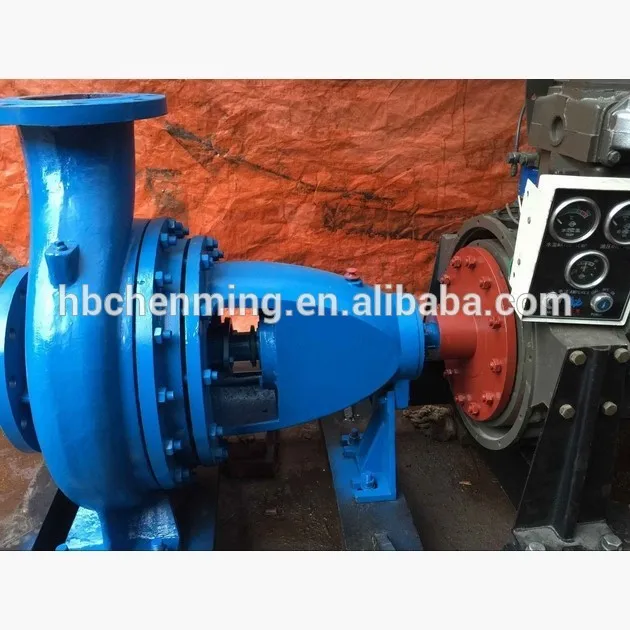

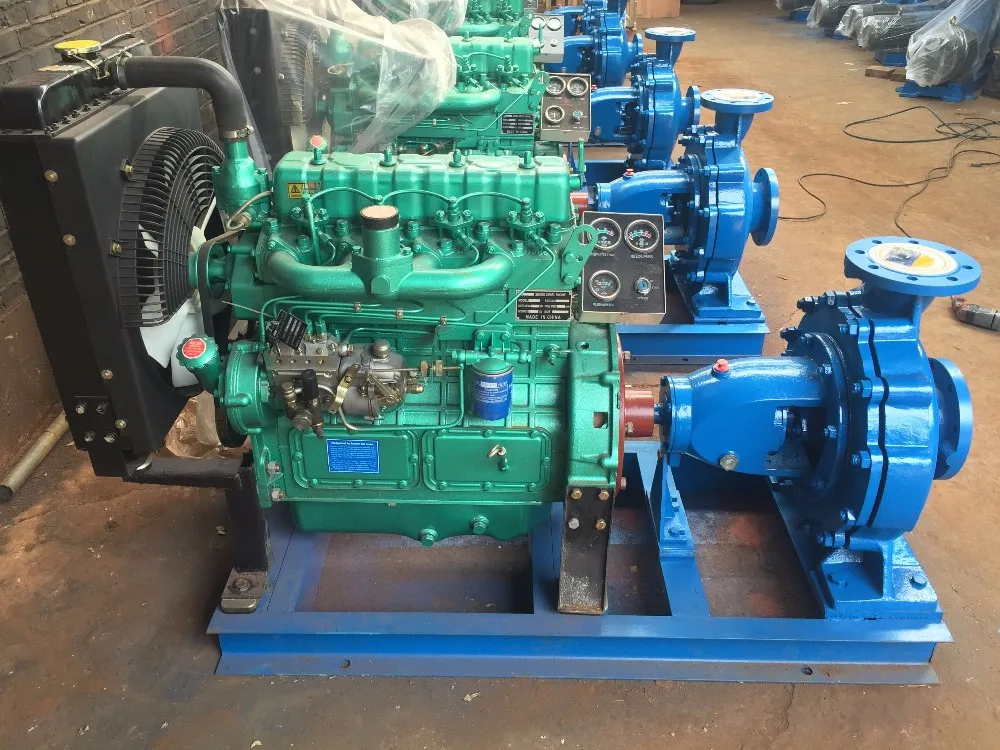

6 inch long distance agricultural farm irrigation water centrifugal pump with diesel engine for water pumping

Product Overview

Description

6 inch long distance agricultural farm irrigation water centrifugal pump with diesel engine for water pumping

 Introduction:

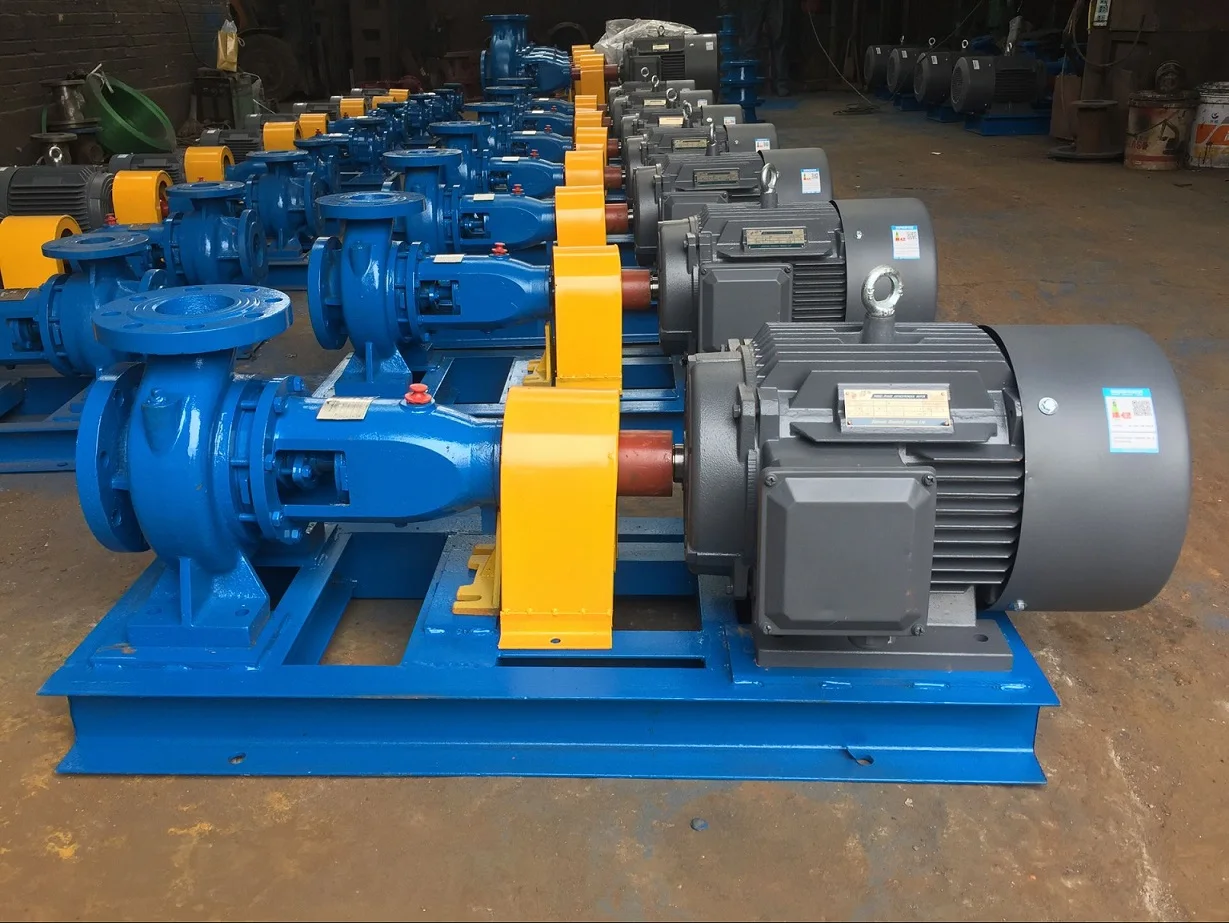

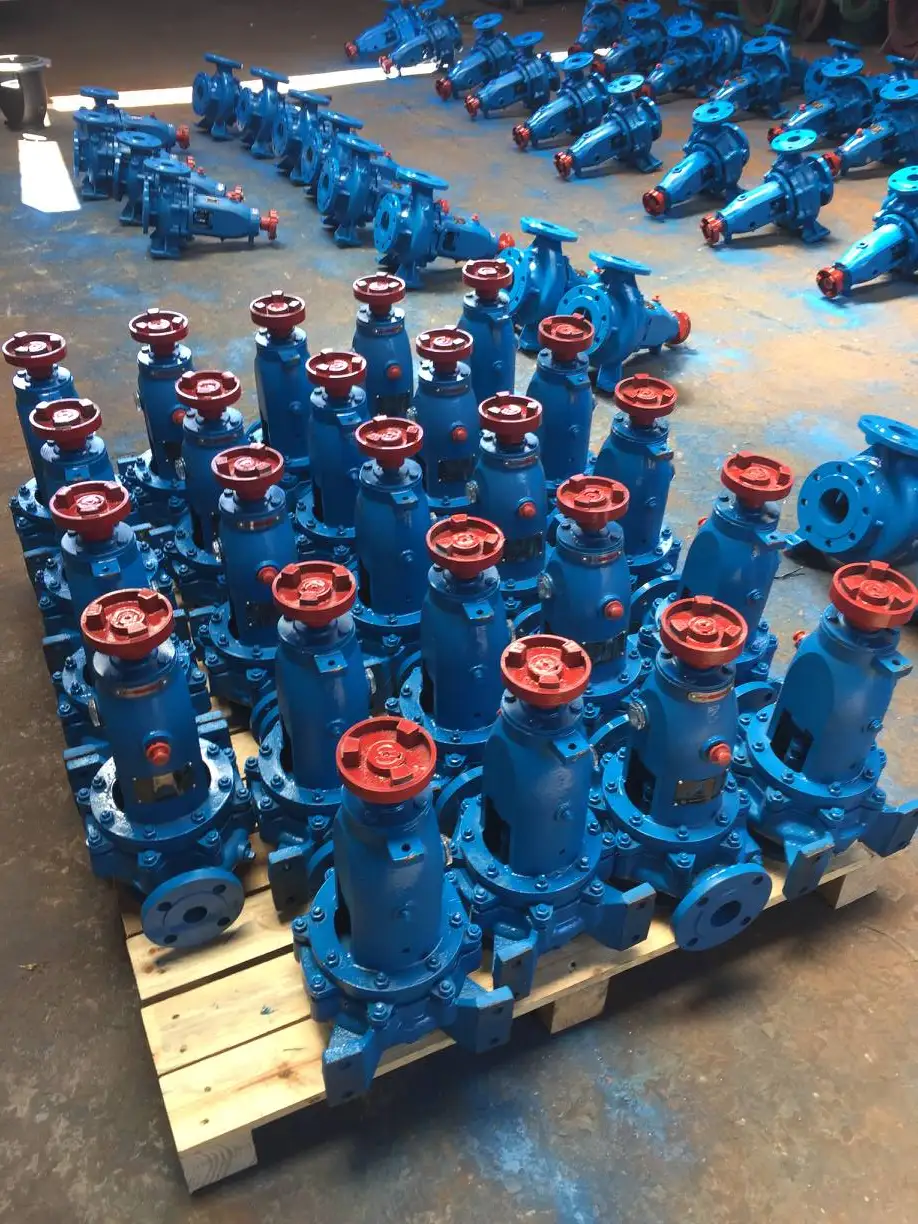

 Type IS irrigation pump is made in china, which is equal to K type centilever centrifugal pump in russia, it is single stage, single suction (axial suction) , end suction centrifugal water pump,

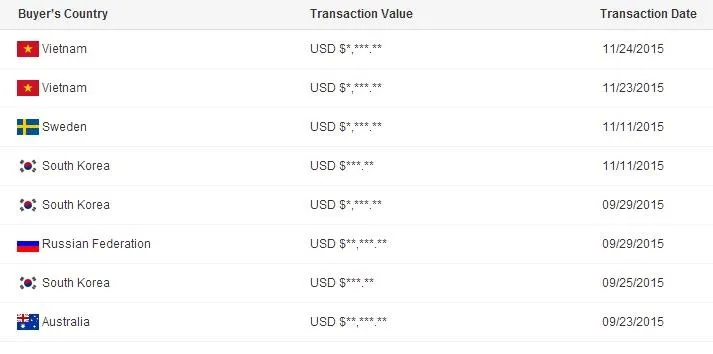

Over 10000sets of chenming brand centrifugal pumps are widely used in oversea markests including Russia, Sweden, Mexico, Brazil, Pakistan,  Vietnam,   Philippines etc.

Usage:

Item	irrigation pump
diesel irrigation pump	End Suction Centrifugal Pump
Model	IS
Materail	cast iron
Motor Type	Y type Motor
Structure	Horizontal centrifugal pump
Seal	Packing
Drive	Coupling
Rotate	Clockwise
Theory	Centrifugal Pump
Structure	Single-stage Pump
Usage	water
Power	Electric and Diesel
Standard or Nonstandard	Standard
Fuel	Diesel
Pressure	Low Pressure
Application	Mine, coal plant, concrete plant
Outlet Diameter	100-200mm
Capacity	36-930 m3/h
Head	7-48m
Rotation Speed	500-1400r/min
Power	7.5-185kW
Certificate	ISO9001
Feature	High efficiency,Easy maintenance

Technical Parameter:

Model	Capacity	Head	Speed	NPSHr	Efficiency	Power
	Q(m3/h)	H (m)	n(rpm)	r(m)	η (%)	Kw
50-32-125	12.5	20	2900	2	60	2.2
50-32-160	12.5	32	2900	2	54	3
50-32-200	12.5	50	2900	2	48	5.5
50-32-250	12.5	80	2900	2	38	11
65-50-125	25	20	2900	2	69	3
65-50-160	25	32	2900	2	65	5.5
65-50-200	25	50	2900	2	60	7.5
65-40-250	25	80	2900	2	53	15
65-40-315	25	125	2900	2.5	40	30
80-65-125	50	20	2900	3	75	5.5
80-65-160	50	32	2900	2.5	73	7.5
80-50-200	50	50	2900	2.5	69	15
80-50-250	50	80	2900	2.5	63	22
80-50-315	50	125	2900	2.5	54	37
100-80-125	100	20	2900	4.5	78	11
100-80-160	100	32	2900	4.5	78	15
100-65-200	100	50	2900	3.6	76	22
100-65-250	100	80	2900	3.8	72	37
100-65-315	100	125	2900	3.6	66	75
125-100-200	200	50	2900	4.5	81	45
125-100-250	200	80	2900	4.2	78	75
125-100-315	200	125	2900	4.5	75	110
125-100-400	100	50	1450	2.5	65	30
150-125-250	200	20	1450	3	81	18.5
150-125-315	200	32	1450	2.5	79	30
150-125-400	200	50	1450	2.8	75	45
200-150-250	400	20	1450	3.5	82	37
200-150-315	400	32	1450	3.5	82	55
200-150-400	400	50	1450	3.8	81	90



Show:



 Q1. What is your product range?

Centrifugal pump, slurry pump, gravel pump, clean water pump, sewage pump, chemical pump, single stage

pump, double suction pump, industry pump, oil pump, paper pulp pump, mud pump, self-priming pump, pipe

water pump, boiler water pump, etc.

Q2. Are you a manufacturer?

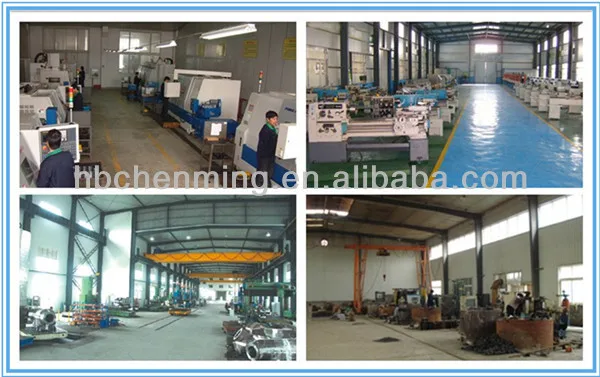

Yes, we have been in manufacturing and marketing industry centrifugal pump over 20 years.

Q3. What information should I let you know if I want to get a quotation?

Pump capacity, pump head, medium, medium temperature, pump material, quantity, if possible, please also

provide the pump model you are using now, price will be calculated as per the pump model, if not, we will

recommend relevant product for reference.

Q4. Do you impact the finished product?

Yes, each batch of production and finished product will be quality checked strictly before delivering.

Q5. How do you ship the finished product?

By sea.

By plane.

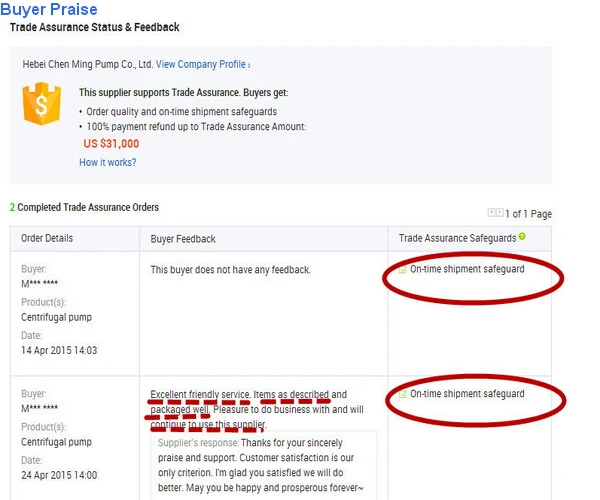

Buyer Praise:
