Fan Pump for Paper mill paper machine

Product Overview

Description

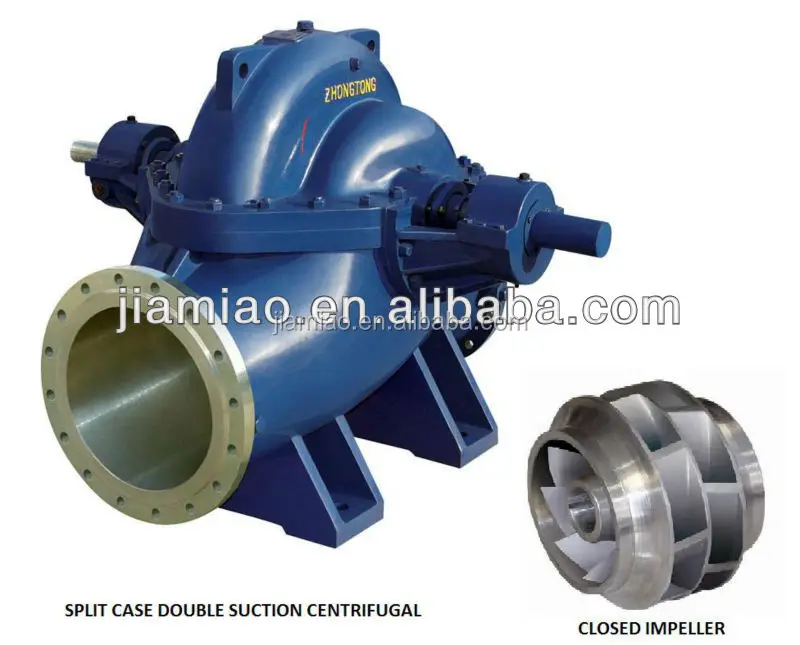

SS Model Double Suction /Split Casing type Centrifugal Pump.









2. Product Perfomance Range:



Capcacity	100-5000m3/h
Heads	8-75m
Speed	1450,980r/min







3.Material Configuration:



Pump Spare Part Name:	Q	F
Pump body, Pump Cover	Ductile Iron	SS304
Impeller	SS304	SS304
Axle sleeve,Impeller ring	SS304	SS304
Shaft	40Cr	3Cr13
Bearing body	HT250	HT250



4. Shaft Sealing:



Gland Packing Sealing.





5.Structure and design feature:



1. Double Scution low pulse closed Impeller.

2. Split Case Structure, easy to install and maintain.

3.Used for the pulping system of high speed paper machine.

4. Oil Lubrucation,running stable,long service life.



6. Dimensional of Inlet &Outlet Flange.

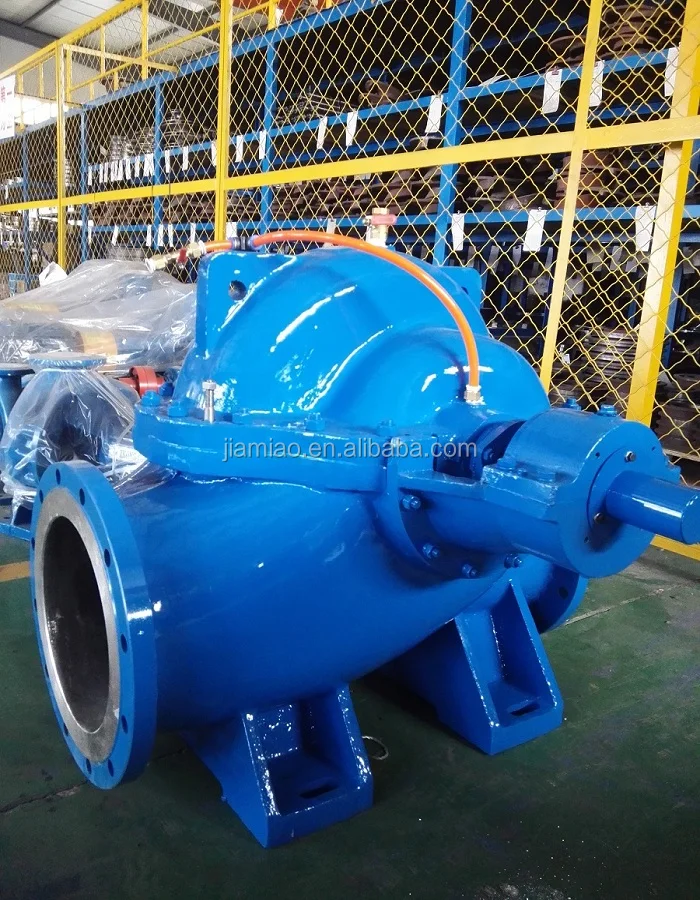

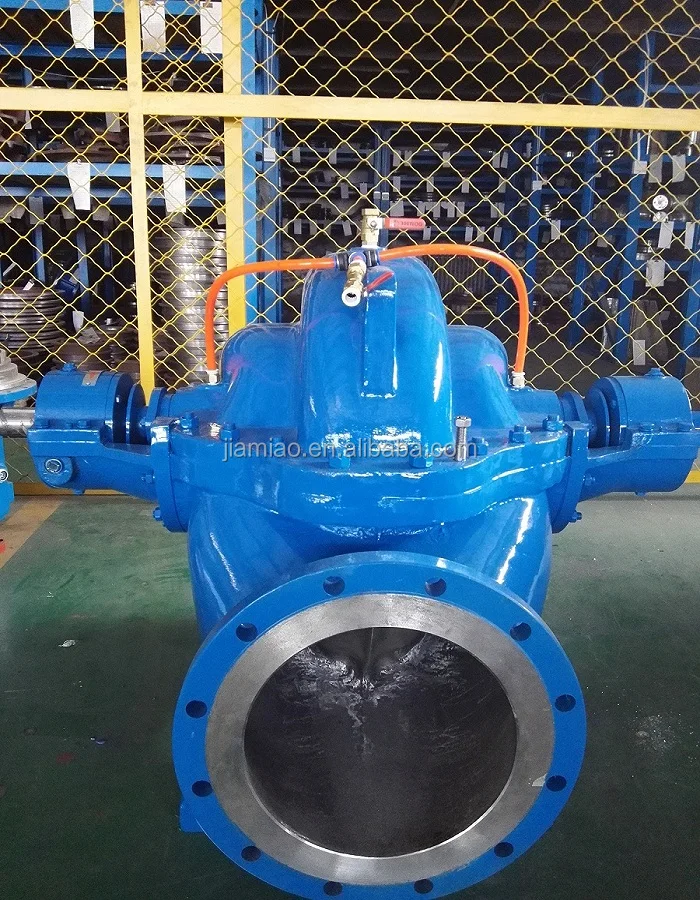

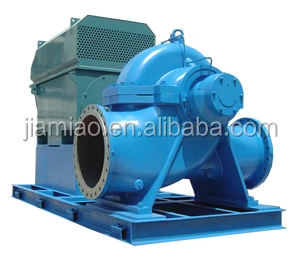

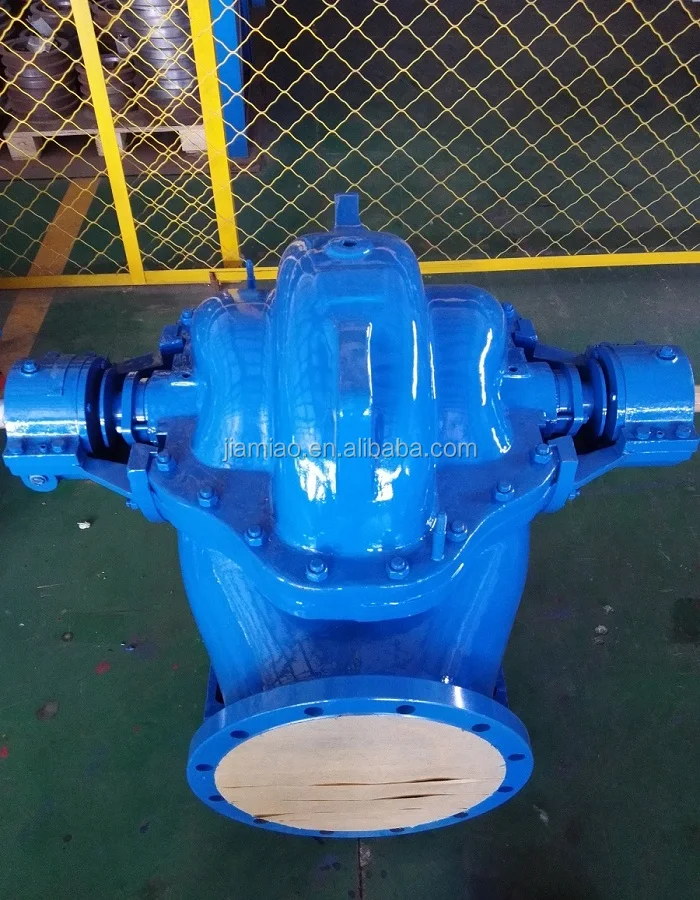

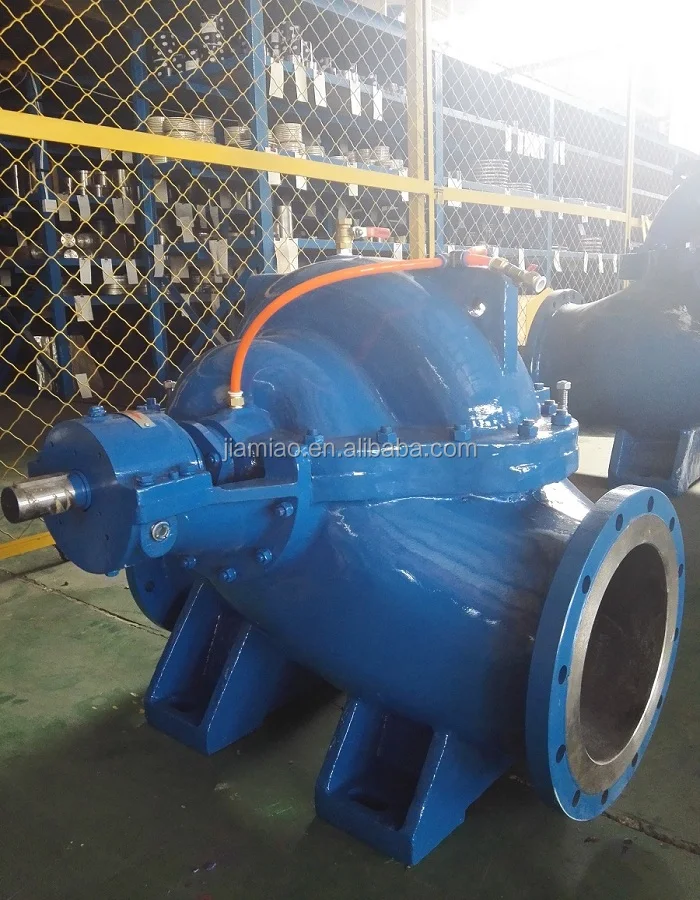

 7. Pump Picture:
