Factory price unique mini china drilling rig for open mining, hydro power plants

Product Overview

Description

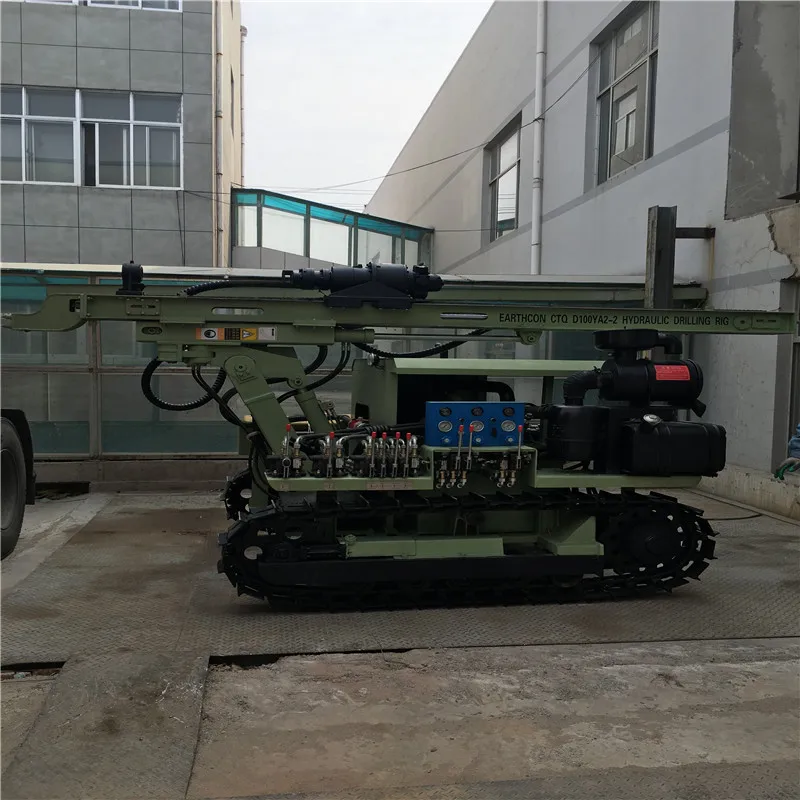

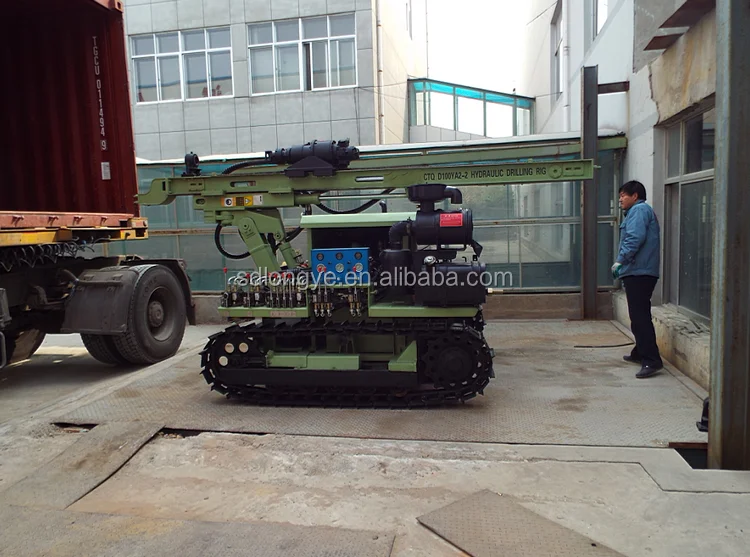

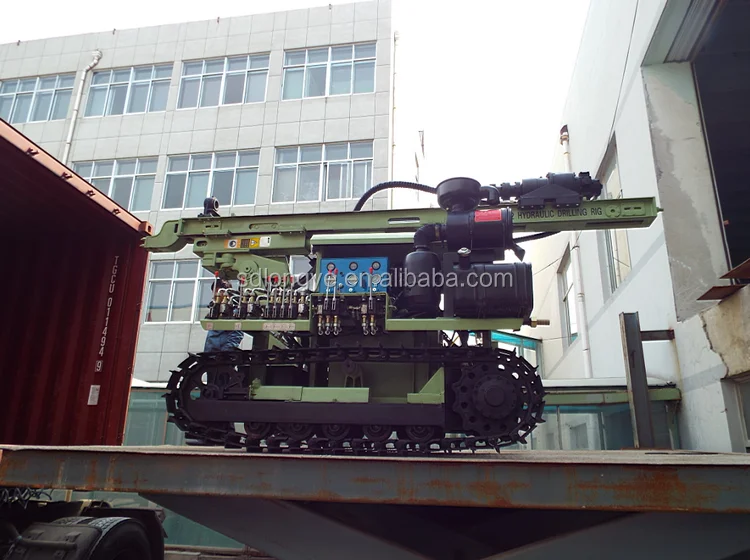

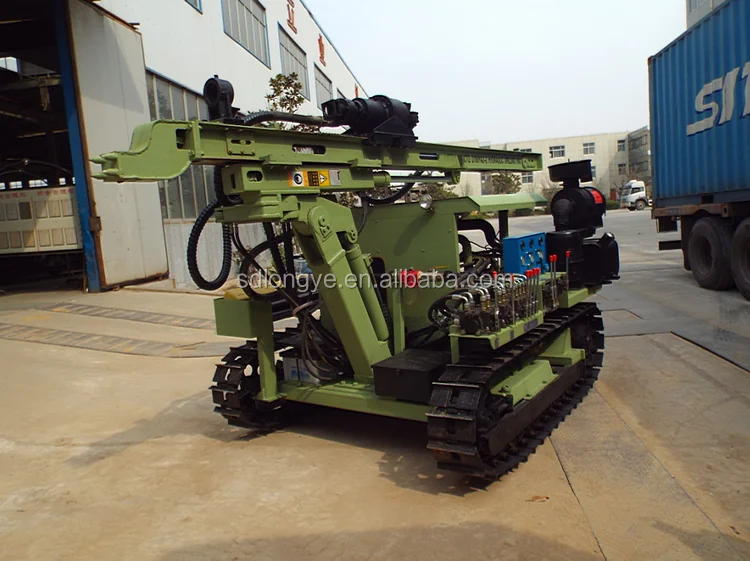

Crawler hydraulic drilling rig(CTQ-D100YA2-2)



 CTQ-D100YA2-2 crawler hydraulic drilling rig, adopt new hydraulic rotary motor ,increase the rotation gearbox with high speed, torque, and low failure rate. Low air consumption of the rig, the shift hole becomes convenient,use air filter and oil filter, reduce engine wear, thereby increasing the life of the diesel engine. The rig structure is compact, the minimum radius of gyration is 2.8m, while advancing the skid compensation function.when drilling the skid support on the ground, and hole have good stability.

   The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock drilling blasting holes.



Main technical parameters



Total Weight(T)	2.8
Drilling diameter(mm)	90--130
Dimension (L * W * H)mm	4100x2030x2020
Drilling depth(m)	30
Travelling  speed(km/h)	2
Once promotion distance(m)	2
Grade ability(°)	30
Working pressure(MPa )	0.7-1.4
Chassis ground clearance(mm)	260
Air consumption(m3/min)	7-15
Skid pitch(.)	up and down 100
Host Power(kw)	33kw
Sliding tilt swing(.)	L35,R10
For rock	F=6-20
Skid compensation(mm)	900



























Shandong Longye Machinary Co., Ltd. is specialized in the production of hydraulic pressure down-hole drilling rigs, engineering drills and water well drilling rigs. Our company is a backbone enterprise in the industry.
Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise.
Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents.

Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment.

On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.
