Product Overview
Description
Cat6A S-FTP Lan Cable ,CAT6 FTP/UTP/SFTP Cable for cat6a
Order Information :
Model |
Name | Conductor |
Nominal OD(mm) | Conductor Resistancein 20℃( ≤Ω/km) |
Package |
Color | |
AWG | Core number/diameter(mm) | ||||||
213 | CAT.6A.SFTP | 23AWG | 1/0.574 | 7.6 | 70.08 | 305m/box | Optional |
313 | CAT.6A.SFTP | 23AWG | 1/0.58 | 7.9 | 68.5 | 305m/box | Optional |
Specification:
Structure: 4P+F+MAB Twisted Pair Conductor: Solid or Stranded Bare Copper
Insulation: HD-PE Inner shielded : AL-Foil 125%(min)Coverage
Outer shielded : Braiding 60%(min)Coverage
Jacket: PVC or LSZH Rated temperature: 75℃
Impedance: 100±15℃Ω Frequency: 500MHz
Reference standard: YD/T1019-2001,ISO/IEC11801,ANS/TIA/EIA-568B,UL444
Flame Retardancy Standard: CM/CMR

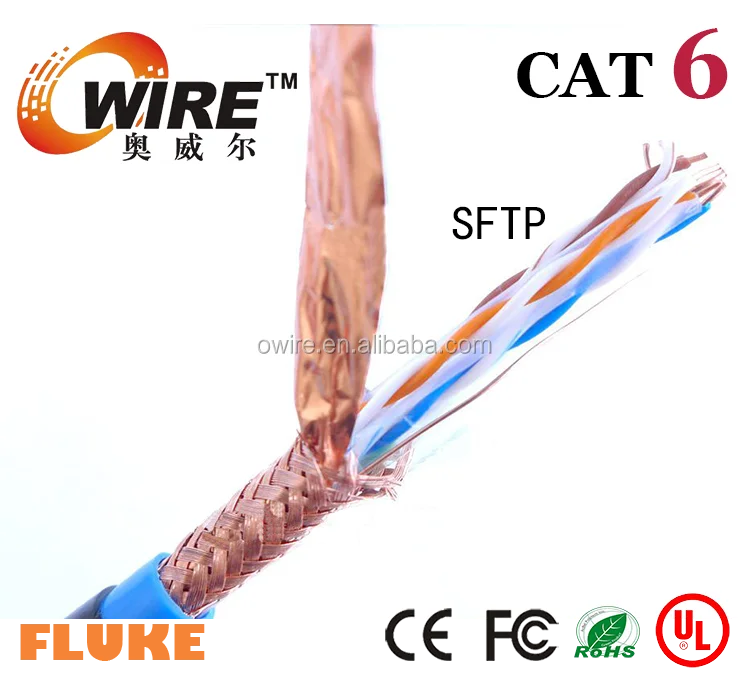

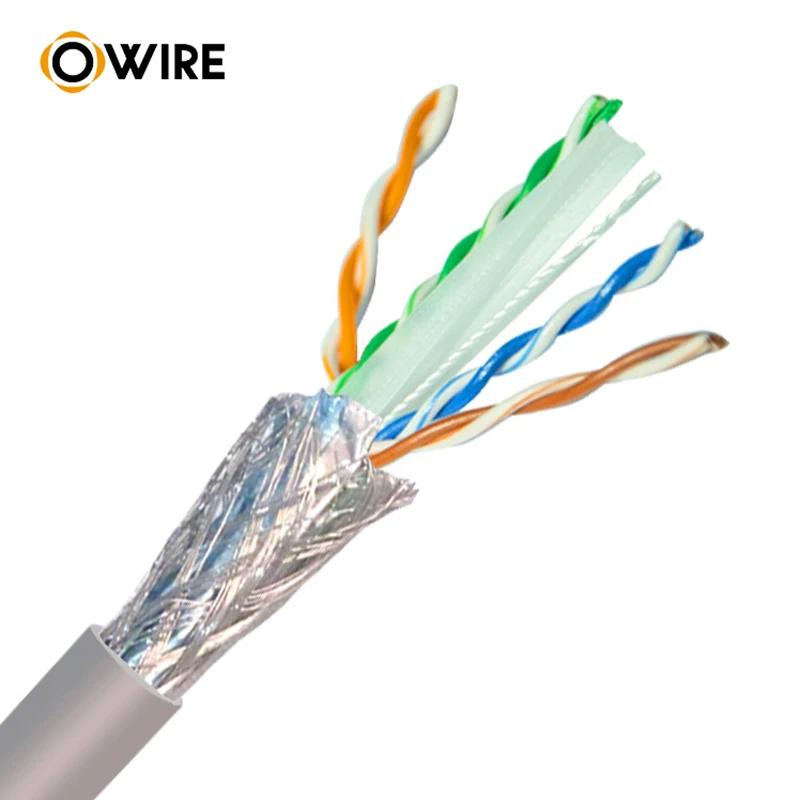

PHOTOES:
Cabling standards meet:
10BASE-T 100BASE-TX 100BASE-T4 100BASE-T
The effective bandwidth of data layer is 10Gbit/s the maximum transmission distance is 100meters .
Cross isolation structure and the thicker jacket effectively avoid the crosstalk between each pair of the cable double shield structure make the cable have stringer.
Anti-interference ability to the outside world and transmit the signal in strictest confidence .
Application:
Mainly used in the wiring system between work area correspondence leading-out terminal and distribution wiring frames connection. as well as used in the housing synthesis wiring system between user correspondence leading out terminal and patch panel .
