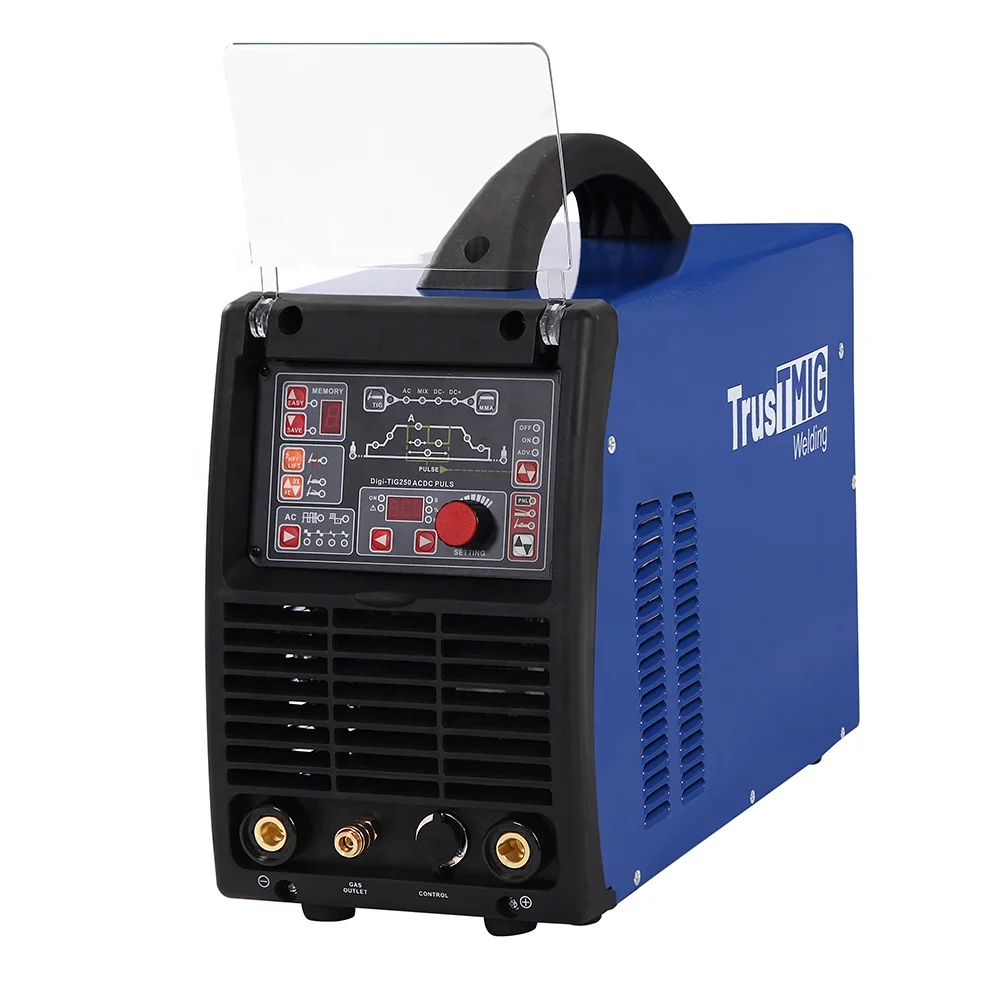

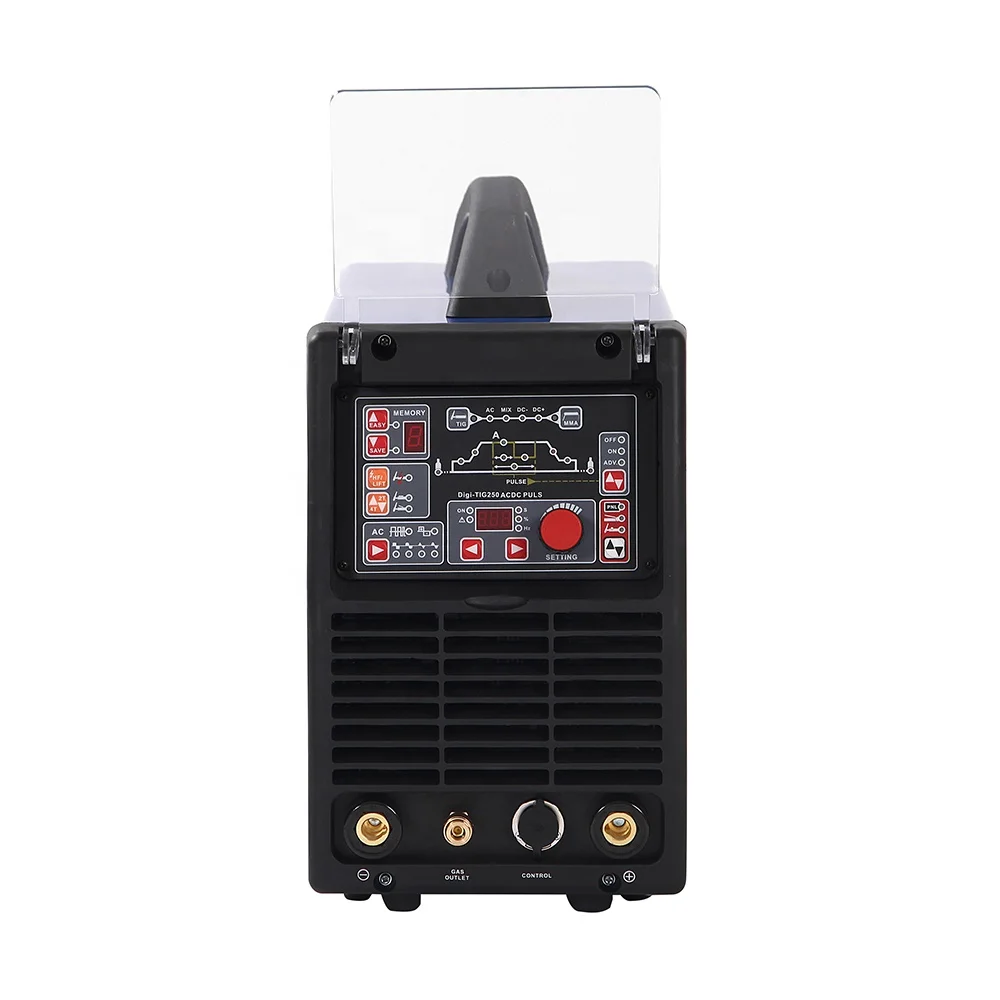

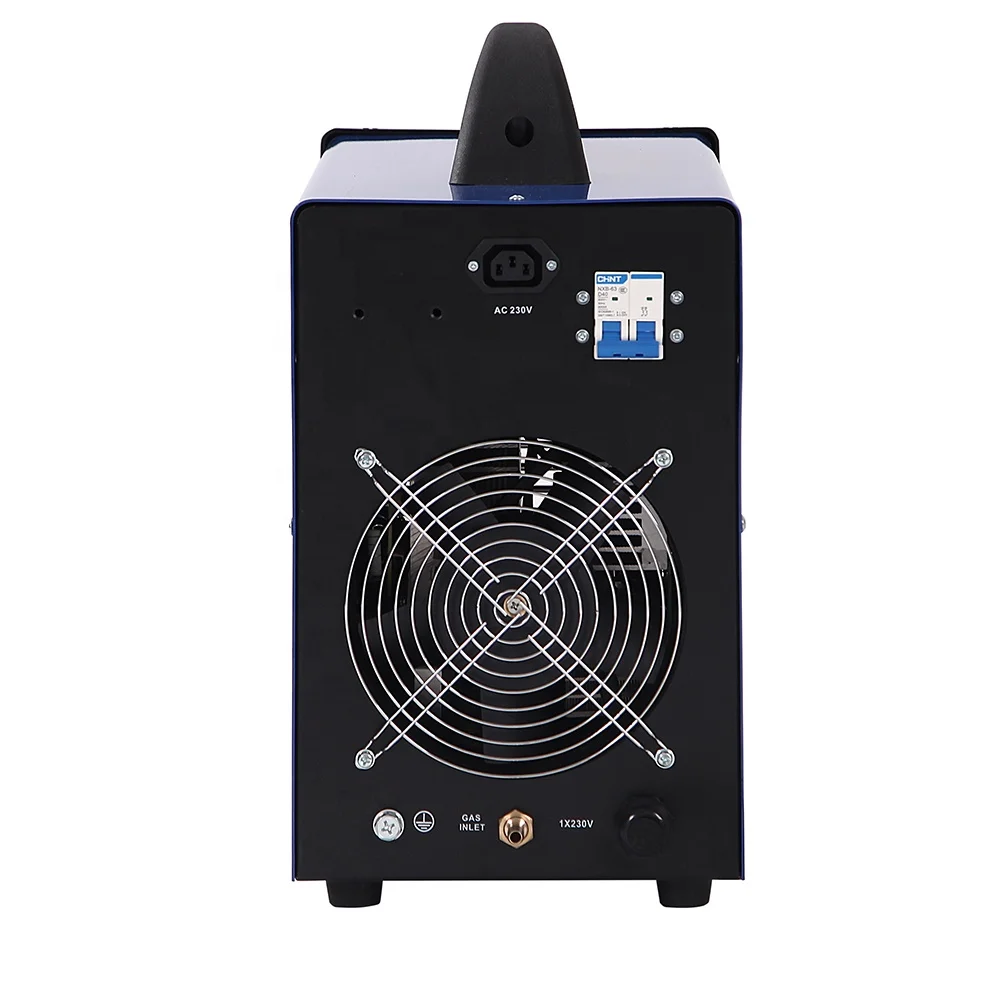

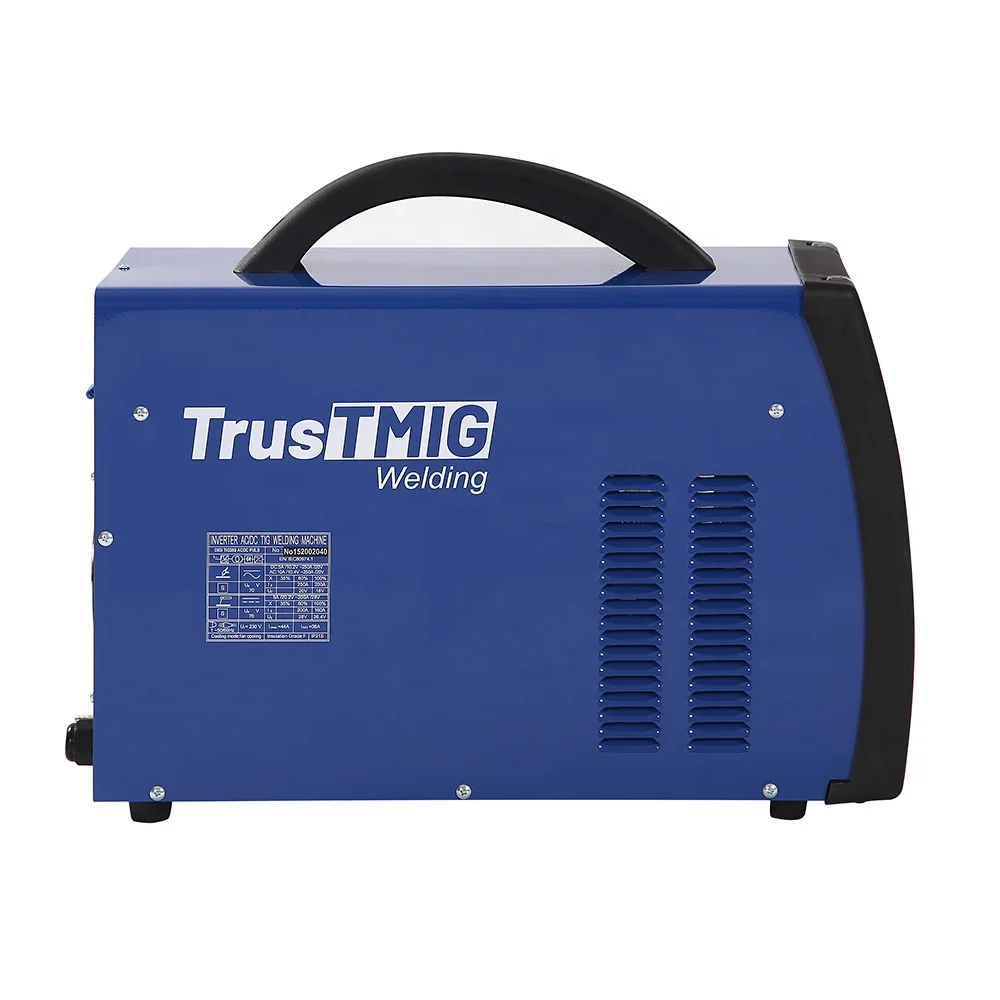

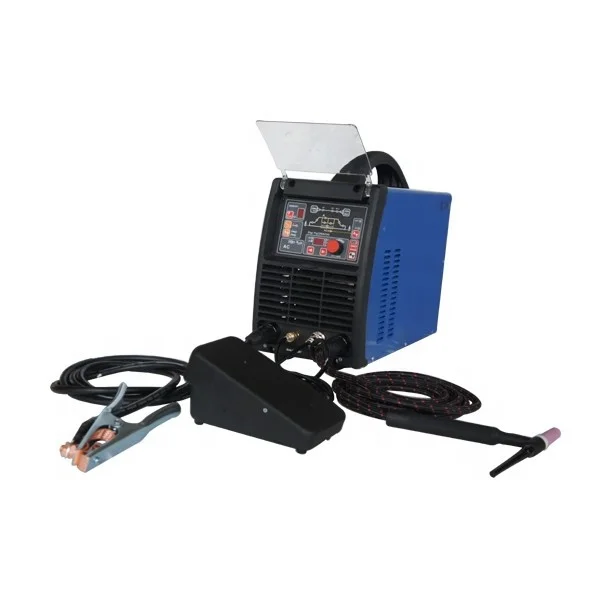

IGBT Inverter Digital Tig 250 AC DC Pulse TIG Arc Welding Machine
- Category: >>>
- Supplier: Beijing Aland Welding Co. Ltd.
Share on (60608787598):
Product Overview
Description
IGBT Inverter Digital 250A Pulse AC DC TIG MMA Welder Digi-TIG250ACDCPULS
Product Description
Functions: AC TIG, DC TIG, PULSE TIG, HF TIG, MMA (Stick Welding)
Suitable Material: Aluminum Alloy, Stainless Steel, Carbon Steel
Features:
1. IGBT Digital Control high frequency inverter
2. Lift and HF for TIG

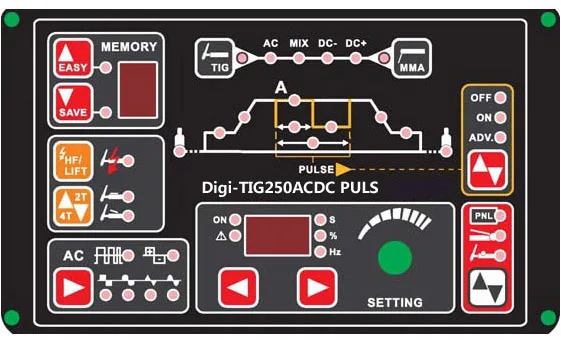

3. All parameters preseted by one knob
4. MMA: Hot arc start, arc force, anti-stick.
TIG: Pulse AC DC TIG, HF/Lift arc start
5. 4 different kinds of wave (Square, Soft Square, Sine & Triangular) control for AC TIG
6. 2T/4T function
7. 10 memories for selection
8. Foot Pedal and finger control Current function.
Optional:
Dual Voltage: 110V/220V
2. Lift and HF for TIG
3. All parameters preseted by one knob
4. MMA: Hot arc start, arc force, anti-stick.
TIG: Pulse AC DC TIG, HF/Lift arc start
5. 4 different kinds of wave (Square, Soft Square, Sine & Triangular) control for AC TIG
6. 2T/4T function
7. 10 memories for selection
8. Foot Pedal and finger control Current function.
Optional:
Dual Voltage: 110V/220V
Display: LCD
PFC
VRD for MMA
Main Specification
Model | DIGI-TIG200ACDC PULS | DIGI-TIG250ACDC PULS | DIGI-TIG320ACDC PULS |
Input Voltage | 1*230V 50/60Hz | 1*230V 50/60Hz | 1*230V 50/60Hz |
Input Power Capacity | 7.4KVA | 9.2KVA | 10KVA |
Rate Input Current | 32.3 | 40 | 14.5 |
No Load Voltage | 80V | 80V | 80V |
Current Range | TIG: 5-200A, MMA: 20-160A | TIG:5-250A, MMA:5-200A | TIG:10-320A, MMA:10-250A |
Rate Duty Cycle | 60% | 60% | 60% |
Net Weight | 25kg | 28kg | 30kg |
Package Weight | 40kgs | 40kgs | 44kgs |
Machine Size (LWH) | 560x240x460mm | 560x240x460mm | 560x240x460mm |
Packing Size (LWH) | 650x450x520mm | 650x420x520mm | 650x420x520mm |

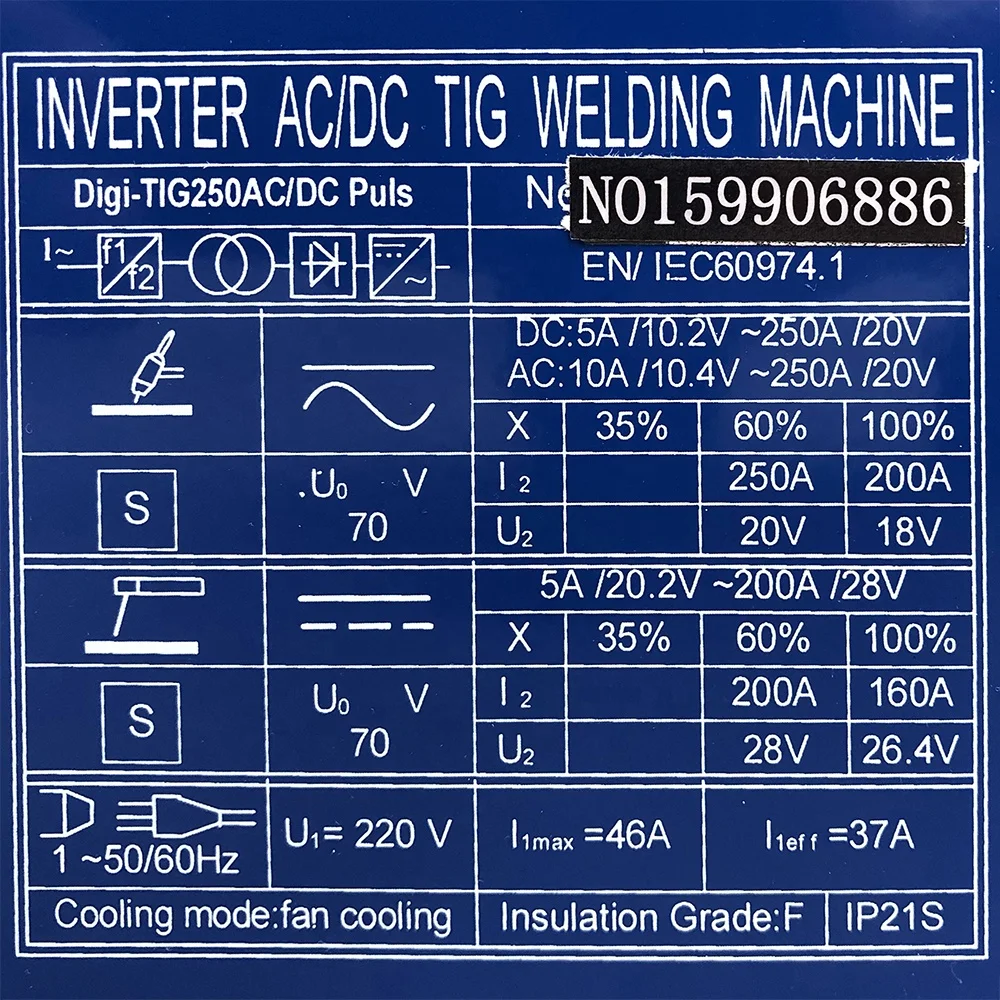

Parameters in Details:
MODEL | Digi-TIG250ACDC PULS | ||
INPUT | Voltage | 1xAC220V 50/60Hz | |
DC MMA | No-load Voltage | 70V | |
Current Adjusting Range | 5A~200A | ||
Rated Output Current | 200A | ||
Rated Duty Cycle | 60% | ||
AC TIG | No-load Voltage | 70V | |
Current Adjusting Range | 10~250A | ||
SP % (AC balance) | 10~70 | ||
AC Square Wave Frequency | 30~250Hz | ||
Rated Duty Cycle | 60% | ||
Current Adjusting Range | 5~250A | ||
Rated Duty Cycle | 60% | ||
PULSE TIG | Peak Current | 5~250A | |
Base/peak Current ratio | 5%~95% | ||
Rated Duty Cycle | 60% | ||
Pulse width | 5%~95% | ||
pulse Freq. | 0.1~500Hz@DC 0.1~250Hz@AC ADV.SQUARE 0.1~10Hz@AC SOFT SQUARE & TRIANGULAR & SINE WAVE | ||
TIG (MIX) | AC peak Current | 10~250A | |
DC(base)/AC peak Current Ratio | 5~95% | ||
Rated Duty Cycle | 60% | ||
Pulse width | 5%~95% | ||
pulse (AC to DC-) Freq. | 0.1~10Hz | ||
Current UP/Down-slope Time | 0~10S | ||
Initial current/welding current | 5~150% | ||
crater-fill current/welding current | 5~95% | ||
Pre gas Flow Time | 0~25s | ||
Post gas Flow Time | 0~25s | ||
Arc starting Mode | HF/LIFT TIG | ||
Efficiency | ≥80% | ||
Protection Class of enclosure | IP21S | ||

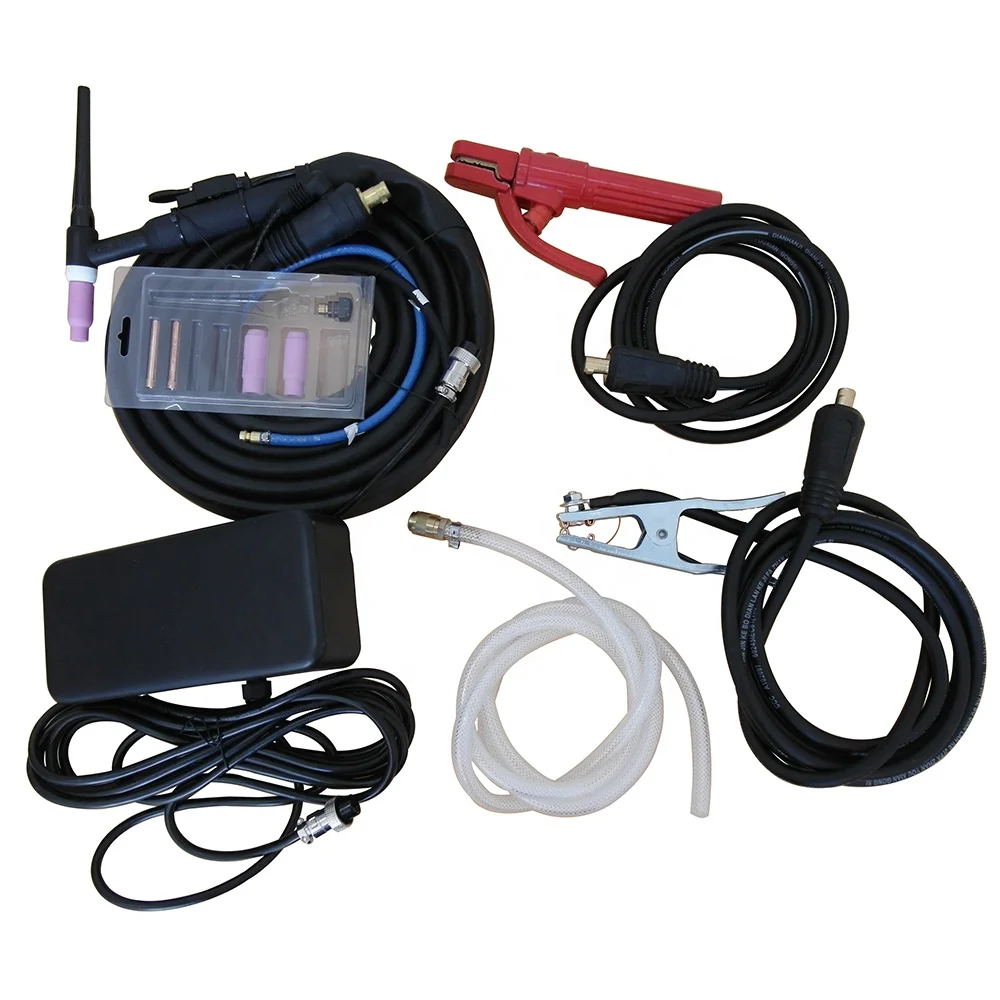

Standard Accessories:
Production Workshop
FAQ.
1. Why Choose us?
- We have nearly 10 years experience in welding industry and export to all over the world.
- We have experienced R&D team. We can adjust the parameter and panels design as per your request.
- We have experienced R&D team. We can adjust the parameter and panels design as per your request.
- Most of key parts are adopted top brand to ensure the quality. Such as the IGBT of Infineon (Simens).
- Each machine will be inspected before shipping.
- One year warranty, life-long technical support and design service.
2. Could you get a customized sample?
Yes, we can adjust some configuration and parameters as your request.
- Each machine will be inspected before shipping.
- One year warranty, life-long technical support and design service.
2. Could you get a customized sample?
Yes, we can adjust some configuration and parameters as your request.
It also includes OEM service.
3. How is your quality control?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements, acting as excellent quality and the best possible welding results.
4. What voltage could you provide?
We use the world-class quality inspection to make every machine strong, powerful and reliable. We inspect with the world class quality testing to make every single machine strong, powerful and reliable.
Inpection is full range, covered from welding power source to wire feeders, welding torches and up to welding consumables and work safety. Whether you want to weld with 2T/4T, GAS/NO GAS, our components, which have been perfectly tuned to your requirements, acting as excellent quality and the best possible welding results.
4. What voltage could you provide?
110V/220v, 220/380V, 230V etc.
We can make it as per your country voltage.
5. Can you send me the video to show how the machine works?
At present, some machines have video. We will try to make video of featured machine in future.
6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
At present, some machines have video. We will try to make video of featured machine in future.
6. Do you have engineer who can guide me to install system?
Yes, we have a professional team. They can teach you how to work with it.
7. How long is the lead time for welding machine?
If no stockes, usually it takes 30-35 days after confirmation of order.
