2.5mm pvc insulated copper conductor building wire electric cable
- Category: >>>
- Supplier: Zhengzhou Sitong Cable Co. Ltd.
Share on (60608867697):
Product Overview
Description

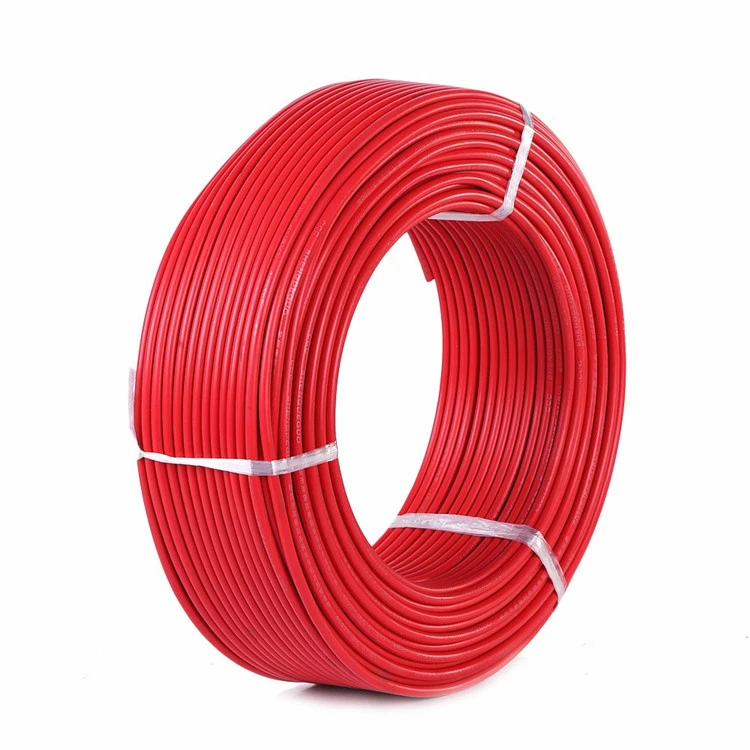

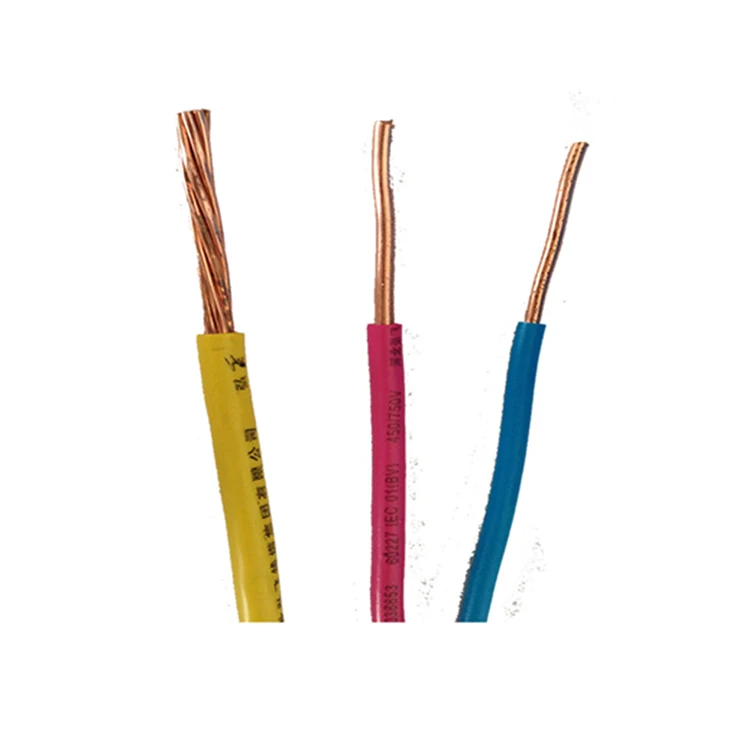

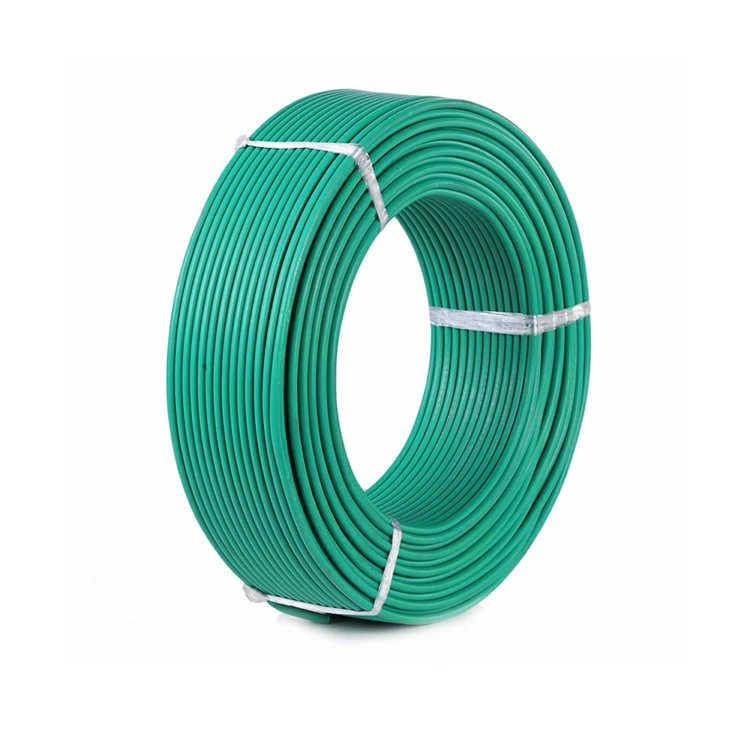

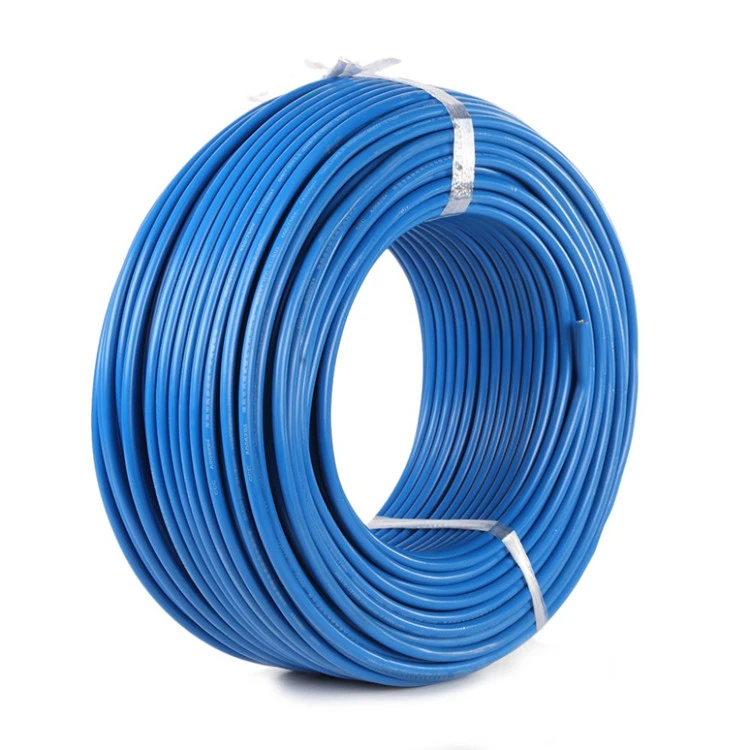

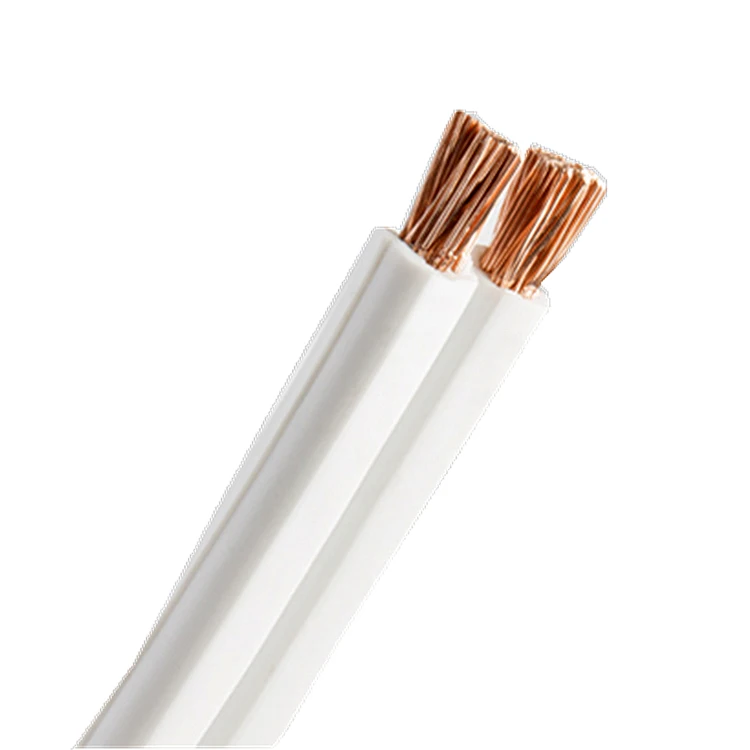

2.5mm pvc electric cable
Product description
Low voltage pvc insulated electric wire has been widely used in our country with the advantages of excellent electric properties,strong ability to resist short circuit,long service life ,easy to install,operate and maintain,etc
The product of 2.5mm pvc electric cable PVC insulated wires belong to the series of laying electric wires, which is mainly suitable for laying at the fixed places, It is widely used as connectors of drive,lighting ,electronic equipments ,Instrument and telecommunication equipments with rated voltage 450/750v or below , Part of plastic wires are used at the equipment with A.C rated votage 300/300v or below.
Standards: ASTM / ICEA S-76-474 , IEC 60502 ,DIN, NFC 33-209 , BS 7870 GB/T 12527 etc
Specifications
| Nominal section.(mm2) | conductor No./Dia (mm) | Insulated thick (mm) | Max.overall Dia. (mm) | Conductor resistance at 20'C | Weight (kg/km) | ||
| copper | aluminum | copper | aluminum | ||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | 19.2 | ||
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 500.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 1808.0 | 668.0 |
Detailed Images
Packaging & Shipping
We usually use the standard wooden drum to package as the belowing picture.We also can design the different package types according to the customer's requirements.
Shipping port: Qingdao, Shanghai or other ports as per your requirements
Sea freight: FOB/CFR/CIF etc quotation are all available
Our Services
Product Service is the key point between the business cooperation ,we have our own special services as below:
1).Free 3-5 Year Product Warranty;
2).We can provide the pre-sale ,sale and after-sale instruction and technical support.
3).We have the standard wooden drum packing and strict product inspect process etc.
100% Product Inspect From The Raw Material To The Finished Cables Step By Step
Company Information
Zhengzhou Sitong Cable Co.,Ltd was founded in 2011, which is located in Innovative industrial park Goutang Town, Xinmi City ,Henan Province,China;
1. The main products of our company
Concentric Cable
Bare Conductor(AAC, ACSR, AAAC)
ASTM ABC Cable(Duplex, Triplex, Quadruplex)
NFC 33-209 ABC Cable
PVC Insulated House Wire(BV, THHN)
2. The advantages of our company
Own factory with factory direct price
Free sample
OEM /ODM
Technical team provide professional service
Own laboratory
All type test
Speed delivery
Accept small orders
3. Factory and office show:
The factory
The office
Our Certifications
Our factory could produce the cables and wires according to many standards including the JS,GB,IEC,BS,ASTM,DIN,NFC and NS to meet the customer's different and various special demands.
