Product Overview

Description


Refrigeration Unit

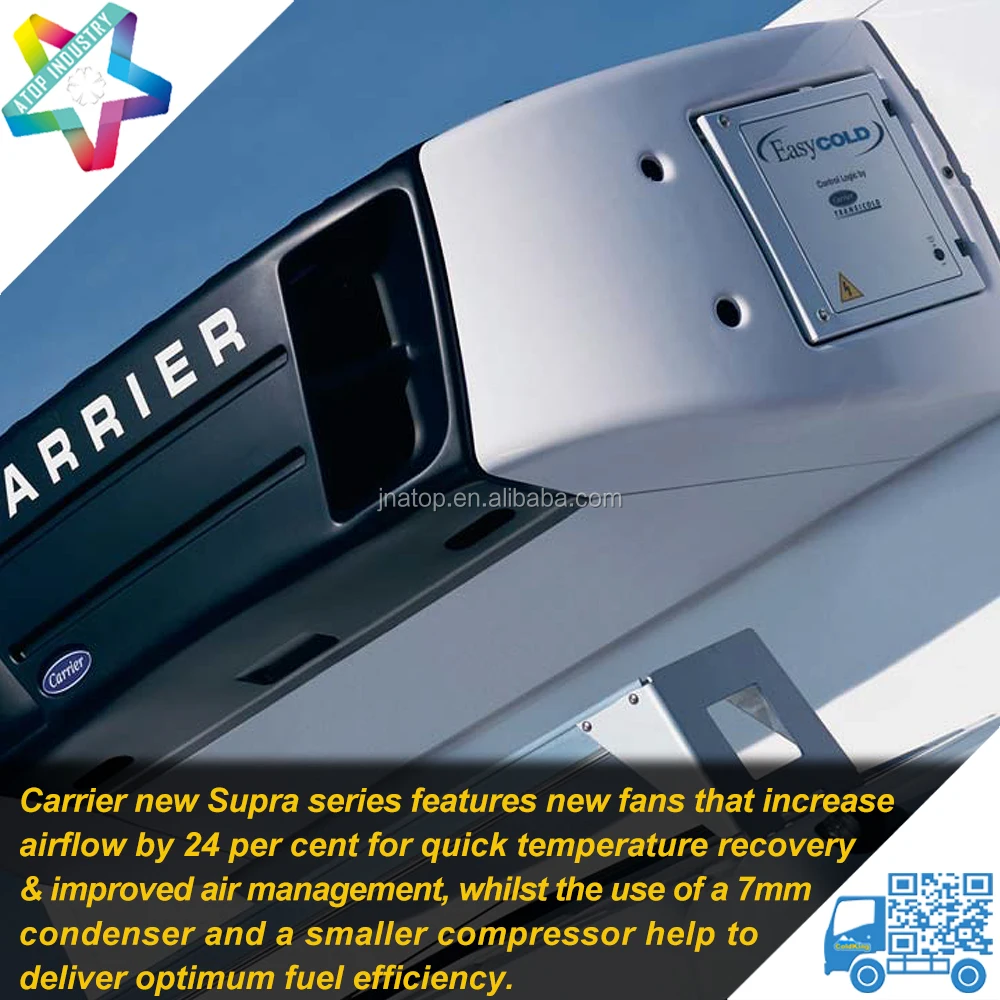

Carrier Supra Range Key Features

The SUPRA range achieves superior pull down and accurate temperature control at all set points. This performance is supported by a large range of evaporators with electric fans providing constant airflow independent of engine speed. Available in multi-temperature throughout the range, SUPRA offers enhanced load protection for all truck applications. carrier supra truck refrigeration units carrier supra truck refrigeration units carrier supra truck refrigeration units carrier supra truck refrigeration units carrier supra truck refrigeration units

\t
Carrier Supra Series Refrigeration Unit Specification
\t
Model
\t
Supra 550
\t
Supra 750
\t
Supra 850
\t
Type
\t
Self-Powered Diesel Engine Driven, Condenser & Evaporator Combined
\t
Refrigeration Capacity: System Net Cooling Capacity
@ +30C Ambient Temperature Per A.T.P. Procedure
\t
Return Air To Evaporator
\t
0C
\t
-20C
\t
0C
\t
-20C
\t
0C
\t
-20C
\t
Refrigeration Capacity
On Engine Power
\t
5,455W
\t
3,165W
\t
6,780W
\t
3,800W
\t
7,810W
\t
4,910W
\t
Electric Stand-By System
\t
Standard
\t
Standard
\t
Standard
\t
Refrigeration Capacity
On Electric Stand-By
\t
4,670W
\t
2,770W
\t
5,920W
\t
3,120W
\t
6,450W
\t
4,240W
\t
Heating Capacity
\t
Model
\t
Supra 550
\t
Supra 750
\t
Supra 850
\t
Diesel High Speed
+18C/-18C
\t
1,940W
\t
2,170W
\t
3,360W
\t
Stand-By
+18C/-18C
\t
1,205W
\t
1,205W
\t
1,765W
\t
Airflow
*On High Speed Engine Operation
\t
Airflow Volume
\t
2,150m3/Hr
\t
2,140m3/Hr
\t
2,500m3/Hr
\t
Discharge Velocity
(Air Throw)
\t
carrier supra truck refrigeration units
\t
carrier supra truck refrigeration units
\t
carrier supra truck refrigeration units
\t
Defrost
\t
Automatic Hot Gas Defrost/Manual Defrost
\t
Compressor
\t
Model
\t
05K2
\t
05K2
\t
05K4
\t
Number Of Cylinders
\t
2
\t
2
\t
4
\t
Displacement
\t
200cm3
\t
200cm3
\t
400cm3
\t
Max.
Recommended Speed
\t
2,400RPM
\t
2,400RPM
\t
2,400RPM
\t
Self-Powered Diesel Engine
*Only For Self-Powered Diesel Engine Driven Refrigeration Unit
\t
Model
\t
CT2-29 TriVortex
\t
CT3-44 TriVortex
\t
CT3-44 TriVortex
\t
Number Of Cylinders
\t
2
\t
3
\t
3
\t
Displacement
\t
479cm3
\t
719cm3
\t
719cm3
\t
Rating
\t
carrier refrigeration units
\t
carrier refrigeration units
\t
carrier refrigeration units
\t
Maintenance Interval
\t
500/750Hrs
\t
750/1,000Hrs
\t
750/1,000Hrs
\t
Electric Stand-By Option
\t
Voltage
Phase
Frequency
\t
carrier refrigeration units carrier refrigeration units carrier refrigeration units
230V/400V3Ph/50Hz, 240V/460V/3Ph/60Hz
carrier refrigeration units carrier refrigeration units carrier refrigeration units
\t
Rating
\t
3.6Kw
\t
4.8Kw
\t
4.8Kw
\t
Refrigerant Charge
Zero Ozone Depletion Potential (ODP), Internationally Approved, ATP Conditions
\t
Type
\t
R404a
\t
Charge
\t
4.0Kg
\t
5.2Kg
\t
6.8Kg
\t
Refrigeration Unit Weight
*These Weights Don’t Include Battery
\t
Without Electric Stand-By
Model-30
Only For Thermo King
\t
carrier refrigeration units carrier refrigeration units
\t
carrier refrigeration units carrier refrigeration units
\t
carrier refrigeration units carrier refrigeration units
\t
With Electric Stand-By
Model-50
Only For Thermo King
\t

391Kg
\t

429Kg
\t

461Kg
\t
Unit Dimension
\t
Dimension (mm)
\t
1,823 x 825 x 555
\t
1,823 x 888 x 629
\t
1,823 x 888 x 629
\t
Body Opening (mm)
\t
1,245 (L) x 310 (H)
\t
1,245 (L) x 310 (H)
\t
1,245 (L) x 350 (H)

Building on hundreds of thousands of operating hours, Supra demonstrates a robust design both for aesthetics (strong composite material) and components (easy start) to extend the unit lifetime and reduce downtime. Maintenance time is also optimised thanks to easy accessibility.

Developed for distribution environments with multiple doors openings, rely on the unmatched performance of the SUPRA range in your challenging operation. carrier supra truck refrigeration units carrier supra truck refrigeration units carrier supra truck refrigeration units truck refrigeration units

Application

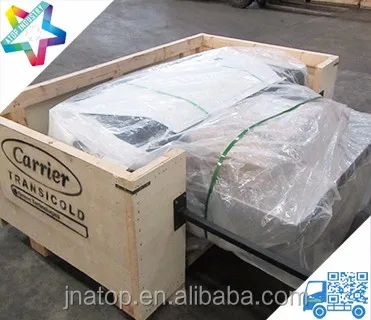

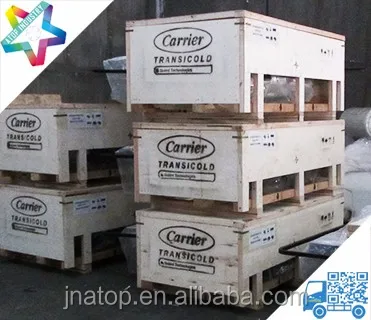

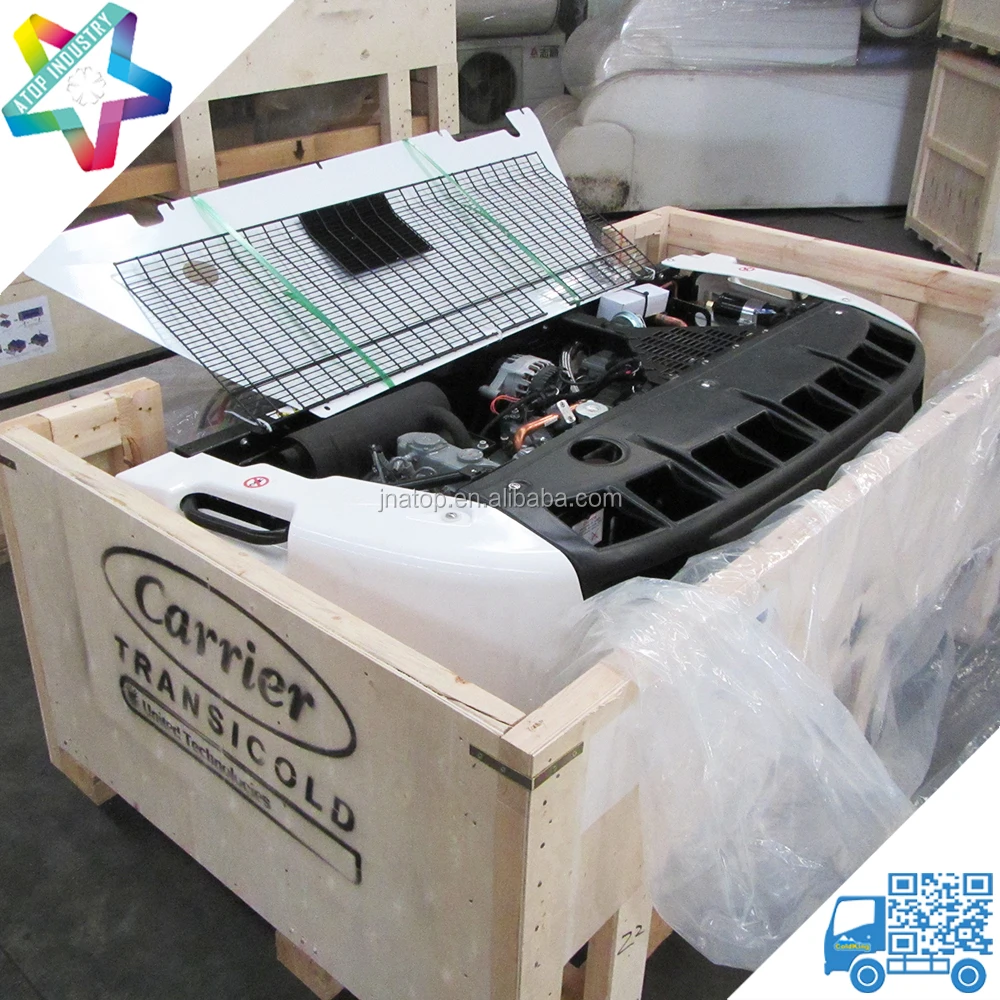

Packing & Delivery
Products Show

Kooltube Eutectic Reefer Unit

Ice Cream & Deep Frozen Cargo Purpose From -40C Refrigeration Capacity carrier supra truck refrigeration units

Thermo King Reefer Unit

The all-new T-Series line of truck units from Thermo King is ready to deliver what you and your customers demand.

Carrier Trailer Reefer Unit

4.3m ice cream truck body fitted on Isuzu NPR truck  chassis carrier supra truck refrigeration units

FAQ

Q1. What is your terms of payment? carrier supra truck refrigeration units  carrier supra truck refrigeration units  truck refrigeration units
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance payment.
carrier supra truck refrigeration units  carrier supra truck refrigeration units  carrier supra truck refrigeration units  truck refrigeration units
Q2. What is your terms of delivery? carrier supra truck refrigeration units  carrier supra truck refrigeration units  truck refrigeration units
A: EXW, FOB, CFR, CIF. carrier supra truck refrigeration units  carrier supra truck refrigeration units  carrier supra truck refrigeration units

Q3. How about your delivery time? carrier supra truck refrigeration units  carrier supra truck refrigeration units  truck refrigeration units
A: Generally, it will take 10 to 20 days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. carrier supra truck refrigeration units  carrier supra truck refrigeration units  carrier supra truck refrigeration units  carrier supra truck refrigeration units  carrier supra truck refrigeration units  carrier supra truck refrigeration units  carrier supra truck refrigeration units
Q4. Do you test all your goods before delivery? carrier supra truck refrigeration units  carrier supra truck refrigeration units
A: Yes, we have 100% test before delivery carrier supra truck refrigeration units  carrier supra truck refrigeration units  truck refrigeration units
