2017 New Fully Automatic Hydraulic pressure China Fastest speed Paper Plate Machine With Counting And Collection
4-11inch paper plate Forming/Making Machine Description :
Model JBZ-500 TOP-speed Automatic Paper Plate Forming Machine was developed and researched in order to meet the market requirement. It has integrated the pneumatic and the mechanic technologies, which makes it has the functions of faster working speed, higher safety-performance, safer operation and easier maintenance than the conventional one.
Model JBZ-500 Top-speed paper plate machine adopts high efficient hydraulic pressure, so that the Max. pressure can reach to 5T ,Compared with the oair cyliner one, it has the advantages of high speed, environment protection and humanism desin .
Standard JBZ-500 Paper plate machine has two working stations, each station install one set of mold and each station has separately PLC digital control and electric control.

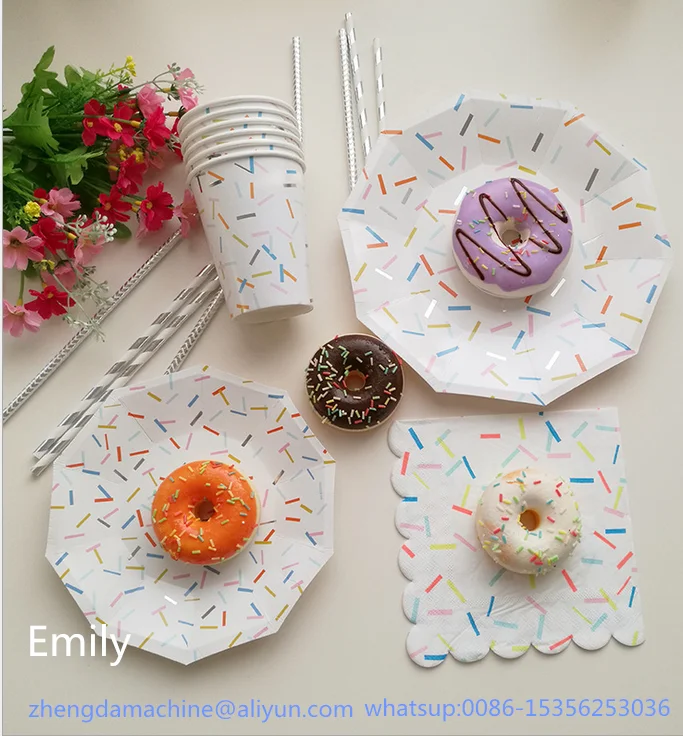

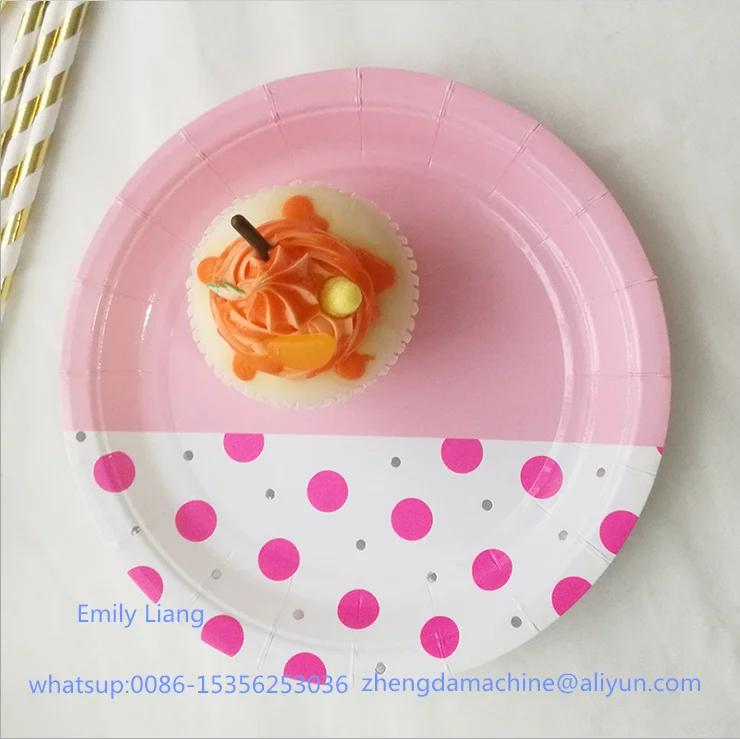

It is widely applied to make paper plate (or aluminum foil laminated paper plate) in round (rectangle, square, circular, or irregular) shape. Machine speed changes against the material (paper) thickness and the plate size.
4-11 inch paper plate forming/making machine Technical Specification :
HS. Code: 8441309000
Paper Plate Size : 4--11 inch (mold exchangeable);
Raw Material : Paper/paperboard, Aluminum foil coated paper, One side PE coated paper or other;
Suitable paper weight : 100--500 gsm (gram a square meter);
Rated Productivity : 120--150 piece/minute (total two stations, about 7200--9000pcs per hour);
Total Power : 6 KW;
Power Source : 380V 50Hz or other required;
Total Weight : 2000 Kg;
Package Size (L x W x H) : 3,0m x 1.7m x 1.7m ;
Air source : Working pressure 0.8Mpa, Air out-put 0.3 m3/minute (need to buy Air comprssor);
If your plate is very large, and the paper is up 600gsm, we design a special machine for you.
Pressurizing Hydraulic Pressure Technical Specification :
- Air flow vlume :0.3 cubic/min;
- Air pressure:0.6-0.8Mpa;
- Hydrauli pump stroke:150mm;
- Hydraulic pressure :14mpa
